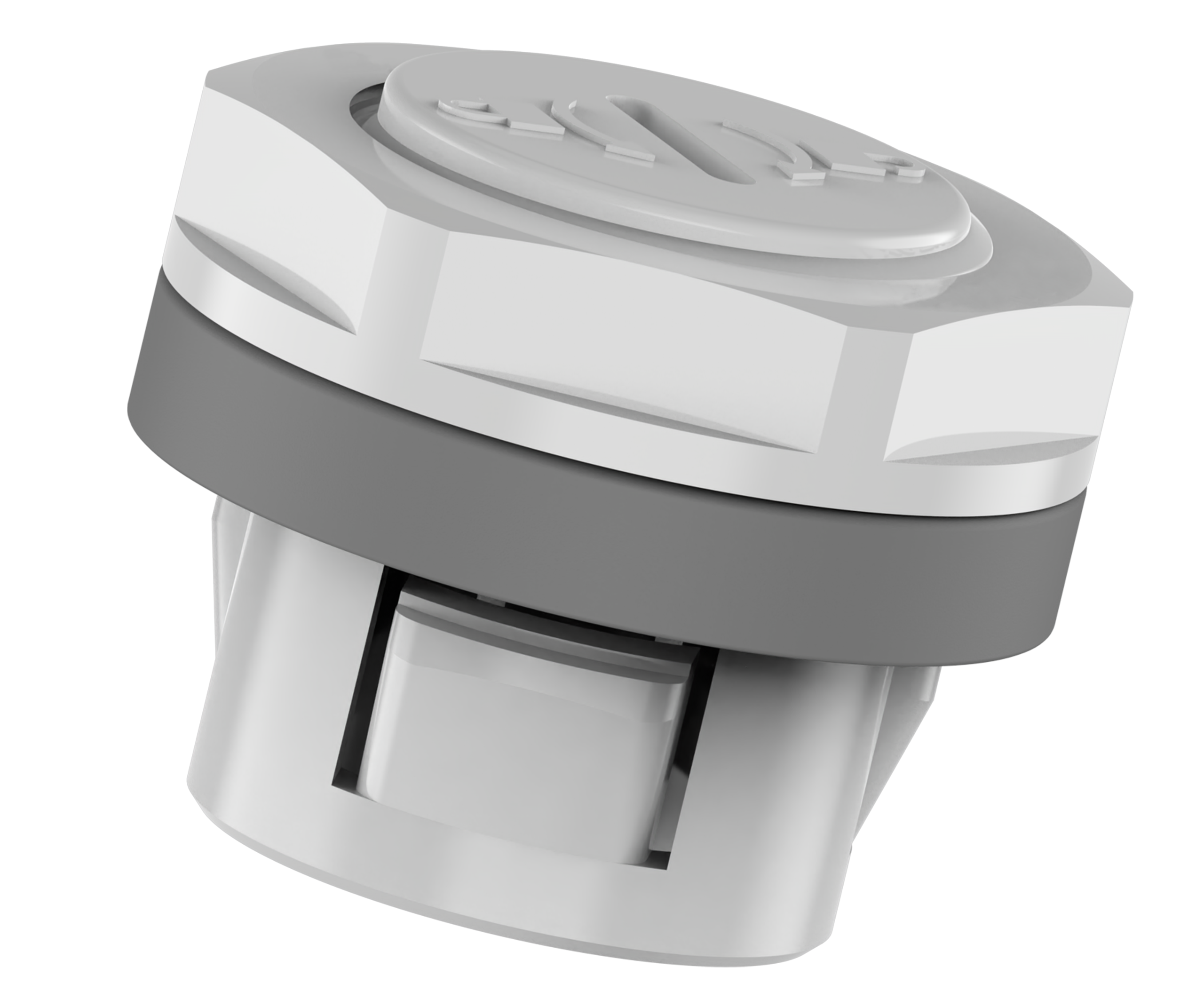

Modular Plugs, Plastic

For standard industrial applications.

Snap-in assembly for non-threaded holes.

Lock nuts have threads acc. to EN 60423 (metric) and acc. to DIN 40430 (PG).

Replacing the modular plug: lock nut can be used for fixing the cable gland.

Cable Gland Material	PA 6 (Polyamide 6)
Gasket	Chloroprene
Lock Nut	PA 6 GF 30 (Polyamide 6, 30% Glass Fiber Reinforced)
Flammability	V2 according to UL94
Ingress Protection Rating	IP 68 - 5 Bar, 30 min
Operating Temperature	Permanent -20°C to +100°C
Intermittent -30°C to +150°C

Remarks

Remarks Other colours on request:
RAL 5015 (blue)
RAL 9003 (white)
RAL 3020 (red)
