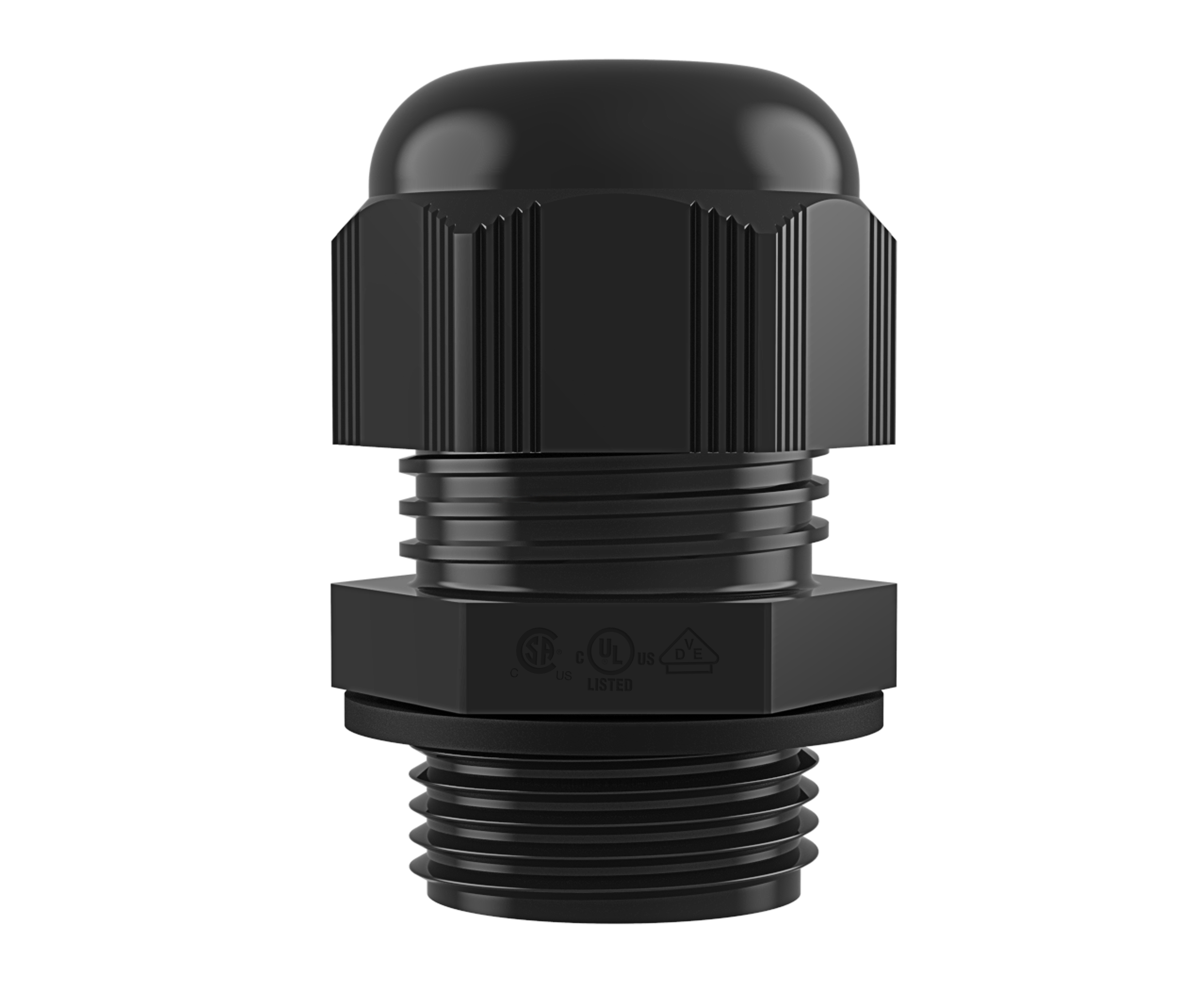

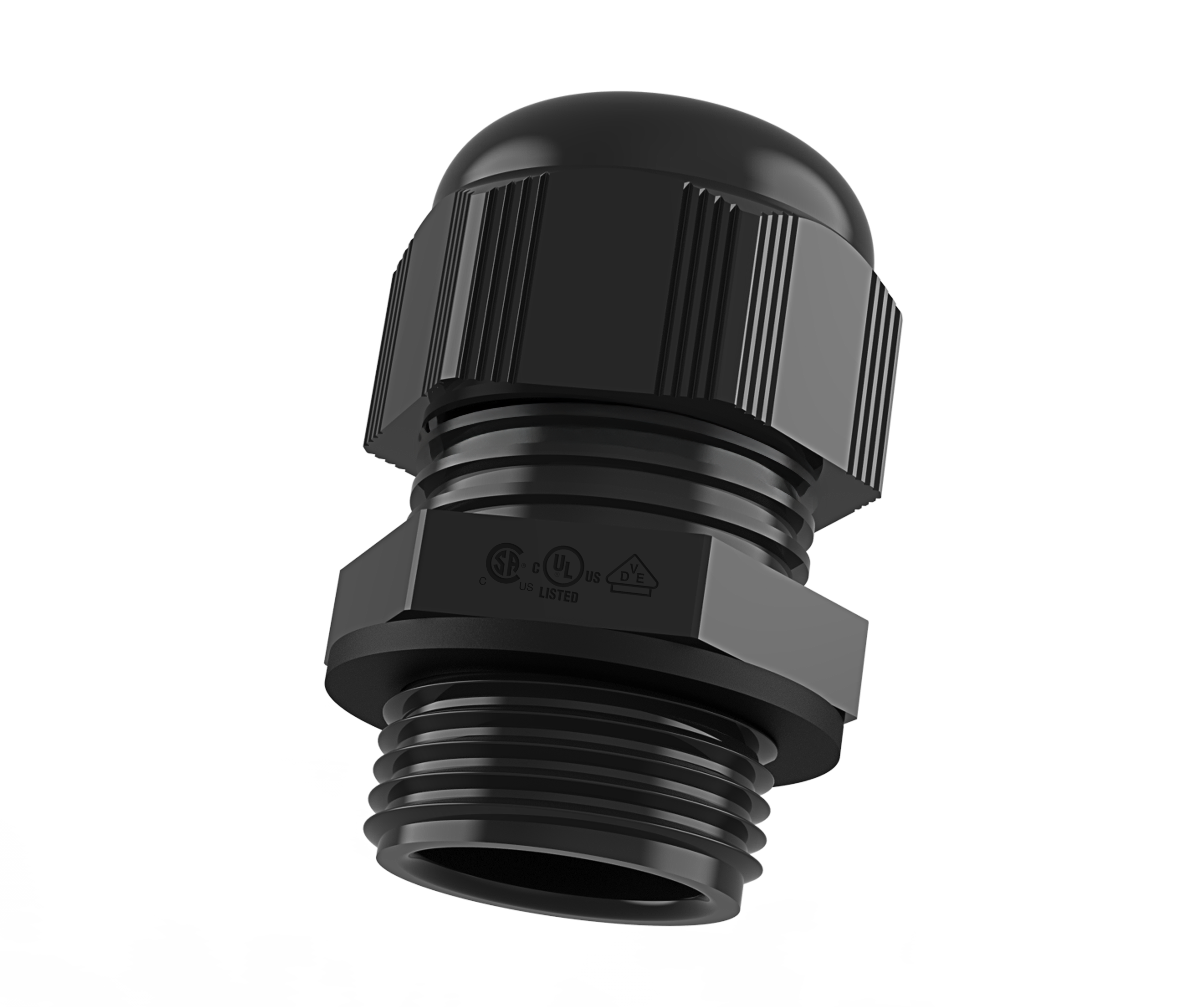

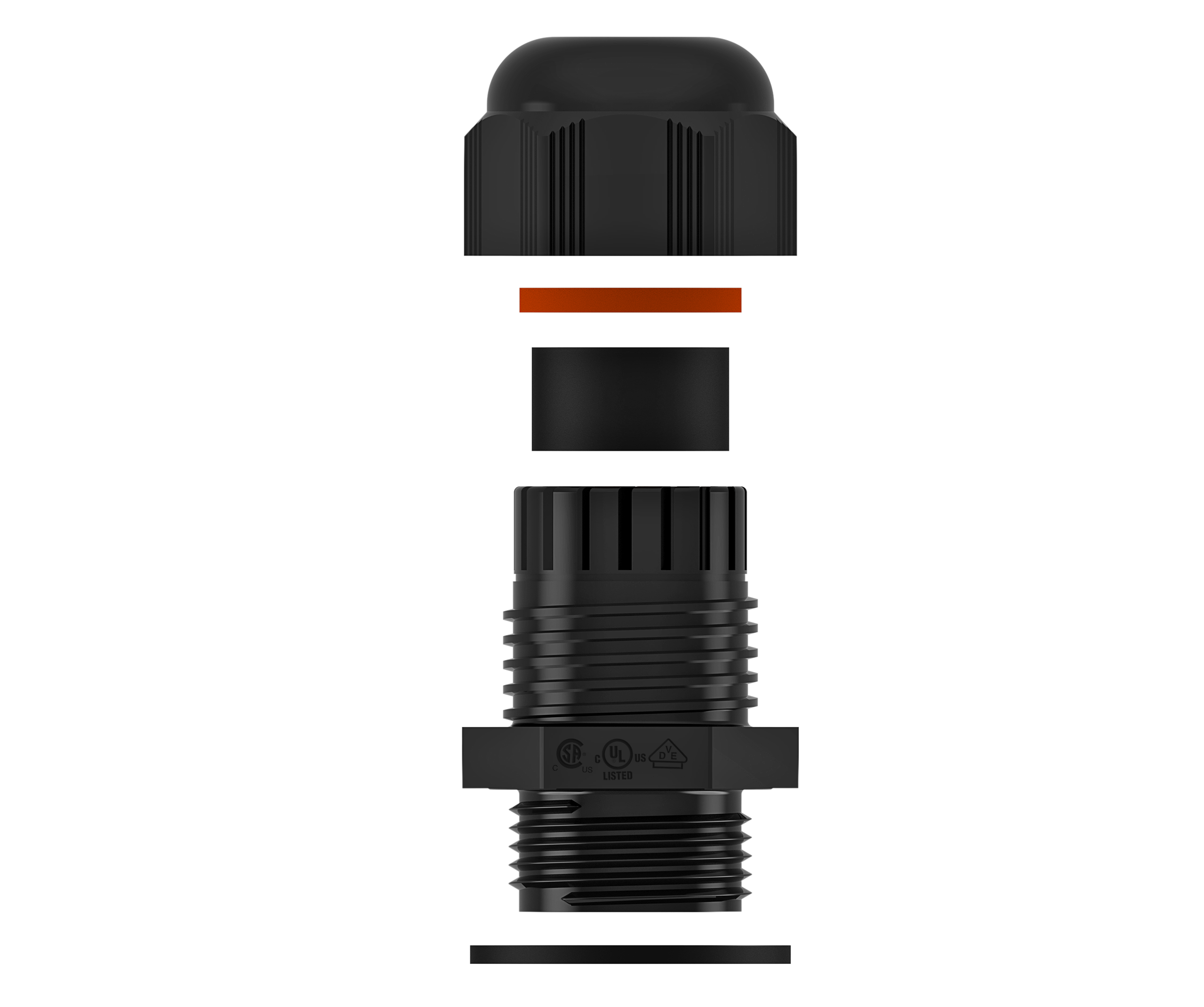

Gemini

For applications in explosive environments.

Special design for heat trace and flat cables.

Can be used with intrisically safe circuits.

High quality strain relief and sealing, reliable performance for standard hazardous area applications.

Up-to-date international approvals.

Suitable for use in	Group II, Group III
Equipment Marking	EX II 2GD Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Cable Gland Material	PA 6 (Polyamide 6)
Seal Material
Operating Temperature	Chloroprene, Silicone
Chloroprene: -40°C to +80°C
Silicone: -60°C to +80°C
M20 size approved with Chloroprene seal, M25 size approved with silicone seal
Thread Type	Metric, NPT
Other thread types available upon request.
Cable Type	Non Armoured
Accessories	Lock nuts, Gaskets (Washers), Dust plugs
Remarks	Accessories must be ordered separately. O-ring available in Metric outer threads.
