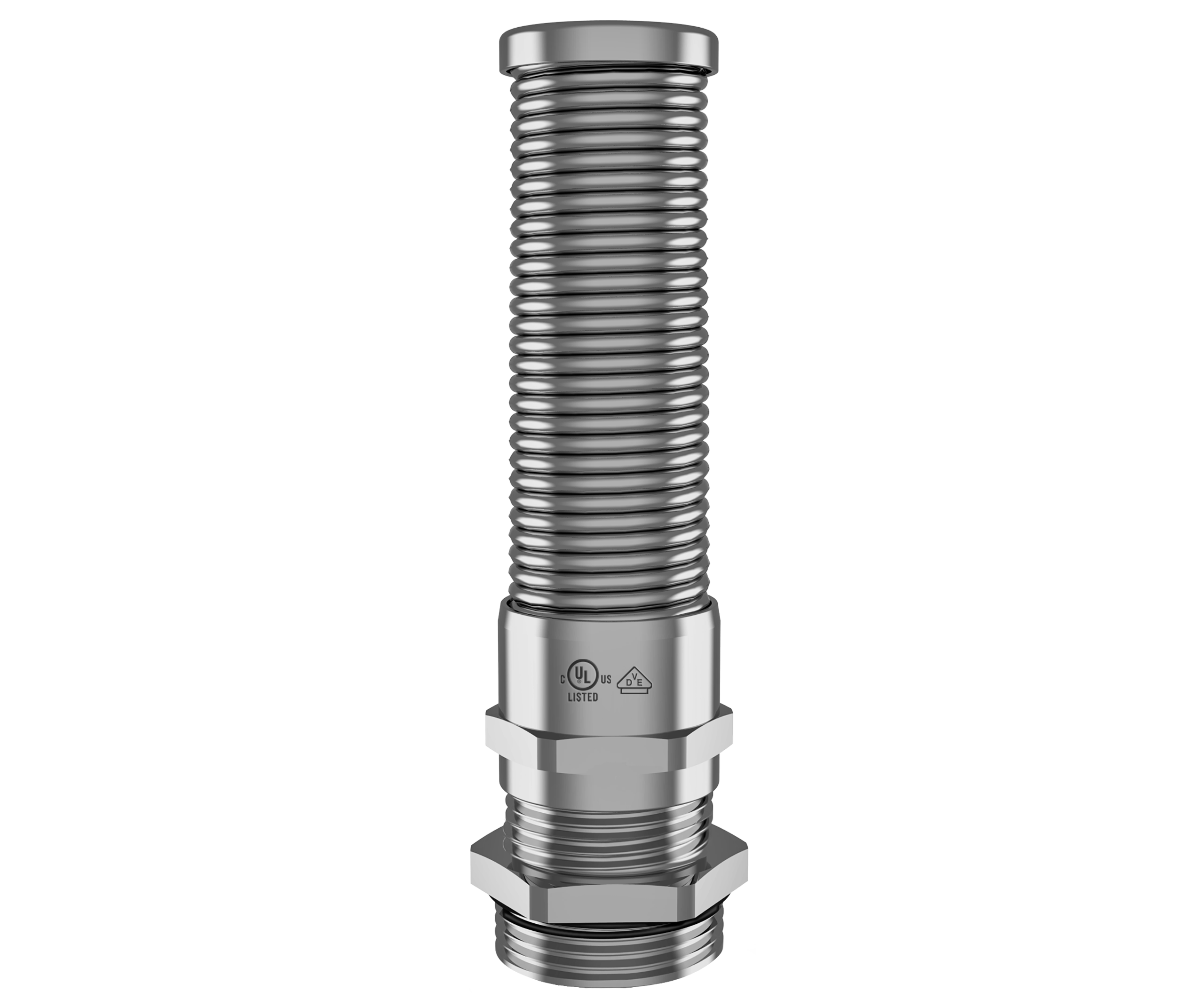

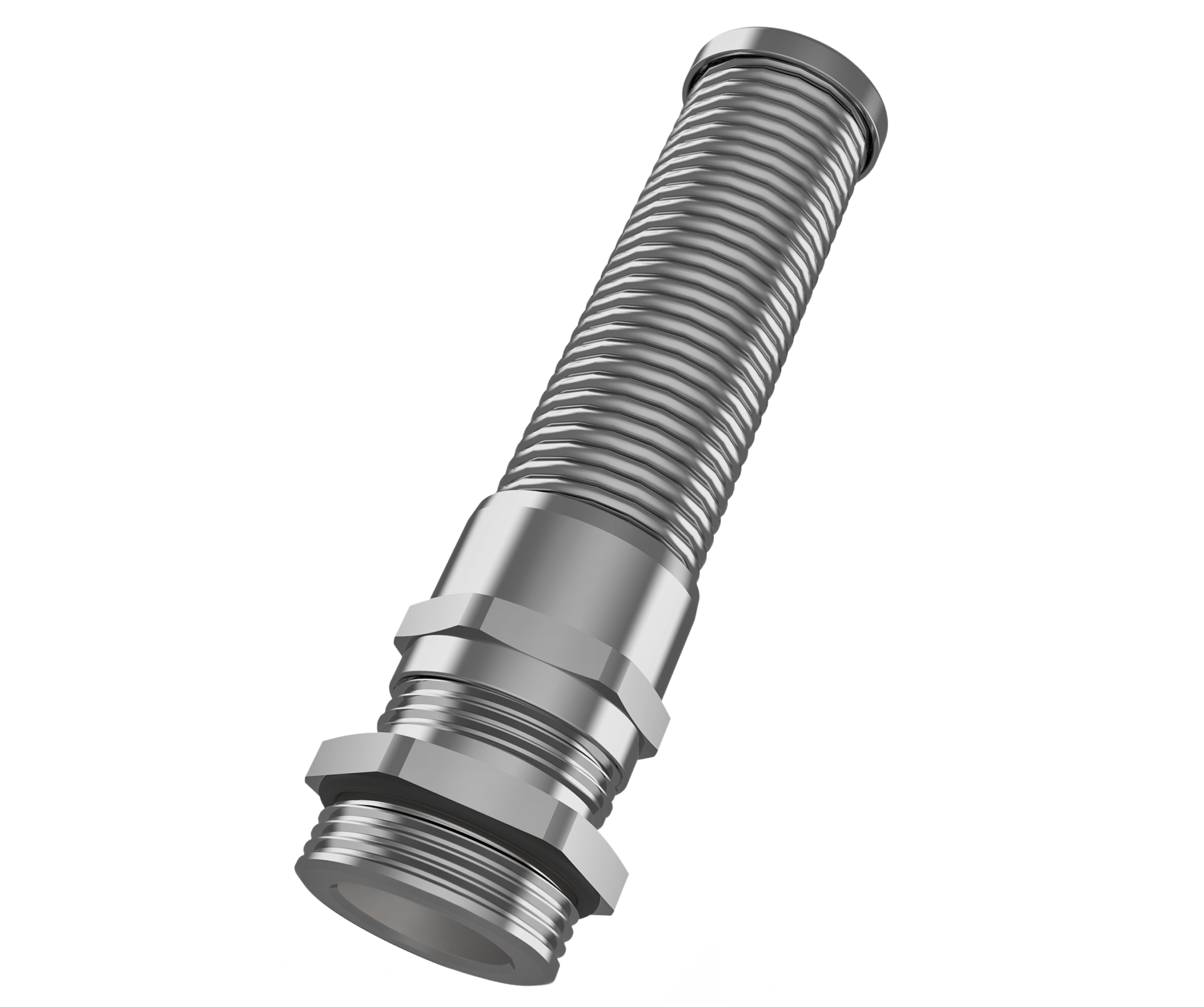

Cable Protection Glands, Metal

Designed with anti-kink features to minimize the risk of sharp bending of flexible cables, helping to prevent conductor fatigue and damage

Suitable for dynamic applications where cables are subjected to frequent movement or flexing

Designed for use with non-armoured cables, conforming to EN 62444 and UL514B standards

Applicable for both outdoor and indoor use in industrial areas.

High protection against dust, moisture, and water ingress

High tensile strength and reliable strain relief

Durable design with quick and easy assembly

Wide cable clamping ranges for versatile applications

Compatible with various sealing inserts (multihole, double seal, flat cable)

Cap/Body Material Nickel Plated Brass
Seal Material Neoprene (Chloroprene)
Clamping Insert Material Polyamide 6 V2 acc. to UL 94
Bending Spiral Material Stainless Steel
O-Ring Material NBR
Ingress Protection Rating IP68 - 5 Bar 30 min, IP66
Type Rating 1, 4, 4X, 12, 13
Flammability V2 according to UL94
Temperature Range Permanent -20 °C to +100 °C
Intermittent -40 °C to +150 °C
Thread Type Metric, PG
Cable Type Non-Armoured
Accessories ▪ Locknut
▪ Gasket (Washer)
▪ Reducing seal
▪ Double seal
▪ Flat cable seal
▪ Multihole seal
▪ Serrated washer
▪ Earthtag
Remarks ▪ Accessories must be ordered separately
▪ Some approvals may not apply to all sizes
▪ Other materials available on request: NBR, Silicone
▪ Other materials available on request: Stainless Steel 303, 316L
