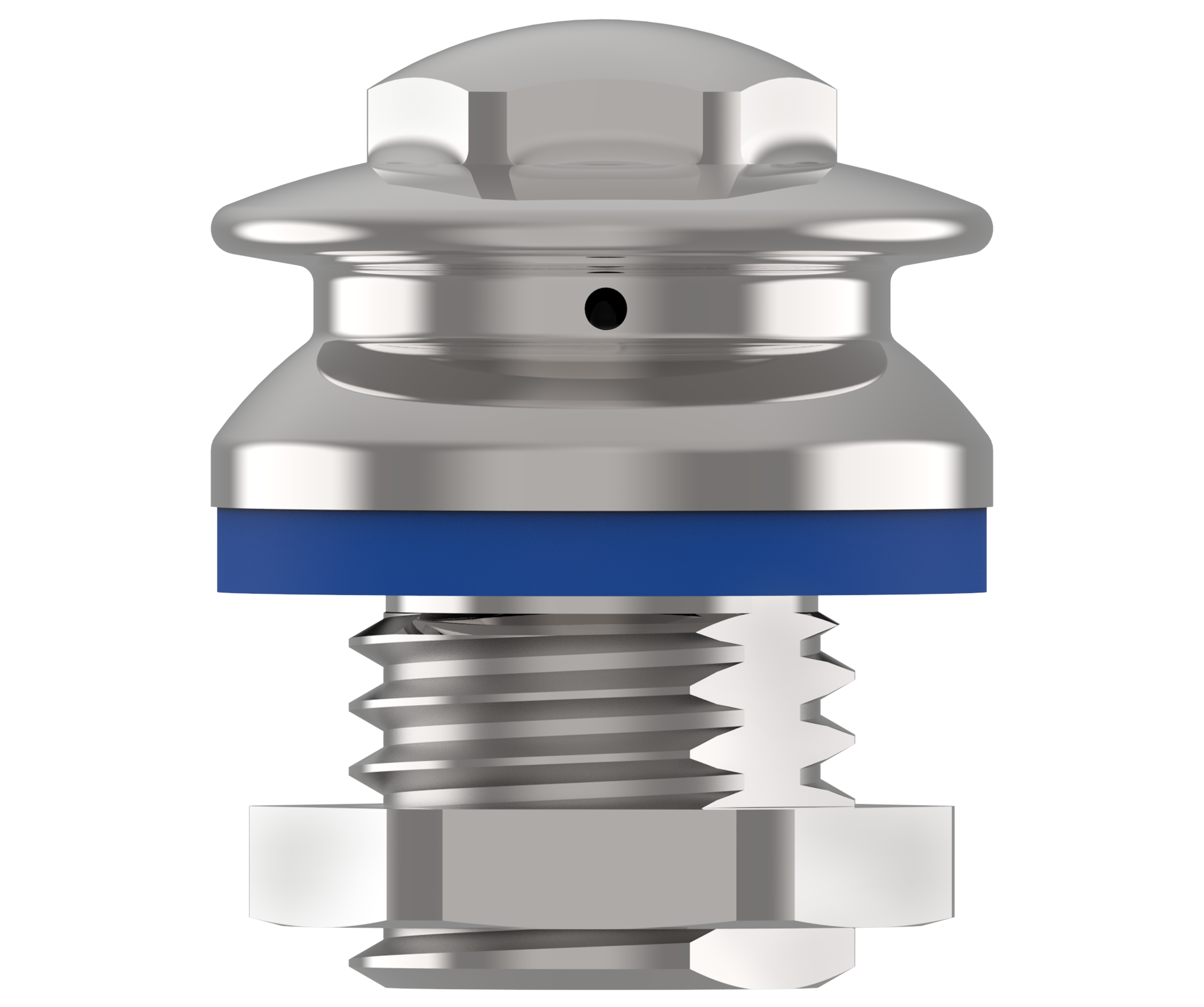

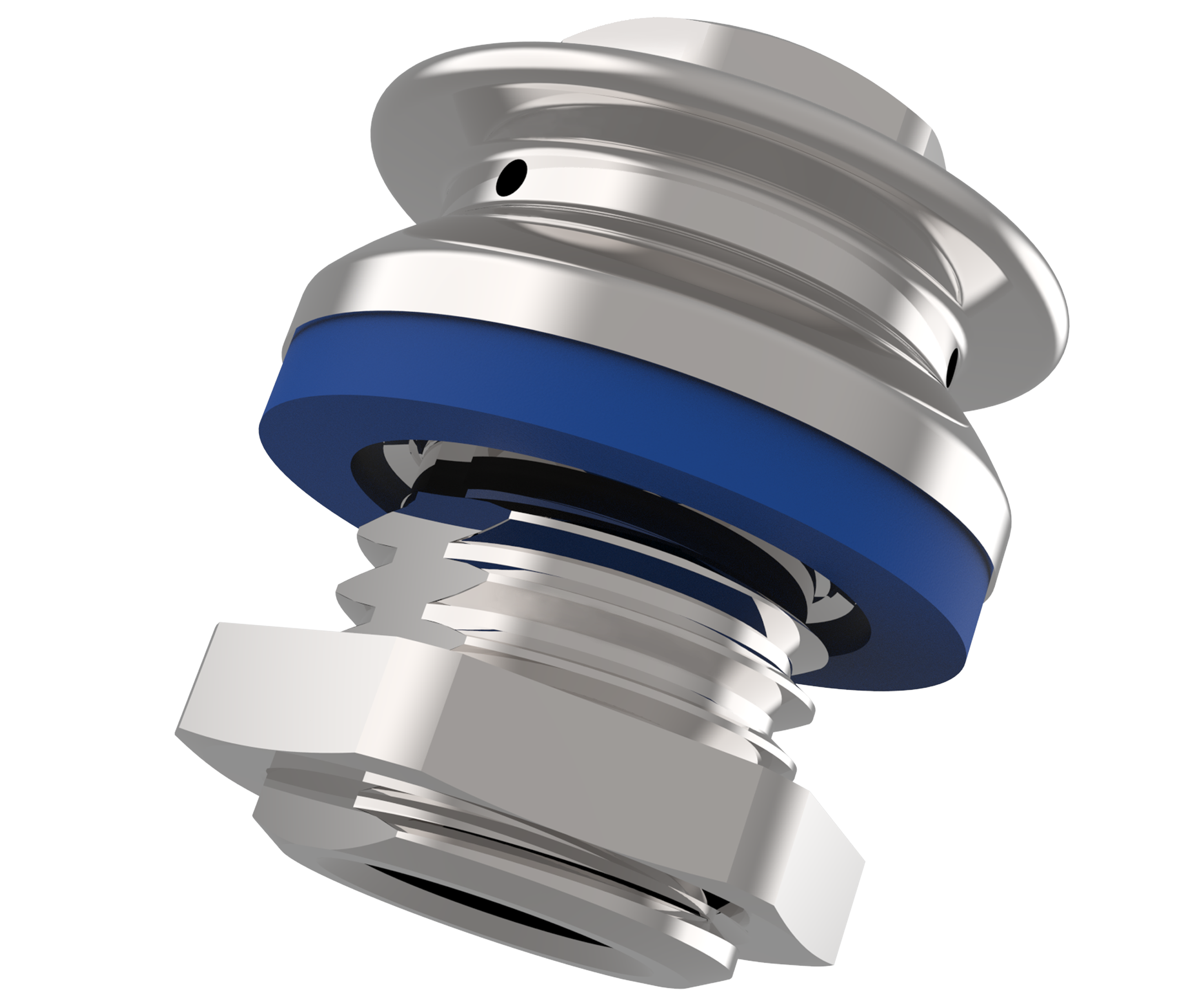

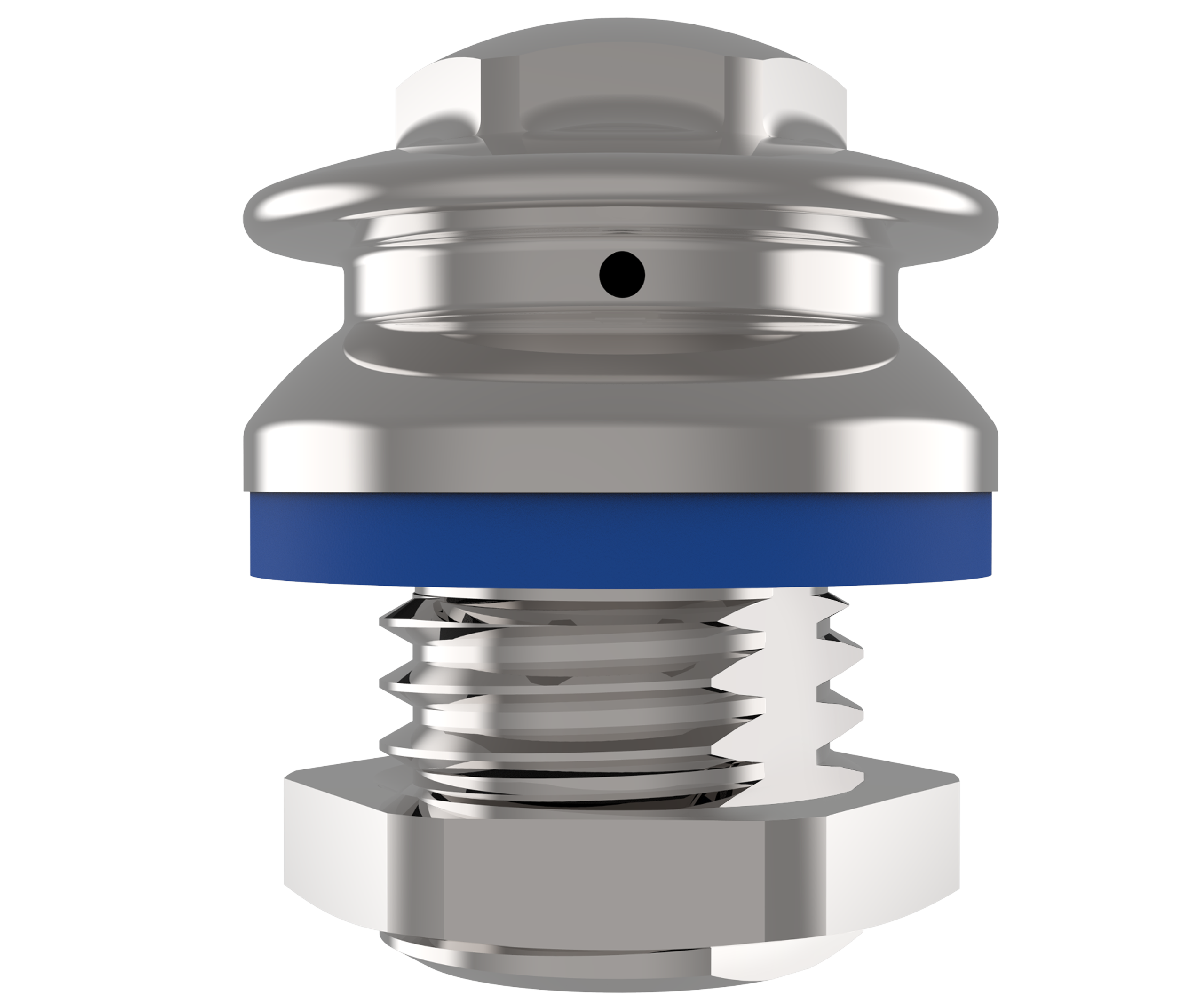

Hygienic Ventilation Plugs

Designed for hygienic applications in food, pharmaceutical, cleanroom, biotech, and chemical industries.

Maintains effective venting while preventing ingress of dust, moisture, and contaminants.

Ensures pressure balance within enclosed equipment and prevents condensation.

Manufactured from high-quality, corrosion-resistant stainless steel.

Smooth surfaces prevent microorganism buildup and ensure easy cleaning.

No threads are exposed, ensuring improved hygiene and easier cleaning

Seal material complies with FDA guideline 21 CFR 177.2600.

Maintains effective sealing against dust, moisture, and cleaning agents.

Suitable for high-pressure steam cleaning and frequent washdowns in hygienic environments.

Complies with relevant hygienic standards and regulations.

Cap/Body Material Stainless Steel 1.4305 (AISI 303)
Locknut/Inner Part Material Stainless Steel 1.4305 (AISI 303)
Gasket Material EPDM, acc. to FDA guideline 21 CFR 177.2600
Membrane Material Acrylic copolymer on nylon-support
Ingress Protection Rating IP68, IP69, IP67, IP66
Temperature Range -40 °C to +100 °C
Thread Type Metric
Remarks ▪ Other material available on request: Stainless Steel 316L

Calculate Pressure Compensation
With our vent calculator you can easily and precisely determine your needed air-passage, which is important for the proper function of your system.
