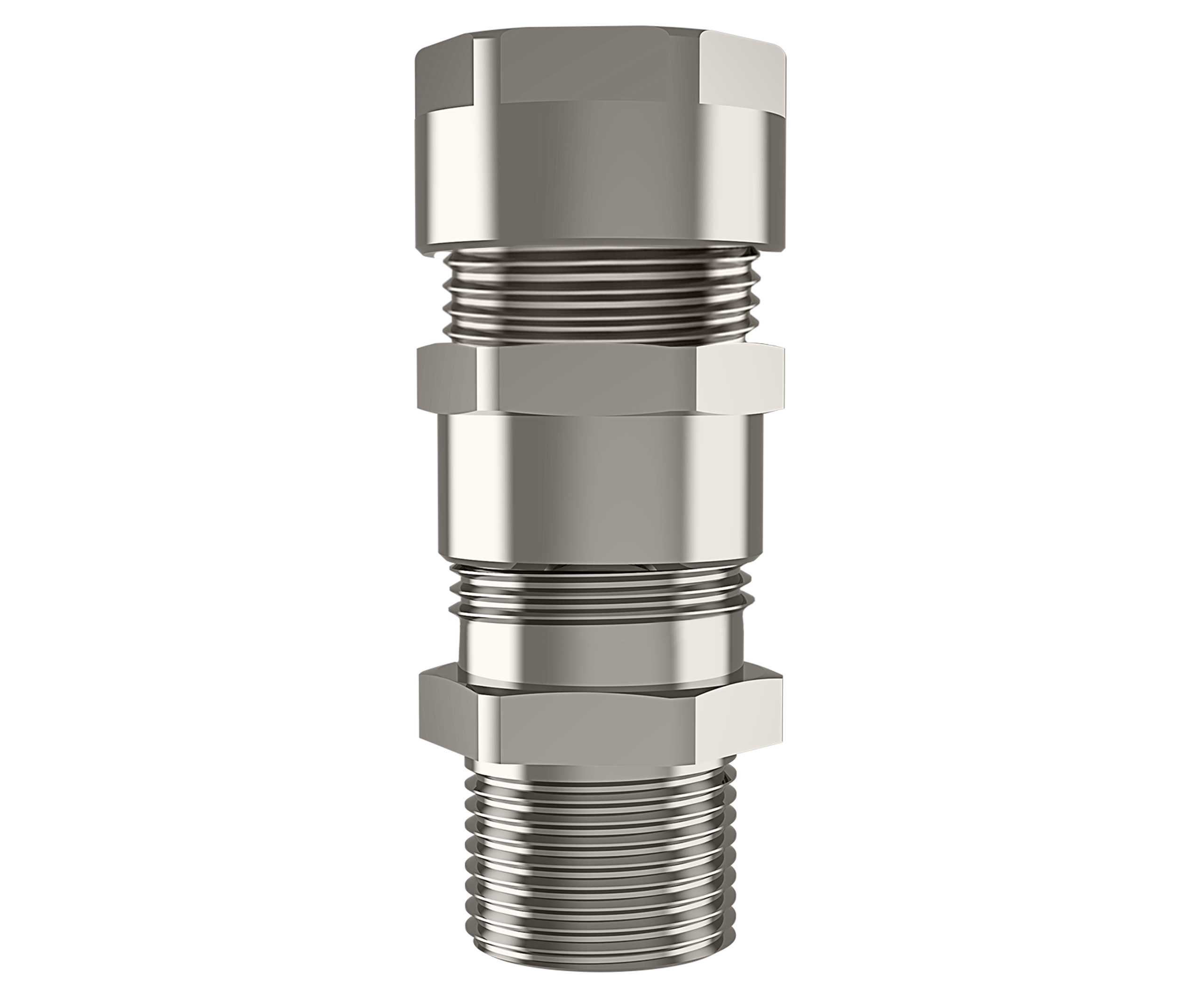

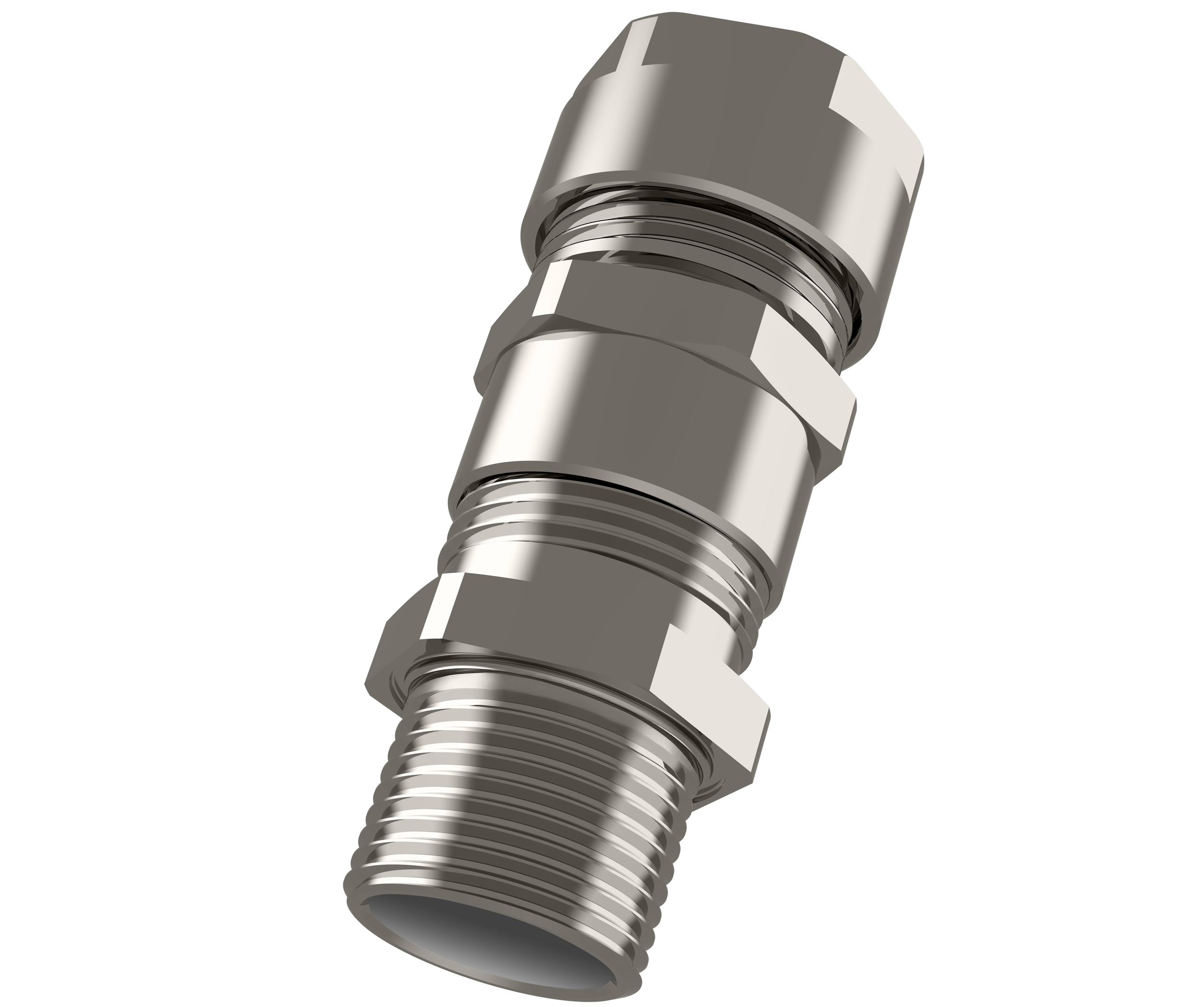

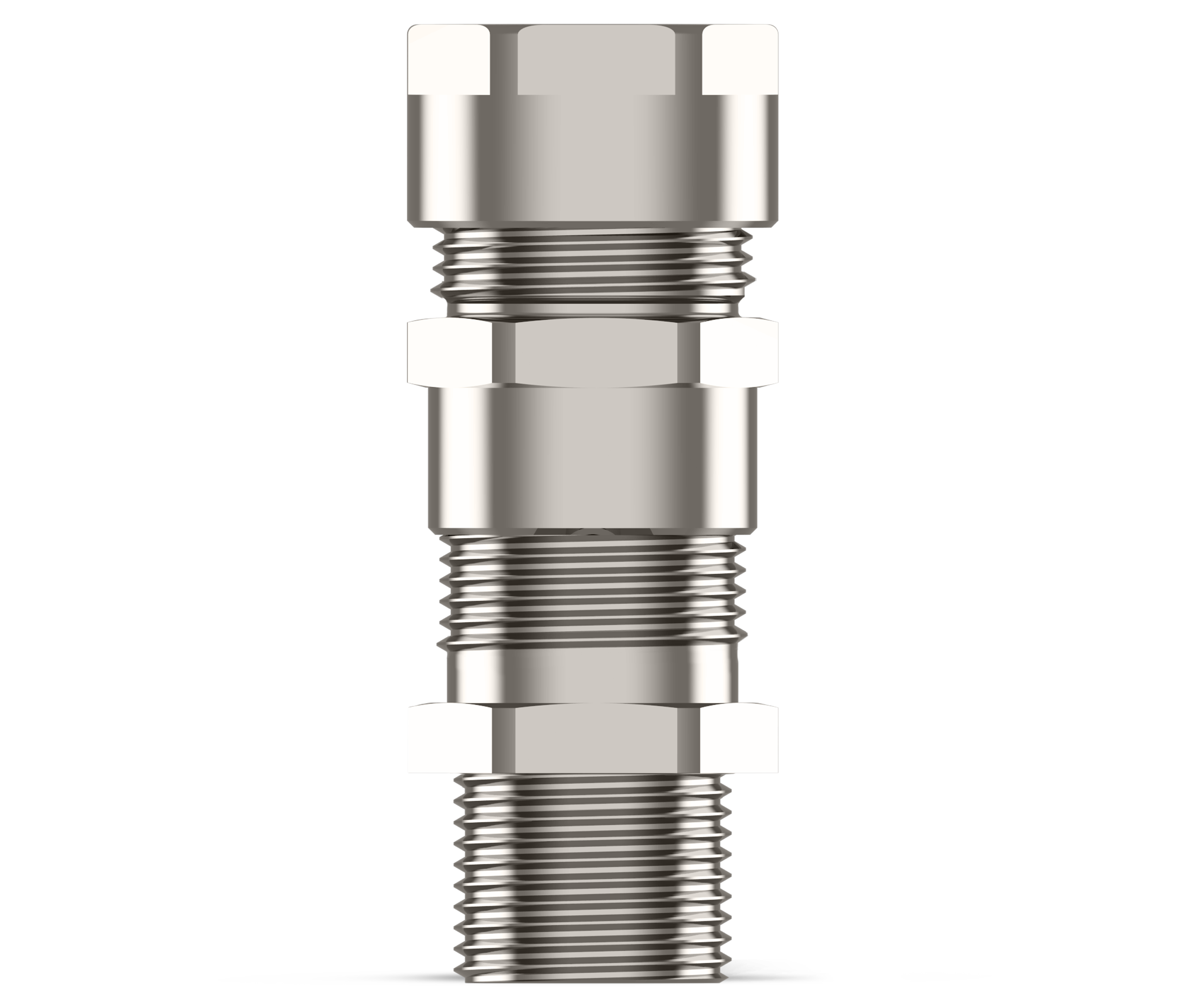

Volans Lead Sheathed

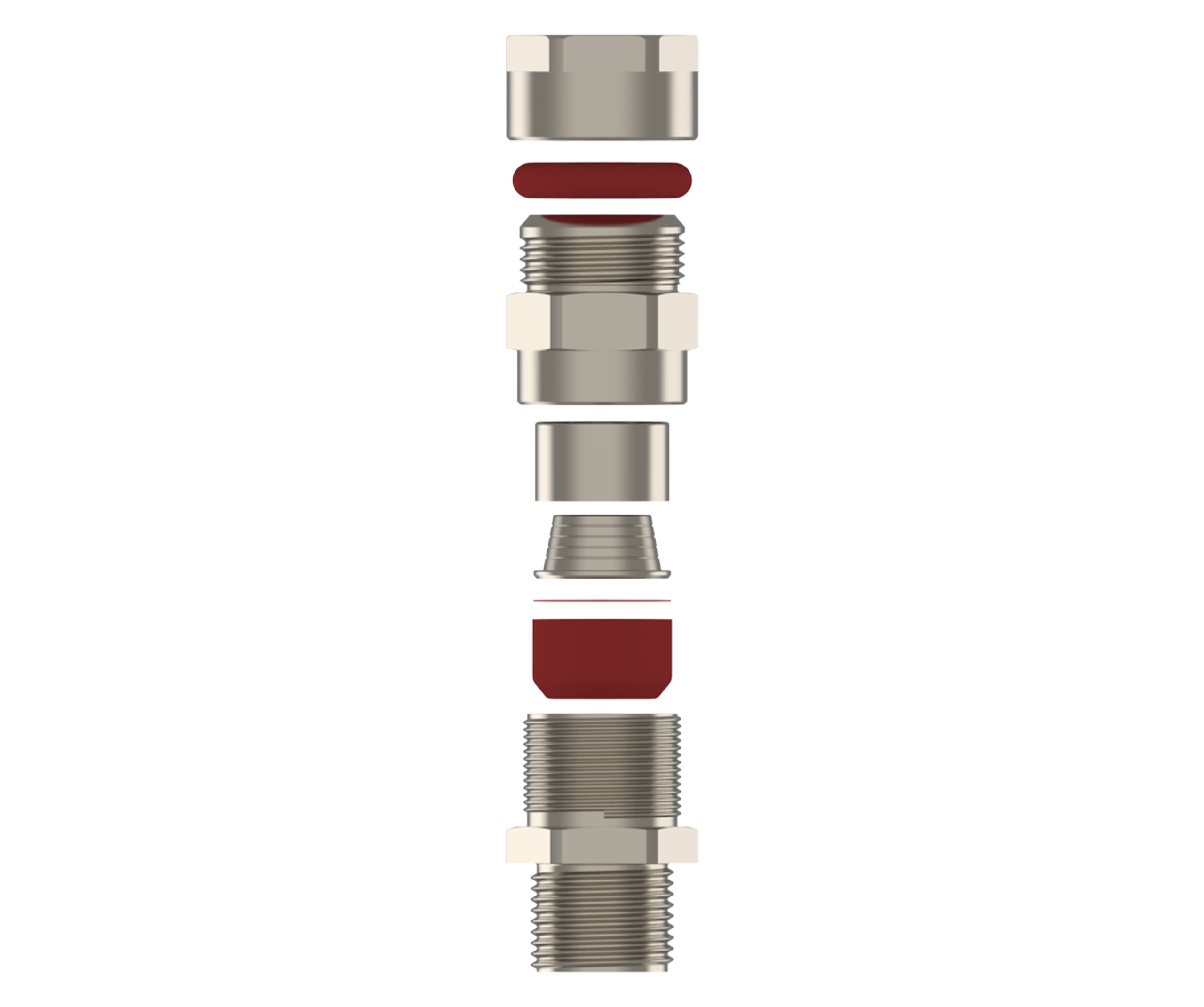

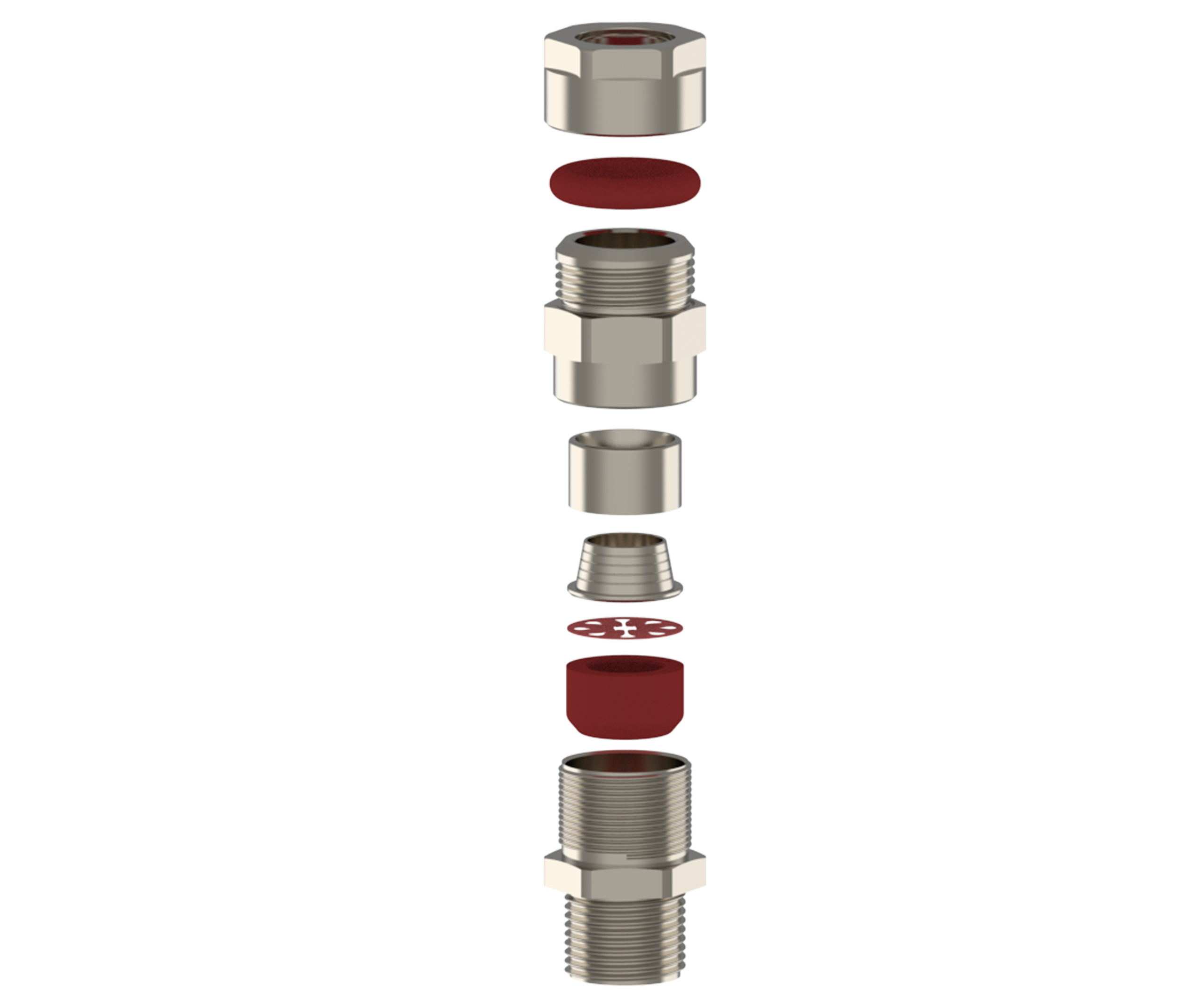

Double compression design provides both a flameproof seal on the inner cable sheath and an IP and cable retention seal on the outer jacket.

Displacement inner seal design

Reducing the effects of coldflow characteristics of cable

Suitable for use in Group II and III Hazardous areas.

Suitable for armoured cables (SWA, AWA.) with lead inner sheaths.

Certified to ATEX and IECEx standards with additional global approvals available (see technical for full list).

Compliant with Ex eb, Ex db, and Ex tb safety standards.

EMC Compatibility

Cap/Body Material	Brass, Brass Nickel Plated, Stainless Steel
Seal Material	Silicone
Application	Zone 1, Zone 21, Zone 2, Zone 22
Equipment Group	Group I, Group II, Group III
Equipment Marking	EX I M2 Ex db I Mb, Ex eb I Mb
Equipment Marking	EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Deluge Protection	DTS01 : 91
Temperature Range	Silicone: -60°C to +130°C
Thread Type	Metric, NPT
Cable Type	Armoured, Wire Braided, Shielded (SWA - SWB - STA - PWA - AWA)
Accessories	Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags
Remarks	Sealing washer available in Metric outer threads.
	Standard marking includes ATEX, IECEx and Group II,III info.
	All accessories must be ordered separately.
	For other special certificate marking requests, please contact us.
	Some approvals do not cover all sizes, check datasheets for details.
	Other thread types available upon request.
