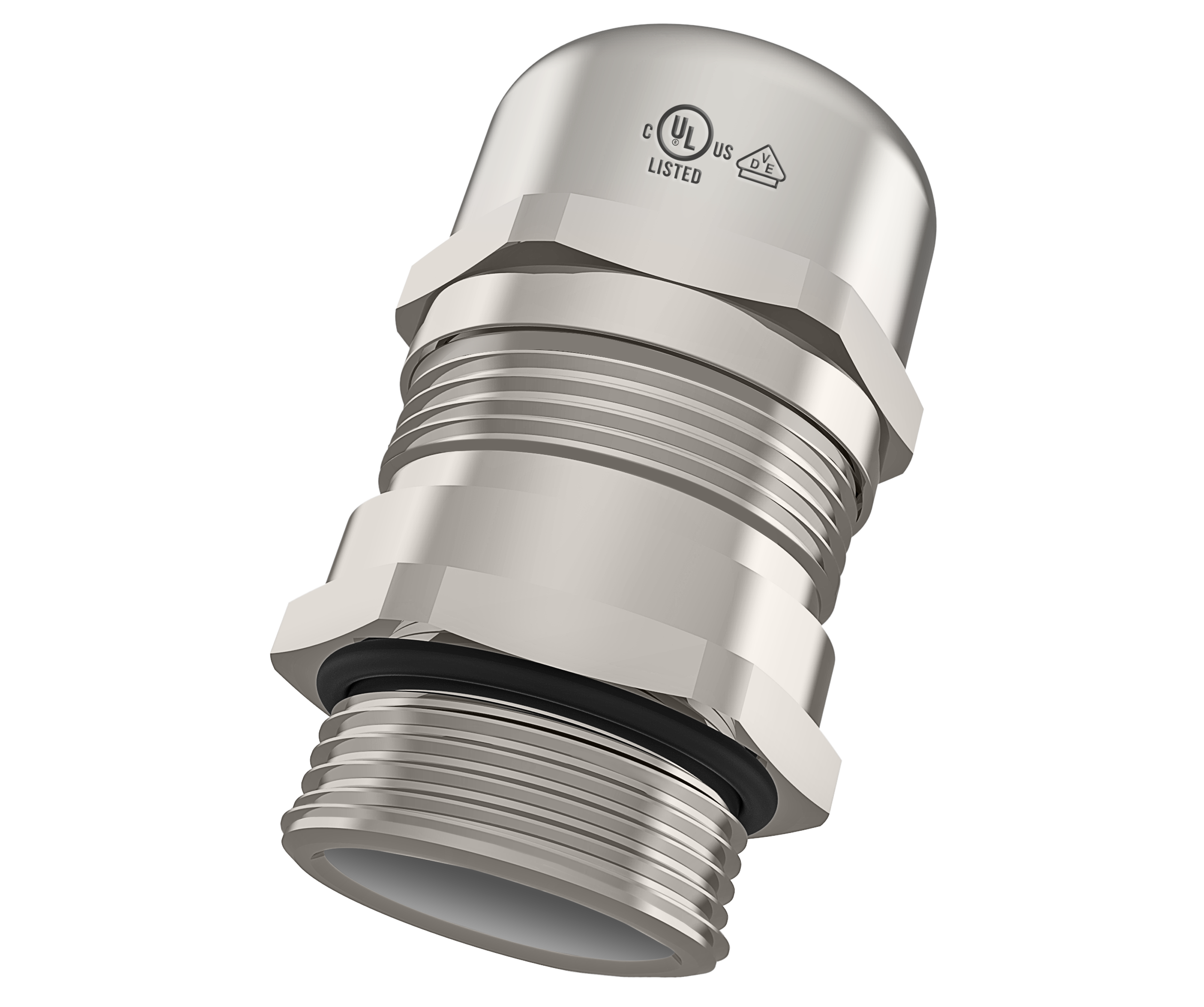

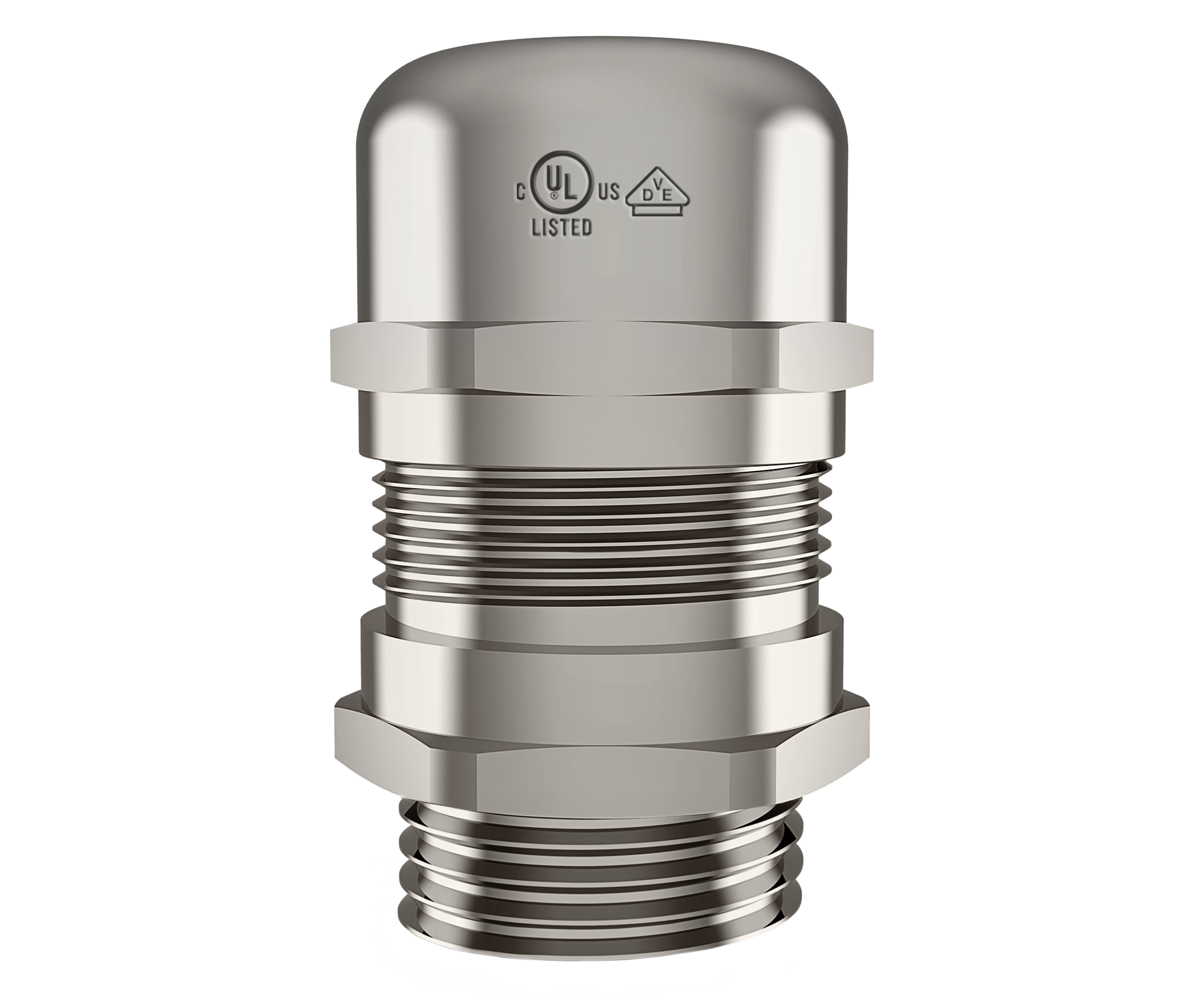

EMC 4 Cable Glands

Provides reliable electromagnetic compatibility (EMC) protection for Shielded/Braided cables

Ensures efficient and safe grounding of high currents, preventing overheating and maintaining reliable EMC performance

Maintains high EMC contact performance under vibration.

Allows cables to be freely positioned and adjusted inside the gland without damaging the shield/braid of cables

Features an easy-to-install design for fast assembly

Designed for use with Shielded/Braided cables, conforming to EN 62444 and UL514B standards

High protection against dust, moisture, and water ingress

High tensile strength and reliable strain relief

Cap/Body Material Nickel Plated Brass
Seal Material Neoprene (Chloroprene)
Clamping Insert Material Polyamide 6 V2 acc. to UL 94
Contact Spring Material Special Copper Alloy
O-Ring Material NBR
Ingress Protection Rating IP68 - 5 Bar 30 min, IP69, IP66
Type Rating 1, 4, 4X, 12, 13
Temperature Range Permanent -20 °C to +100 °C
Intermittent -40 °C to +150 °C
Thread Type Metric, PG, NPT
Cable Type Shielded / Braided
Accessories ▪ EMC Locknut
▪ Dome plug
▪ Gasket (Washer)
▪ Serrated washer
▪ Earthtag
Remarks ▪ Accessories must be ordered separately
▪ Some approvals may not apply to all sizes
▪ Other materials available on request: NBR, Silicone
▪ Other materials available on request: Stainless Steel 303, 316L
