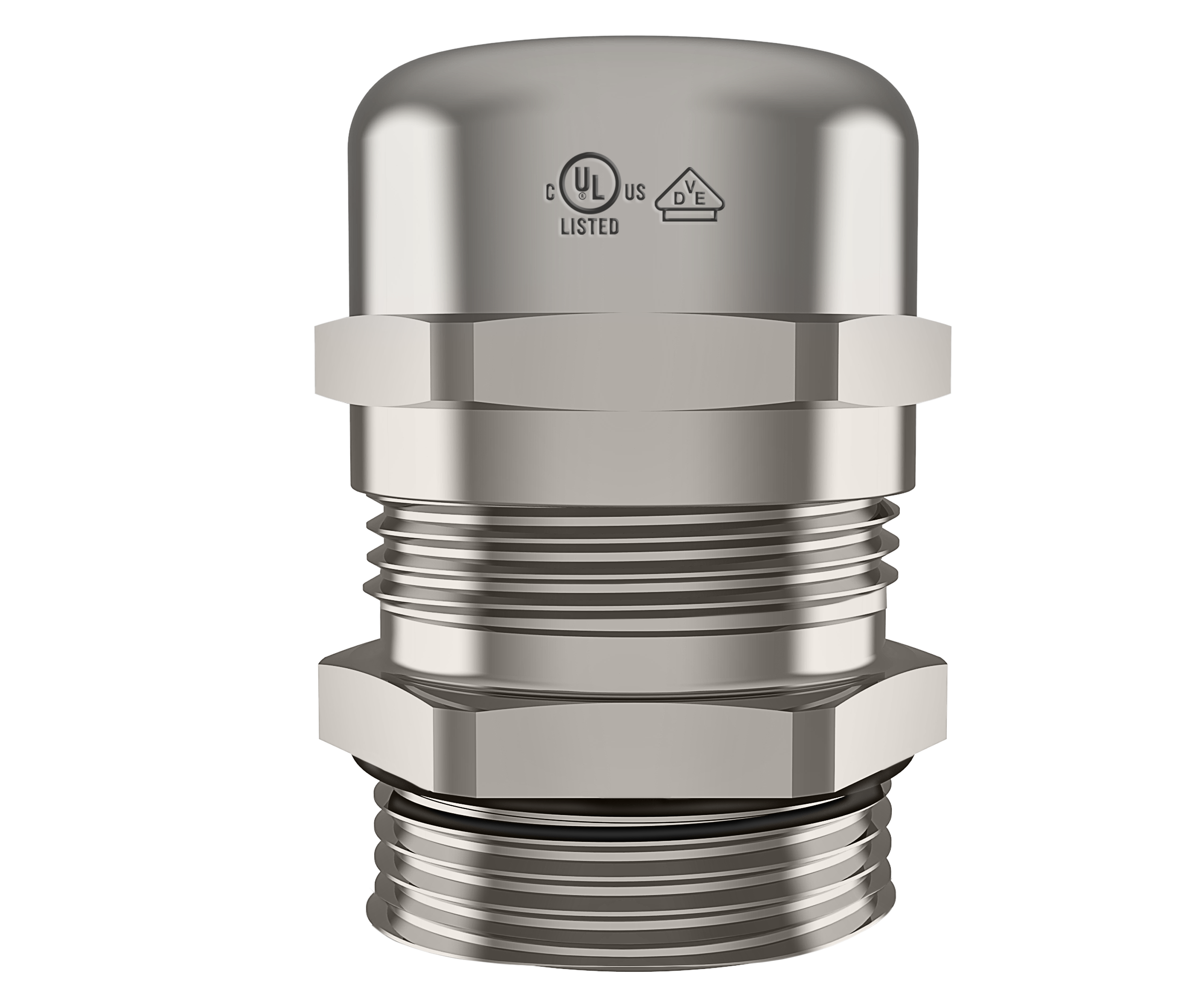

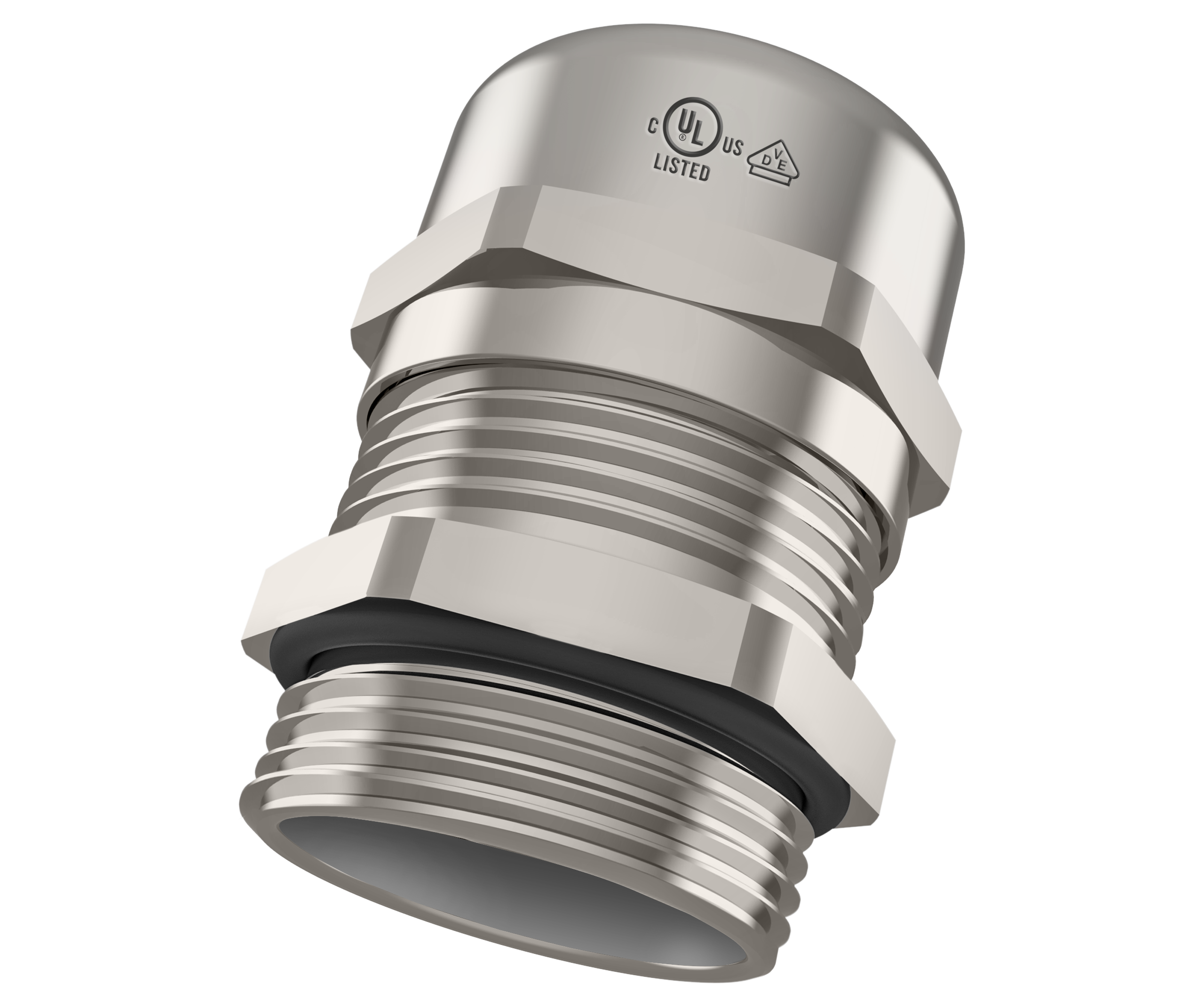

EMC 3 Cable Glands

Specially designed EMC protective cable glands.

Long-lasting contact by high definition contact spring.

Moving spring contact offers reduced risk of sheath damage

Open contact fingers when the gland cap is not tightened.

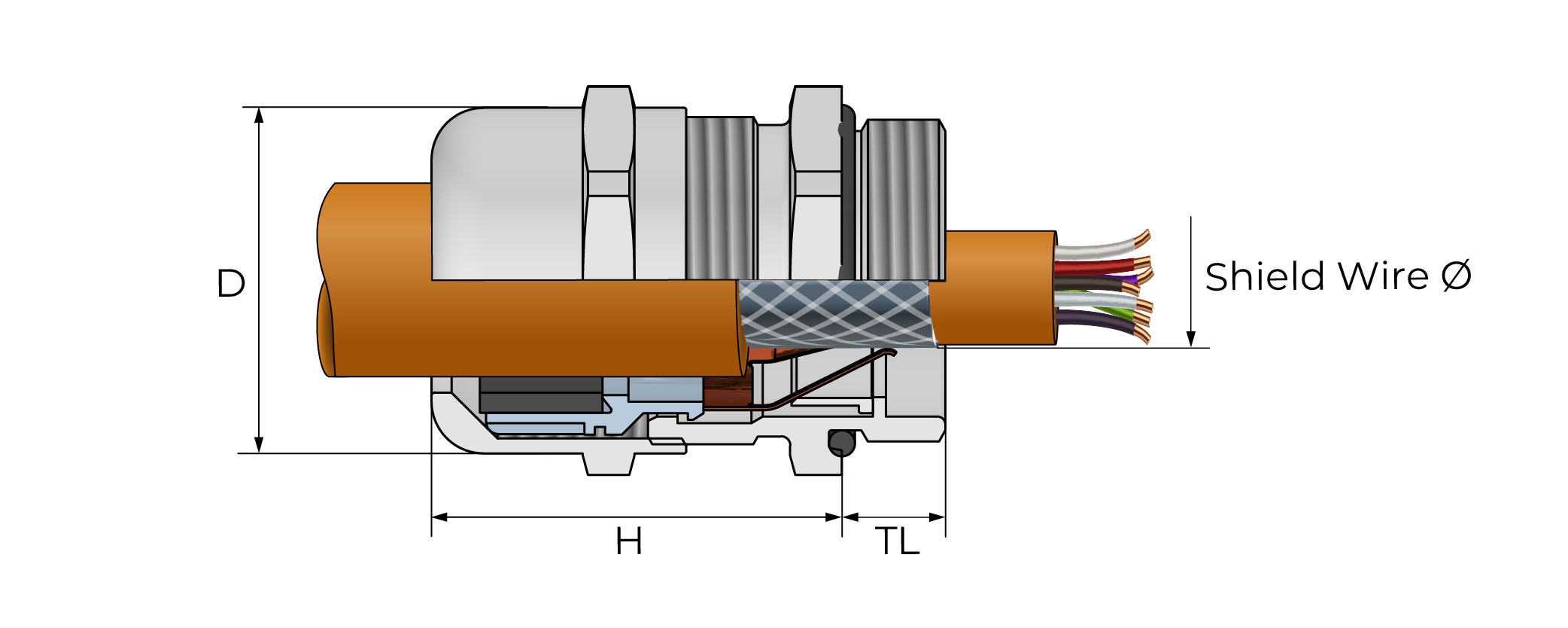

Free rotational and axial movement of the cable without damaging the cable shield thanks to the open contact fingers.

Easy assembly: install cable gland - prepare cable sheath - insert cable - tighten cap.

High quality strain relief and Seal, reliable performance for EMC applications.

Up-to-date international approvals.

UL and VDE certified along with various other approvals - see technical data for full details

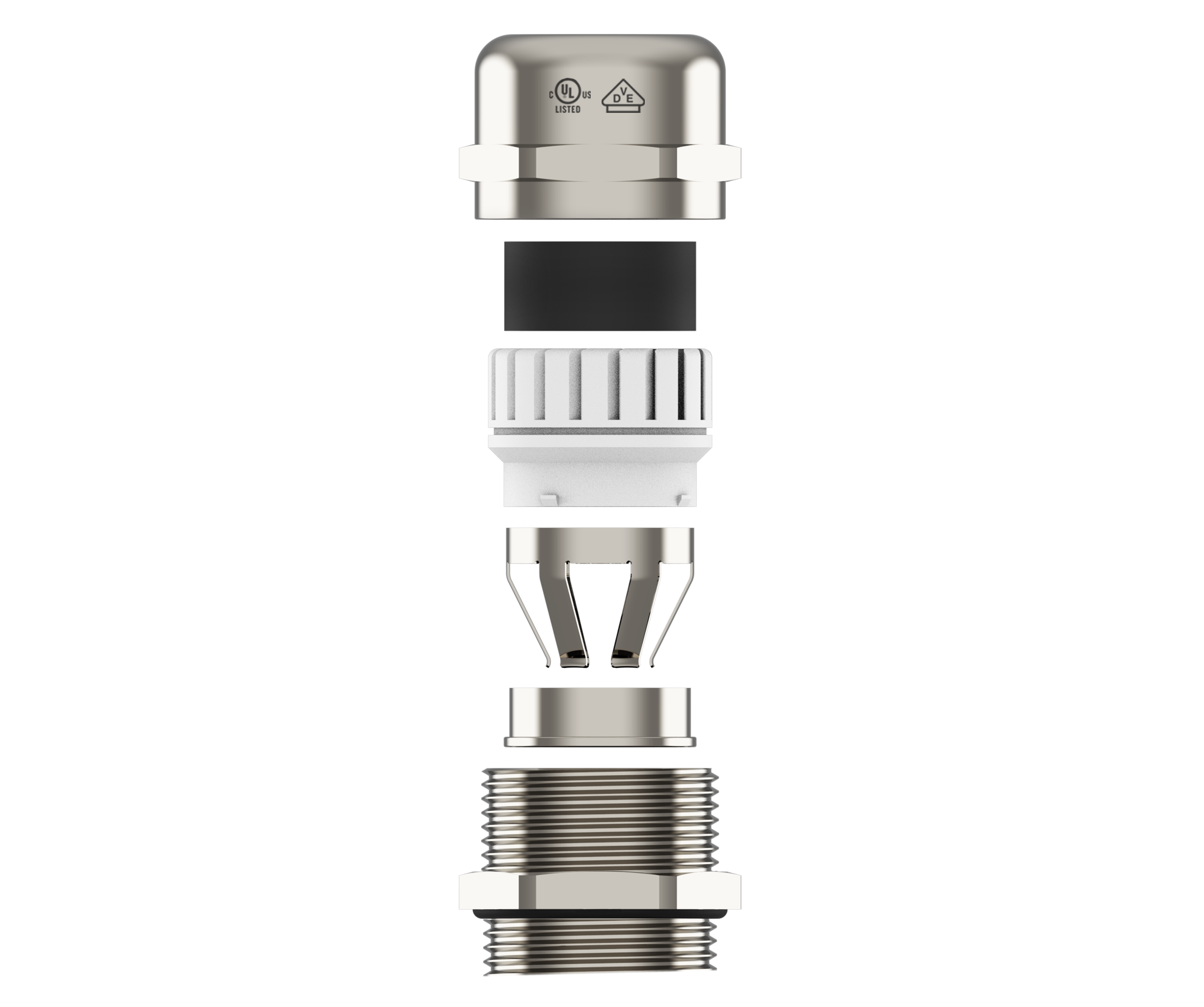

Cap/Body Material	Nickel Plated Brass
Seal Material	Neoprene (Chloroprene)
Clamping Insert Material	Polyamide 6 V2 acc. to UL 94
Contact Spring Material	Special Copper Alloy
O-Ring Material	NBR
Ingress Protection Rating	IP68 - 5 Bar 30 min, IP69, IP66
NEMA Type Rating	1, 4, 4X, 12, 13
Temperature Range	Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C
Thread Type	Metric
Cable Type	Shielded

Accessories	EMC Locknuts Dome plugs Gaskets (Washers)
Remarks	In compliance with DIN EN 62444. We recommend the use of threaded holes and/or the use of special EMC lock nuts to ensure high quality EMC contact quality. Some approvals do not cover all sizes.O-ring available in Metric and PG threads as a standard. For NPT threads O-ring available upon request. All accessories must be ordered separately.
