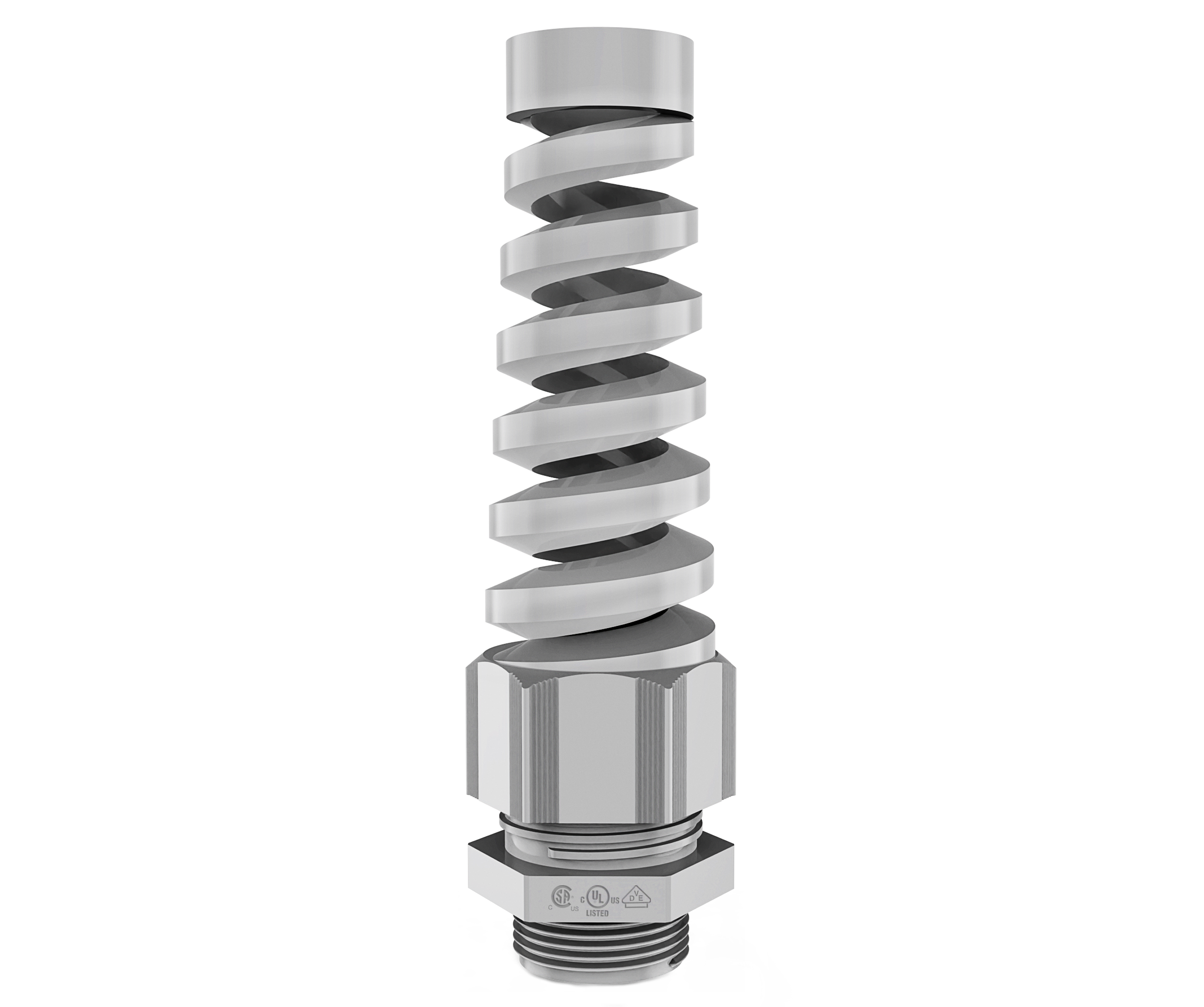

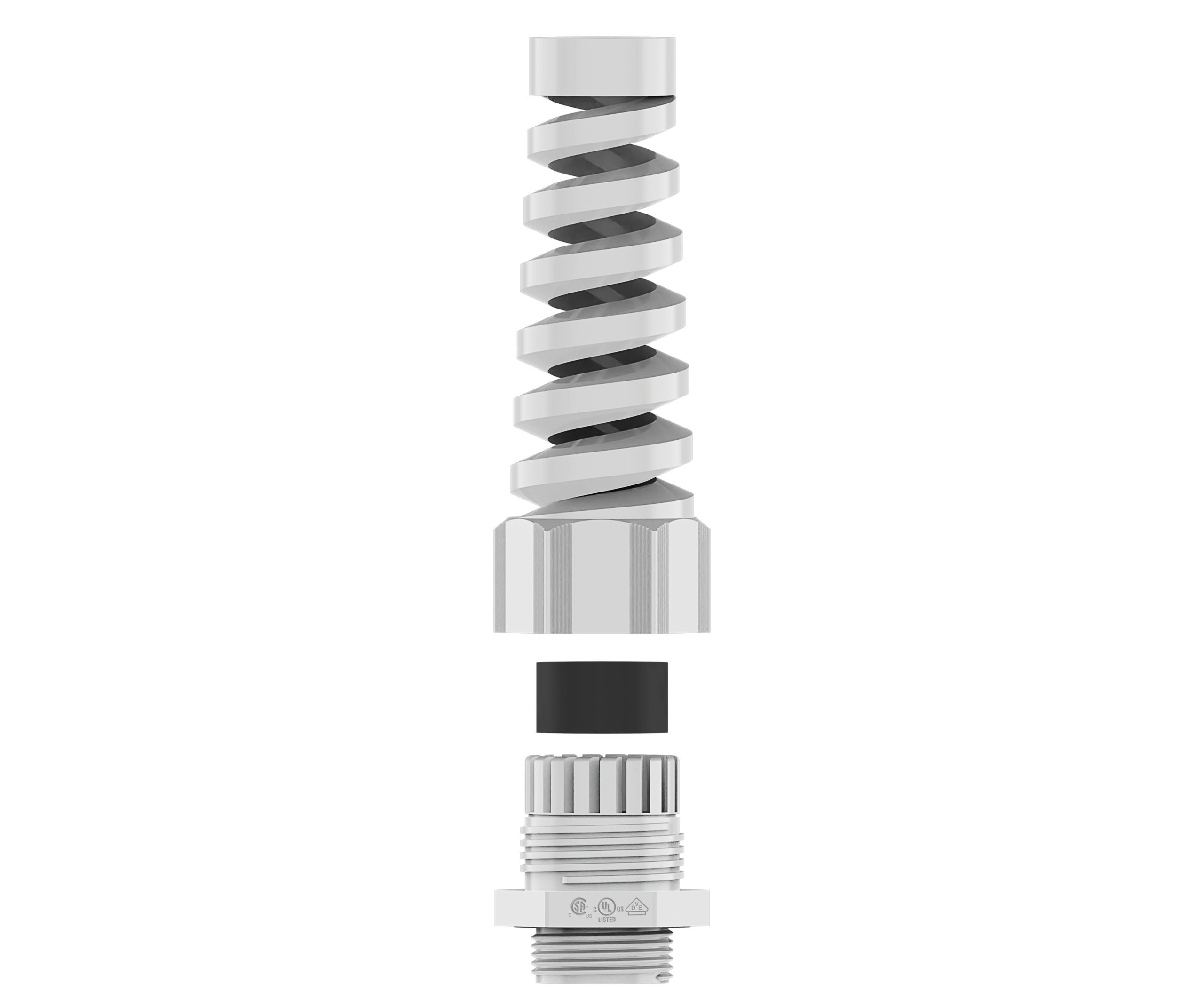

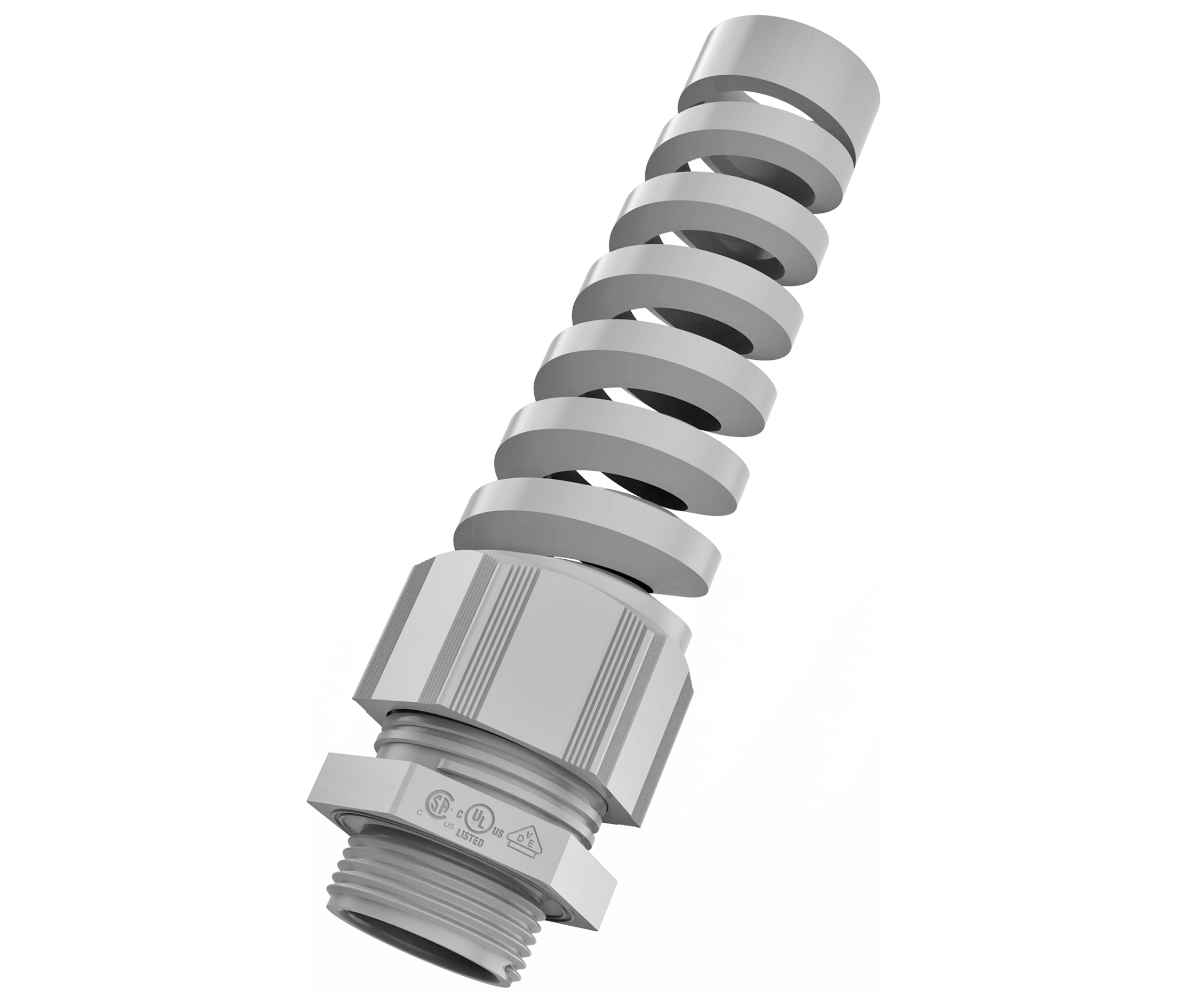

Cable Protection Glands, Plastic

Designed with anti-kink features to minimize the risk of sharp bending of flexible cables, helping to prevent conductor fatigue and damage

Suitable for dynamic applications where cables are subjected to frequent movement or flexing

Designed for use with non-armoured cables, conforming to EN 62444 and UL514B standards

Applicable for both outdoor and indoor use in industrial areas.

High protection against dust, moisture, and water ingress

High tensile strength and reliable strain relief

Durable design with quick and easy assembly

Wide cable clamping ranges for versatile applications

Manufactured from halogen-free polyamide material

Cap/Body Material Polyamide 6 V2 acc. to UL 94
Seal Material Neoprene (Chloroprene)
Ingress Protection Rating IP68 - 5 Bar 30 min, IP66
Type Rating 1, 4, 4x, 12, 13
Temperature Range Permanent -20 °C to +100 °C
Intermittent -40 °C to +150 °C
Colour Silver grey (RAL 7001)
Light grey (RAL 7035)
Black (RAL 9005)
Thread Type Metric, PG, NPT, PF/G (GAS)
Cable Type Non-Armoured
Accessories ▪ Locknut
▪ Reducing seal
▪ Double seal
▪ Flat cable seal
▪ Multihole seal
▪ Gasket (Washer)
Remarks ▪ We recommend using a gasket to ensure IP protection between cable gland and enclosure.
▪ Accessories must be ordered separately
▪ Some approvals may not apply to all sizes
▪ Other materials available on request: NBR, Silicone
