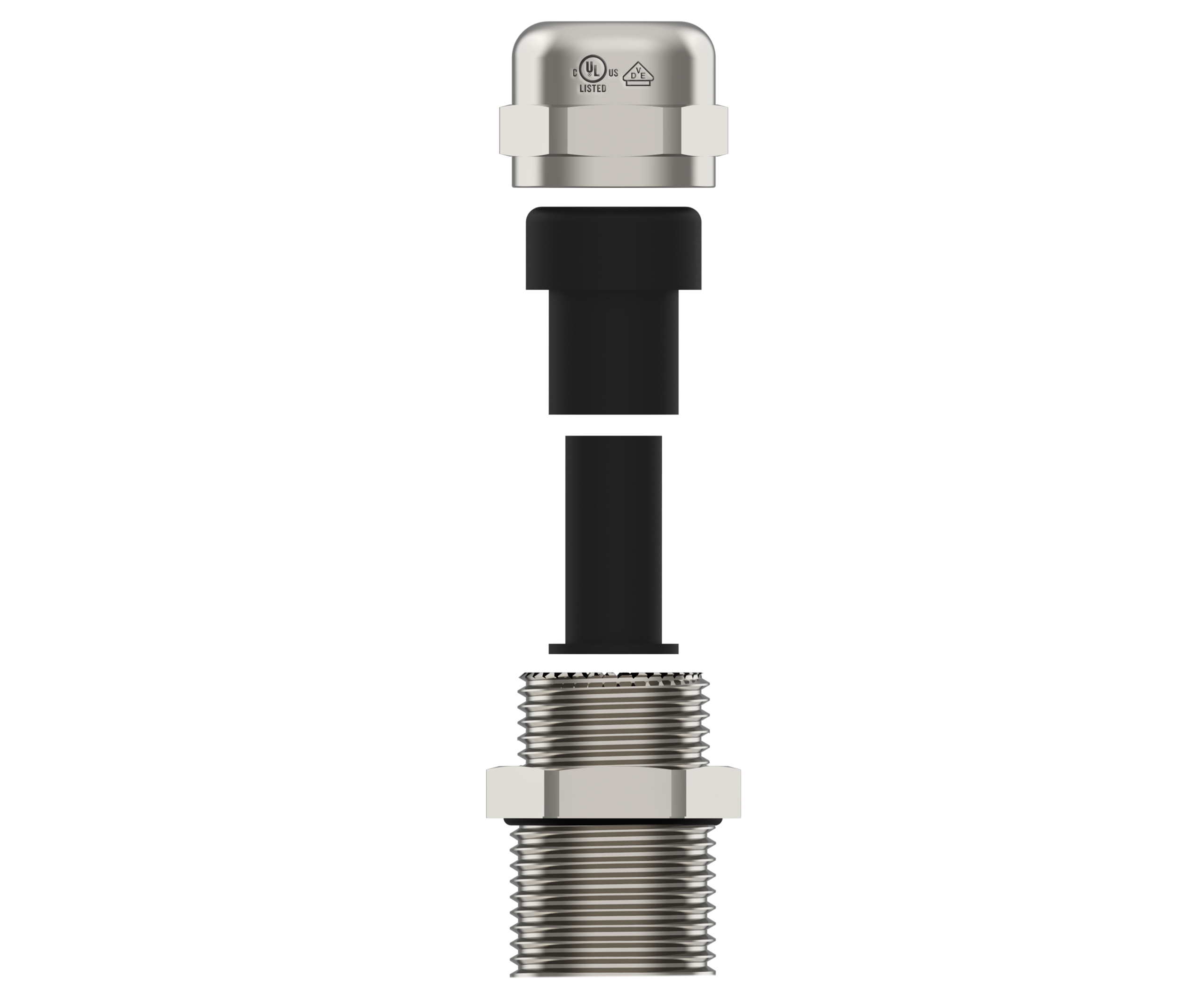

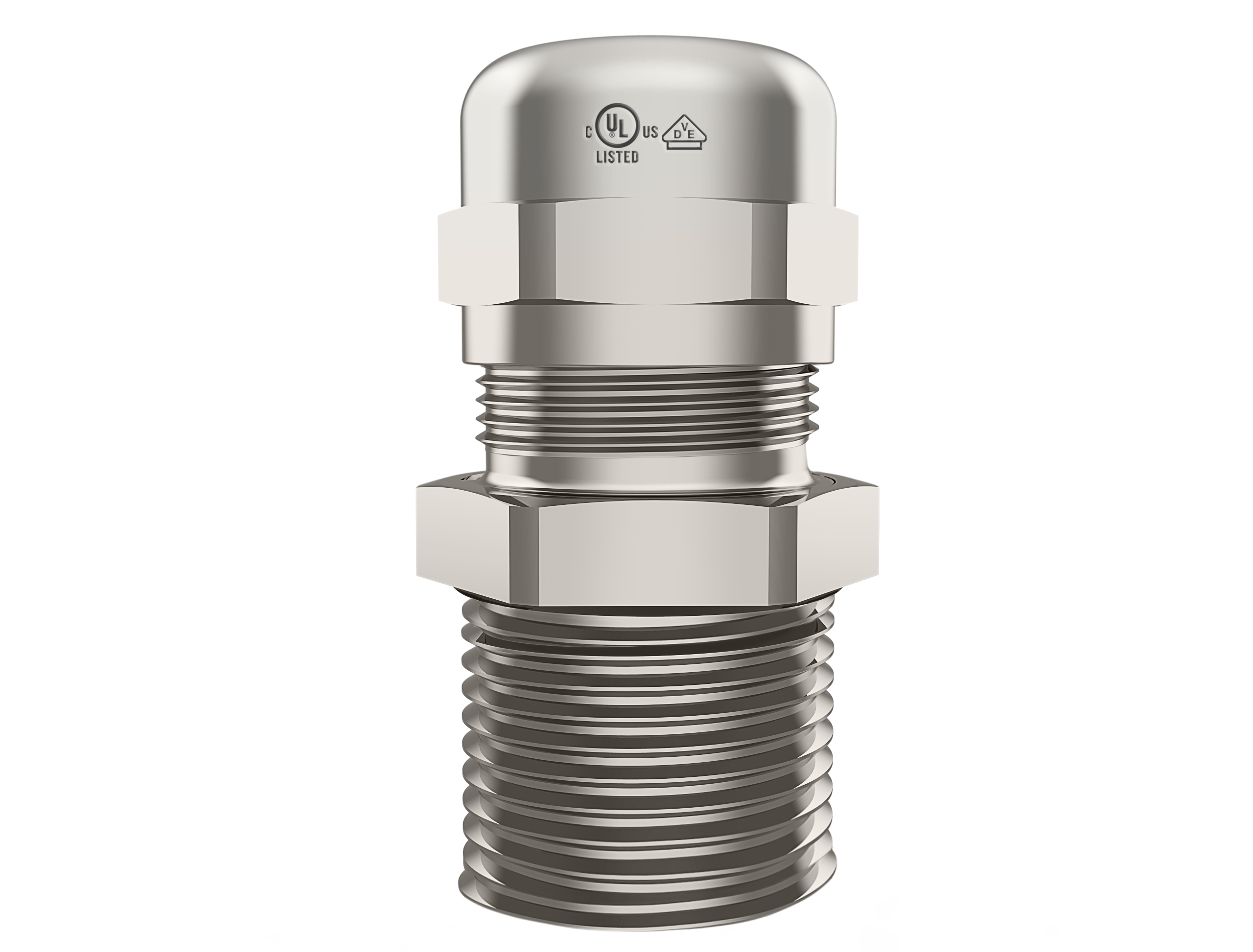

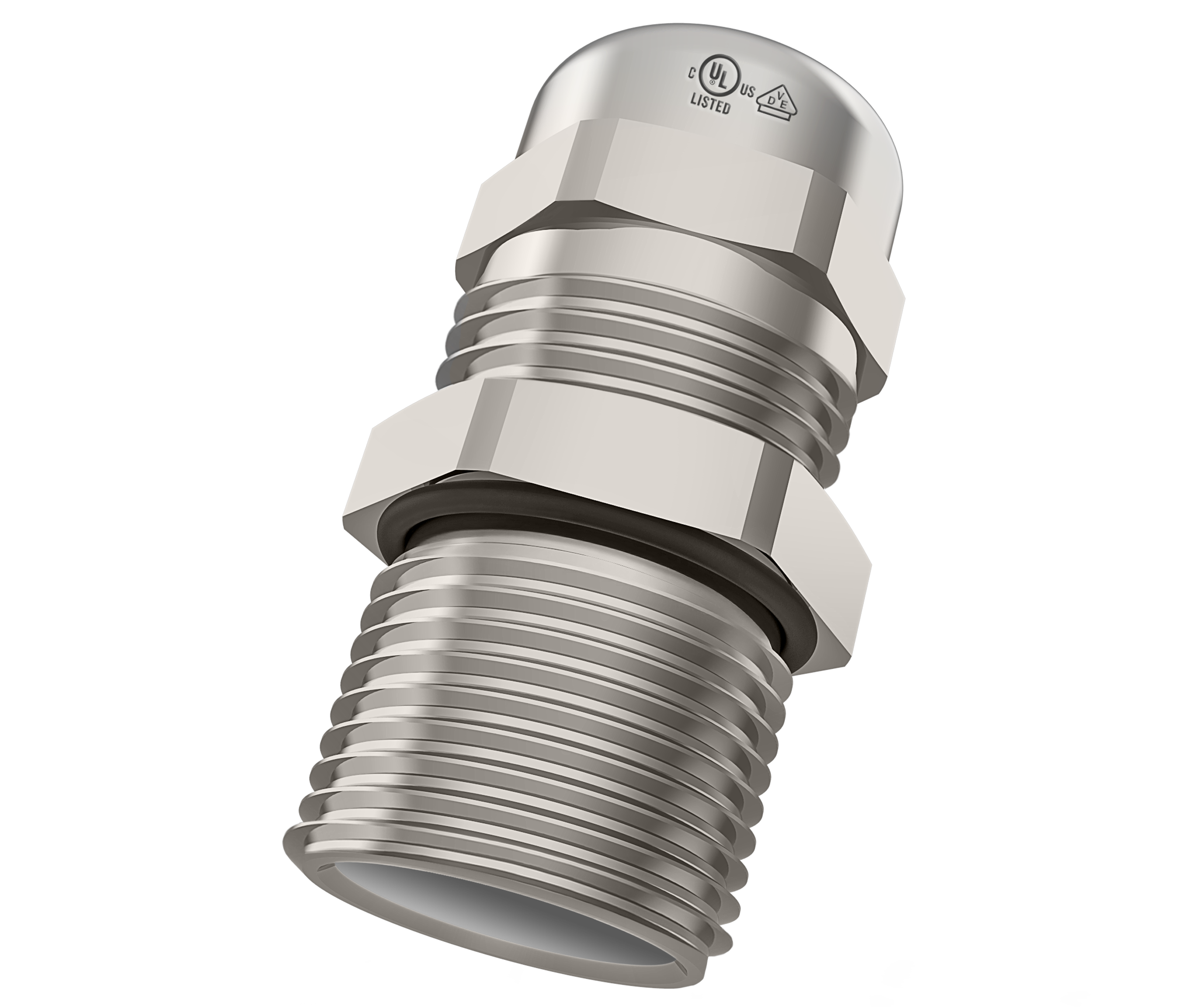

Railway Octans Cable Glands

For railway applications

Easy assembly.

High quality strain relief and sealing

Up-to-date international approvals.

Cable Gland Material	Nickel Plated Brass
Seal Material	EPDM
O-Ring	EPDM
Ingress Protection Rating	IP 68 - 5 Bar, 30 min, IP 66
Flammability	R22 acc. to EN45545-2 R23 acc. to EN45545-2 HL2 acc. to EN45545-2 HL3 acc. to EN45545-2
Approvals	The sealing material of the products has CURRENTA Approval in conformity with EN 45545-3.
Operating Temperature	Permanent -50 °C to +125 °C
Thread Type	Metric,NPT
Other thread types available upon request.

Accessories	Locknuts Dome Plug
Remarks	We recommend the use of lock nuts and gaskets to ensure IP rating for rough surfaces or through holes. Accessories must be ordered separately.
