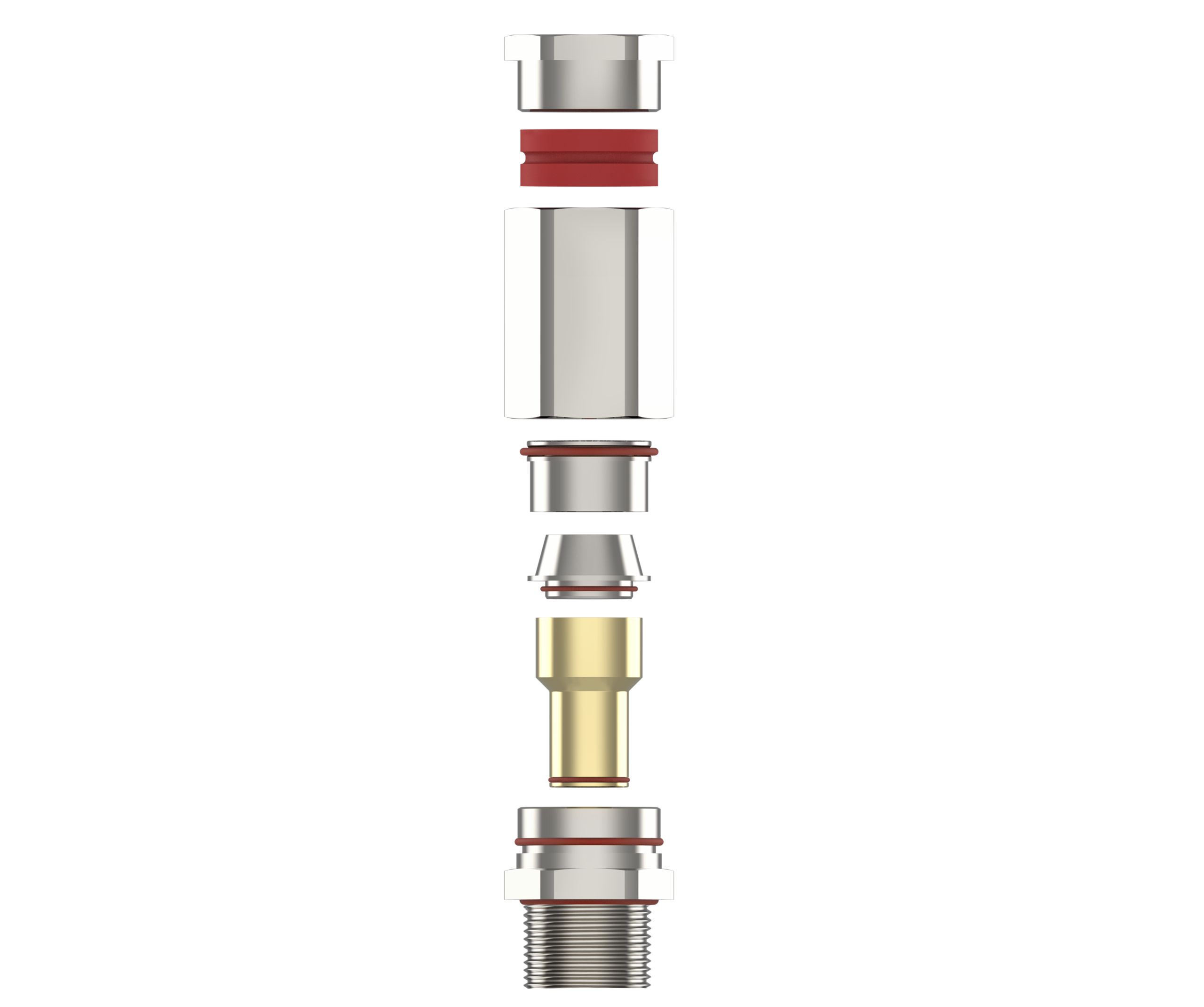

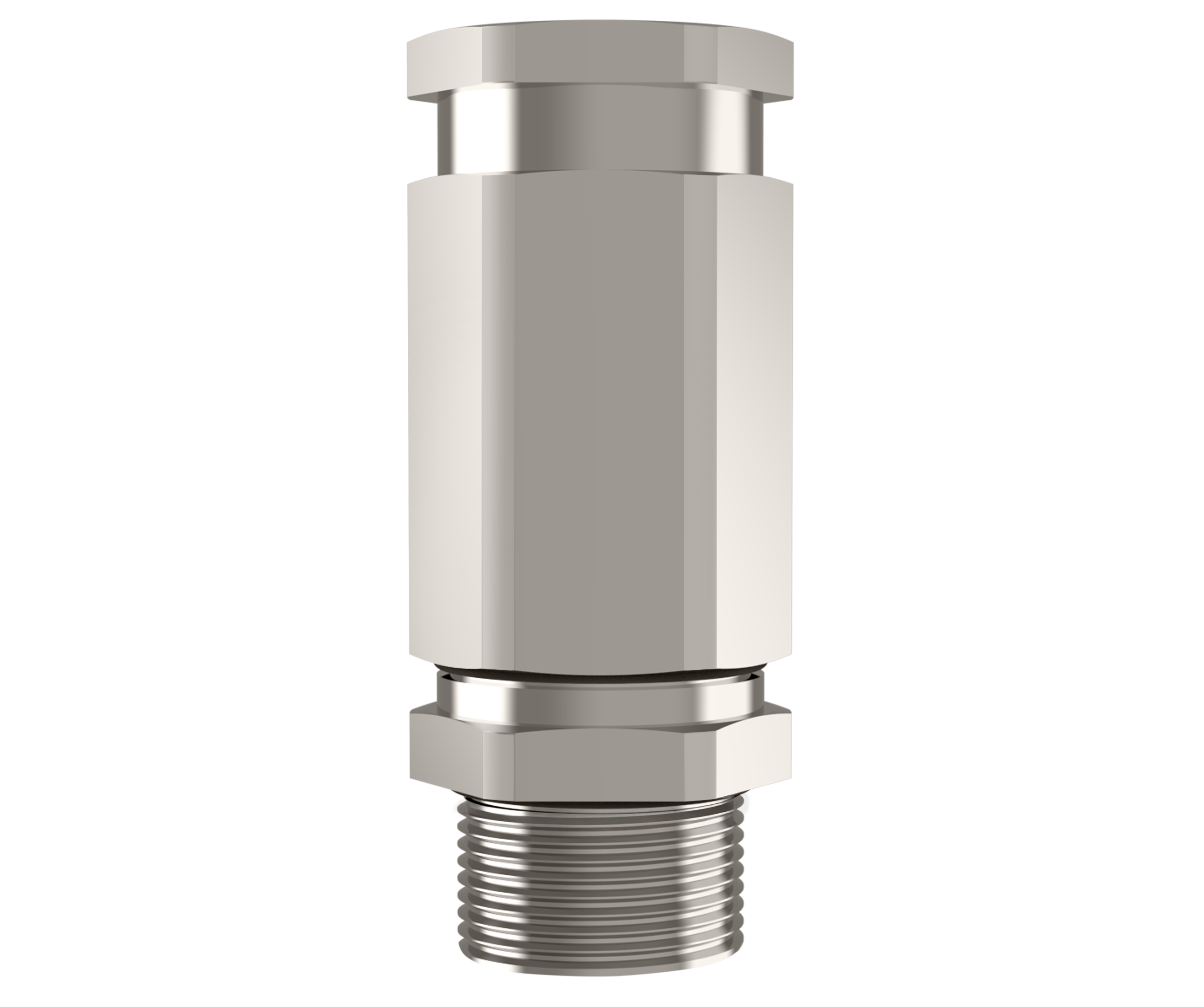

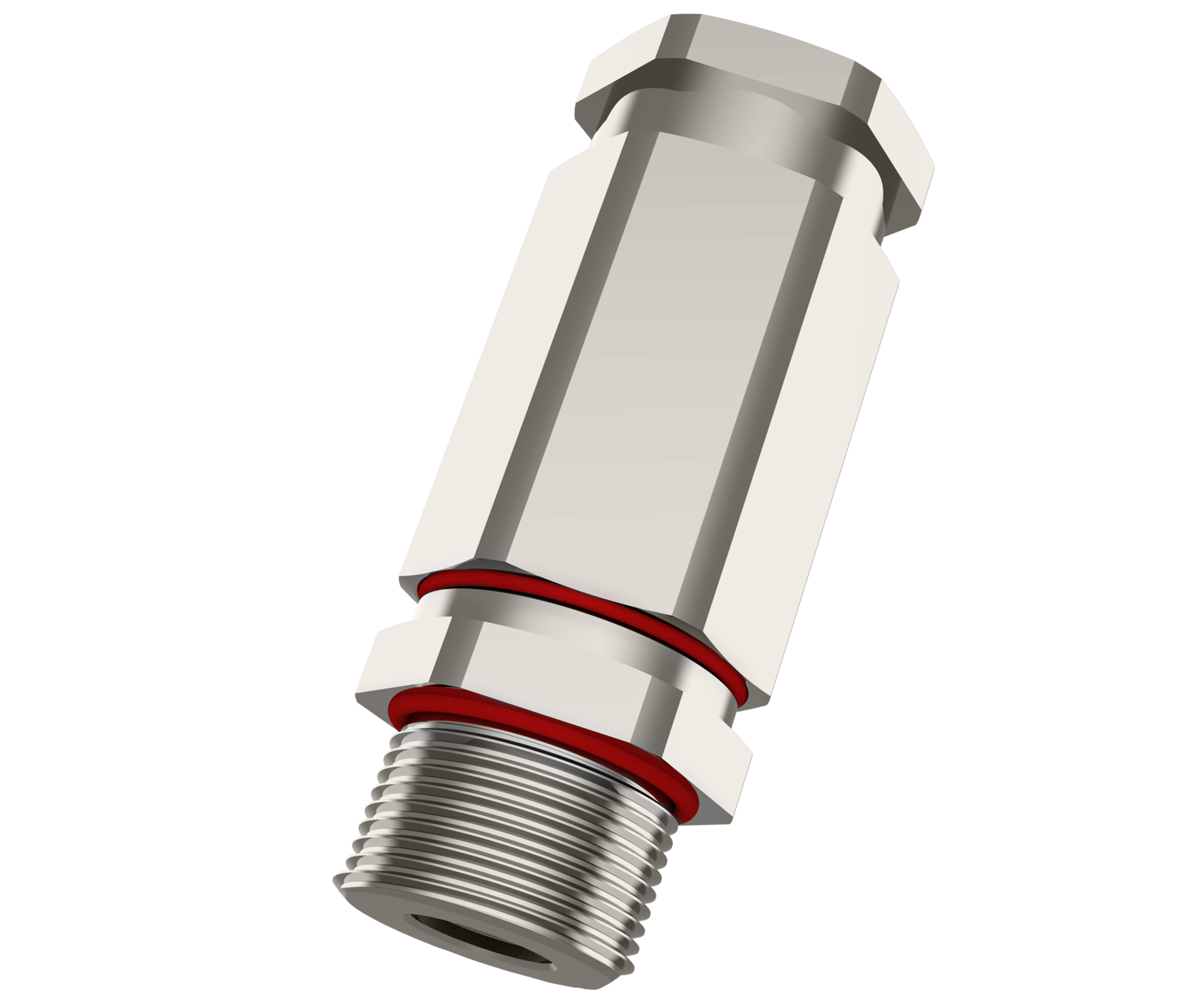

Centaurus Armoured

Group II barrier sealing hazardous area cable gland, suitable for armoured and braided cables (SWA, AWA, STA, SWB, PWA & Shielded.)

The Centaurus-A is Exe, Exd and Ext certified and suitable for installation in zones 1/21 and zones 2/22 hazardous areas.

The gland provides a flameproof compound seal around the individual cable cores, making this suitable for cables which exhibit "cold flow" characteristics.

The Centaurus-A also provides an IP and cable retention seal on the outer jacket.

ATEX/IECEx certified along with various other approvals - see below for full technical details.

Available in brass, nickel plated brass, stainless steel or aluminium with both Metric and NPT threadforms.

Other threadforms available on request.

Suitable for use in	Group I, Group II, Group III
Equipment Marking	EX I M2 Ex db I Mb, Ex eb I Mb EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Type Rating	TYPE 4X
Cable Gland Material	Brass, Brass Nickel Plated, Stainless Steel
Seal Material	Silicone
Operating Temperature	Silicone: -60°C to +100°C
Thread Type	Metric, NPT
Other thread types available upon request.
Cable Type	Armoured (SWA, AWA, STA), Braided, Shielded
Accessories	Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags
Remarks	Accessories must be ordered separately. O-ring available in Metric outer threads.

ATEX Approval	CESI 17 ATEX 007X
ATEX standards	EN 60079-0, 1, 7, 31
IECEx Approval	IECEx CES 17.0029X
IECEx standards	IEC 60079-0, 1, 7, 31
TR CU (EAC)	No TC RU C-TR.AA87.B.00941
TR CU standards	ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31
Marine Approval	TAE00003WU
UKCA	CML 22UKEX1185X
