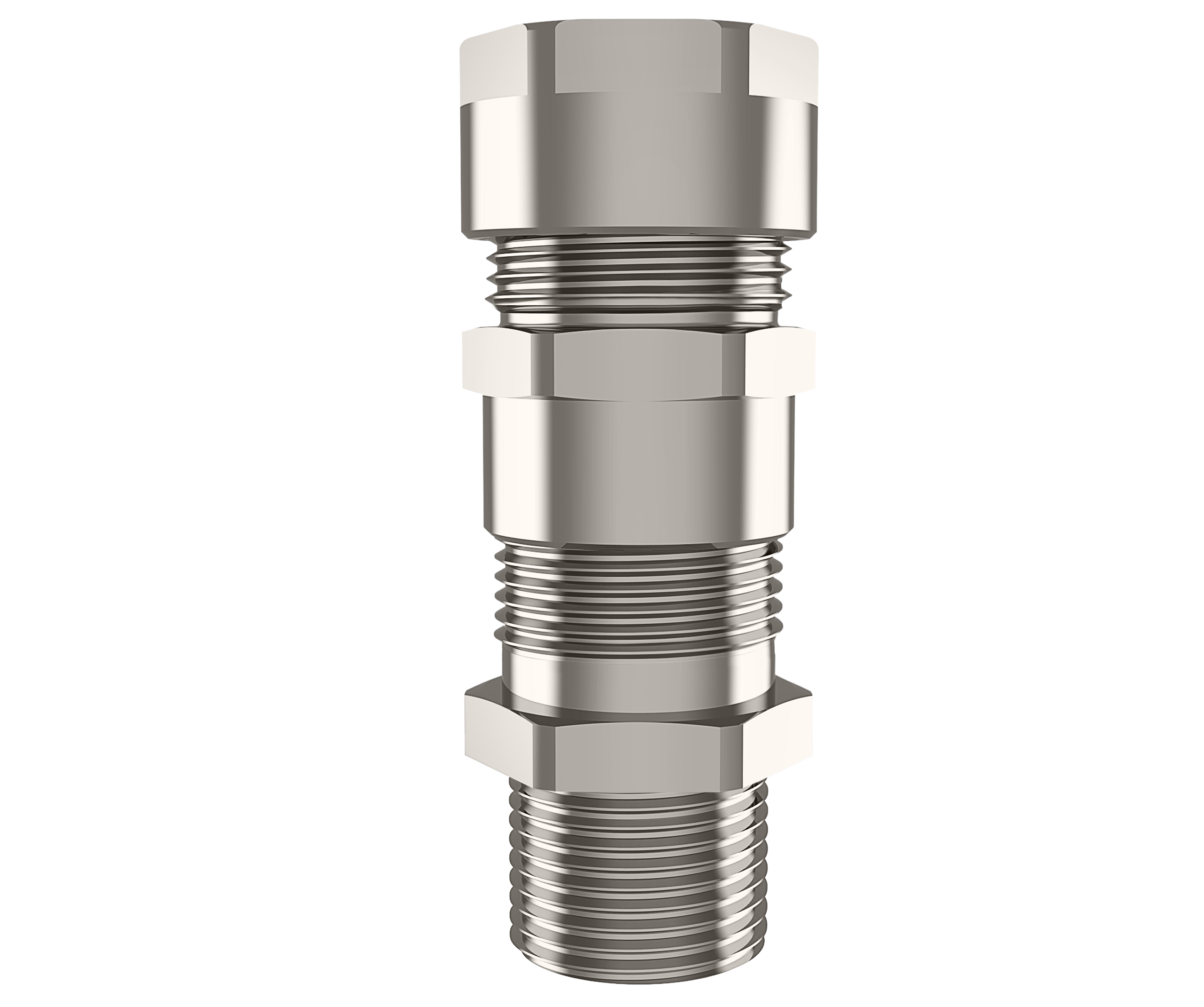

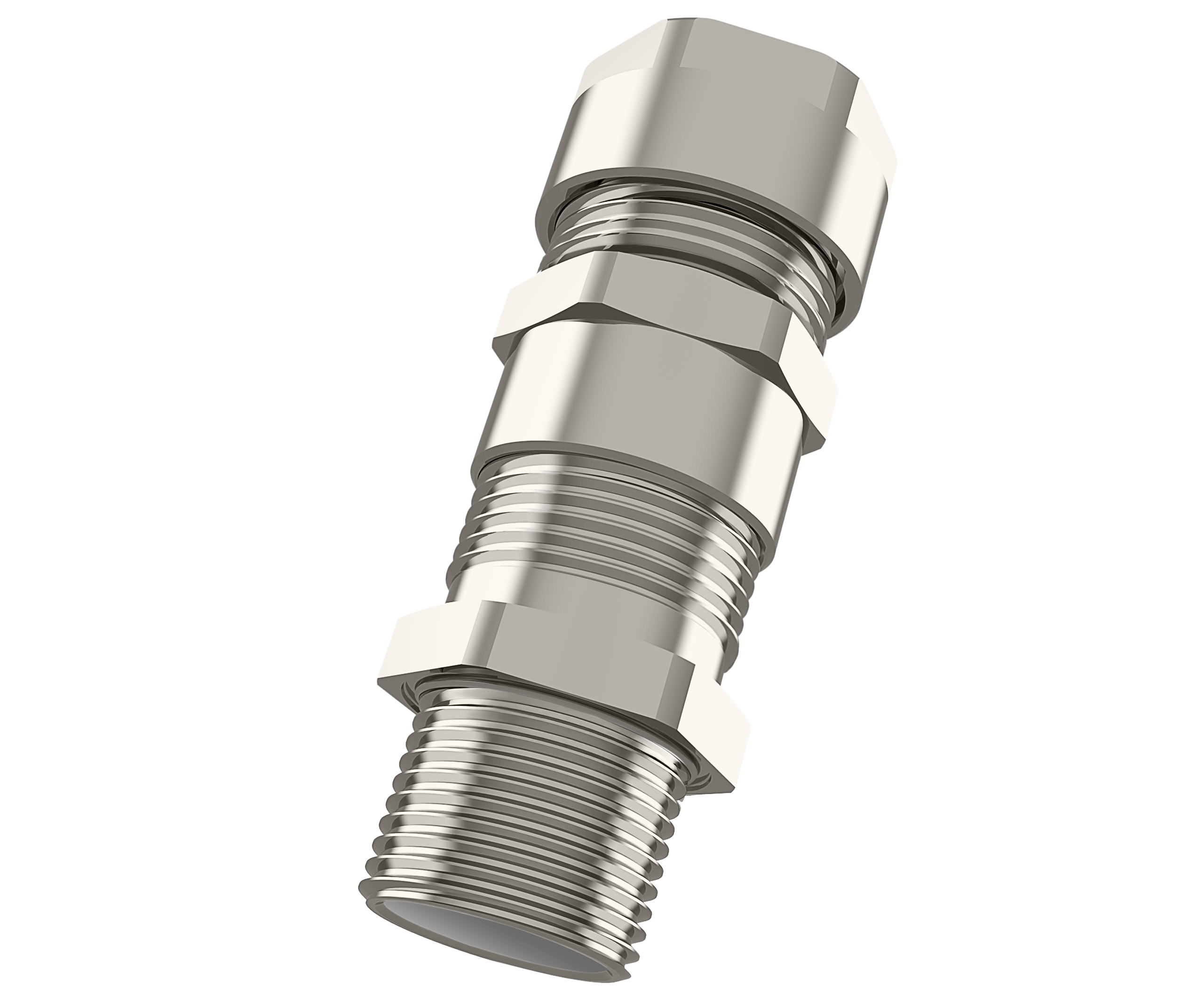

Industrial Volans Cable Glands

Provides secure double-compression clamping for reliable cable retention and mechanical protection of the armour

Reduces the effects of cable cold-flow characteristics

DTS 01 compatible without deluge seal

Maintains reliable sealing against dust, moisture, and environmental exposure

Suitable for indoor, outdoor, and harsh environment applications

Ensures stable performance under vibration and mechanical stress

Cap/Body/Inner Part Material	Nickel Plated Brass, Stainless Steel
Seal/O-ring Material	Halogen Free Silicone
Ingress Protection Rating	IP68 - 5 Bar 30 min, IP66
Temperature Range	Silicone -60 °C to +130 °C
Thread Type	Metric, NPT
Cable Type	Armoured (SWA, SWB, AWA, STA, PWA, Shielded)
Accessories	▪ Locknut ▪ Gasket (Washer) ▪ Serrated washer ▪ Earthtag ▪ Shroud
Remarks	Accessories must be ordered separately.
