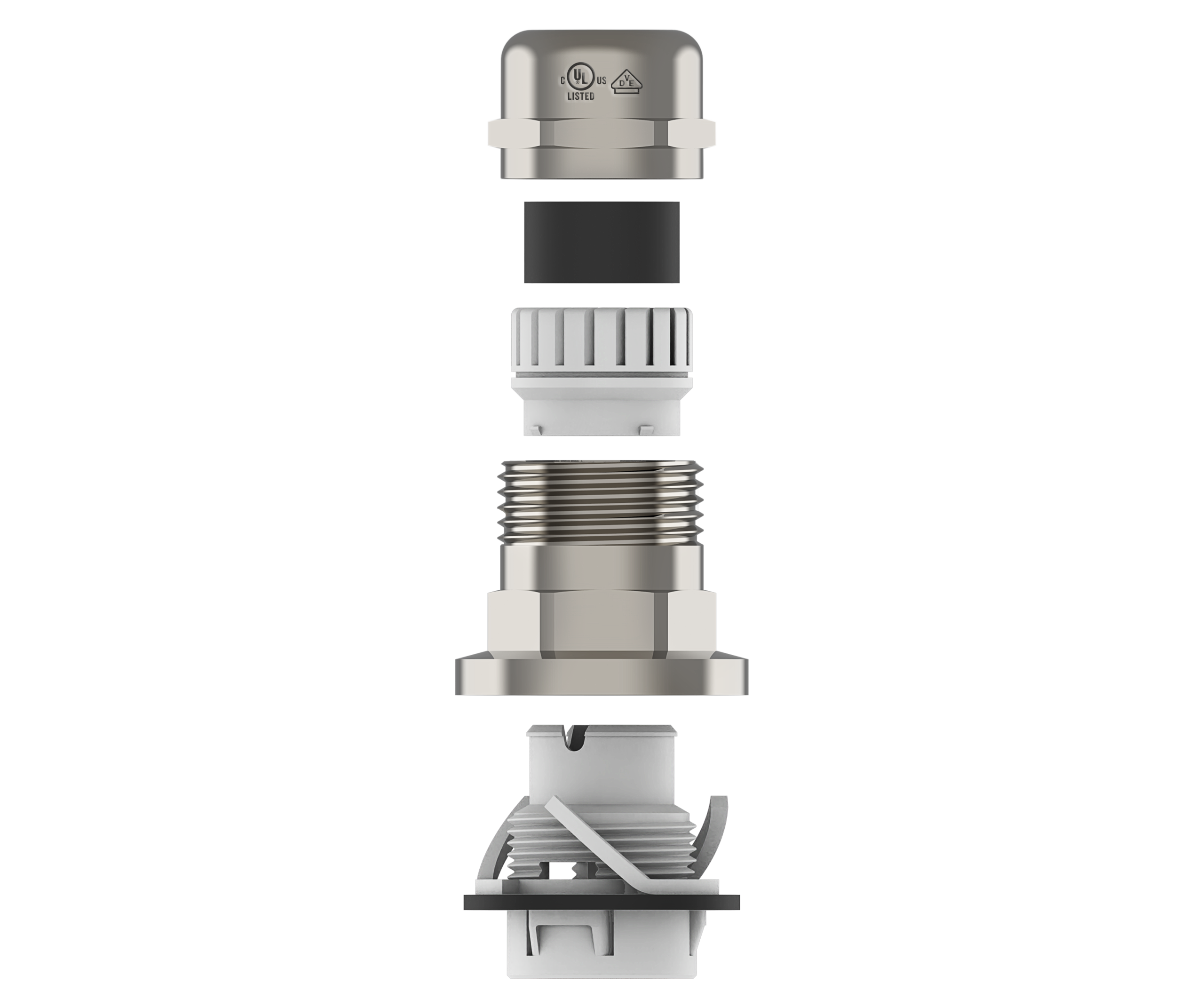

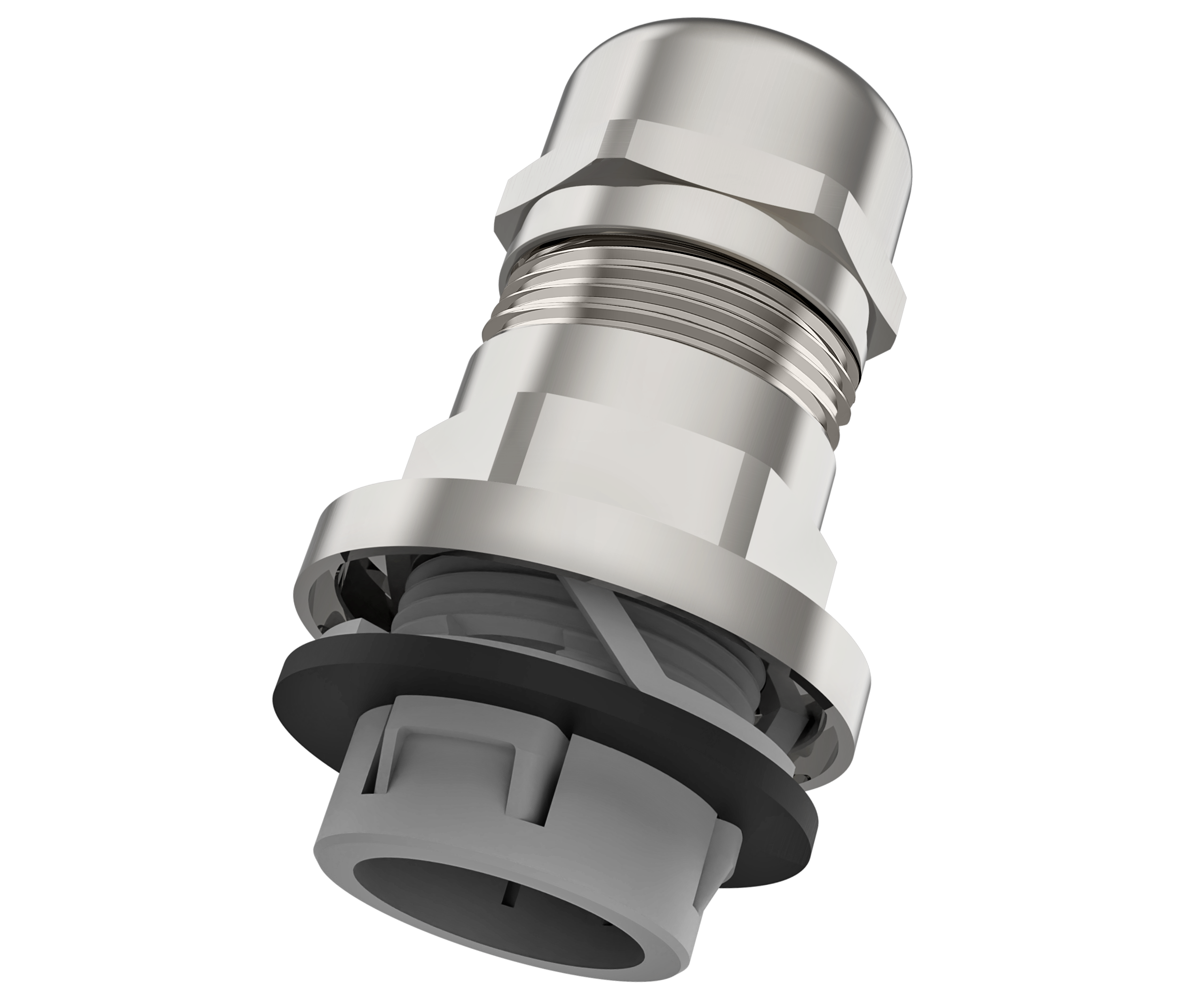

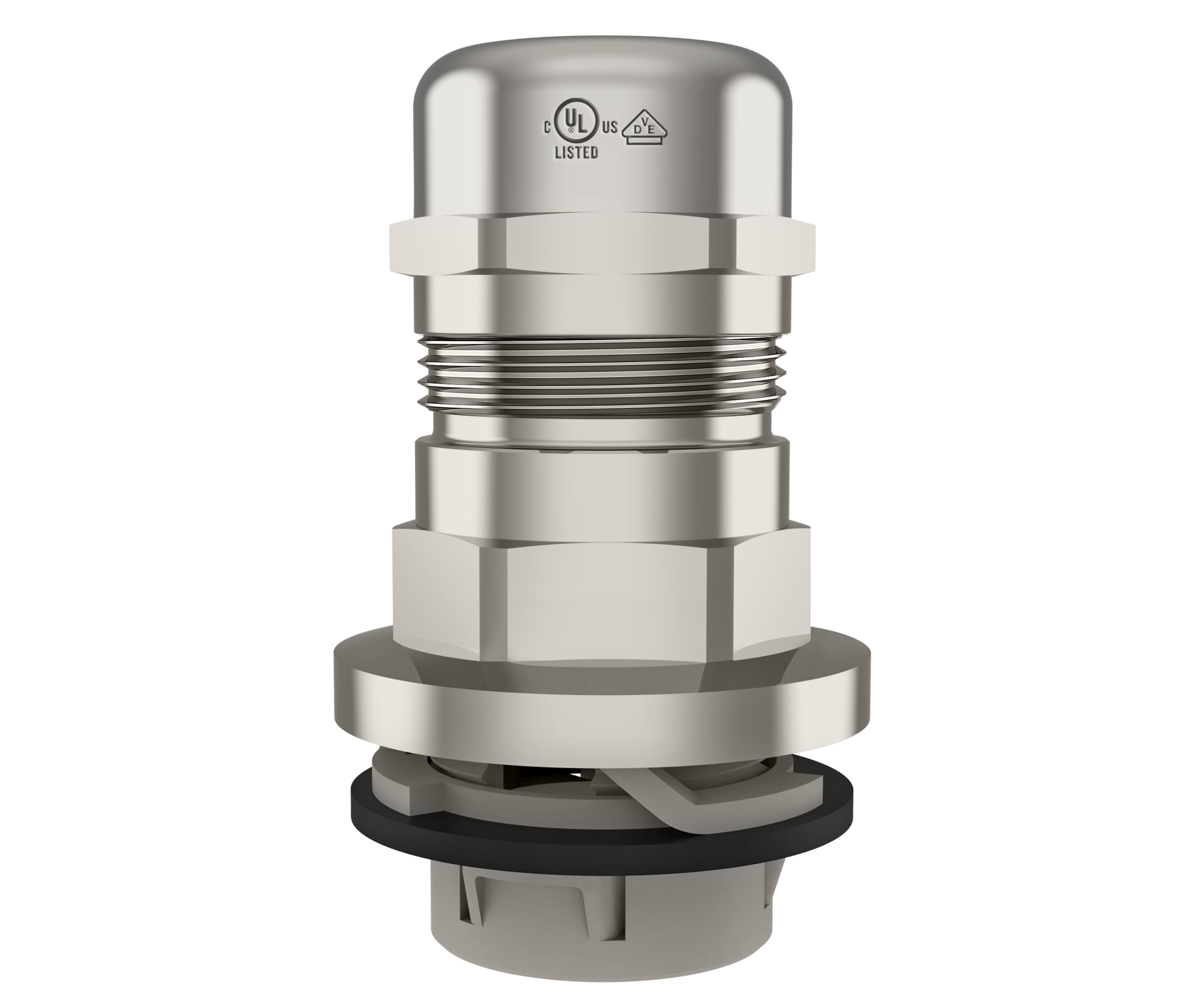

Snap-In Cable Glands, Metal

Easy and fast assembly: Push cable gland and turn body clockwise. Mounted in a few seconds.

Suitable for through-holes. No locknut required

UL and VDE certified along with various other approvals - see technical data for full details

For wall thickness 0,5 mm to 4,0 mm.

High quality strain relief and Seal, reliable performance for standard industrial applications.

Easy disassembly (with separate tool).

Cable Gland Material	Nickel Plated Brass
Gasket Material	Chloroprene
Seal Material	Chloroprene
Clamping Insert	PA 6 (Polyamide 6)
Lower Body	PA 6 (Polyamide 6)
Ingress Protection Rating	IP68 - 5 Bar, 30 min, IP66
Type Rating	TYPE 1, 4X
Flammability	V2 according to UL94
Operating Temperature	Permanent -20 °C to +100 °C
Intermittent -40 °C to +150 °C
Cable Type	Non armoured

Accessories	Dome plugs Reducing seals Flat cable seals Multihole seals Disassembly tools (one piece included per Minimum Order Quantity)
Remarks	Different Seal types available. In compliance with DIN EN 62444. Accessories must be ordered separately.
