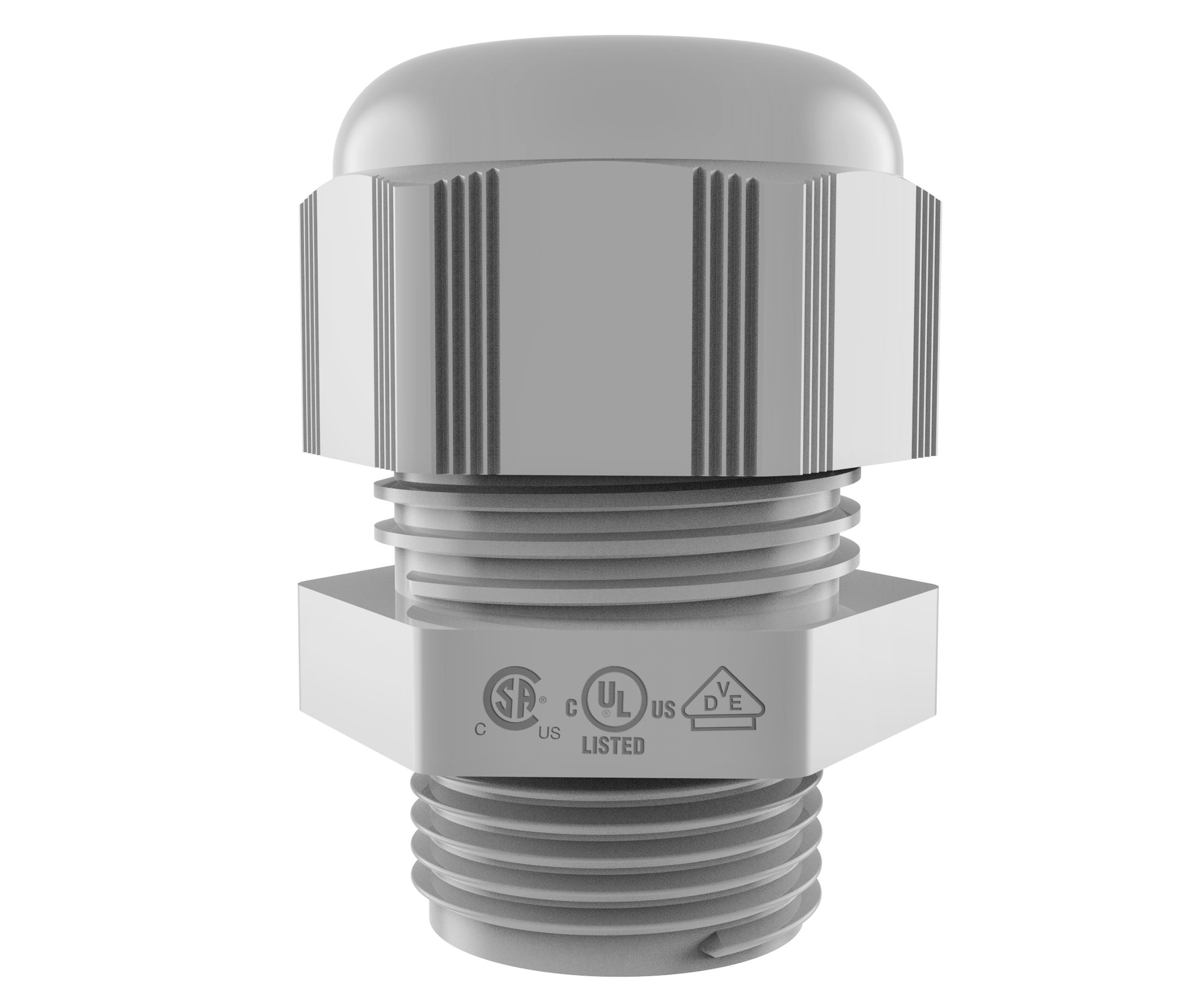

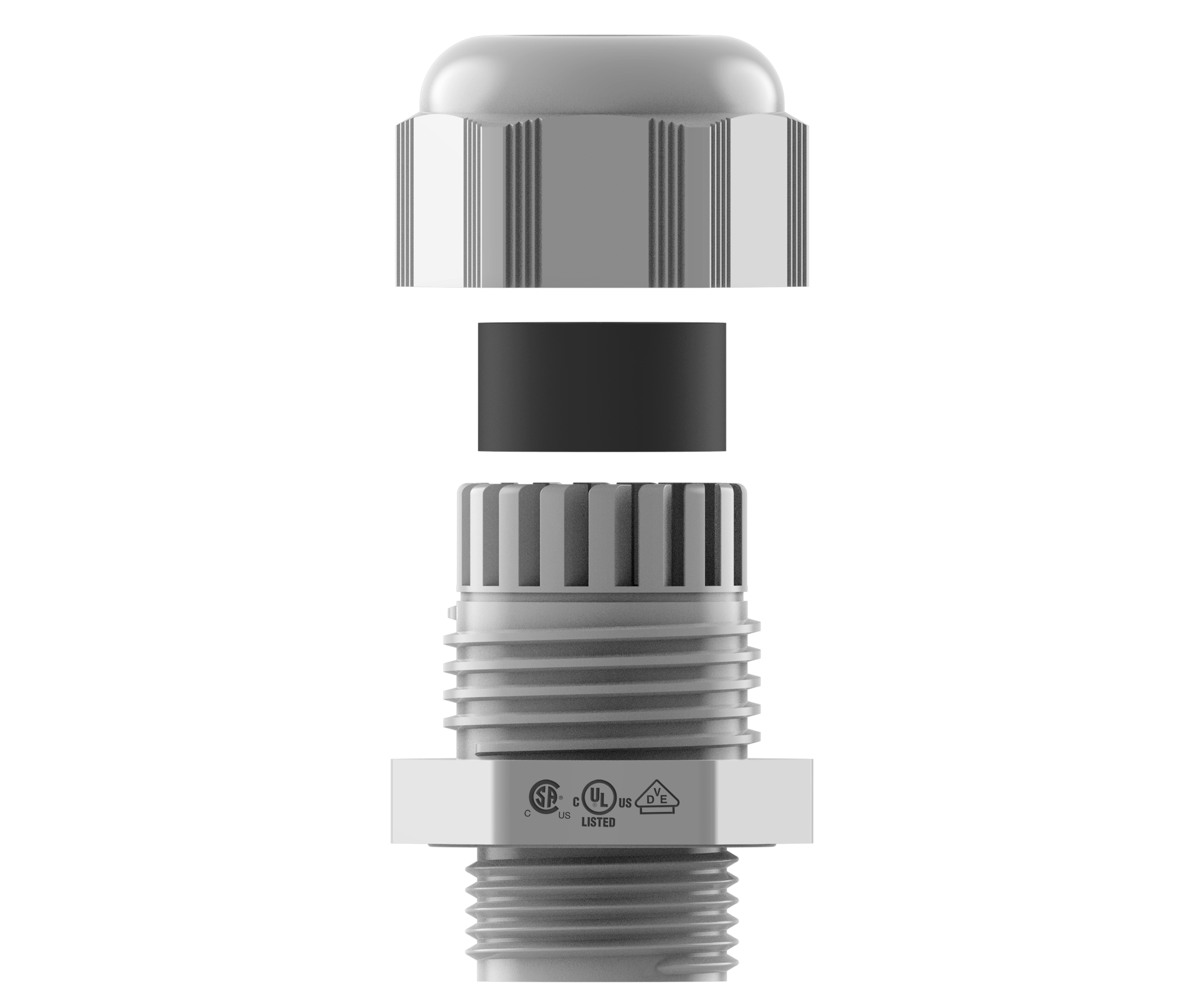

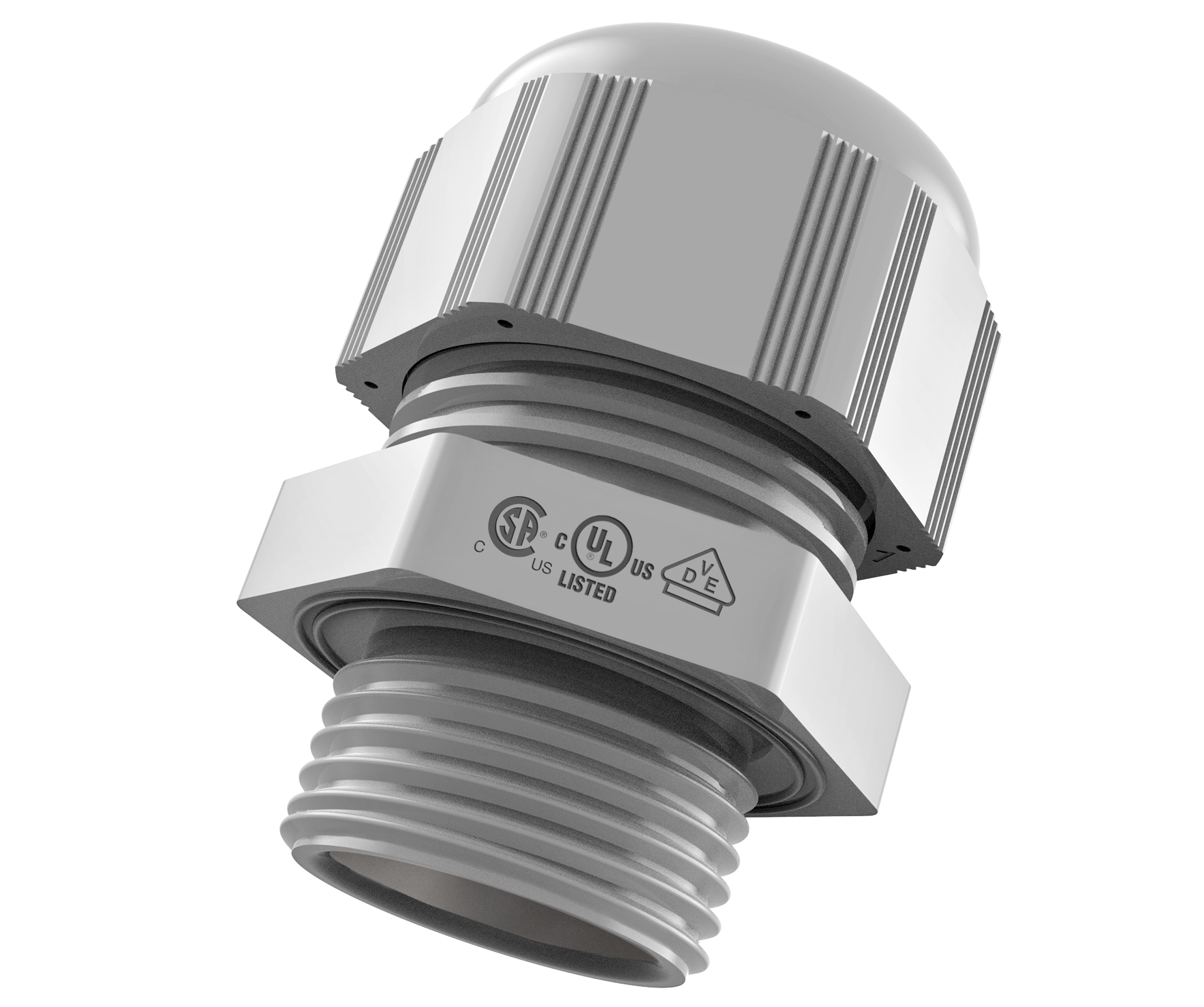

RJ 45 Cable Glands, Plastic

Enables the installation of cables with RJ45 connectors thanks to its slotted rubber seal.

Applicable for both outdoor and indoor use in industrial areas.

High protection against dust, moisture, and water ingress

High tensile strength and reliable strain relief

Durable design with quick and easy assembly

Wide cable clamping ranges for versatile applications

Compatible with various sealing inserts (multihole, double seal, flat cable)

Manufactured from halogen-free polyamide material

Cap/Body Material	Polyamide 6 V2 acc. to UL 94
Seal Material	Neoprene (Chloroprene)
Ingress Protection Rating	IP68 - 5 Bar 30 min, IP66
Type Rating	4X
Temperature Range	Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C
Temperature Range	Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C
Colour	Silver grey (RAL 7001) Light grey (RAL 7035) Black (RAL 9005)
Thread Type	Metric, PG, NPT
Cable Type	Non armoured with pre-assembled RJ 45 connector.
Accessories	▪ Locknut ▪ Multihole seal ▪ Gasket (Washer)
Remarks	▪ We recommend using a gasket to ensure IP protection between cable gland and enclosure. ▪ Accessories must be ordered separately ▪ Some approvals may not apply to all sizes
