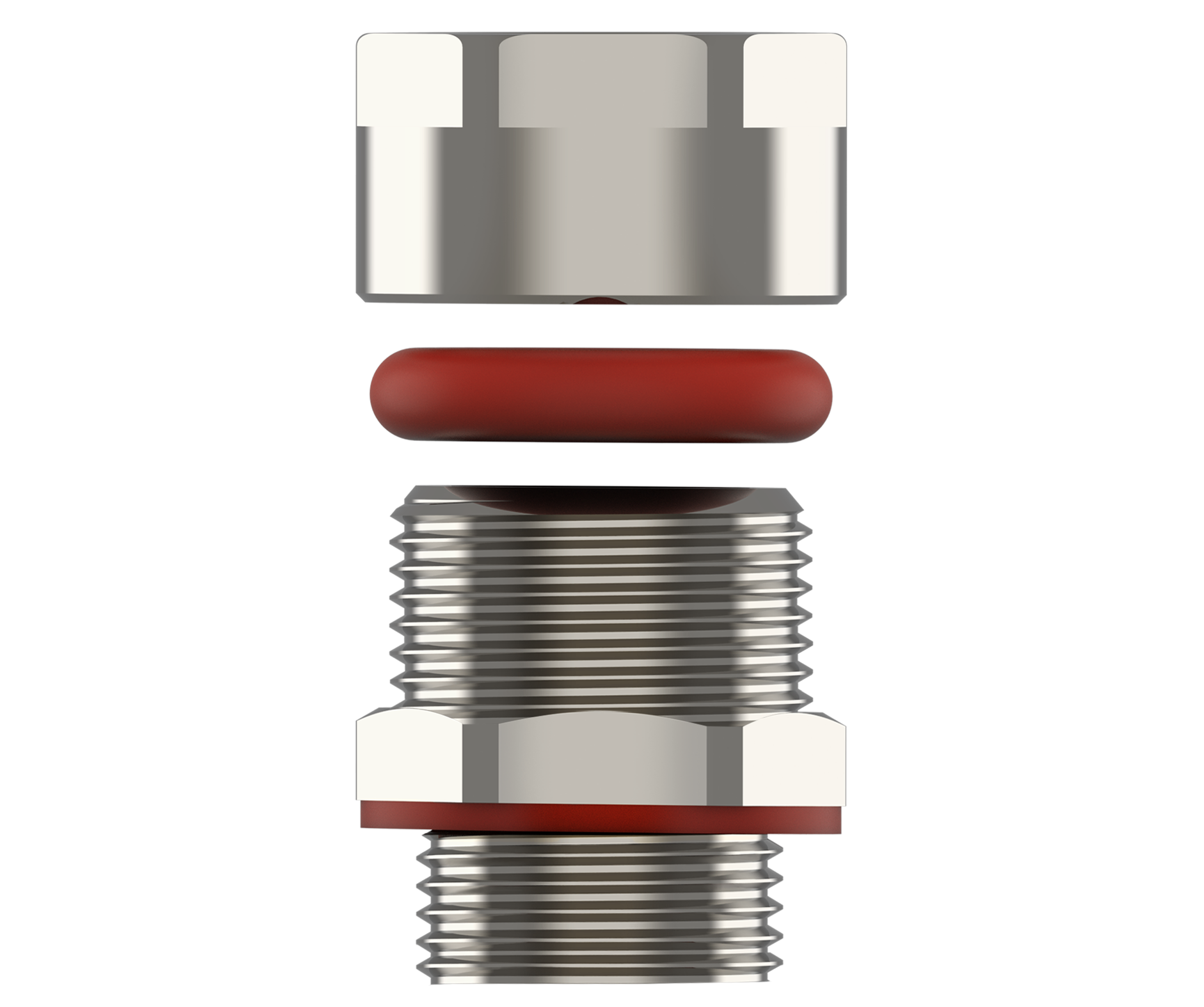

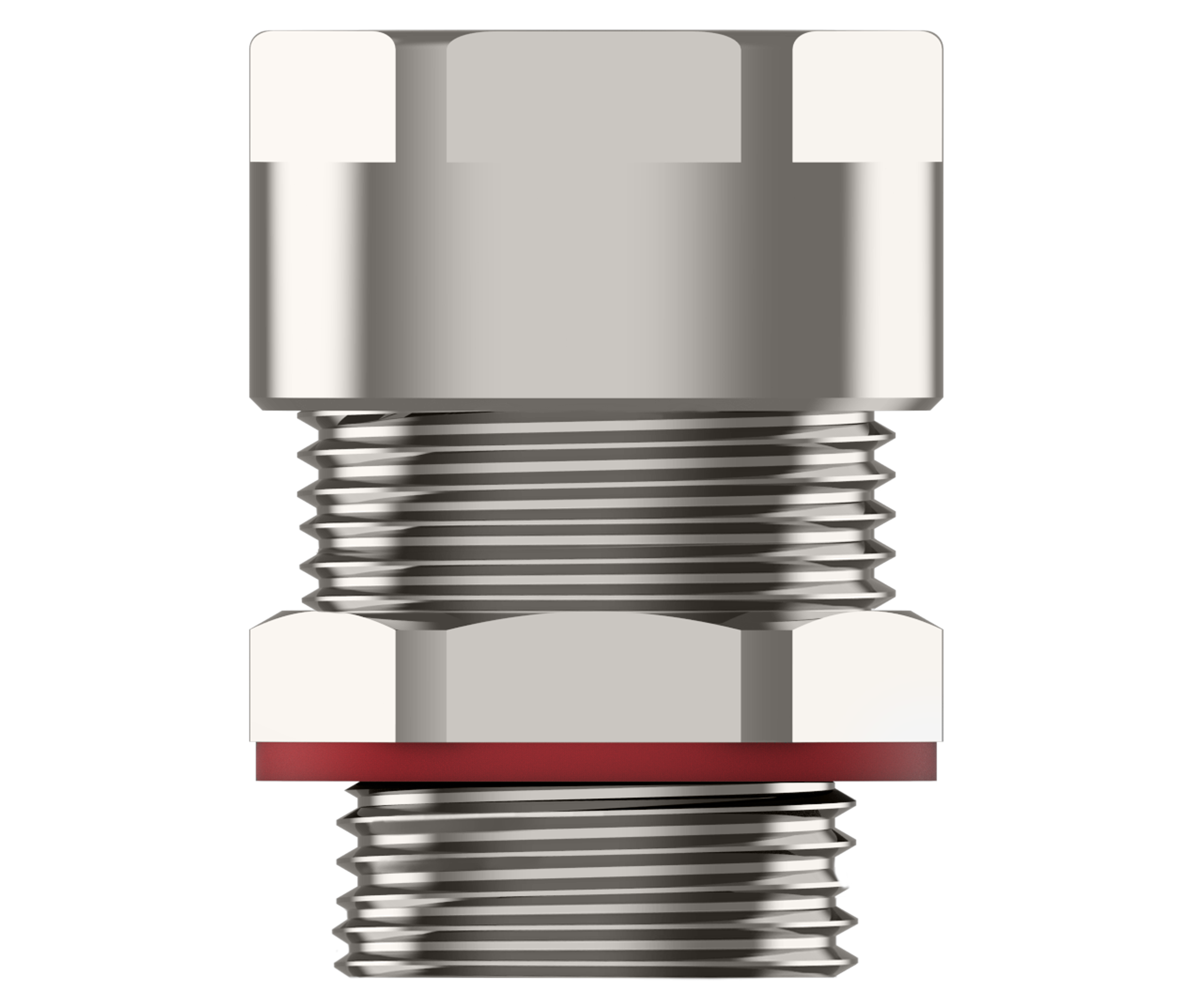

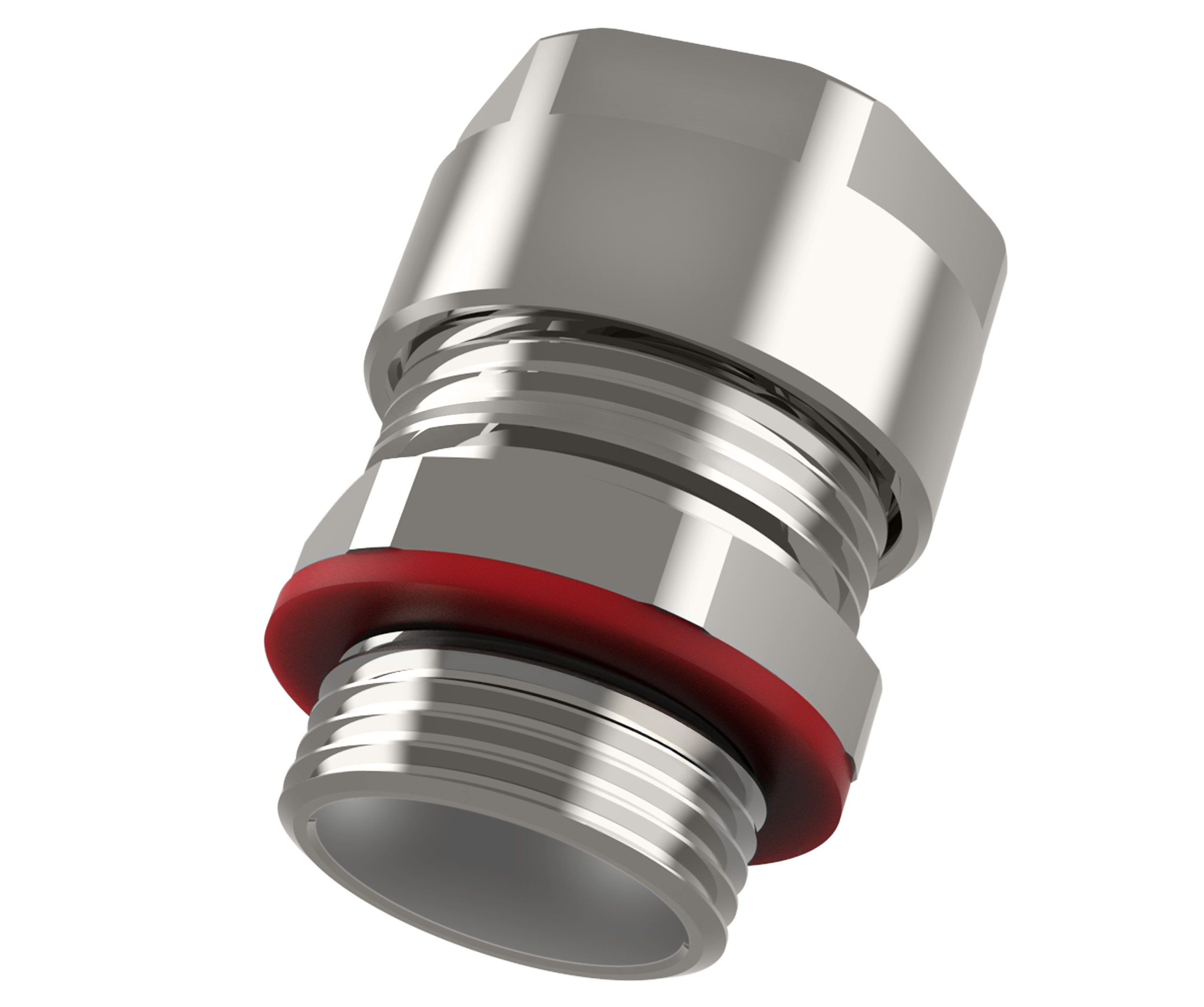

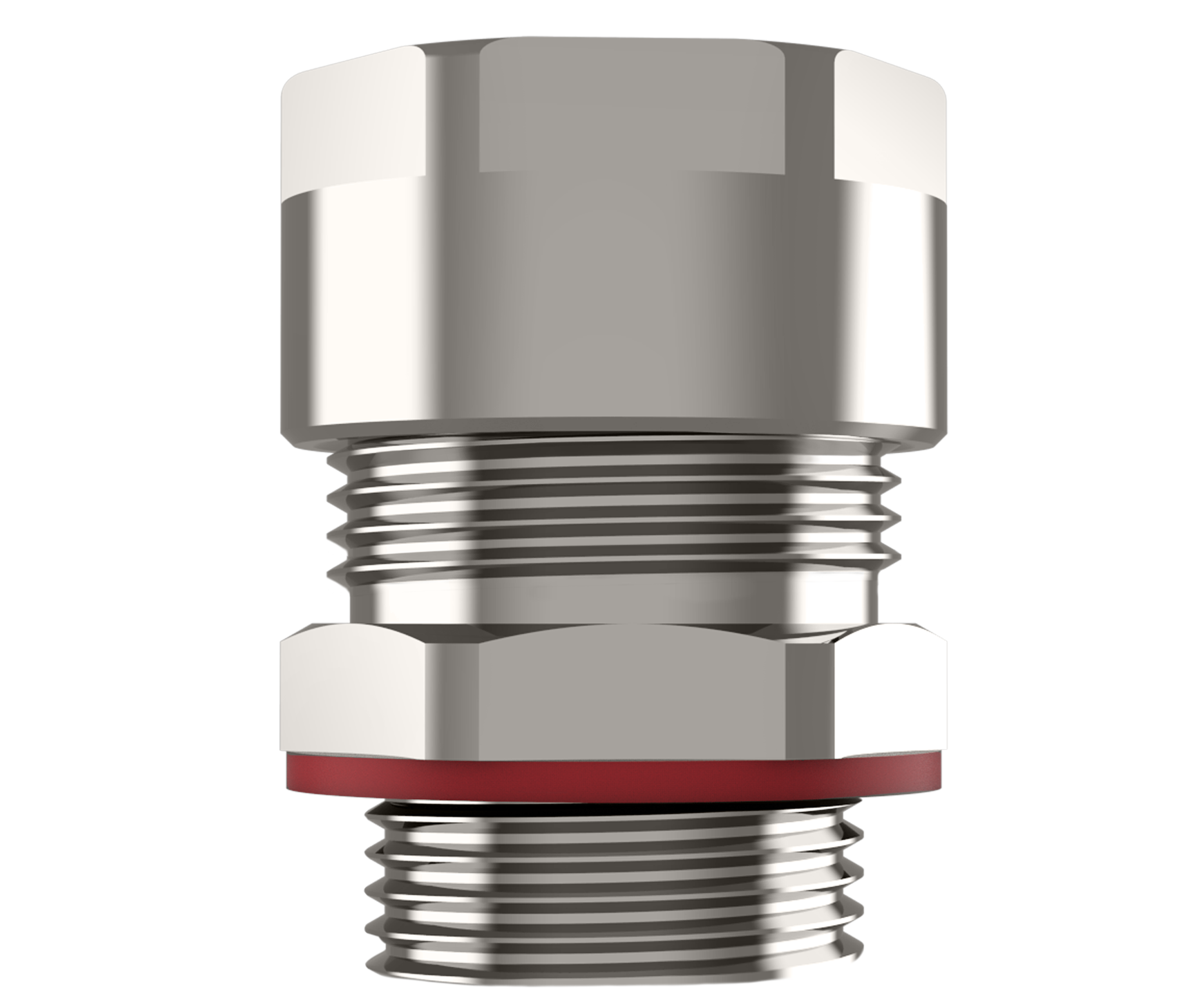

Industrial Crux Cable Glands

For industrial applications that require wide temperature range

Easy assembly.

High quality strain relief and sealing reliable performance for standard industrial applications.

Wide clamping ranges

Cap/Body Material	Nickel Plated Brass , Stainless Steel
Seal/Gasket Material	Silicone
Mechanical Classification	Impact:Level 8
Ingress Protection Rating	IP68 - 10 Bar 30 min, IP66
Temperature Range	-60 °C to +150 °C
Thread Type	Metric
Cable Type	Non-Armoured

Accessories	Lock nuts Gaskets Earthtag Serrated Washer
Remarks	Manufactured according to DIN EN 62444/50262 Accessories must be ordered separately.
