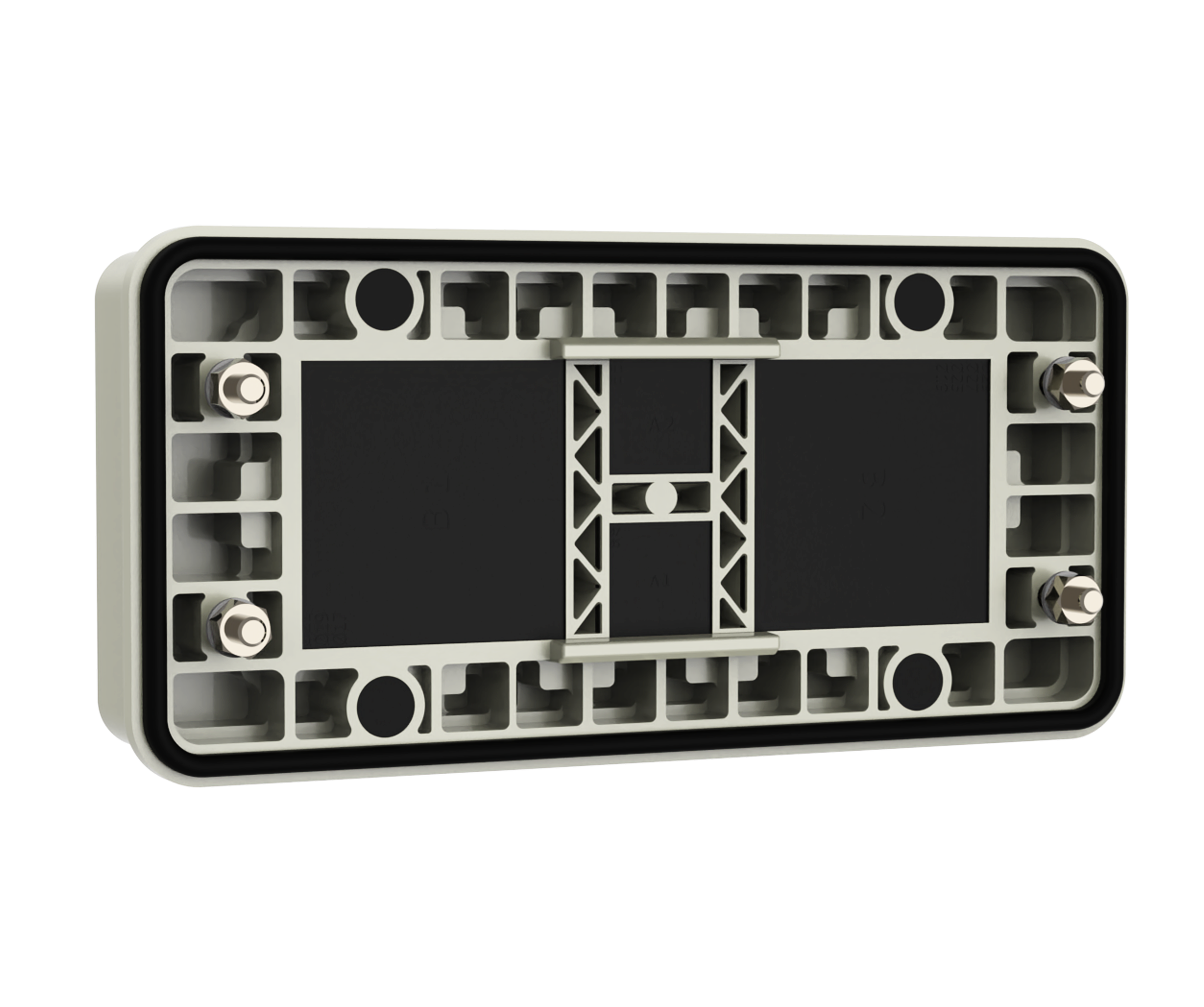

BPA Cable Plates

Designed for reliable and secure multi-cable entry through bulkheads, panels, and enclosures, especially when space is limited and as an economical solution.

Suitable for both connectorised and non-connectorised cables.

Provides robust mechanical protection and strain relief for multiple cables.

Compatible with various cable types and diameters, offering flexible configuration options.

High protection against dust, moisture, and water ingress.

Suitable for both indoor and outdoor use in industrial environments.

Easy to install, allowing safe and organized cable management.

Frames/Plates/Inserts Material PA Glass Fibre Reinforced
Clamping Seal Material Neoprene (Chloroprene)
Main Frame Seal Material Polyurethane
Screw, Locknut Material Stainless Steel
Washer (Screw) NBR
Ingress Protection Rating IP 66
Type Rating 1, 4, 4X, 12, 13
Flammability Class HB According to UL94
Temperature Range -40 °C to +80 °C

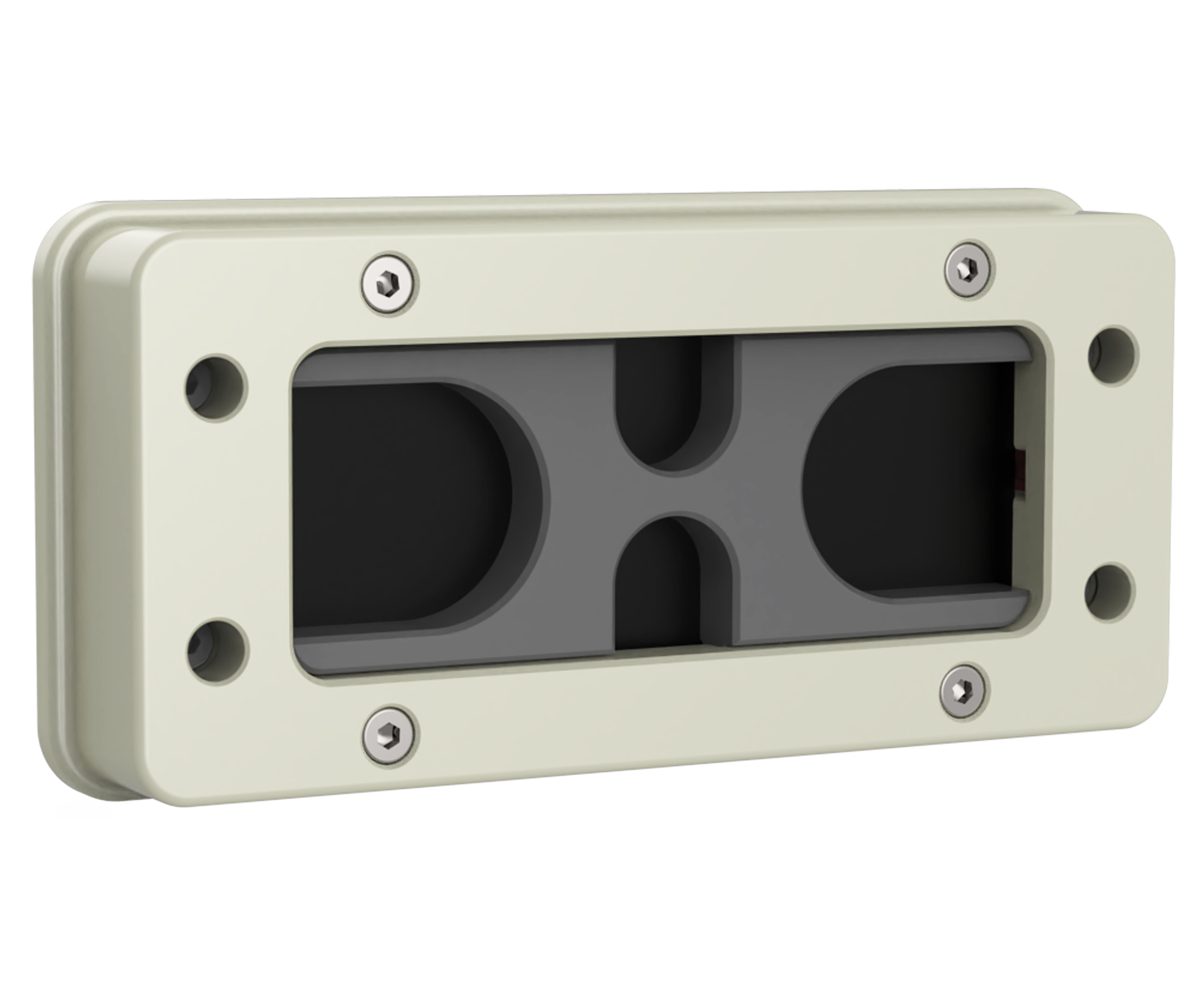

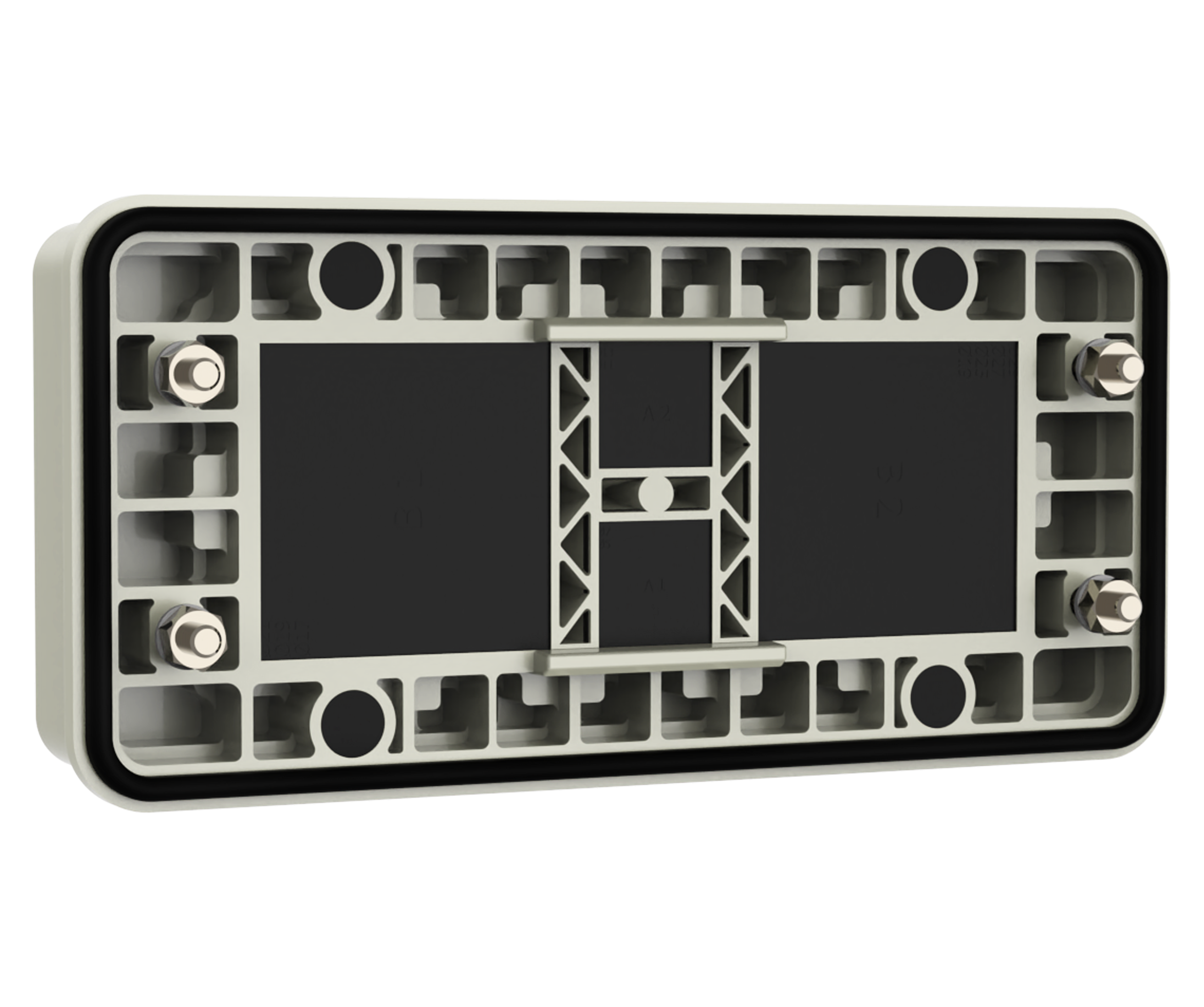

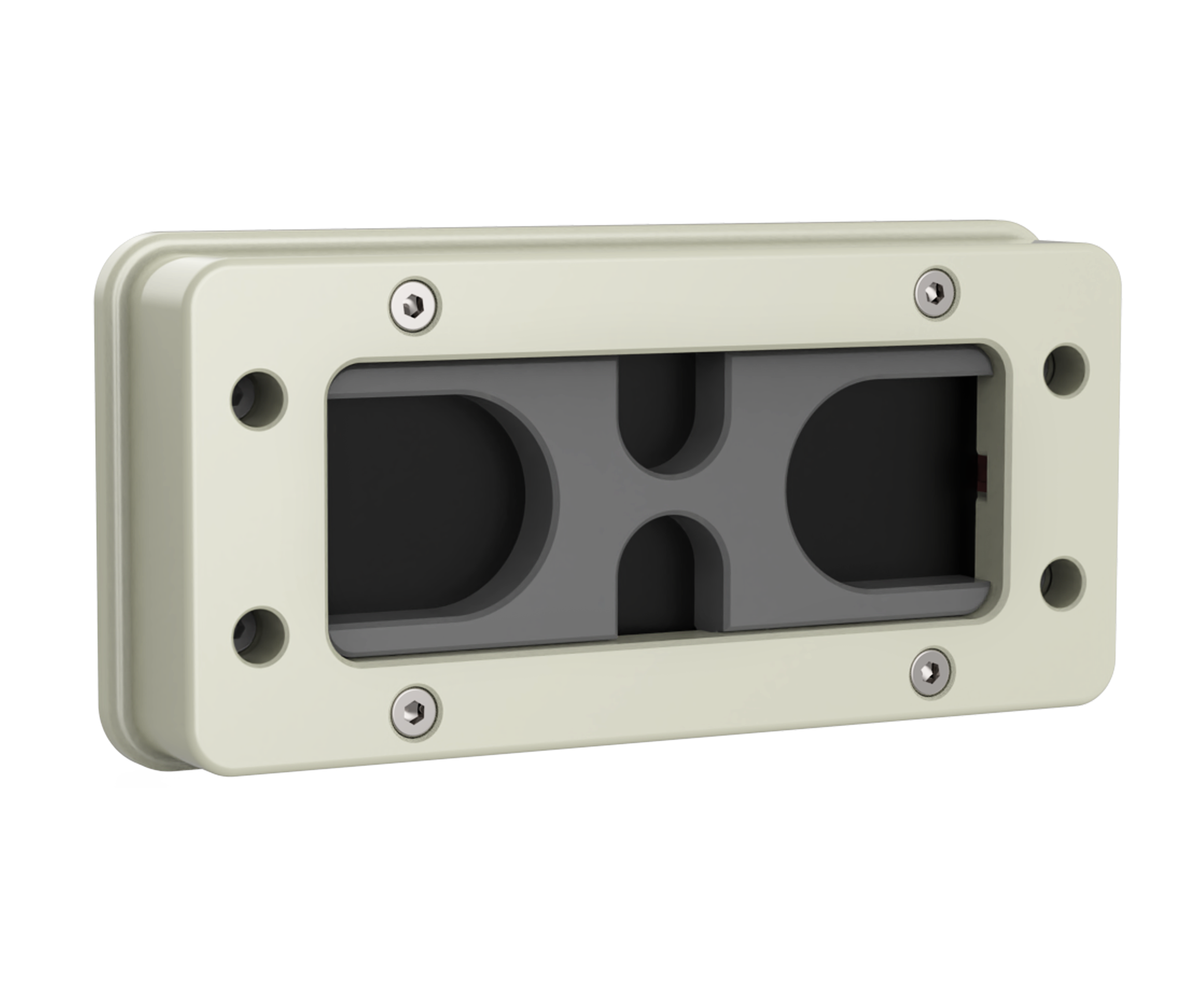

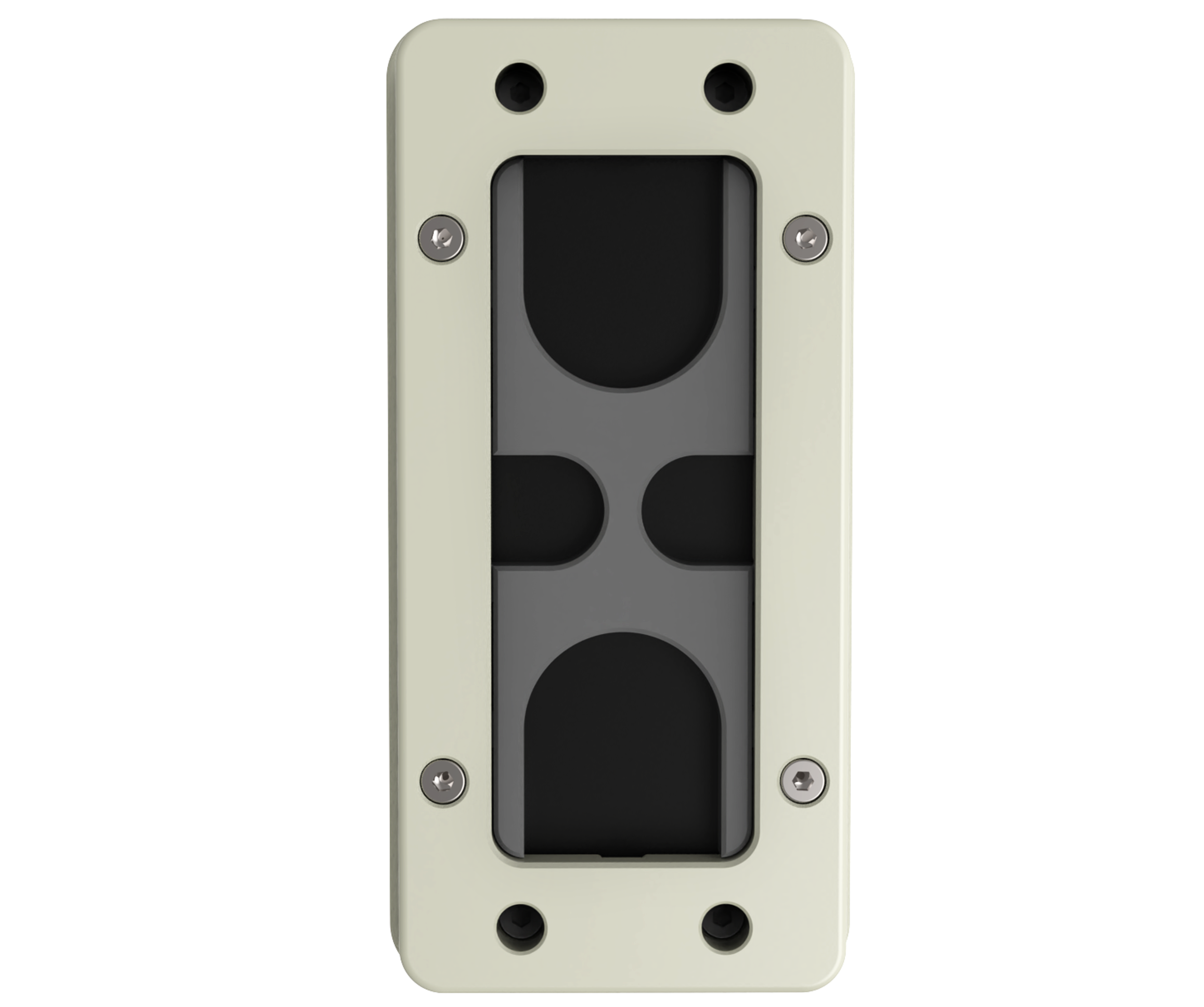

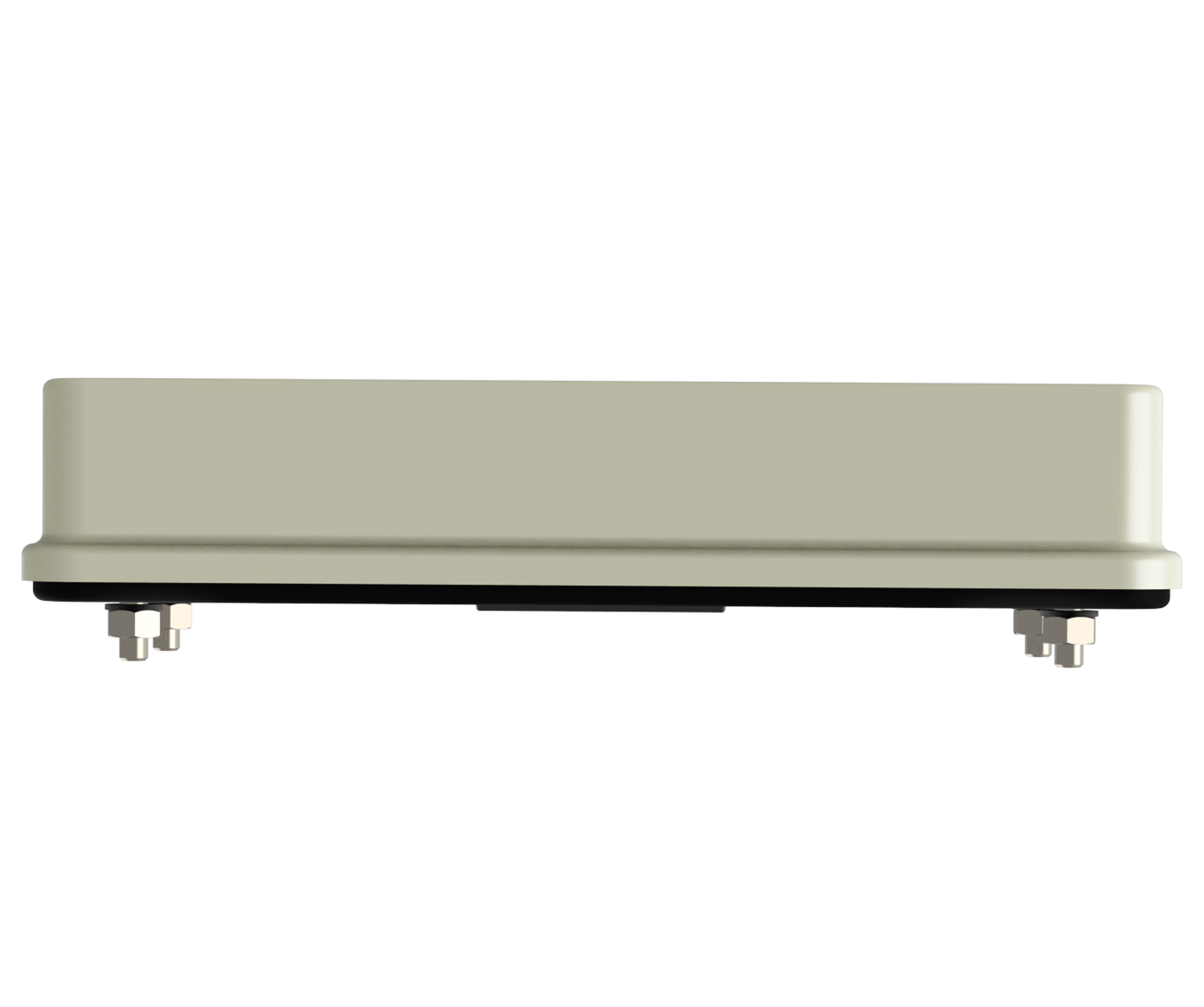

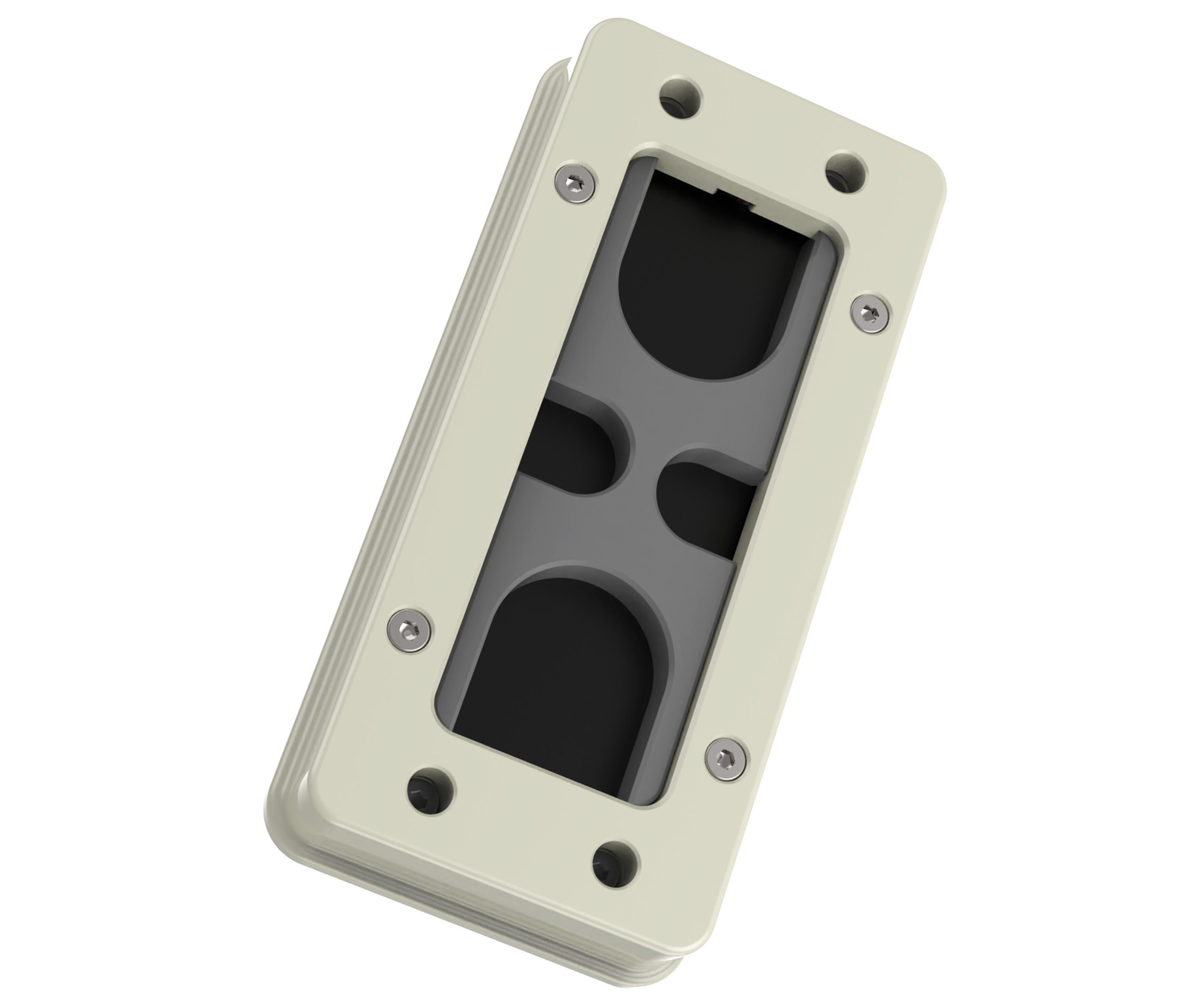

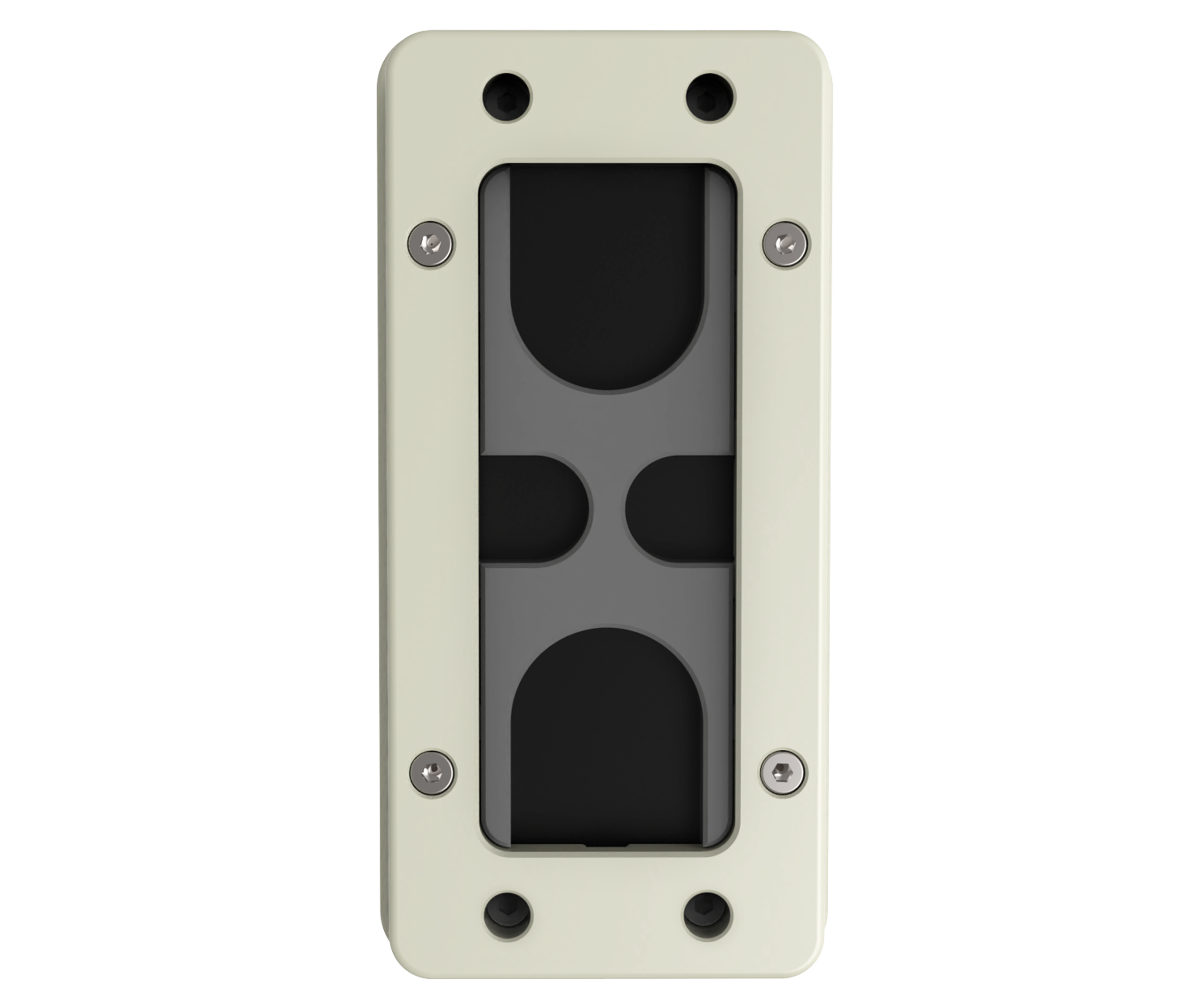

Variants and Clamping Ranges 4 Ways (2 small + 2 large seals)

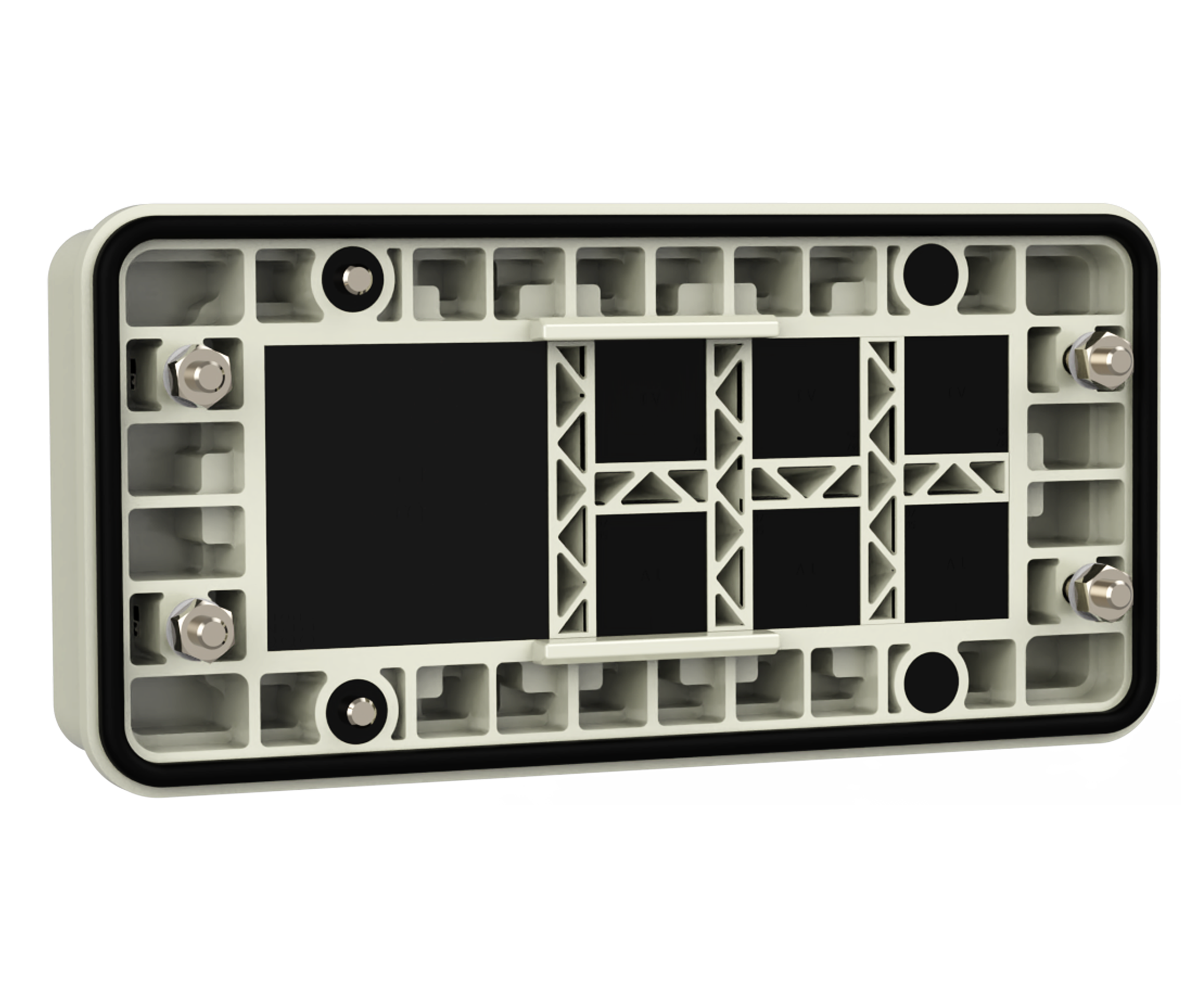

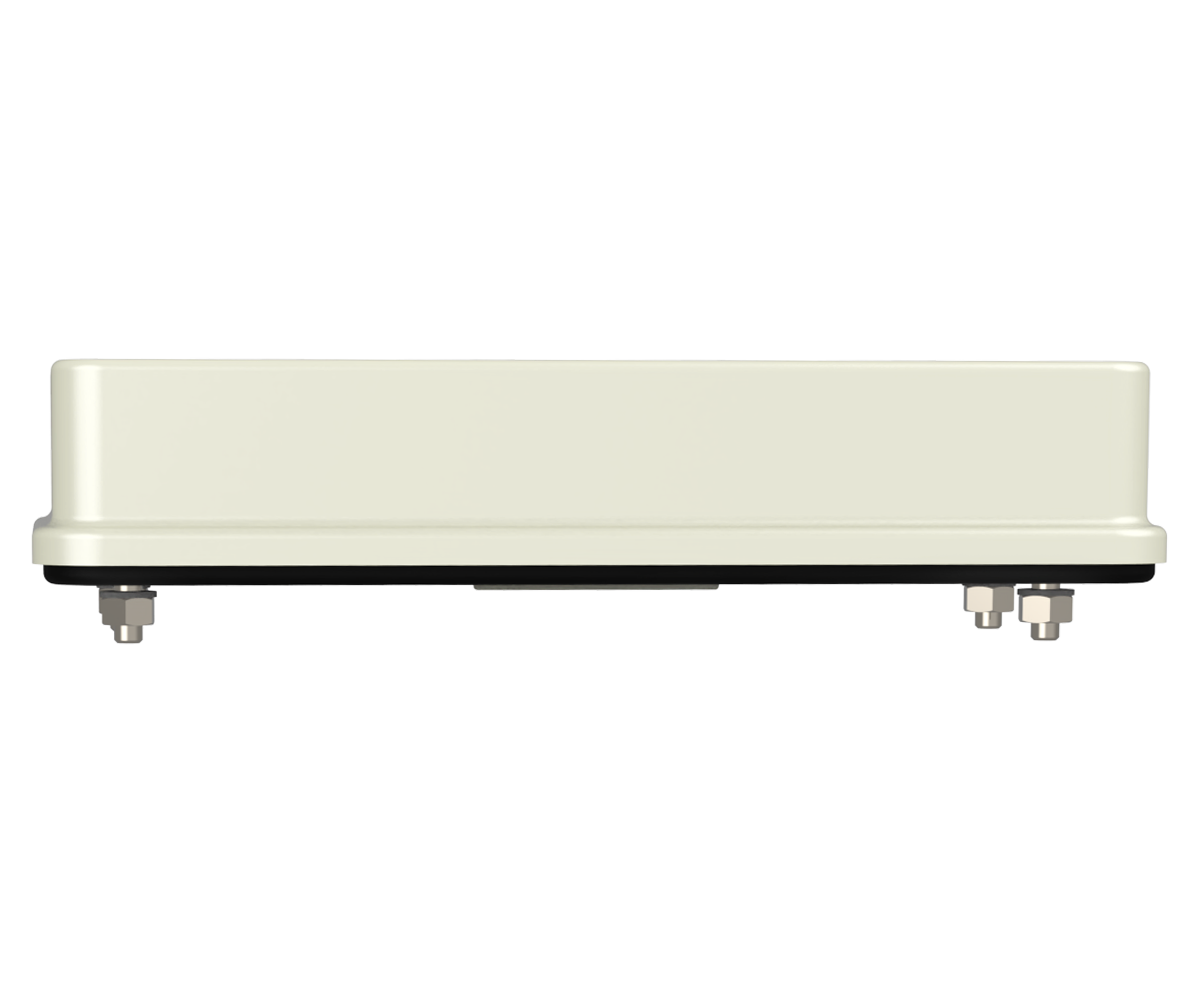

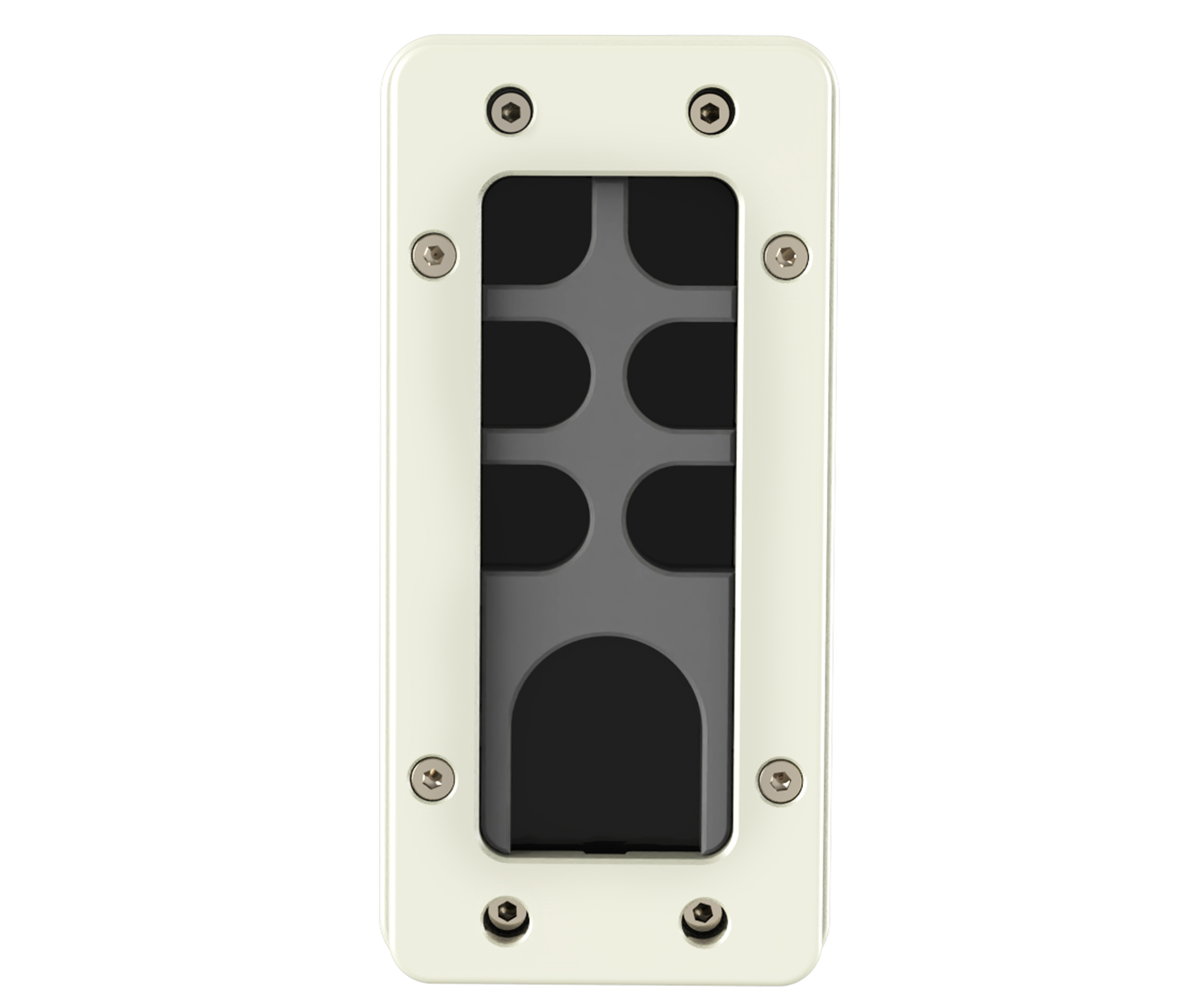

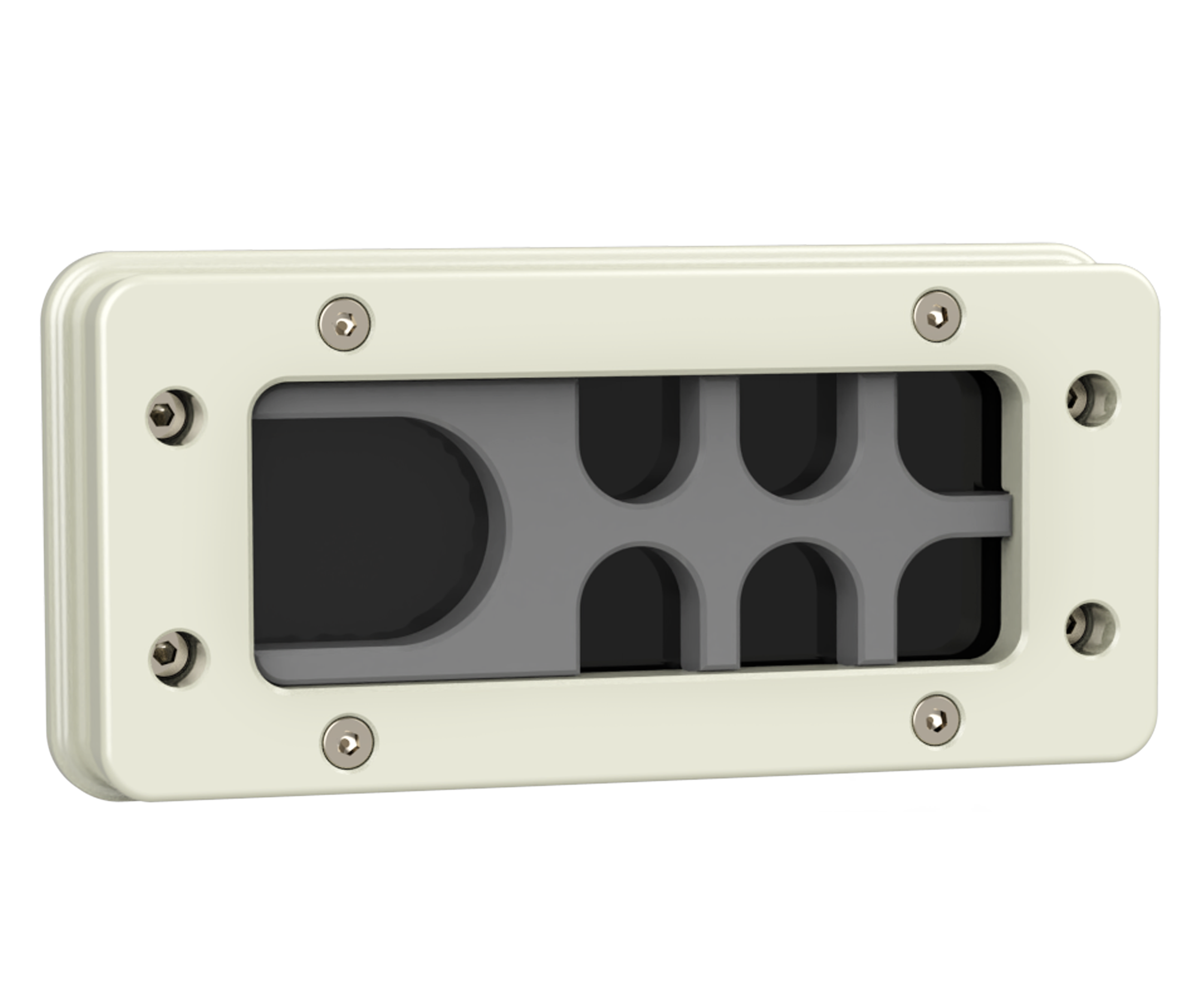

7 Ways (6 small + 1 large seals)

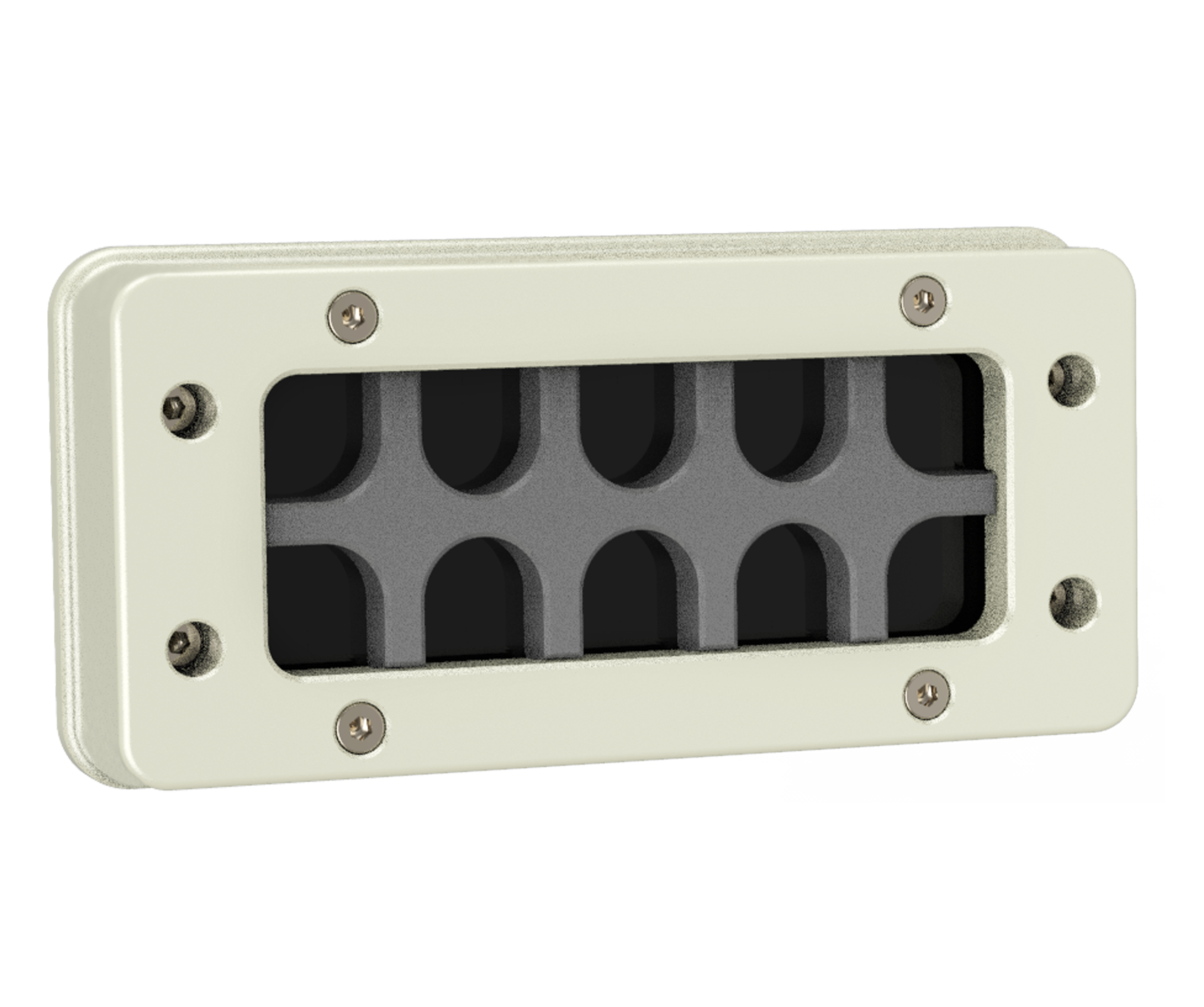

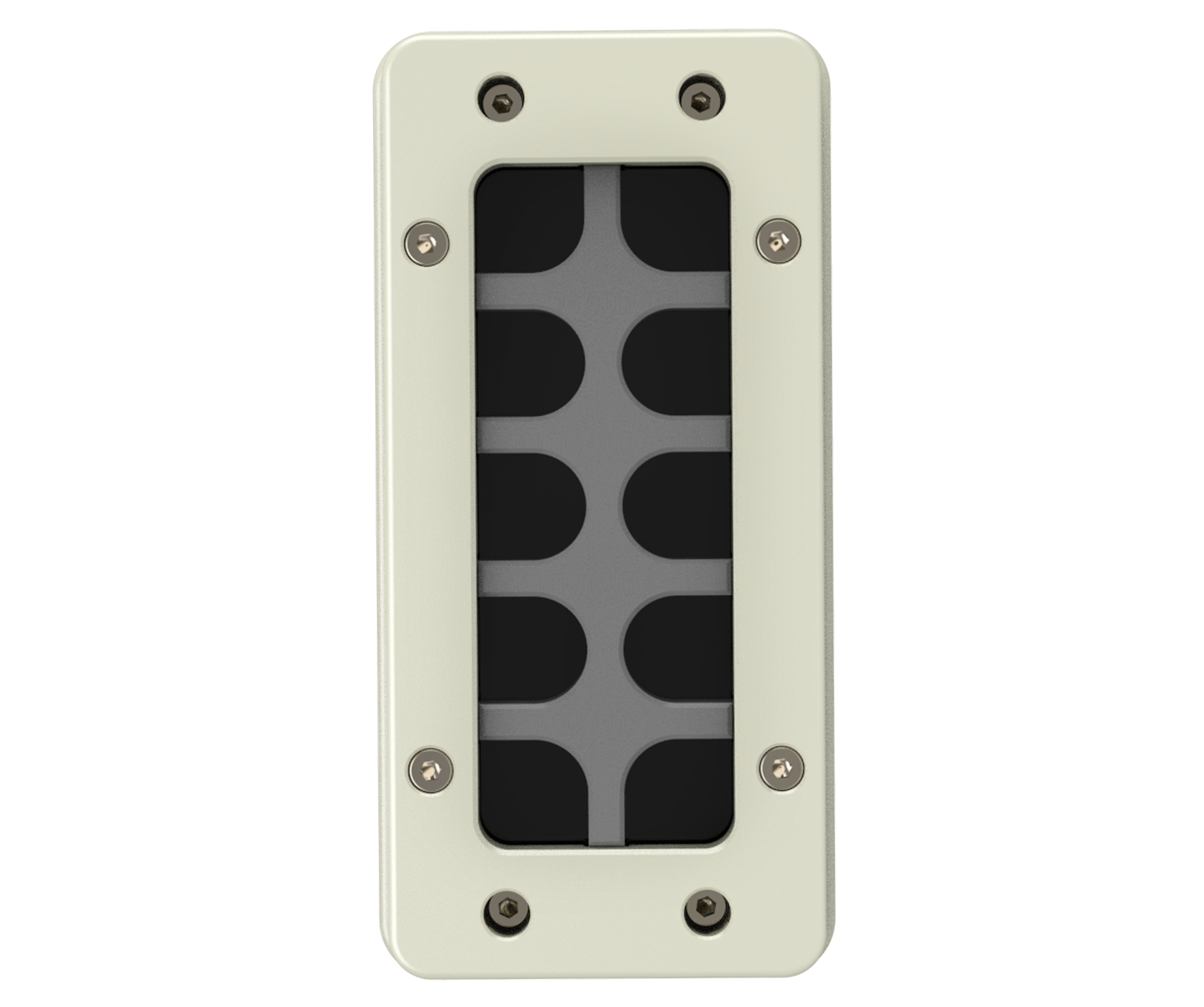

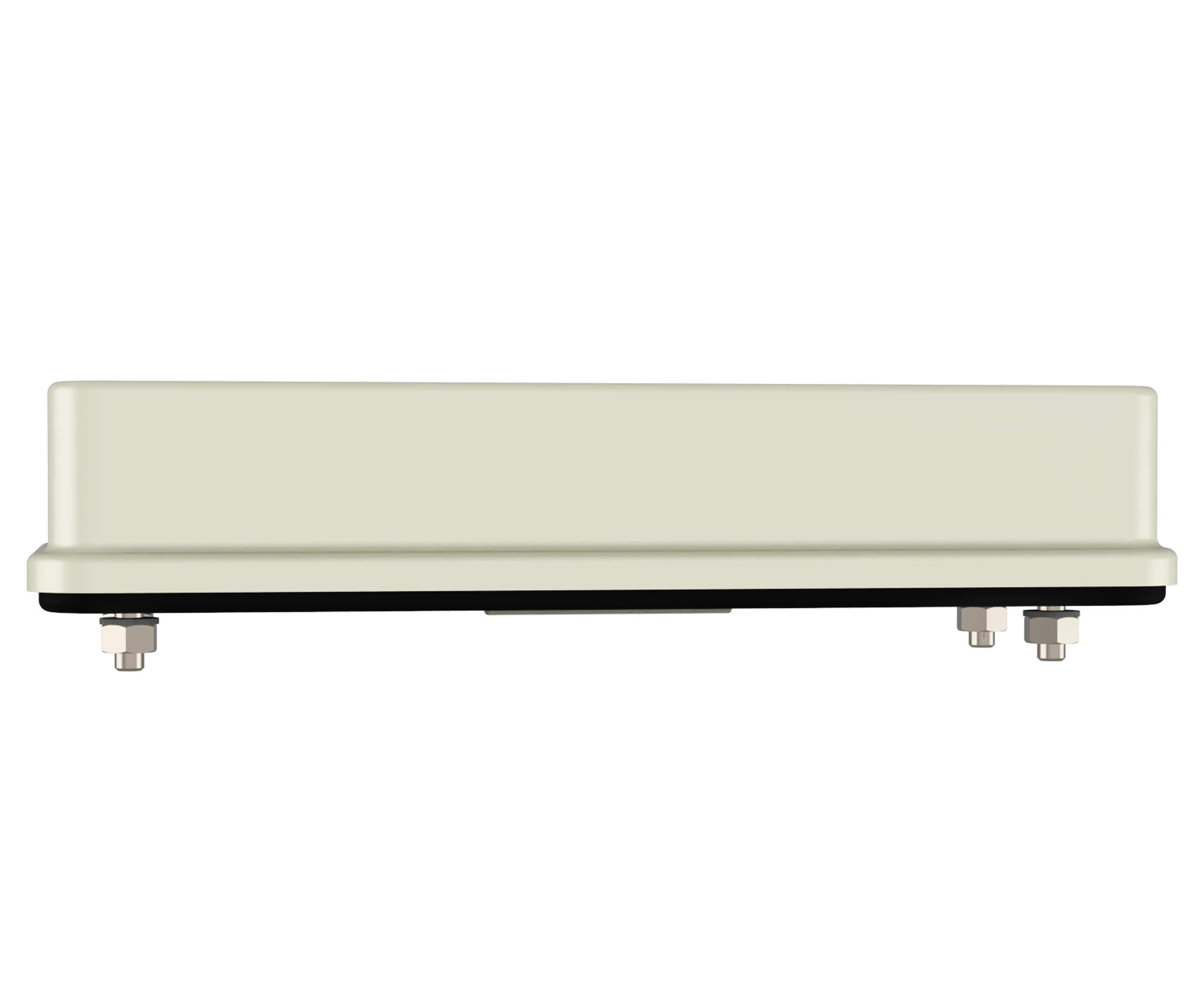

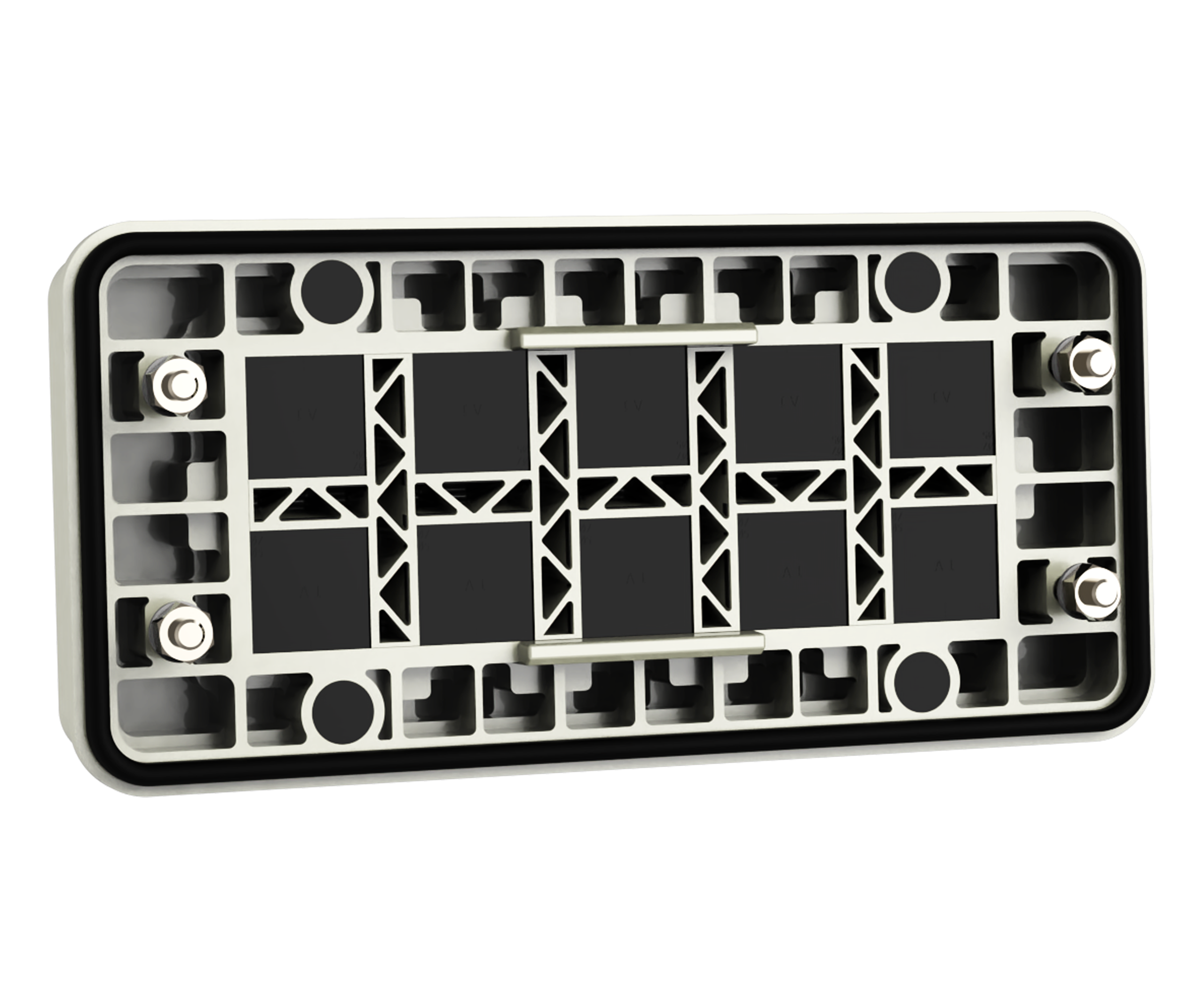

10 Ways (10 small seals)
Enclosure Cut Out 112x46mm
Fixation Screw M4x0,7x20 mm Fitted with M3 Allen Head

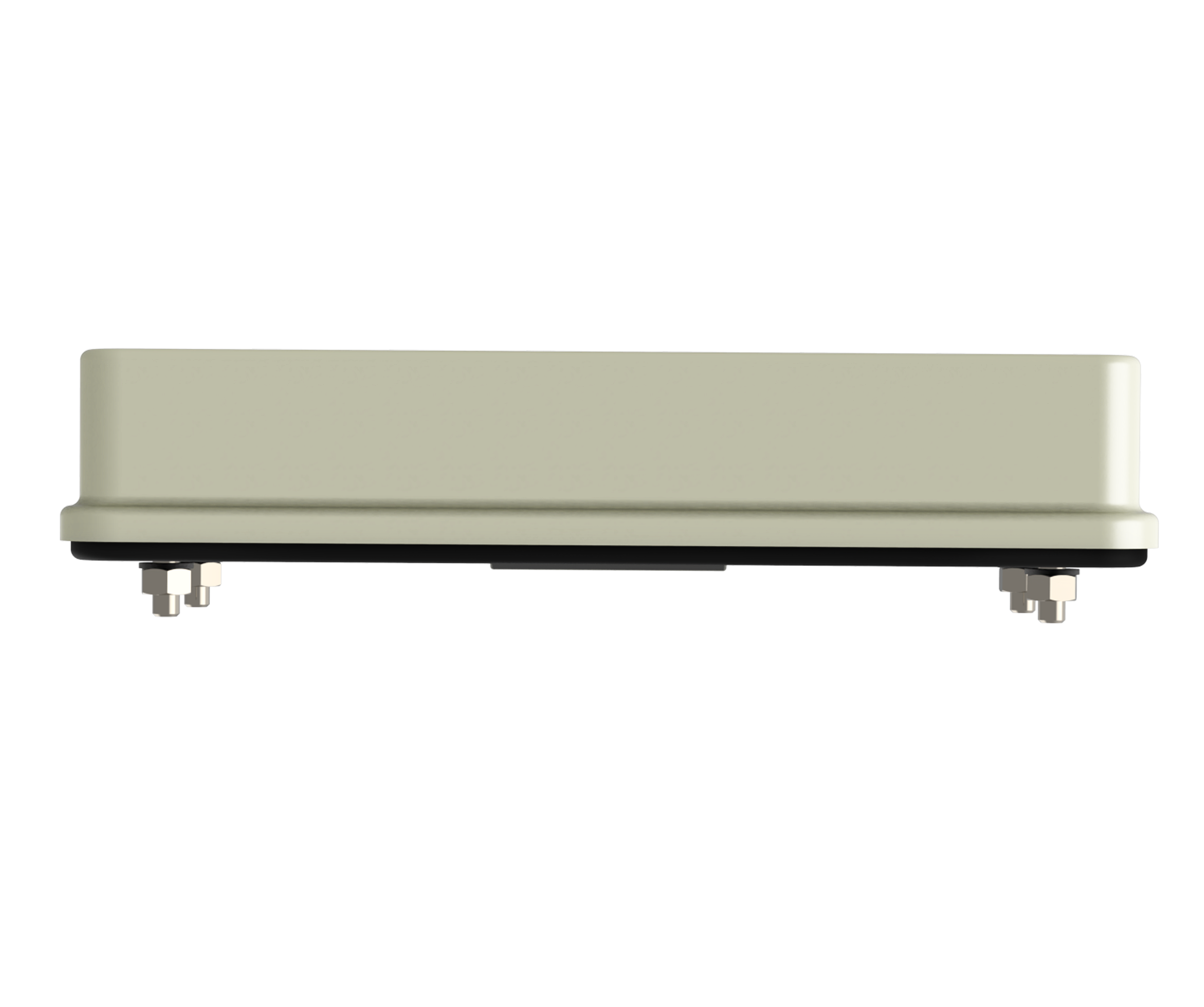

Overall Dimensions 156,5x75,5x27,2 mm
