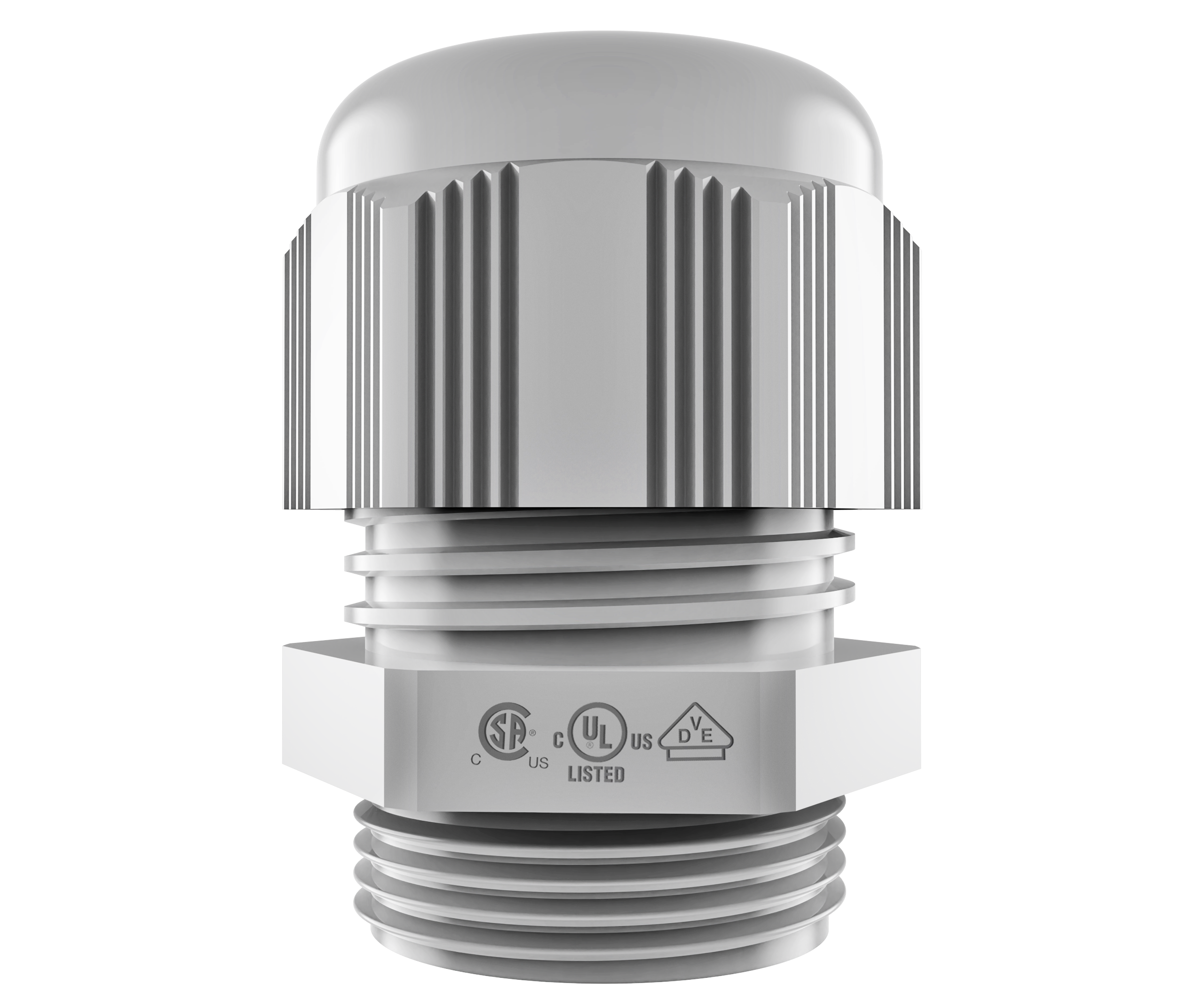

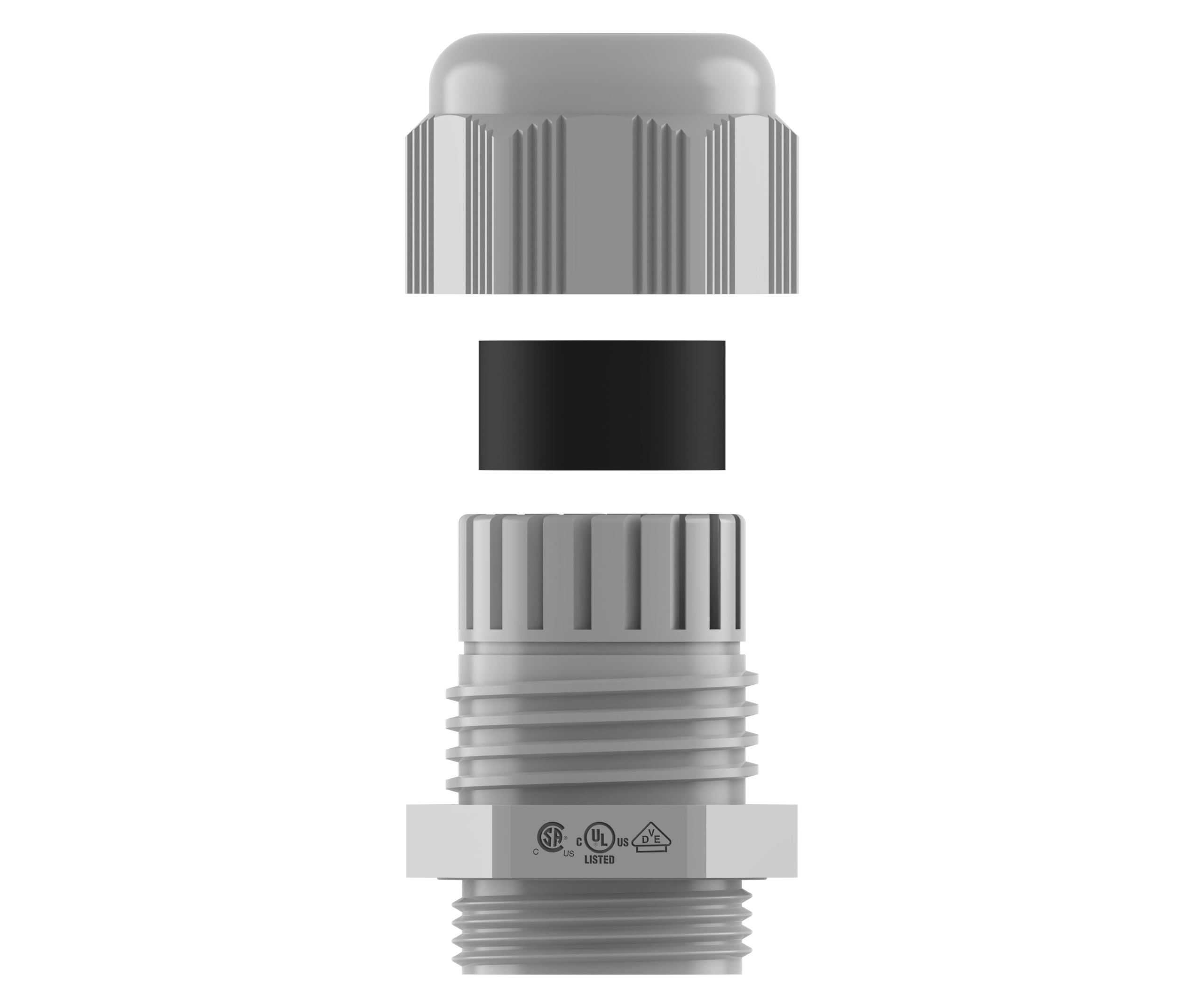

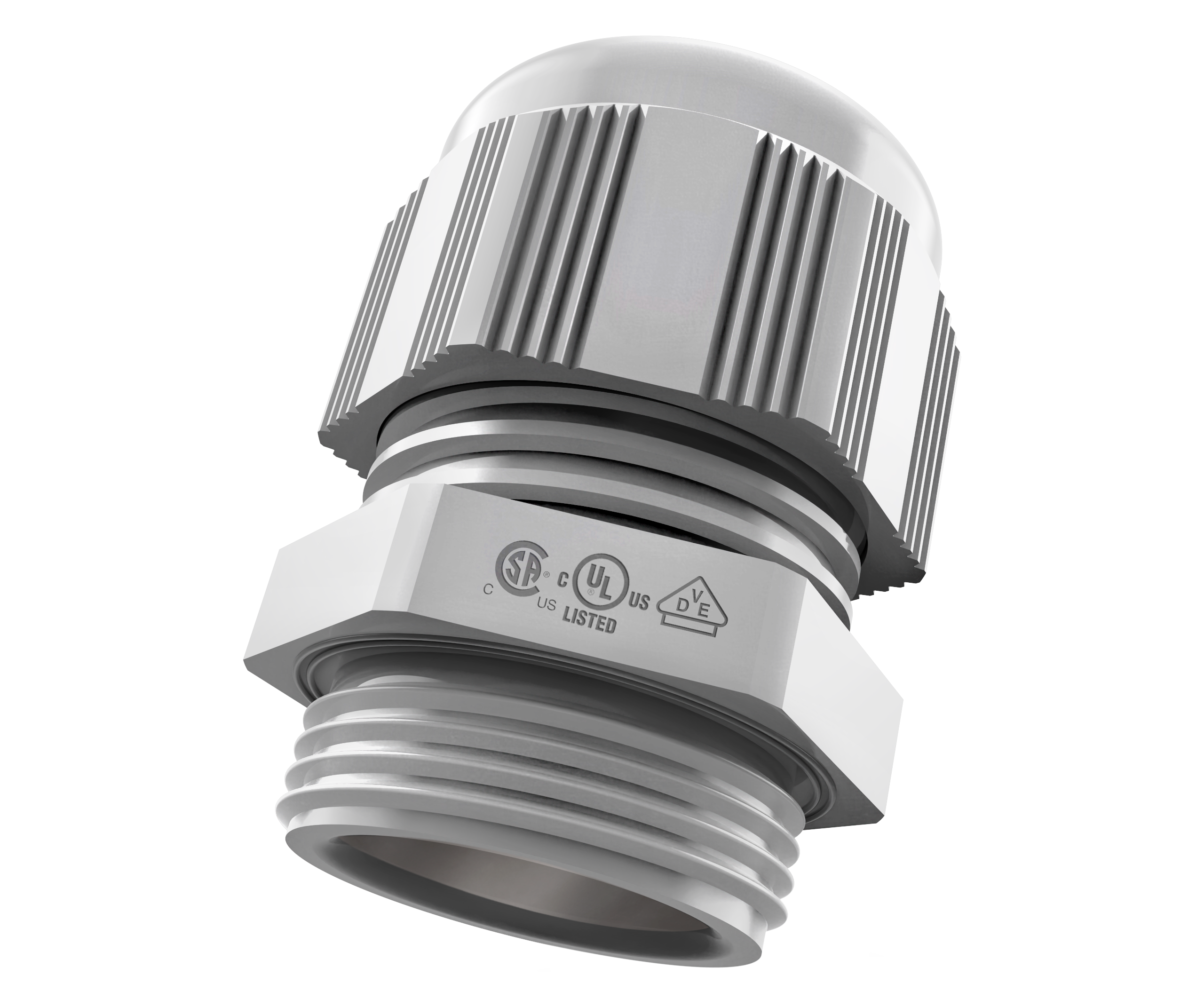

Standard Cable Glands, Plastic

Suitable for both indoor and outdoor use in industrial environments

Designed for use with non-armoured cables, conforming to EN 62444 and UL514B standards

High protection against dust, moisture, and water ingress

High tensile strength and reliable strain relief

Durable design with quick and easy assembly

Wide cable clamping ranges for versatile applications

Compatible with various sealing inserts (multihole, double seal, flat cable)

Manufactured from halogen-free polyamide material

Cap/Body Material	Polyamide 6 V2 acc. to UL 94
Seal Material	Neoprene (Chloroprene)
Ingress Protection Rating	IP68 - 5 Bar 30 min, IP66
Type Rating	1, 4, 4X, 12, 13
Temperature Range	Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C
Colour	Silver grey (RAL 7001) Light grey (RAL 7035) Black (RAL 9005)
Thread Type	Metric, PG, NPT, PF/G (GAS)
Cable Type	Non-Armoured
Accessories	Locknut Dome plug Reducing seal Double seal Flat cable seal Multihole seals Gaskets (Washer)
Remarks	We recommend using a gasket to ensure IP protection between cable gland and enclosure. Accessories must be ordered separately Some approvals may not apply to all sizes Other sealing materials available on request: NBR, Silicone
