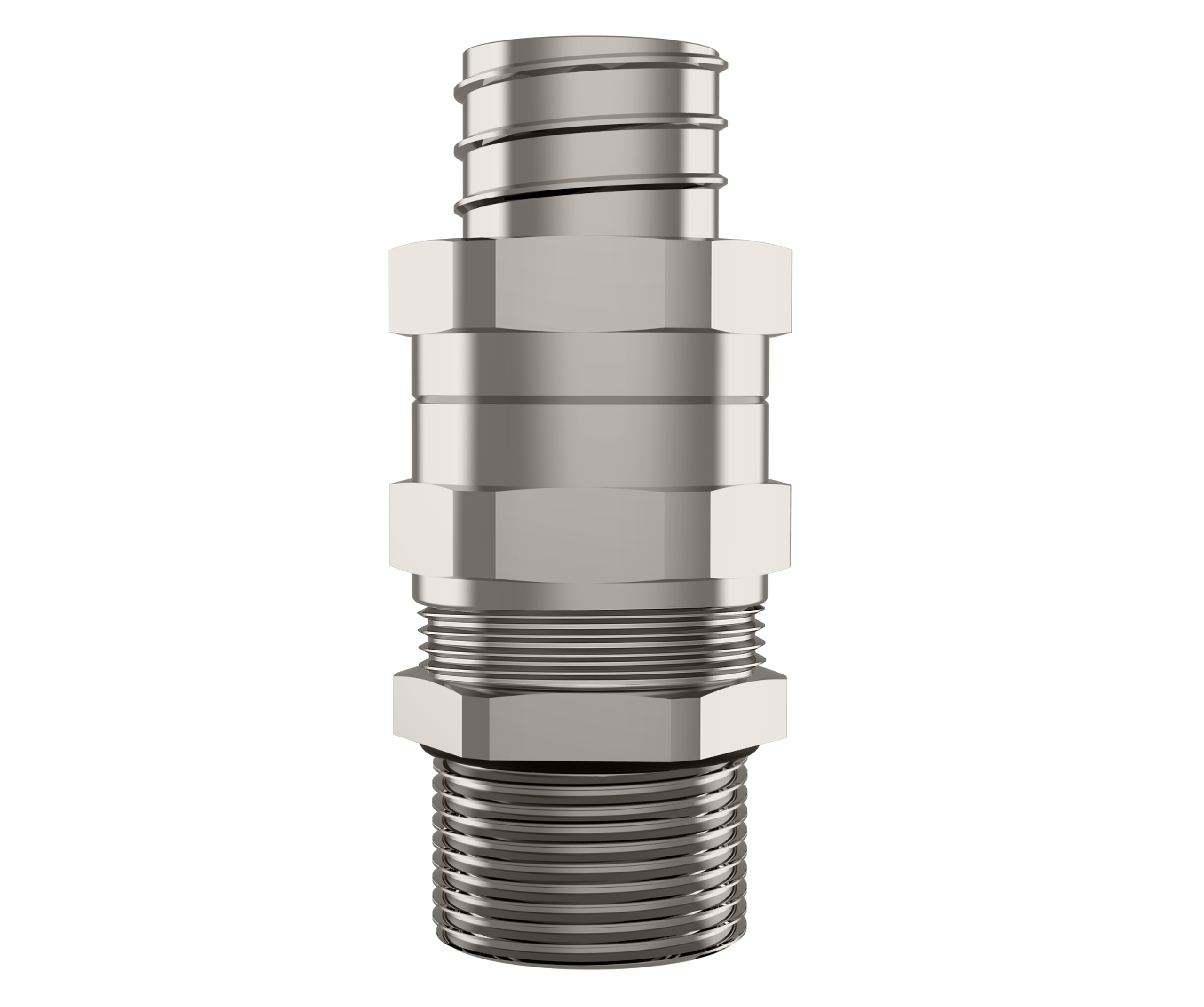

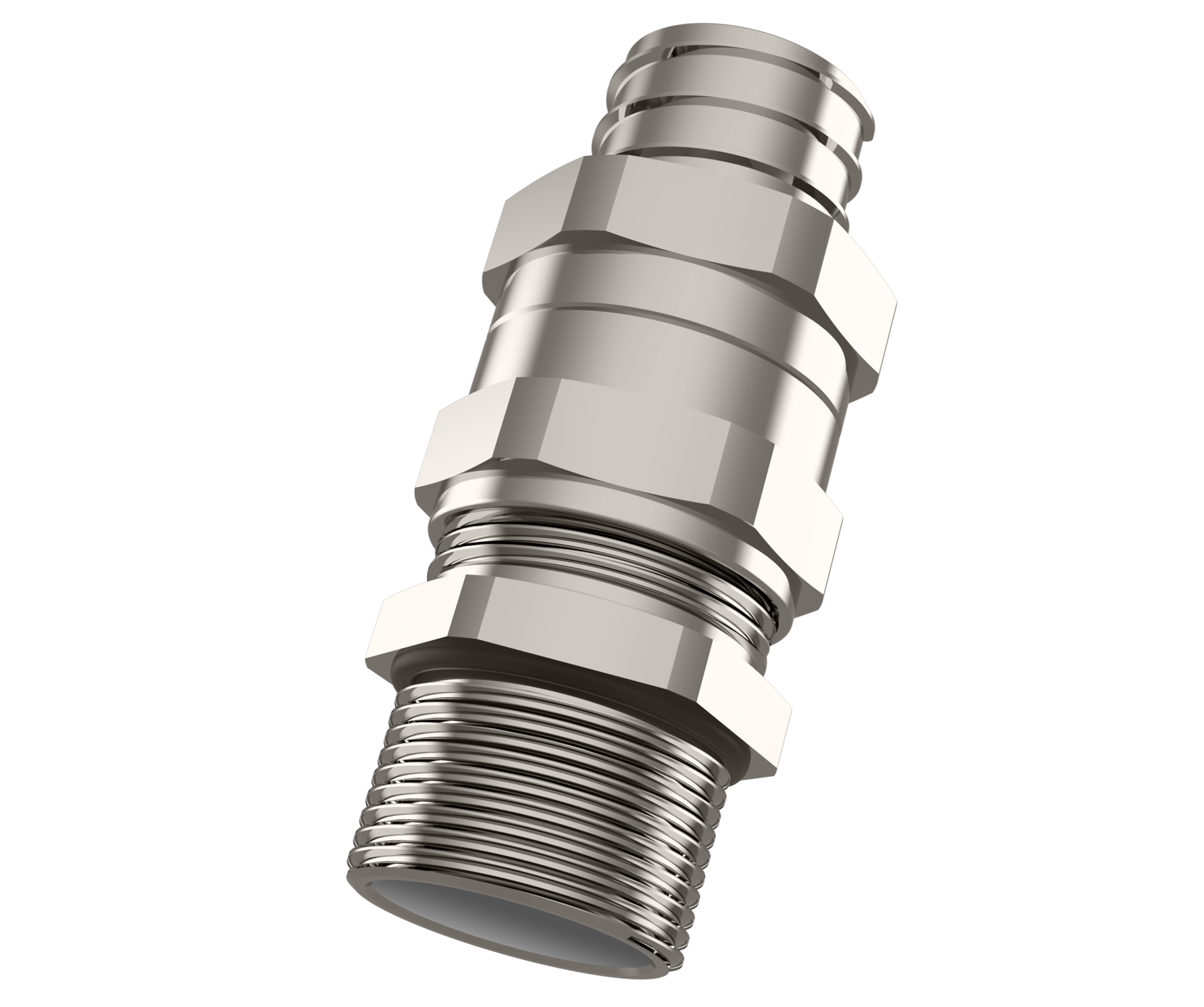

Corvus

Group II hazardous area conduit fitting, suitable for unarmoured cables in flexible conduit.

The Corvus is Exe, Exd and Ext certified and suitable for installation in zones 1/21 and zones 2/22 hazardous areas.

The fitting provides both a flameproof seal on the cable outer sheath running inside the flexible conduit.

The rear seal provides IP and retention of the flexible conduit.

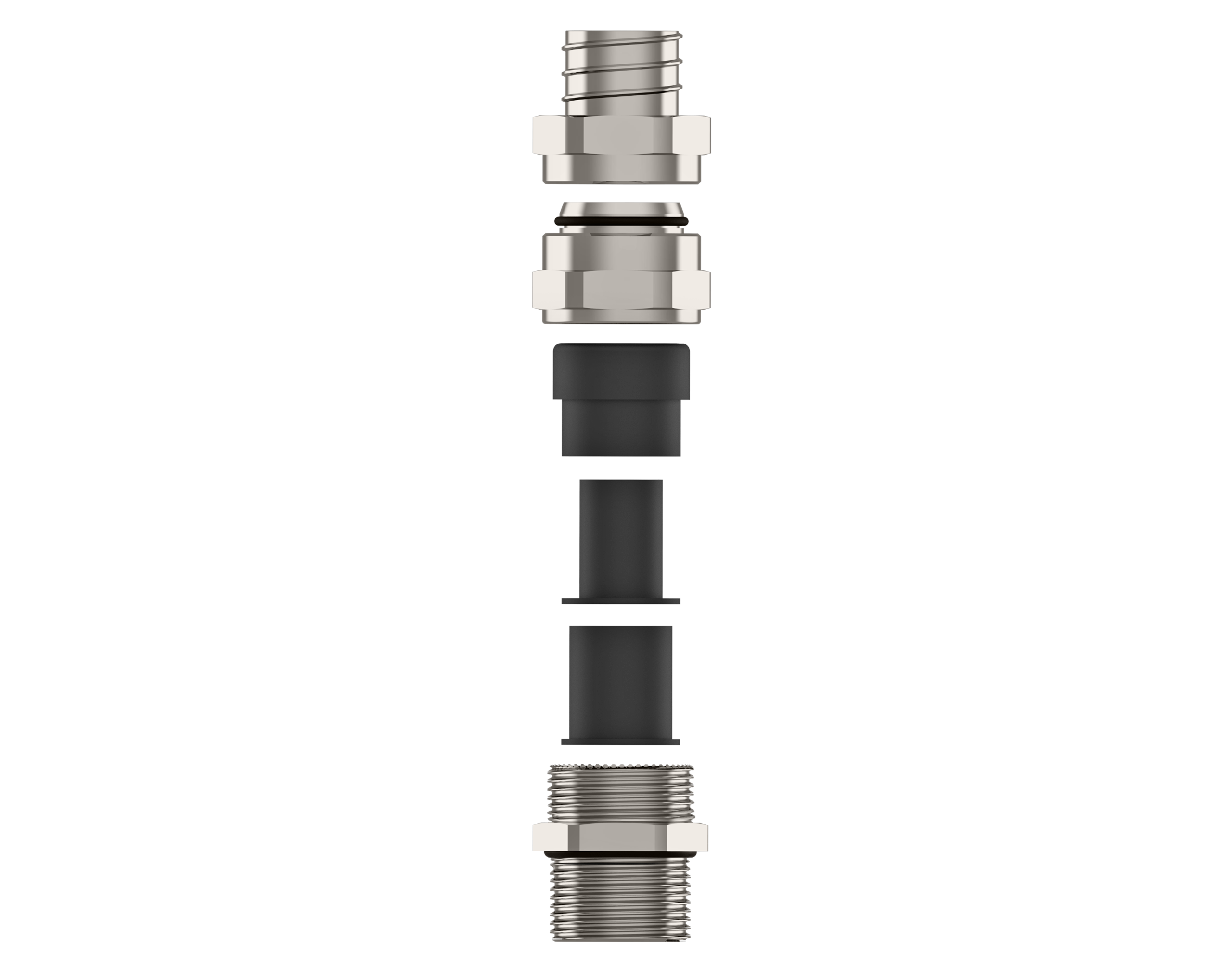

The unique double or triple inner seal ensures the best seal can be achieved with the lowest tightening torque.

ATEX/IECEx certified along with various other approvals - see below for full technical details.

Available in brass, nickel plated brass, stainless steel or aluminium with both Metric and NPT threadforms.

Other threadforms available on request.

Suitable for use in	Group II, Group III
Equipment Marking	EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Type Rating	TYPE 4X
Cable Gland Material	Brass, Brass Nickel Plated, Stainless Steel, Aluminium
Seal Material	Chloroprene, Silicone
Operating Temperature	Chloroprene: -40°C to +80°C
Silicone: -60°C to +80°C
For Ex eb/tb application only -60°C to +140°C for Silicone seal
Thread Type	Metric, NPT
Other thread types available upon request.
Cable Type	Non Armoured
Accessories	Lock nuts, Gaskets (Washers), Serrated Washers, Earth tags
Remarks	Accessories must be ordered separately. O-ring available in Metric outer threads.
