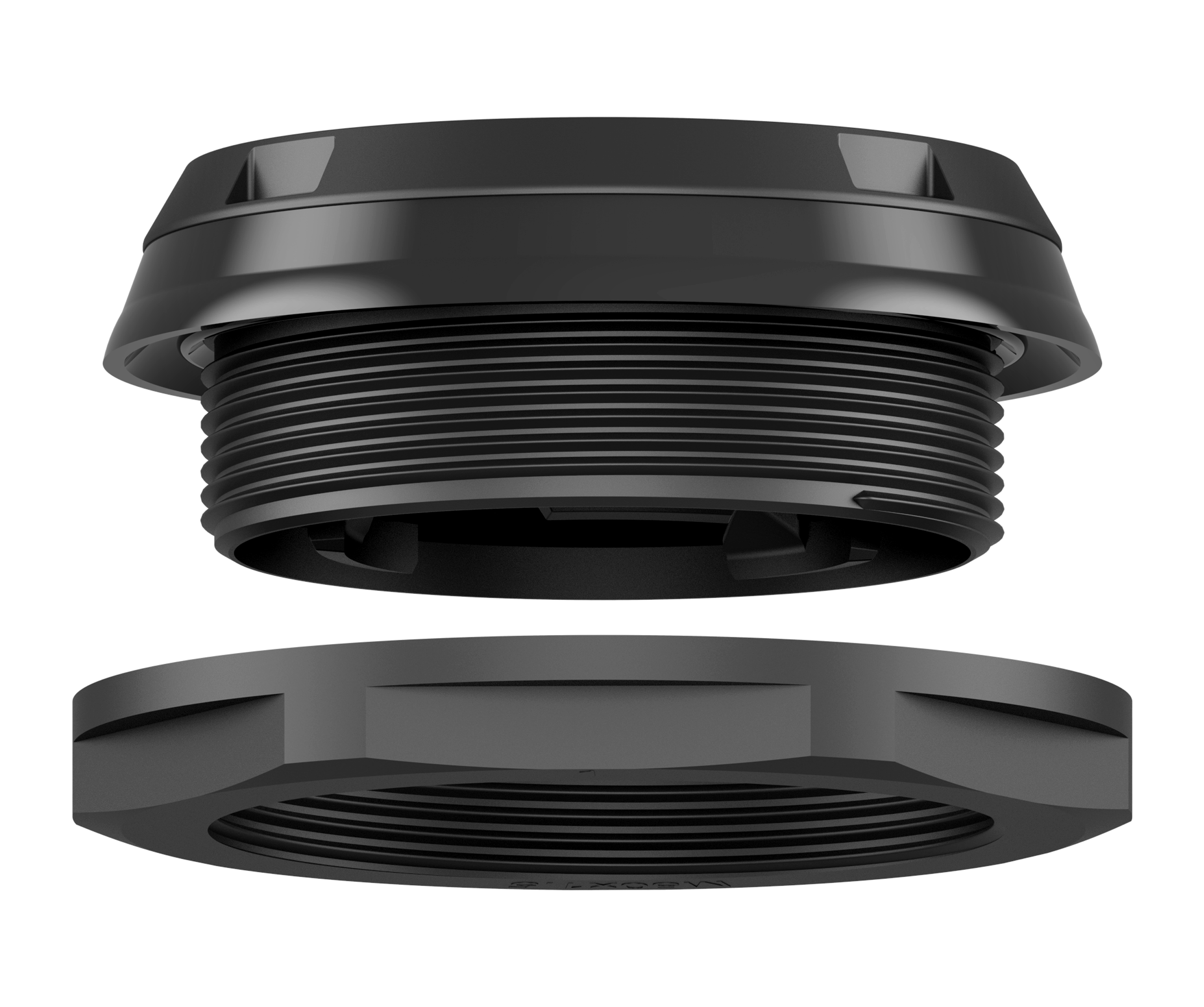

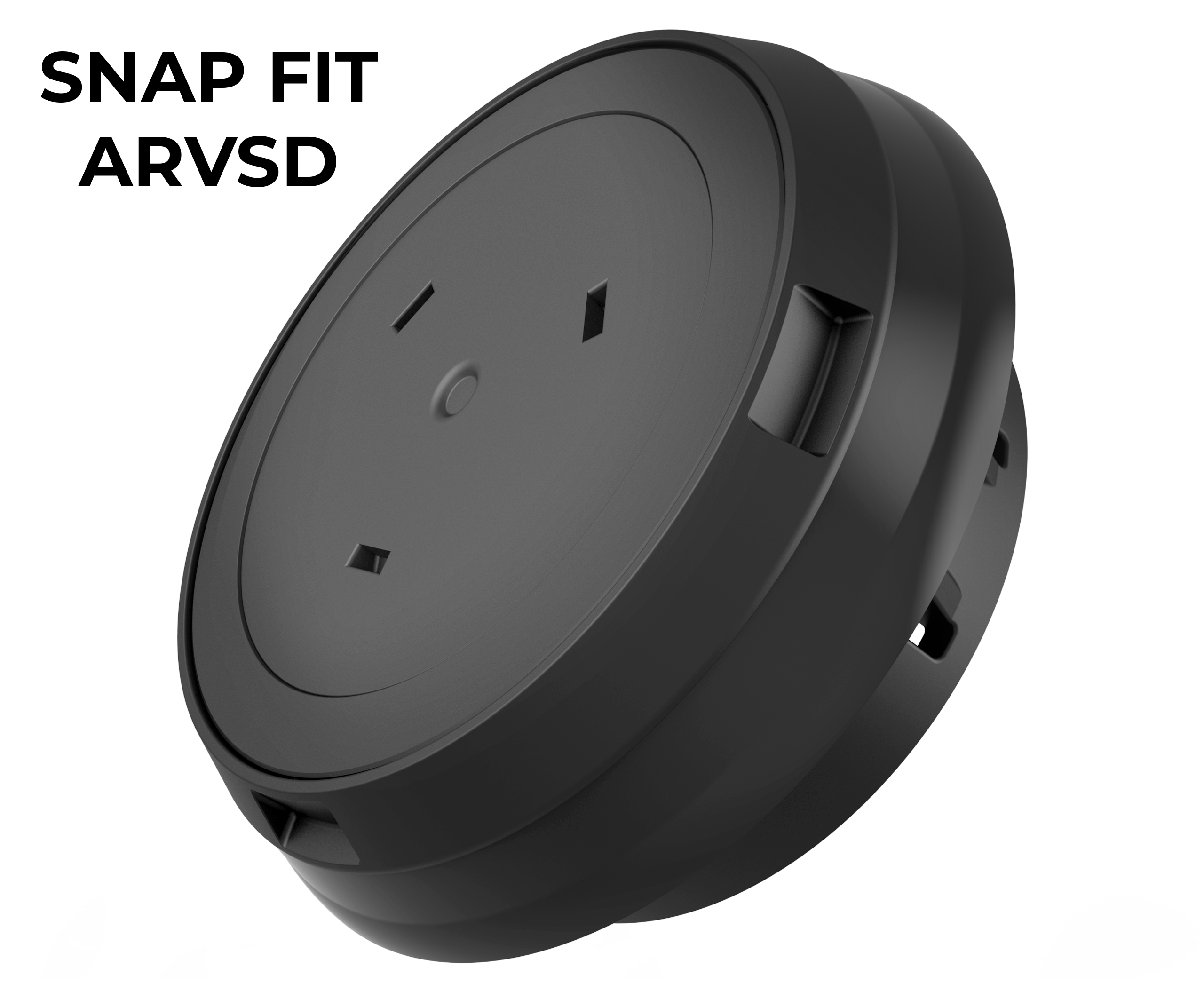

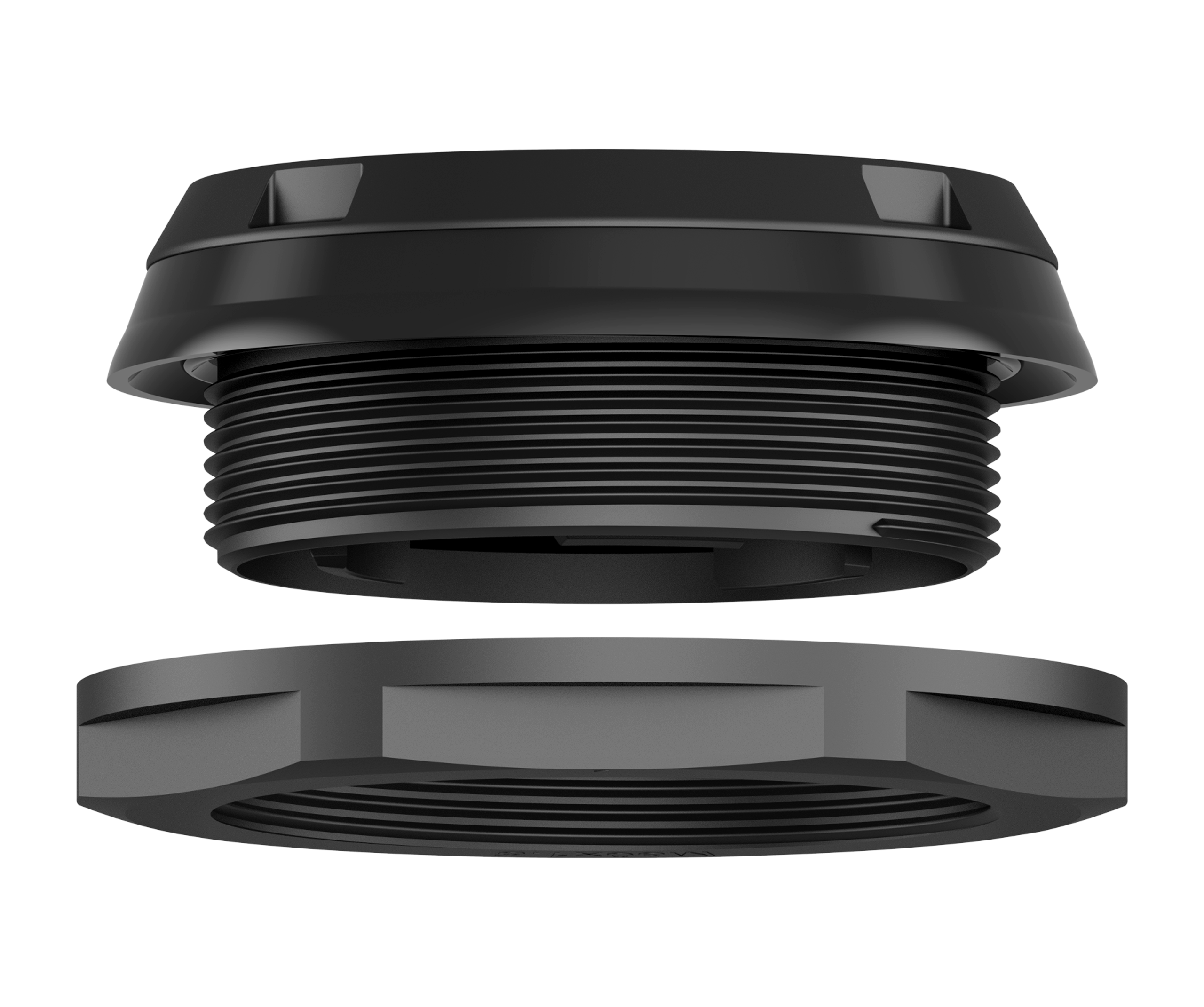

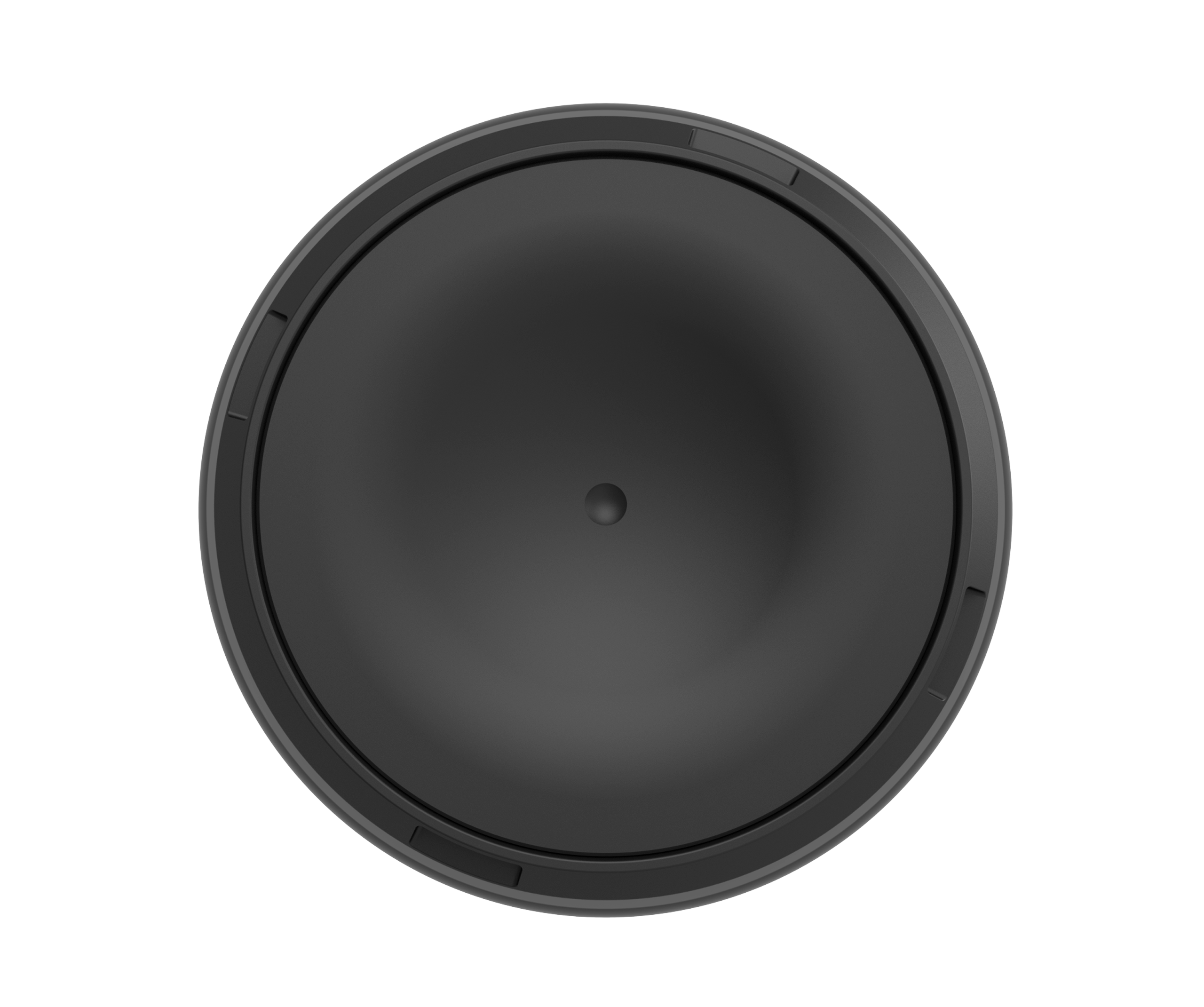

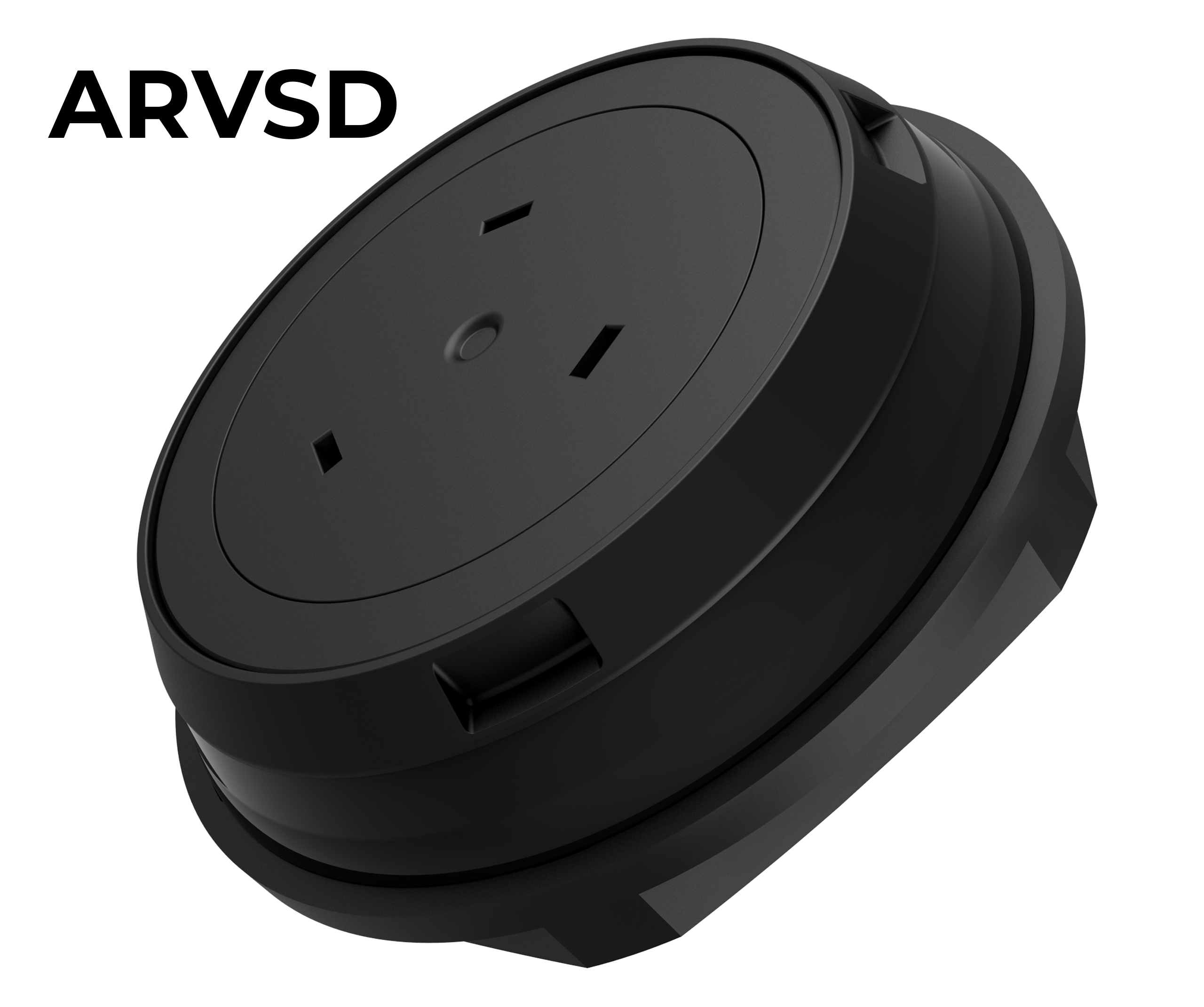

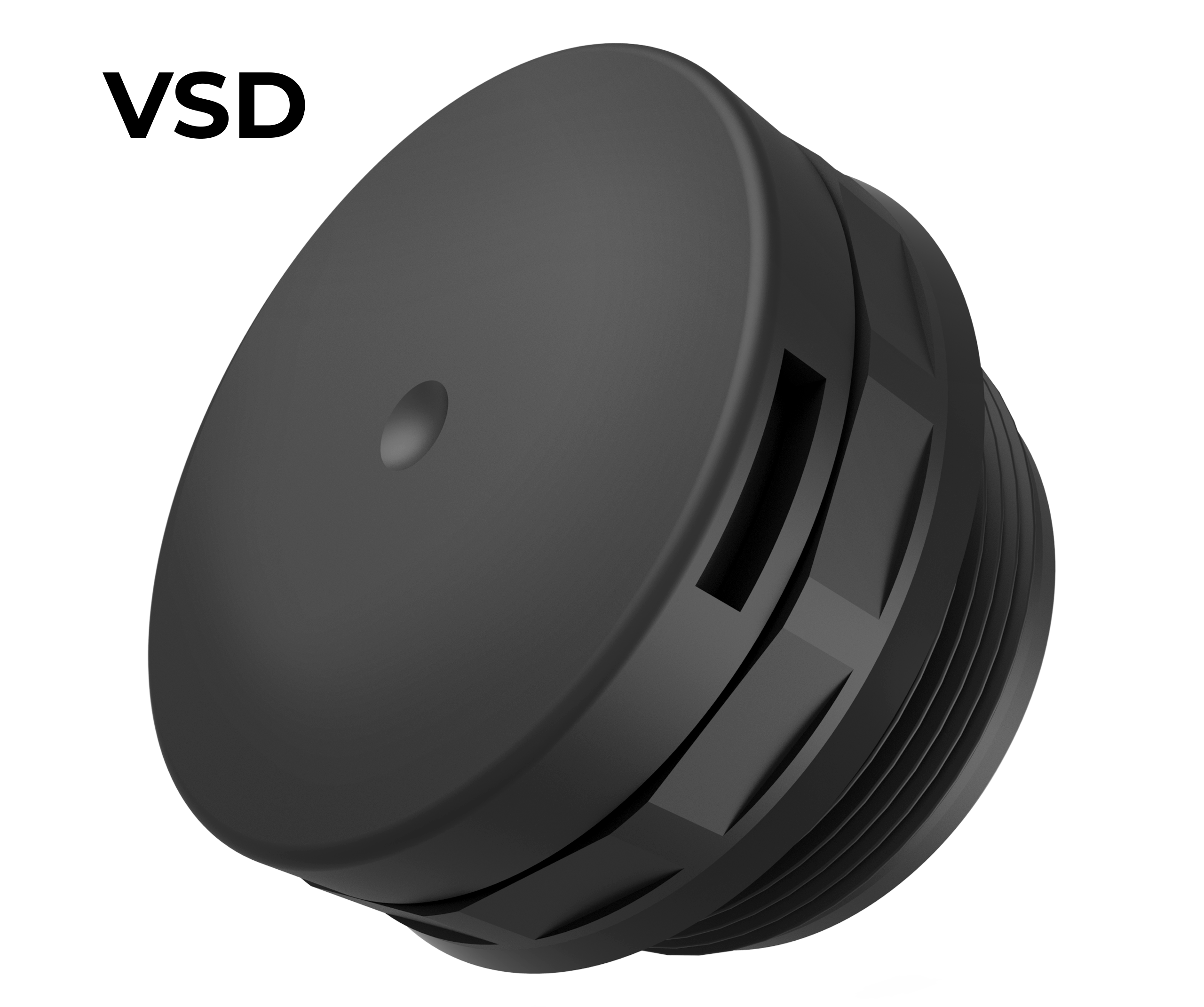

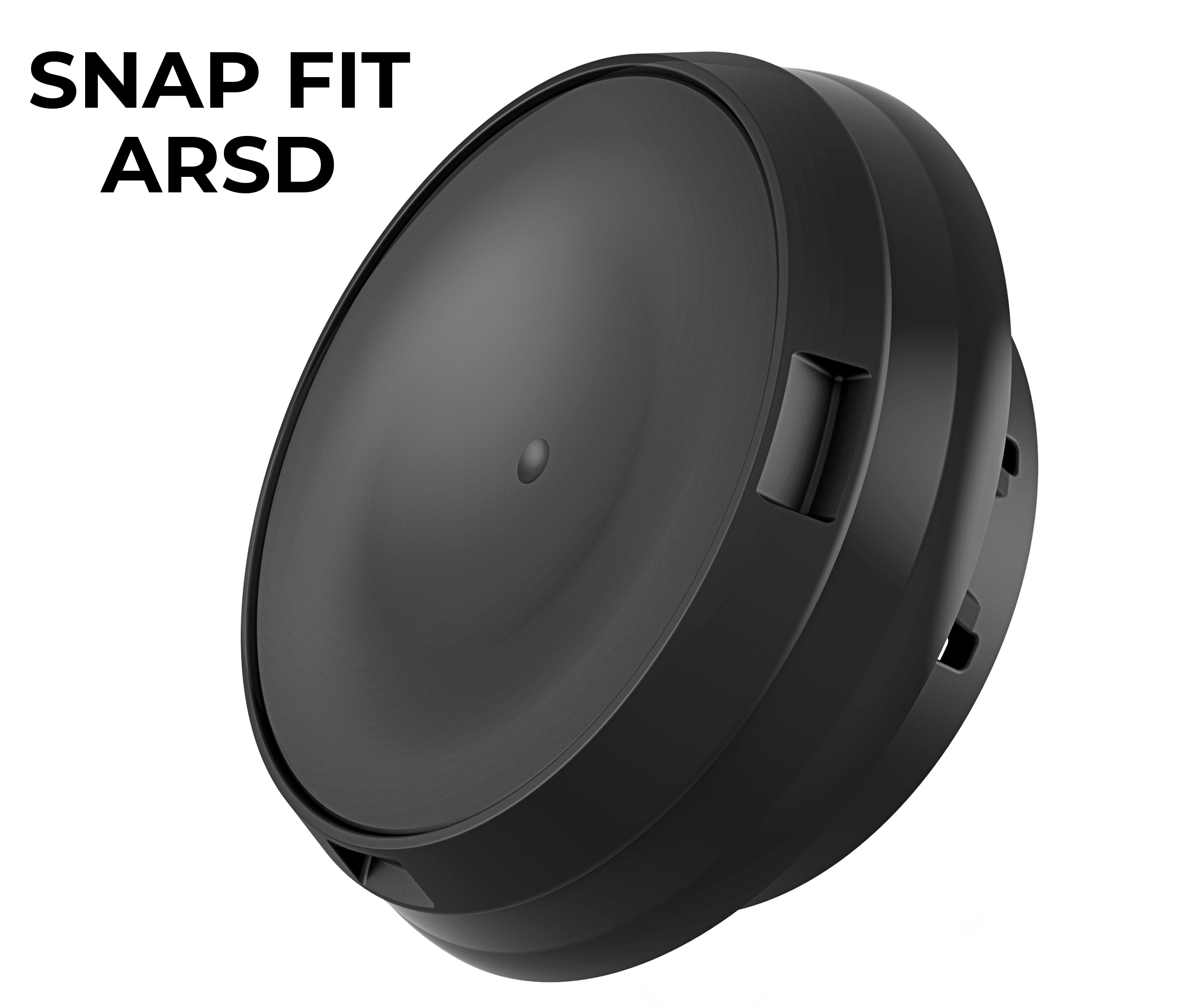

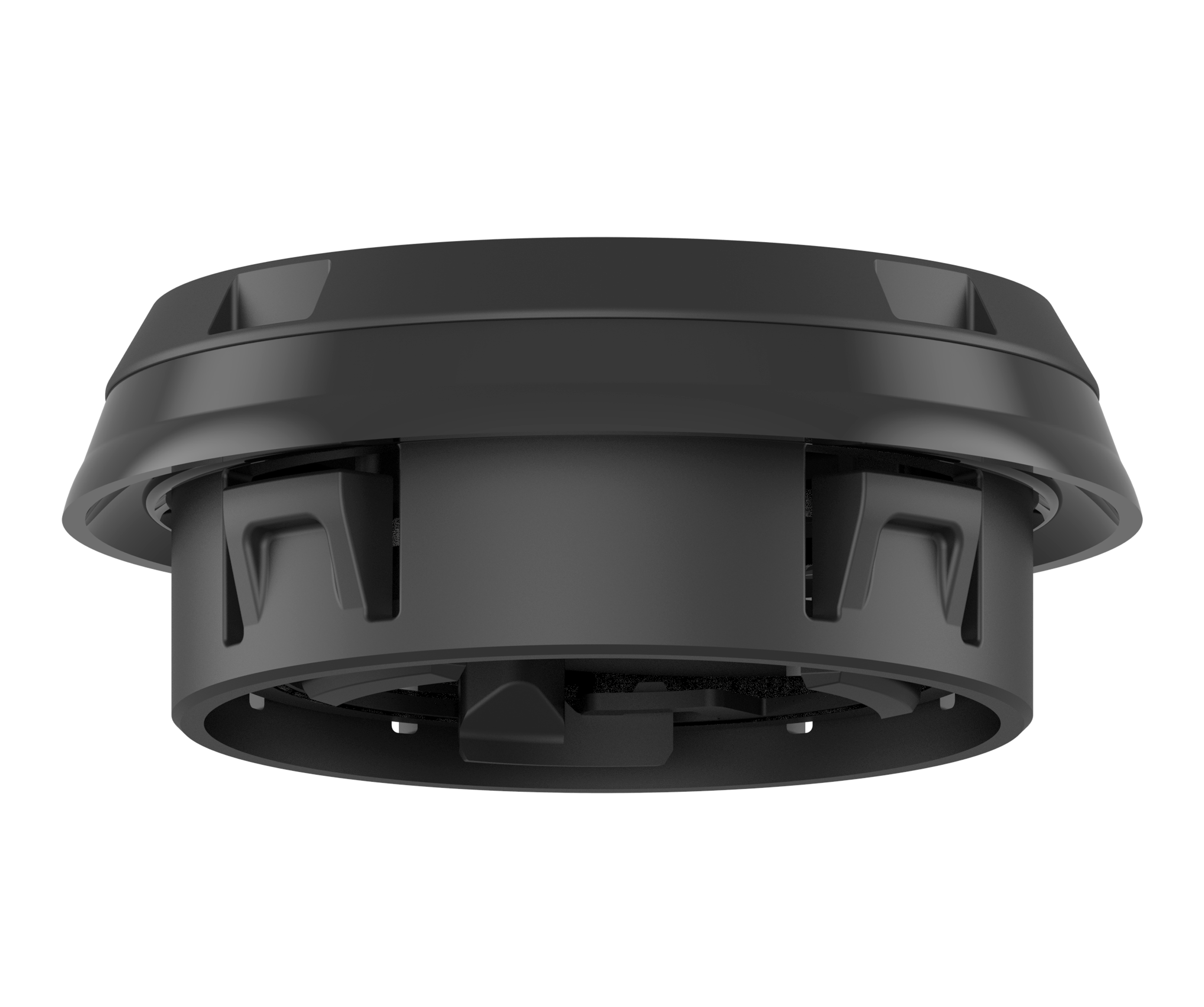

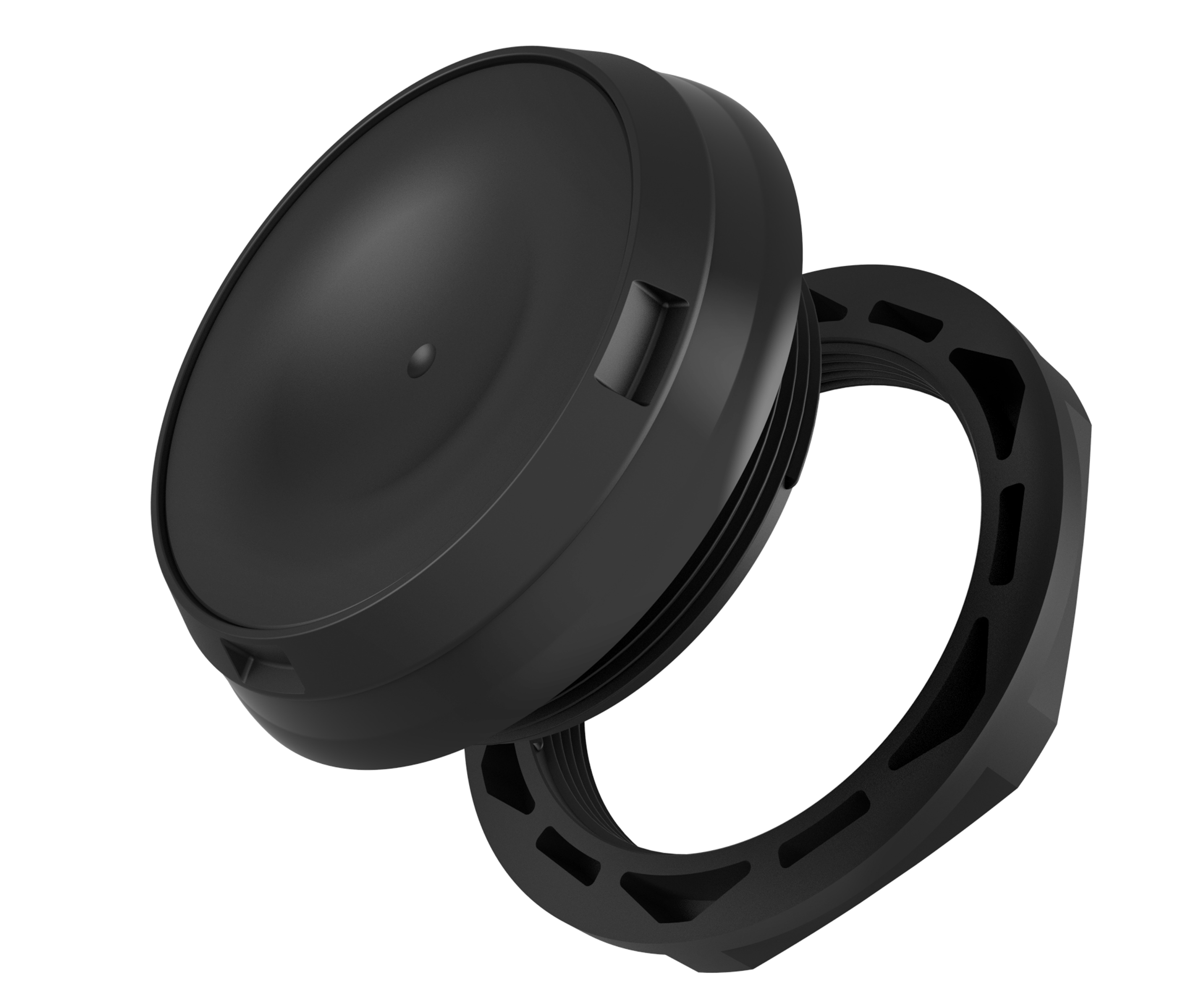

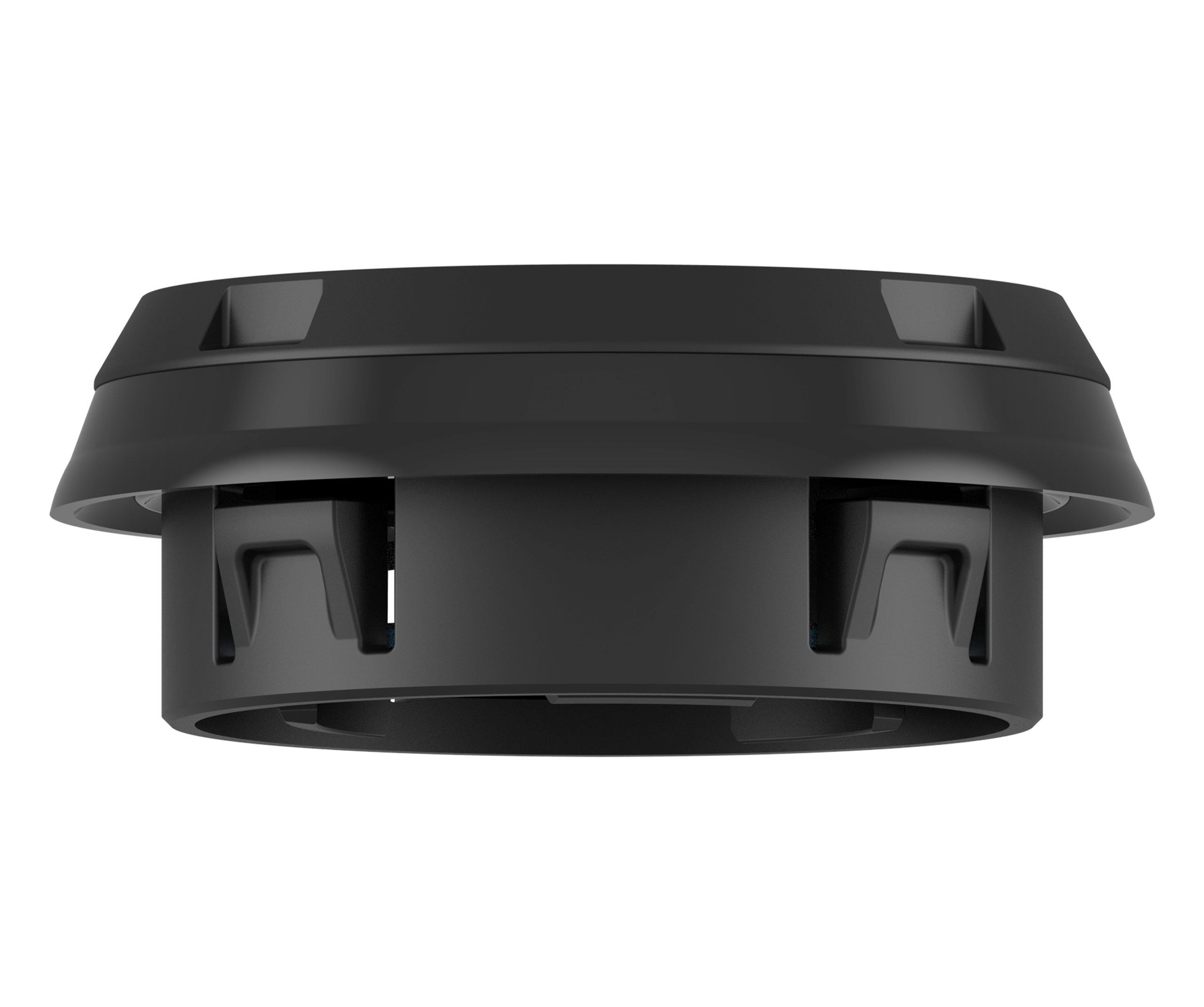

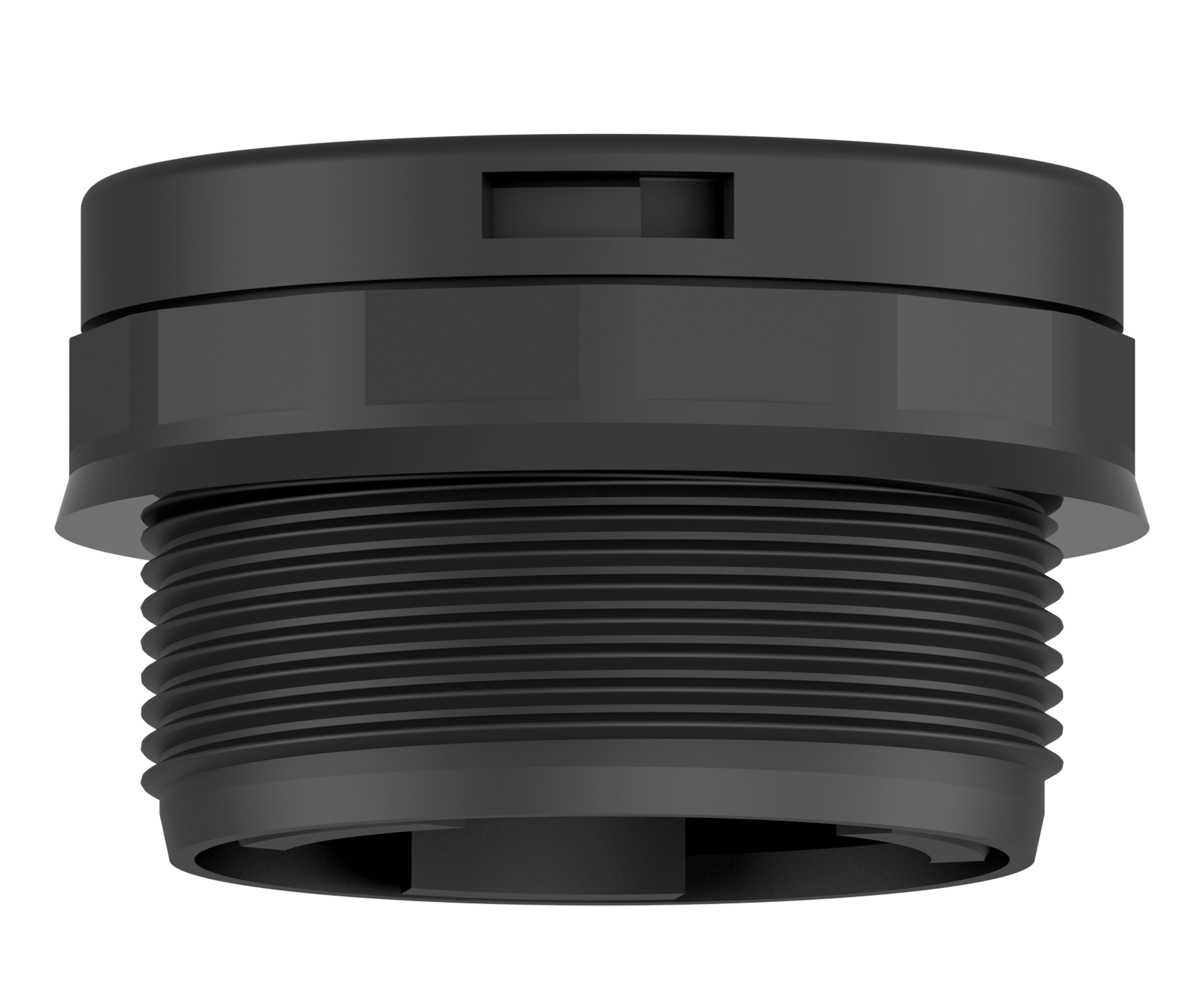

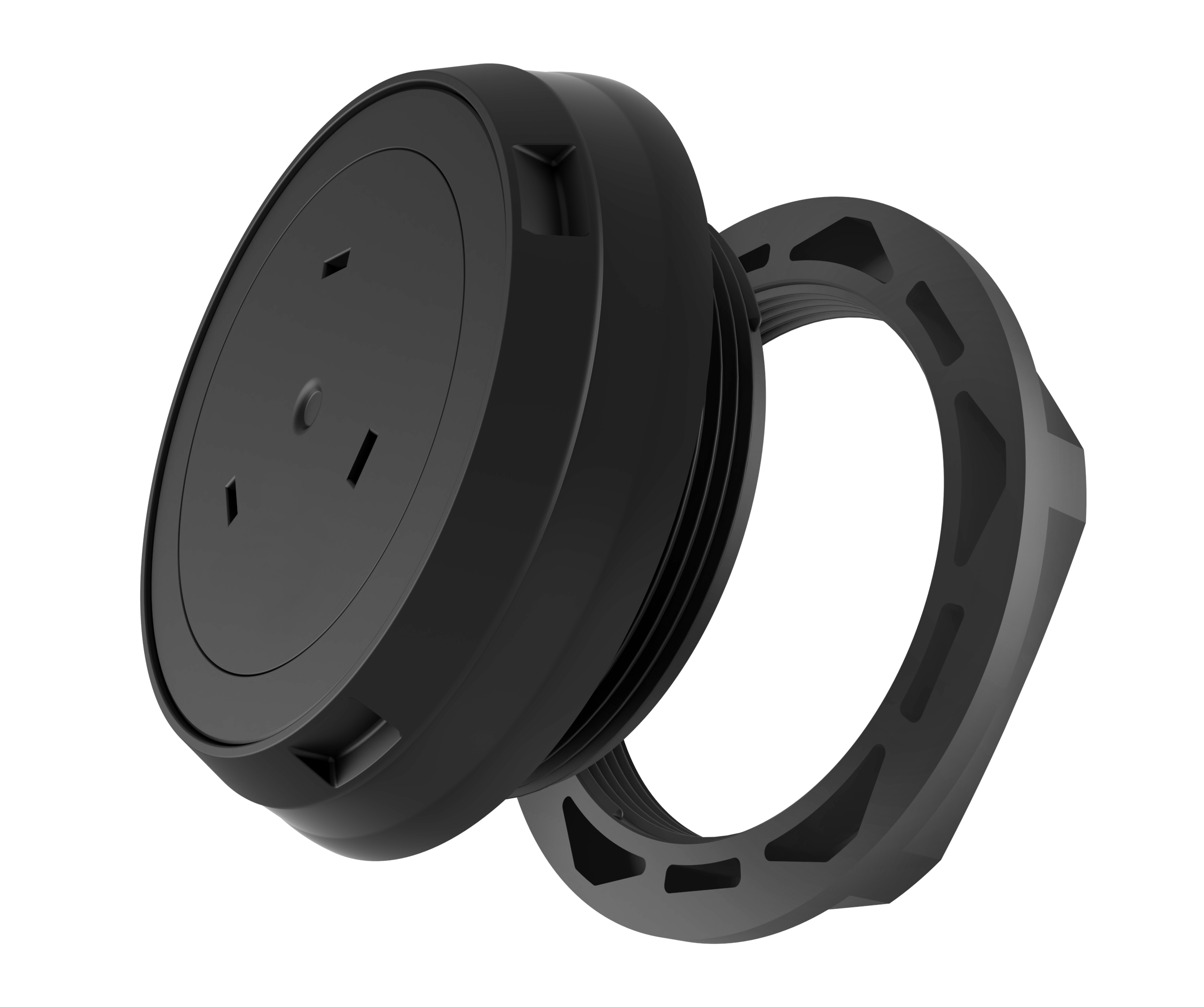

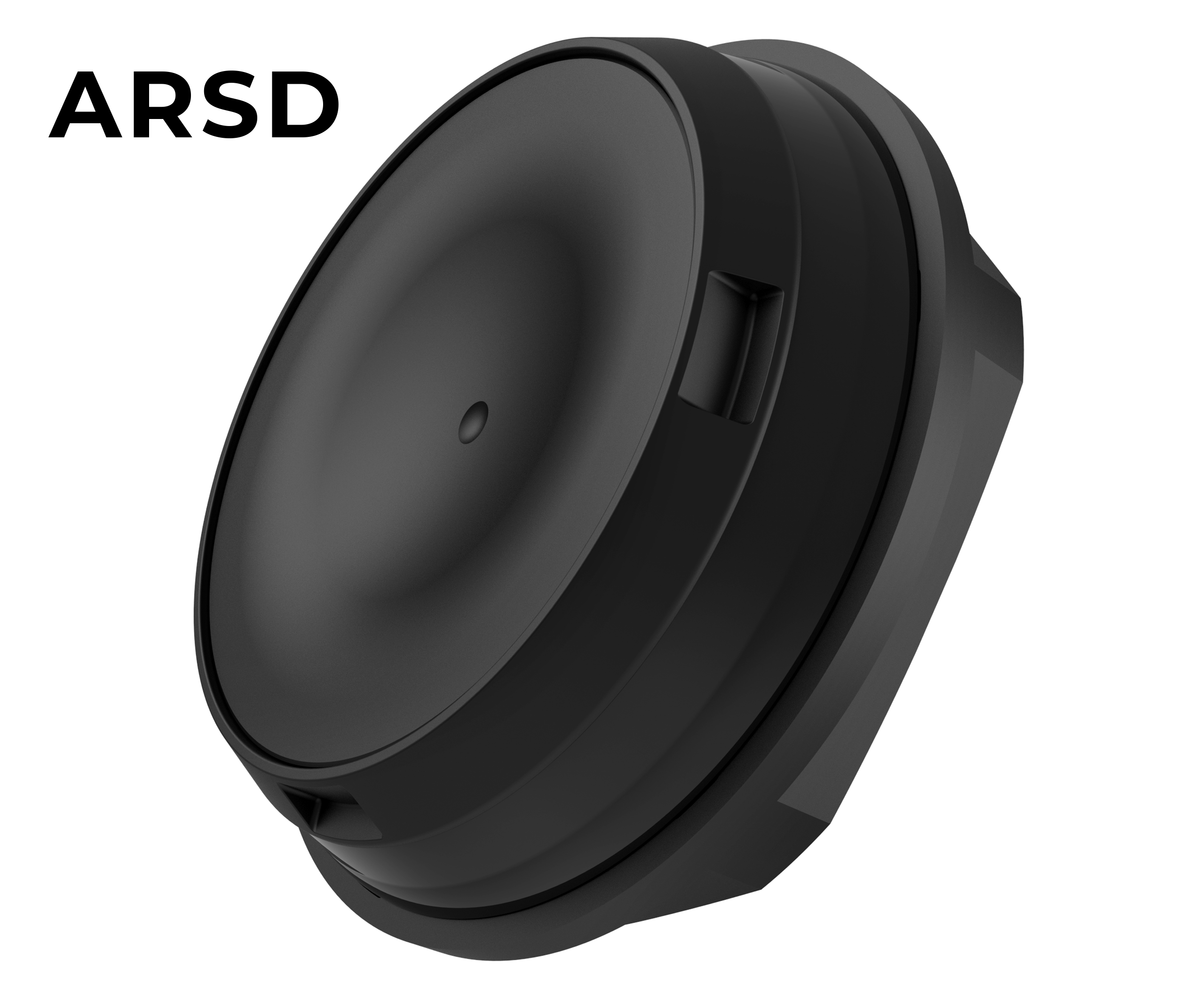

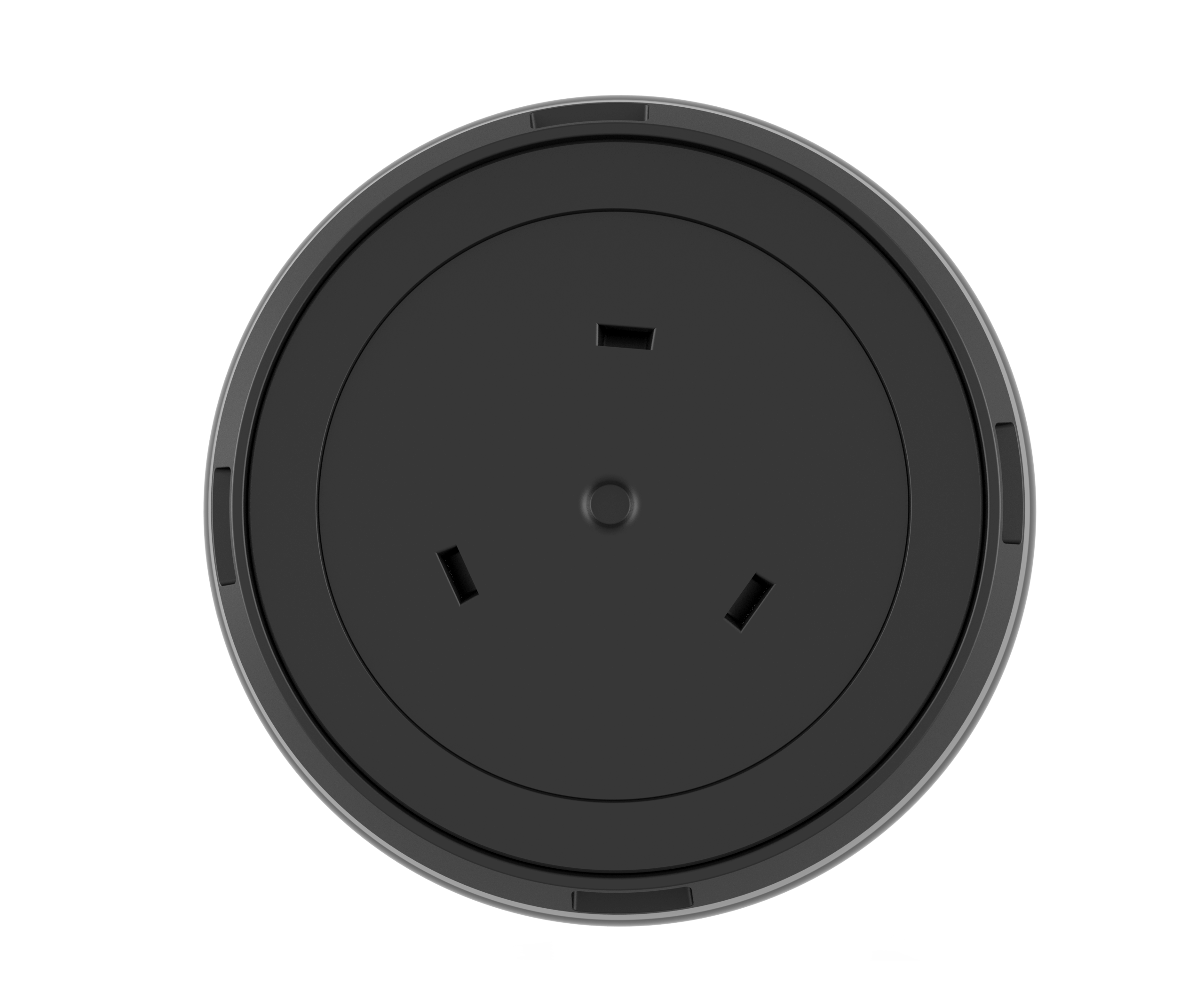

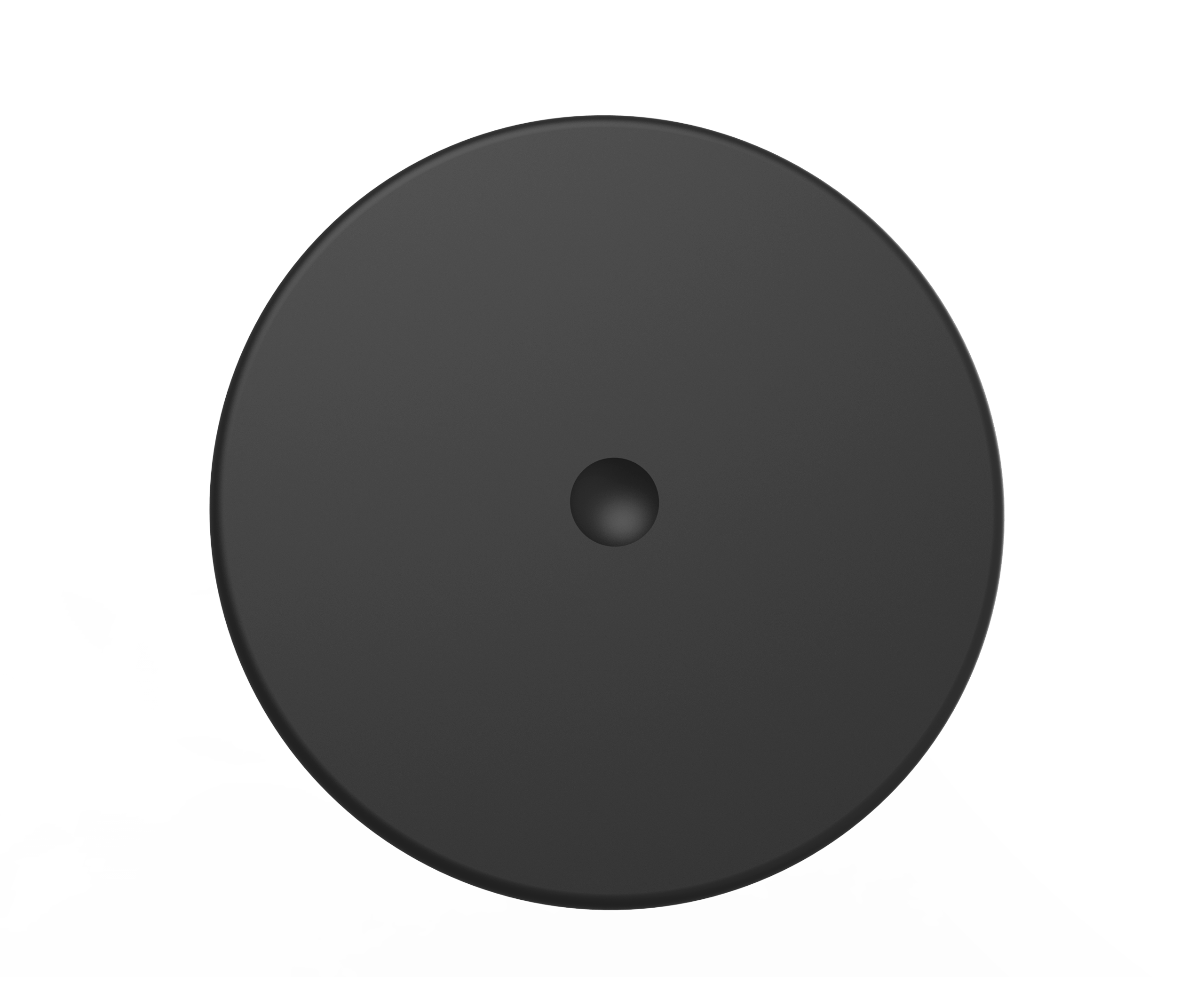

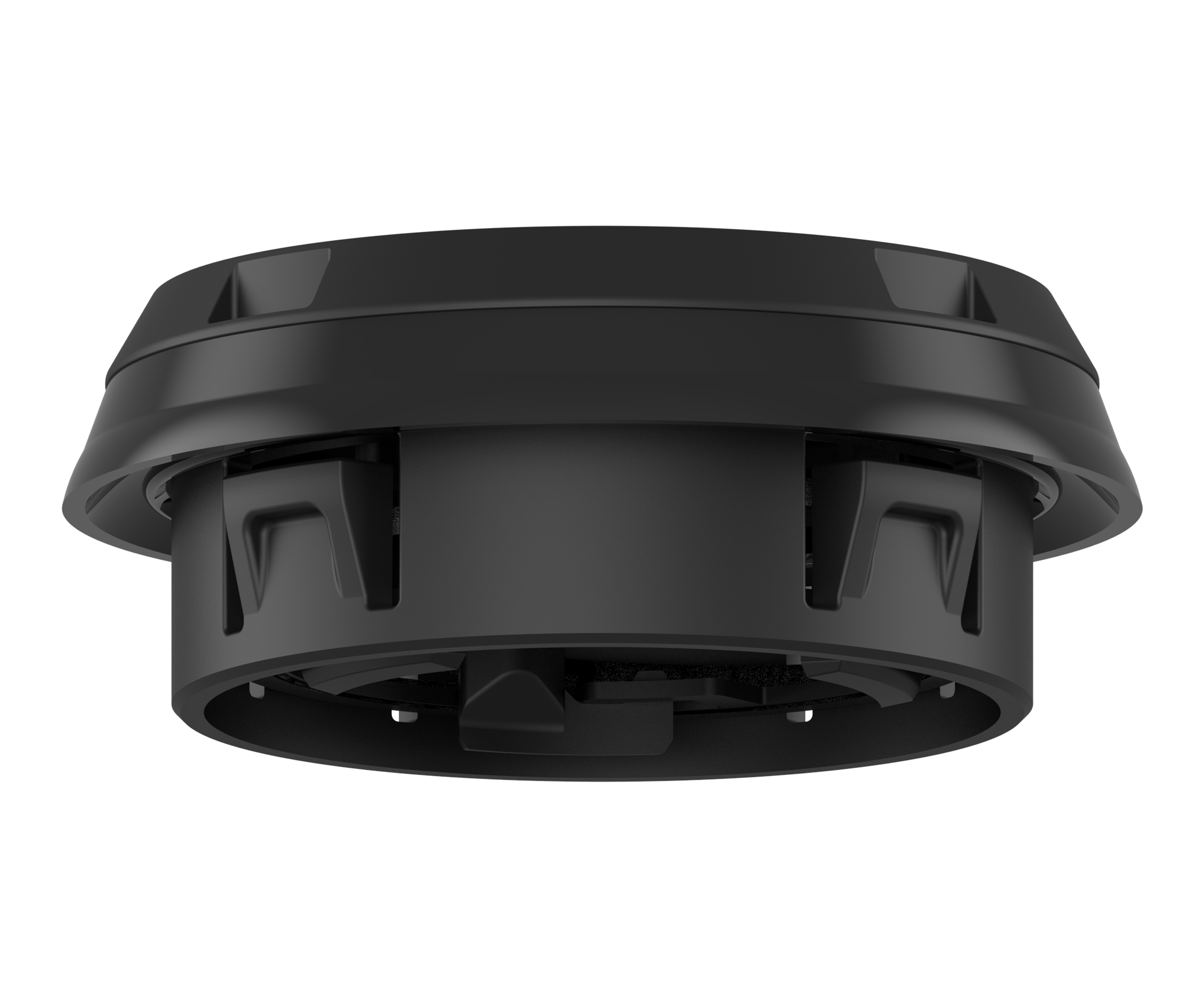

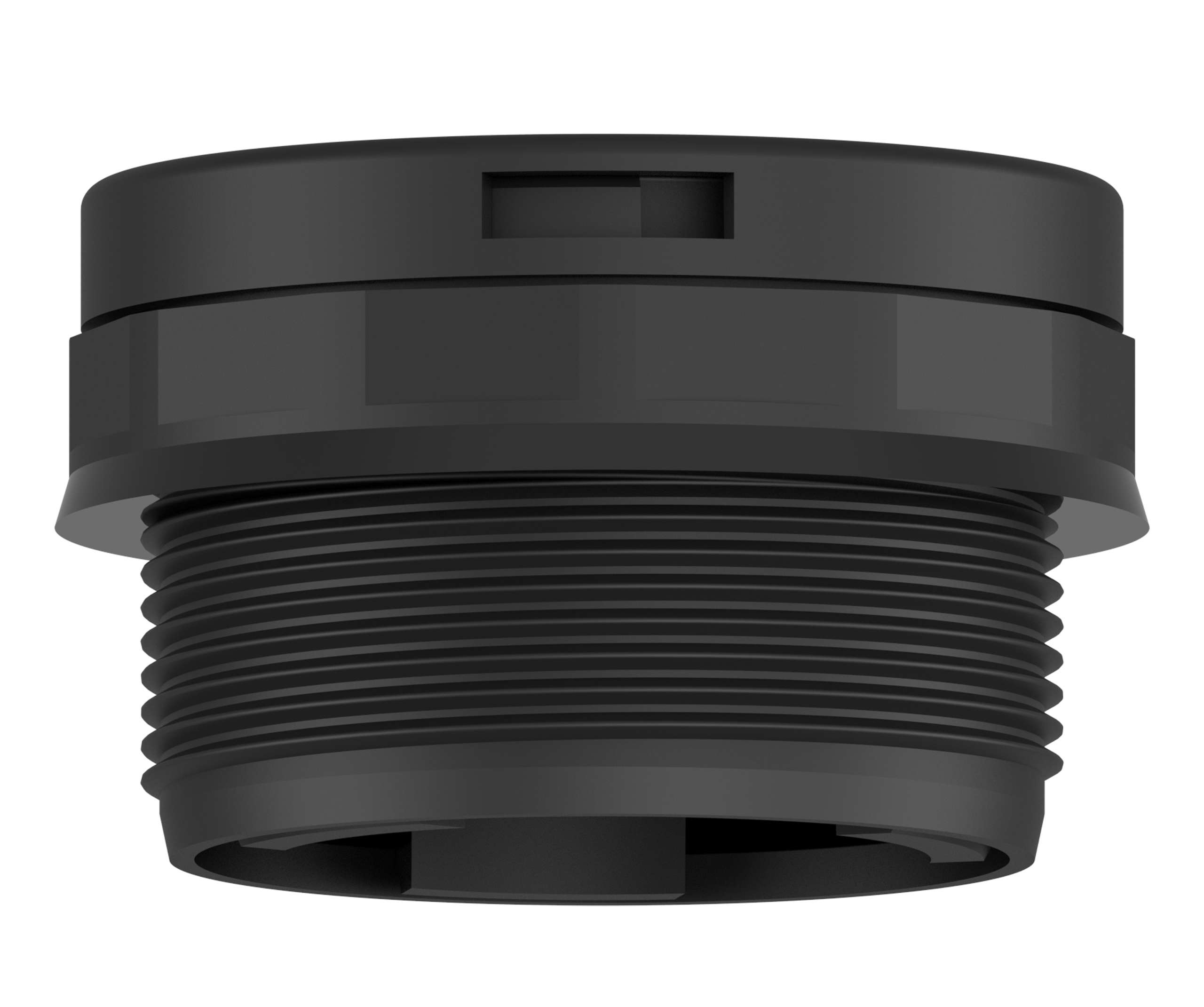

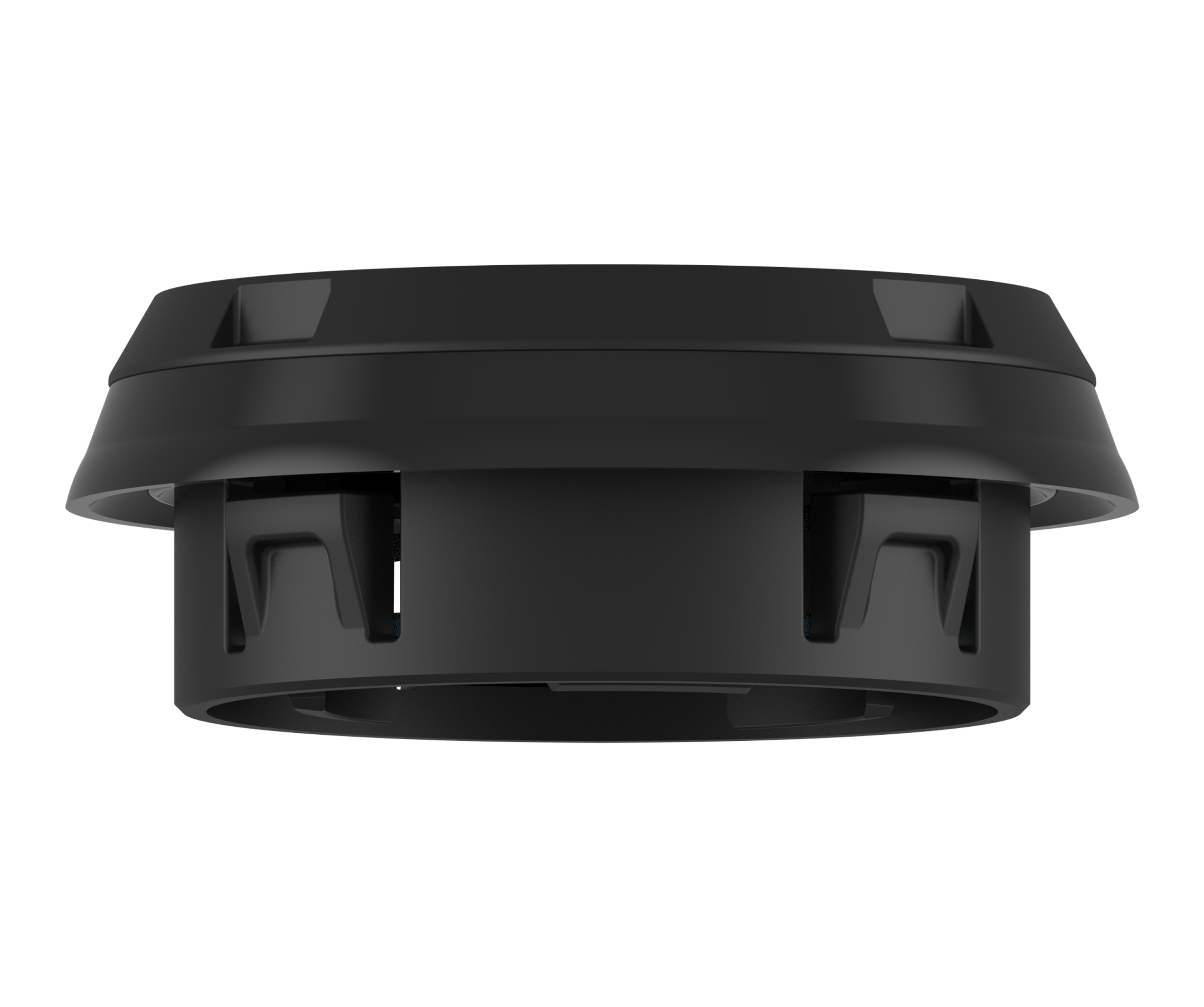

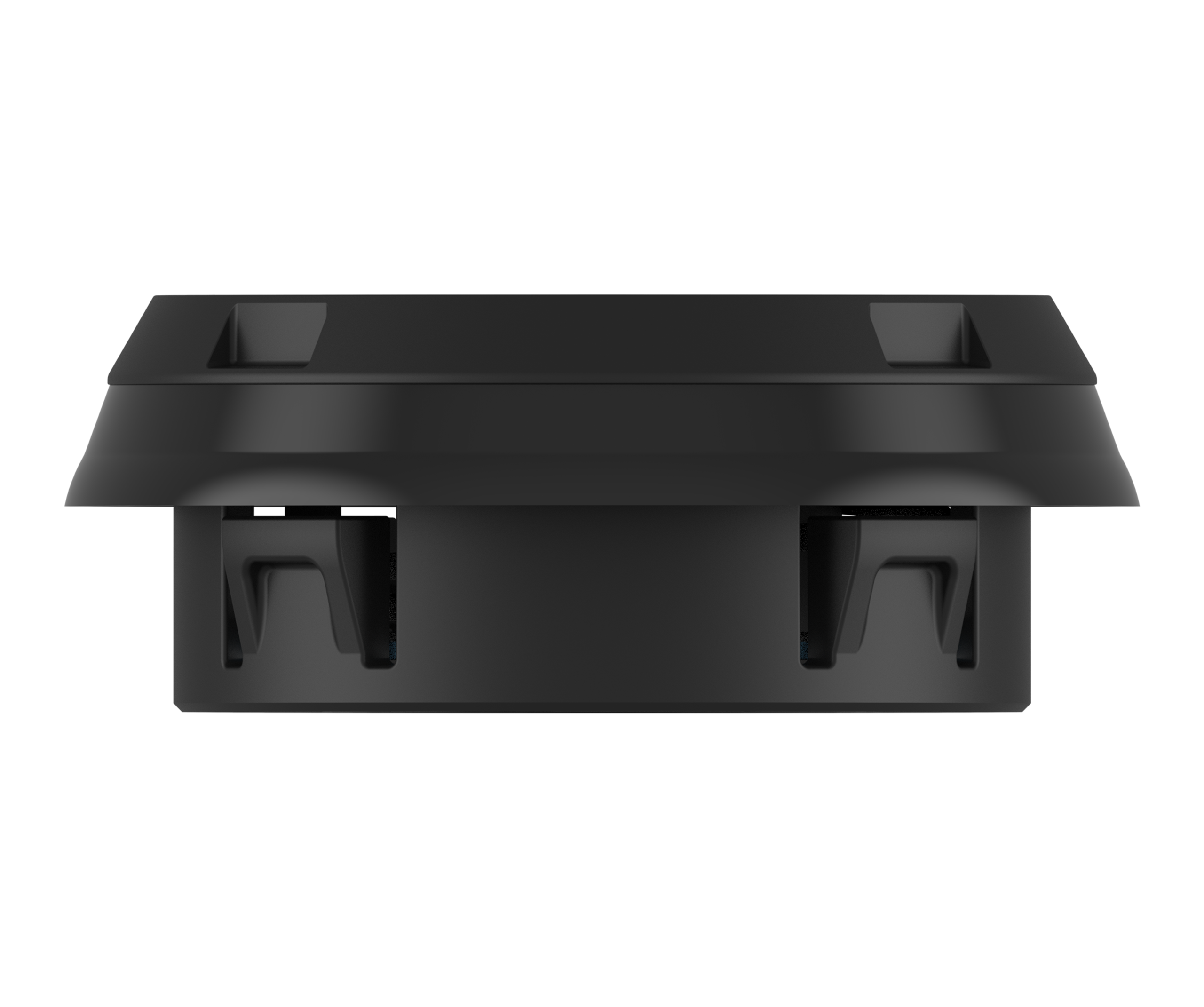

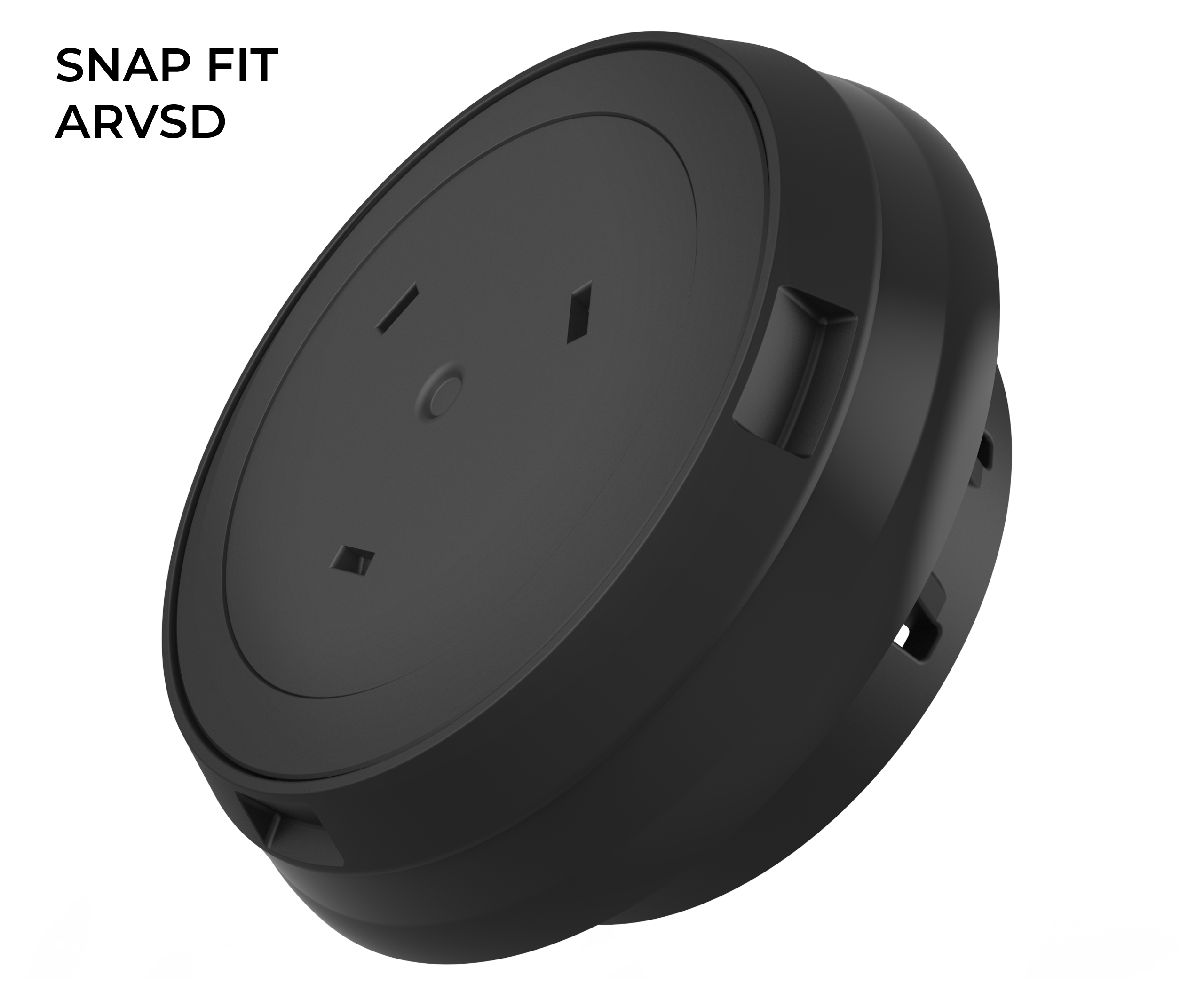

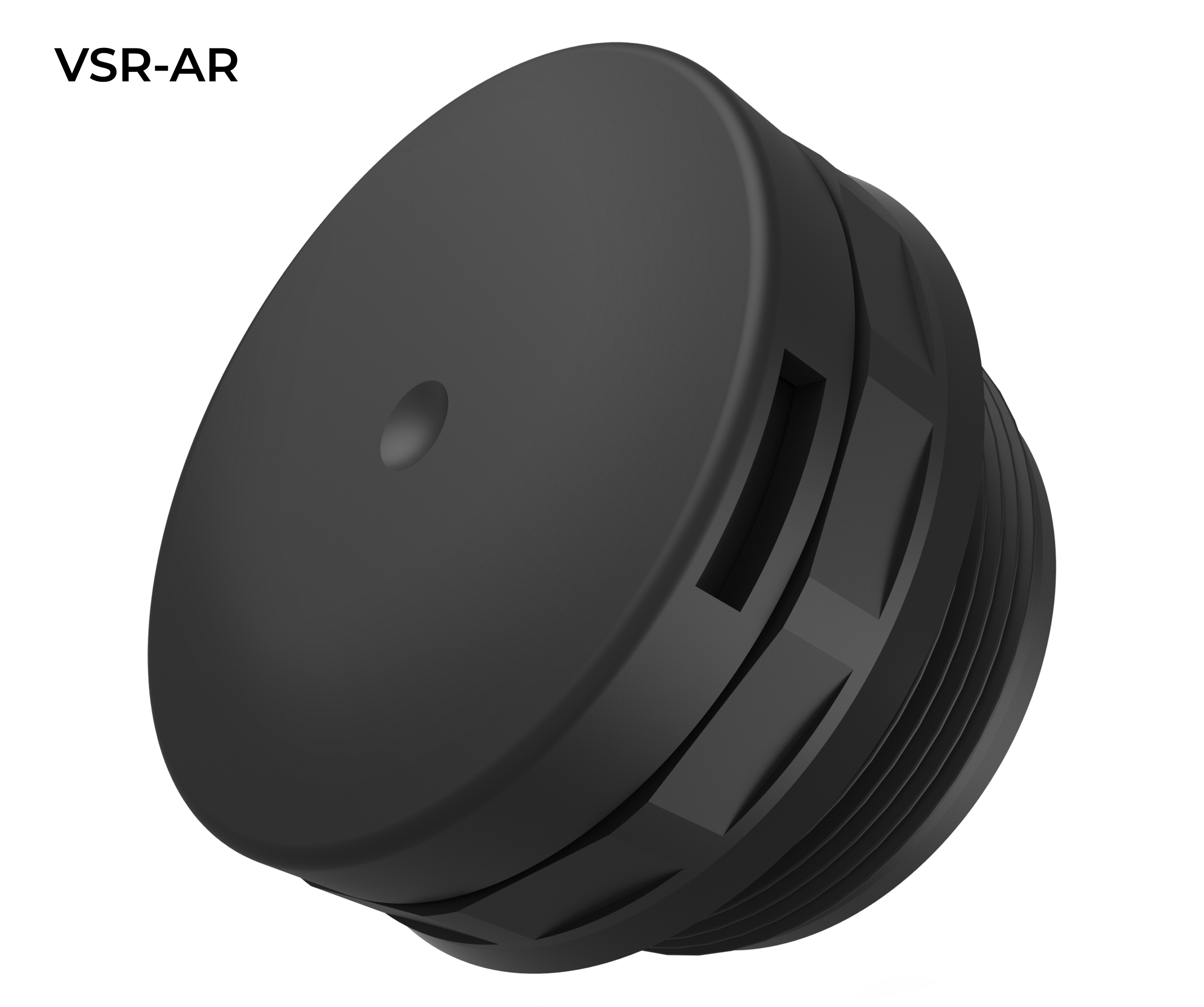

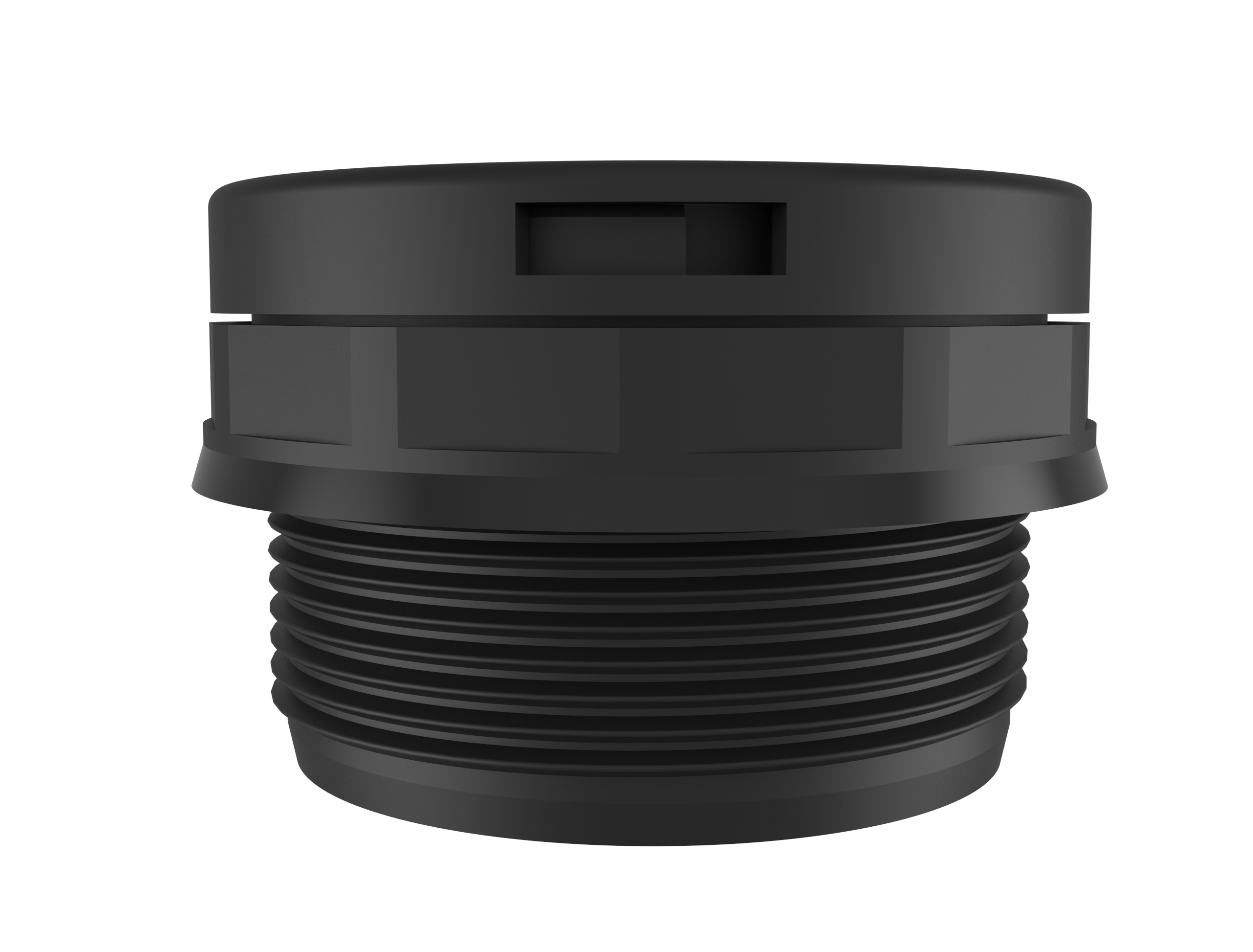

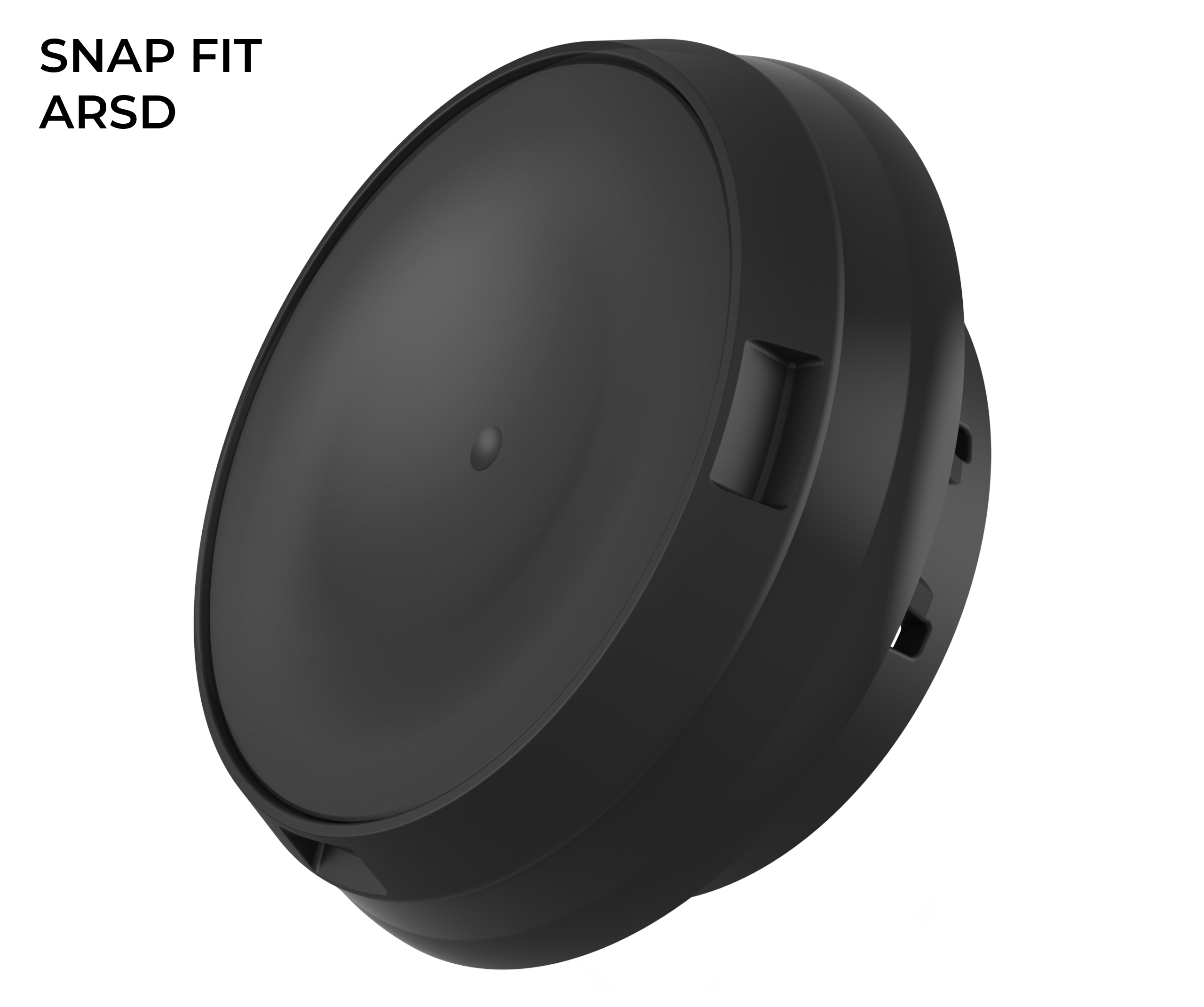

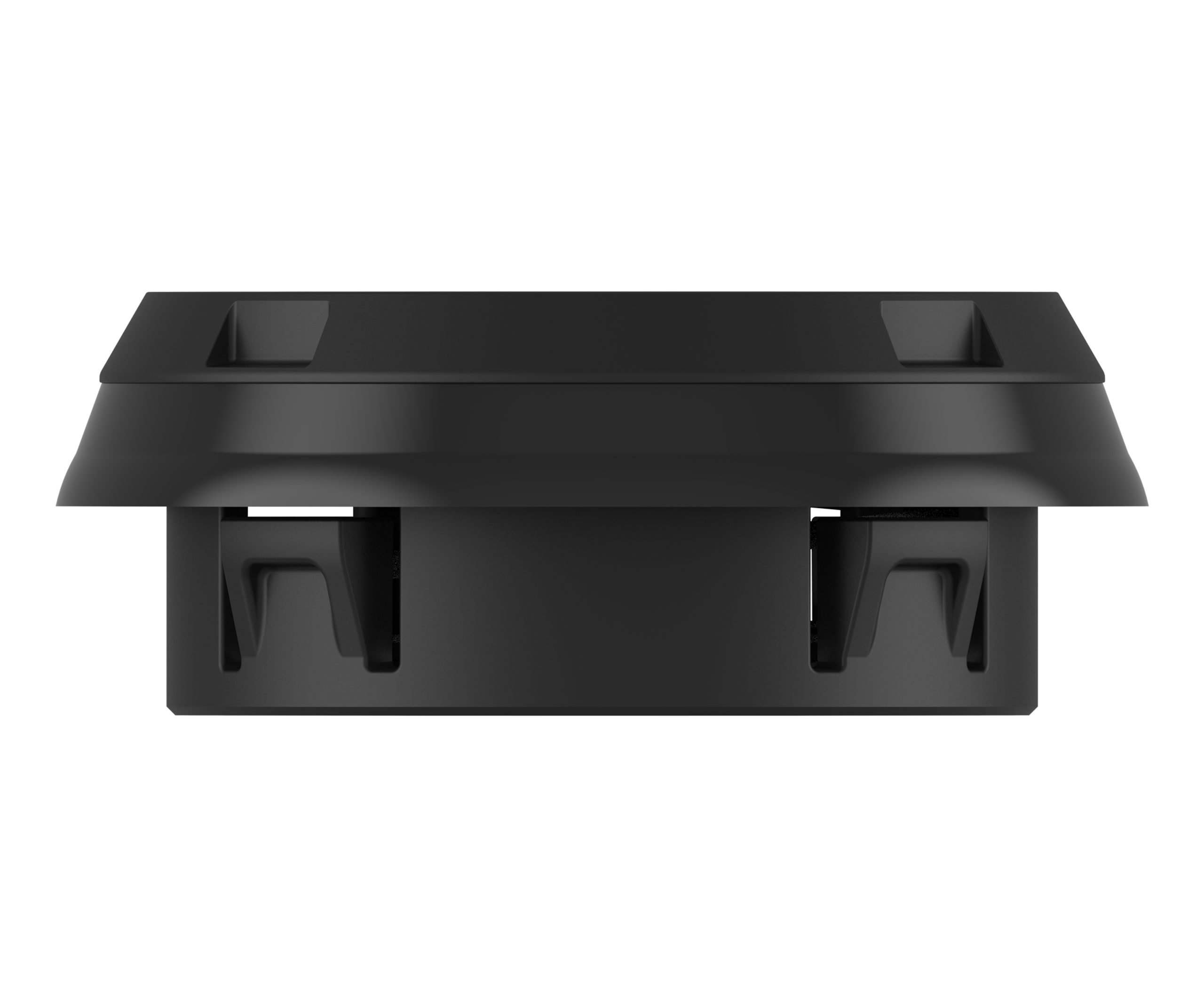

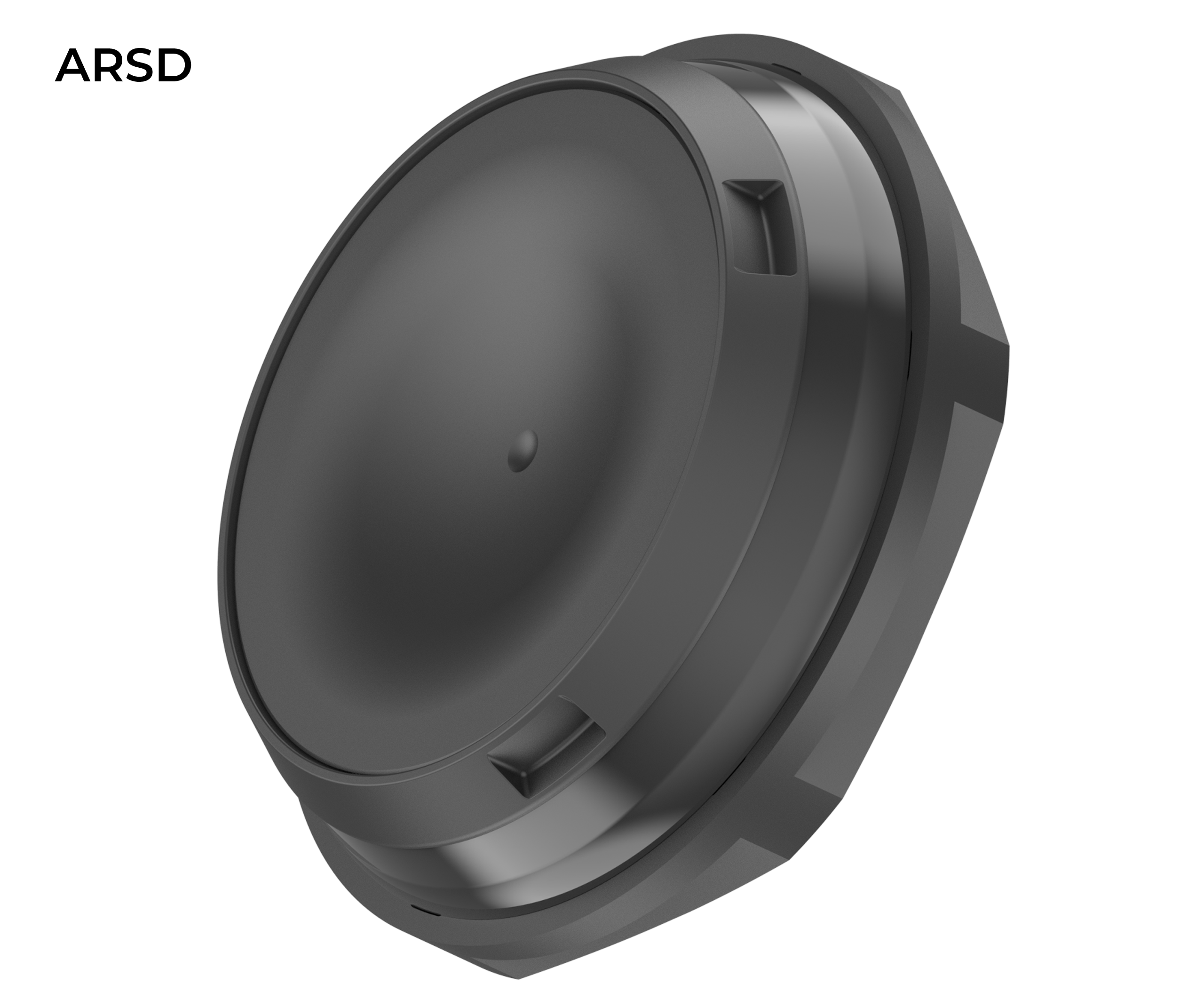

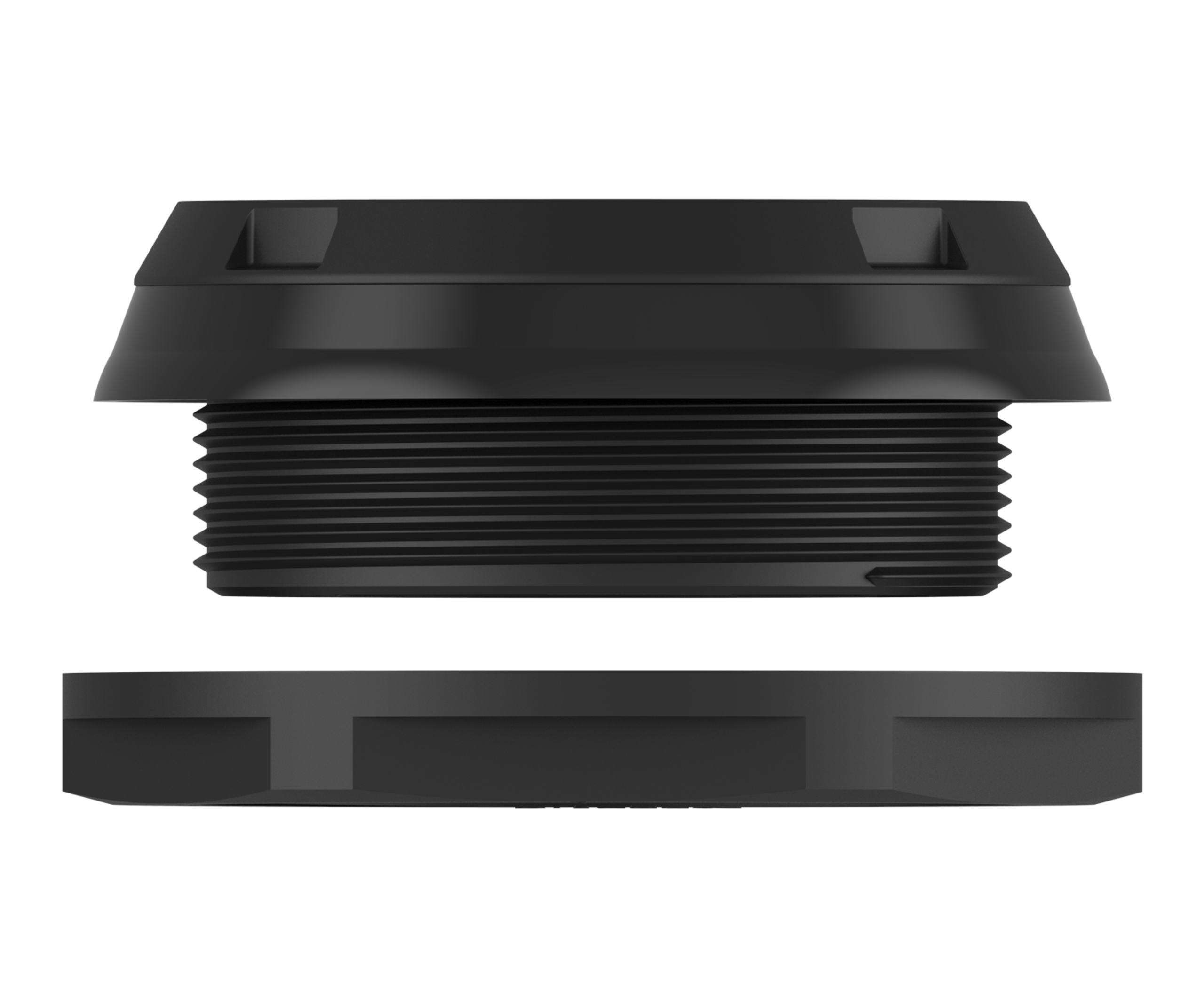

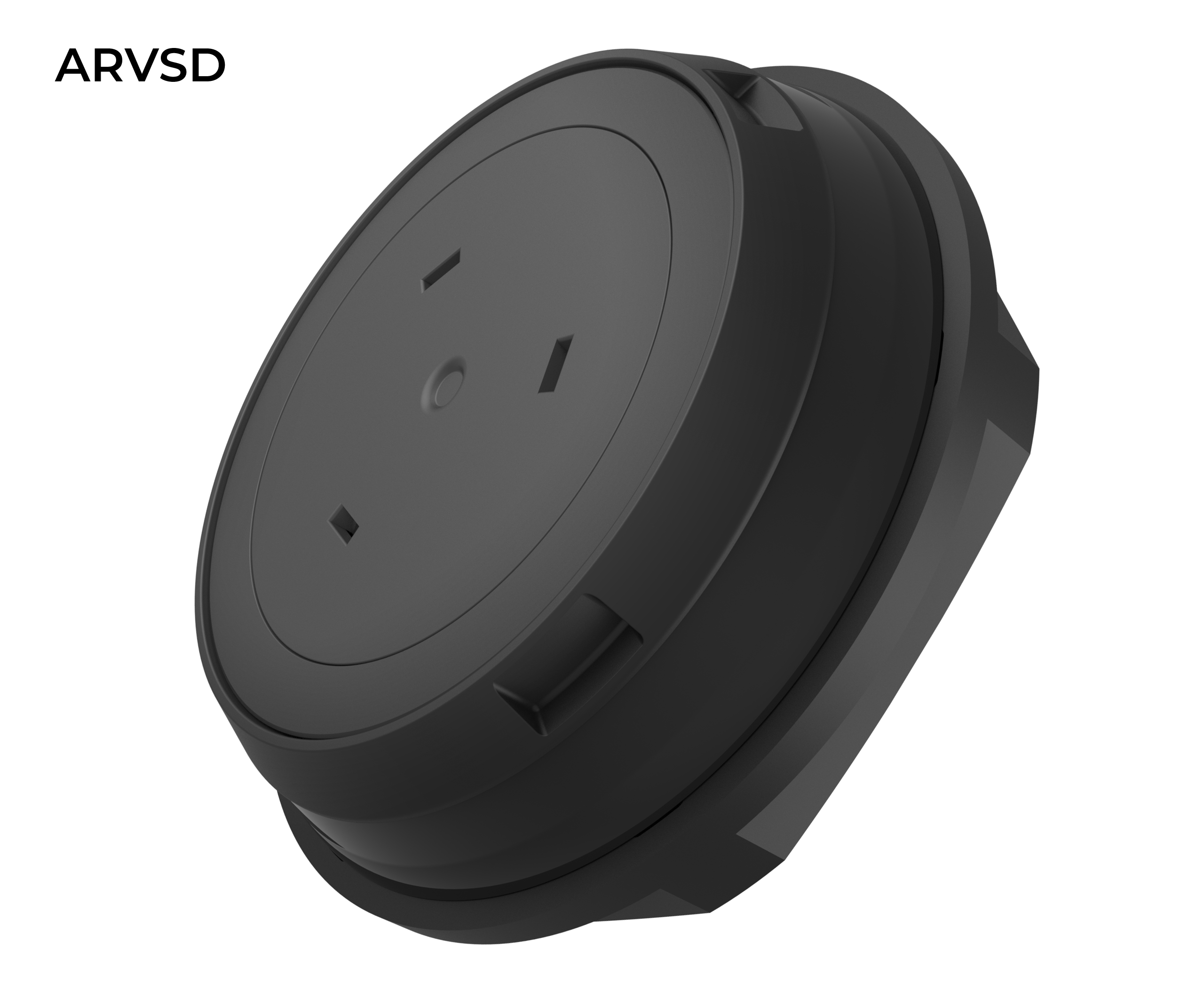

ARSD, ARVSD and VSD-AR

Balances internal pressure in batteries, reducing the risk of damage and explosion.

Balanced pressure prevents excessive stress on battery gaskets, extending their service life.

Includes a safety burst system that activates in cases of overpressure or thermal events.

Prevents the ingress of water, dust, and other contaminants into the battery.

Provides reliable sealing performance even under vibration.

Suitable for high-pressure cleaning and frequent washing applications.

While the ARVSD and VSD-AR models offer both continuous ventilation and a burst safety function, the ARSD model provides only the burst function.Suitable for high-pressure cleaning and frequent washdowns.

Maintains reliable protection even under vibration.

All versions (ARVSD, VSD-AR, and ARSD) feature an emergency relief lid, which provides a burst function, opening automatically when internal pressure increase and closes when pressure drops, ensuring safe and controlled operation.

ARVSD and VSD-AR provide a burst function along with ventilation, while ARSD provides only a burst function.

Cap/Body Material Polyamide 66 Glass Fiber Reinforced
Seal Material VMQ
Vent.(Membrane) Material  PTFE
Inner Part Material Stainless Steel
Ingress Protection Rating IP68, IP69, IP67, IP66
Type Rating 4X, 12, 13
Flammability V0 according to UL 94
Operating Temperature -40 °C to +80°C

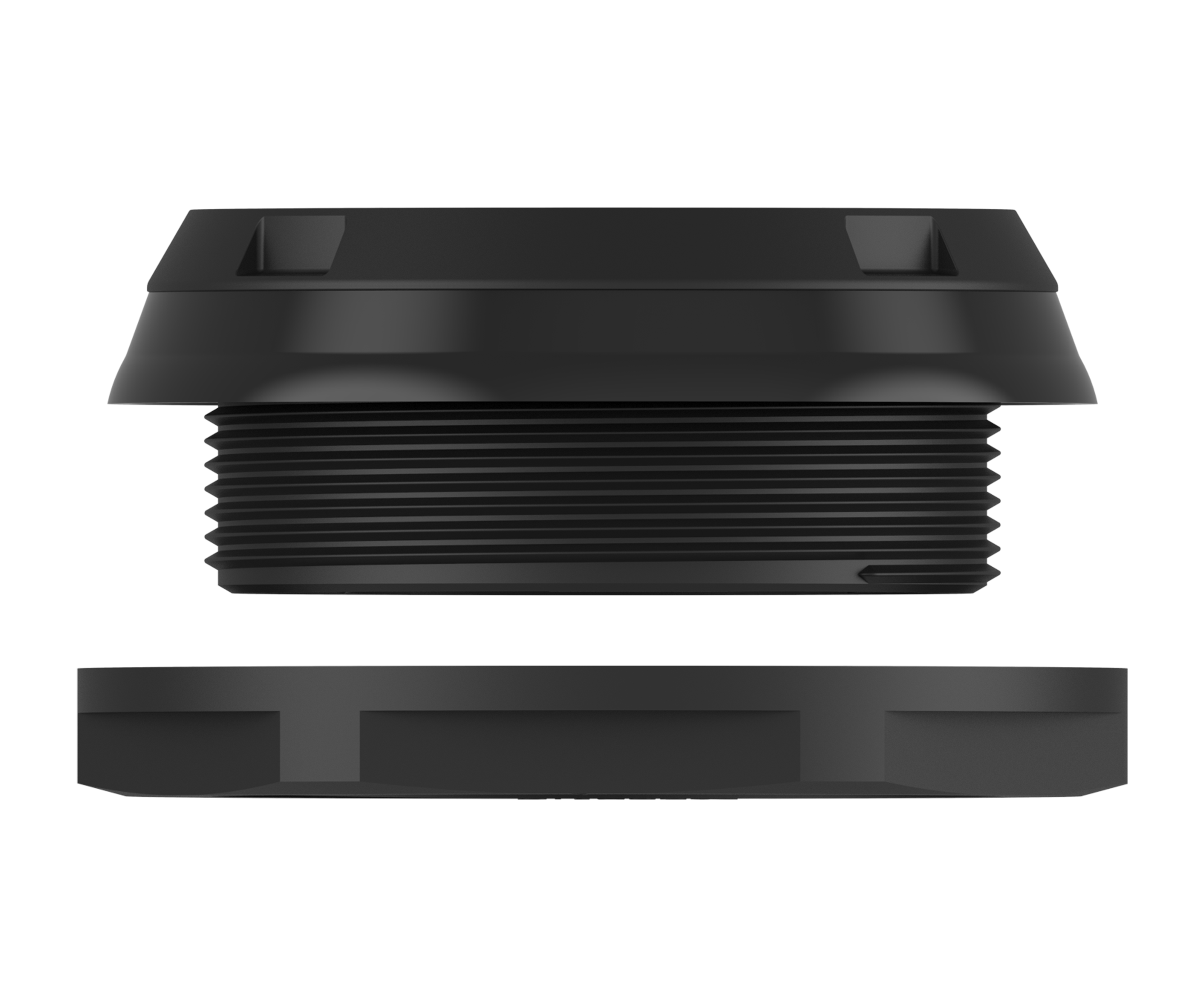

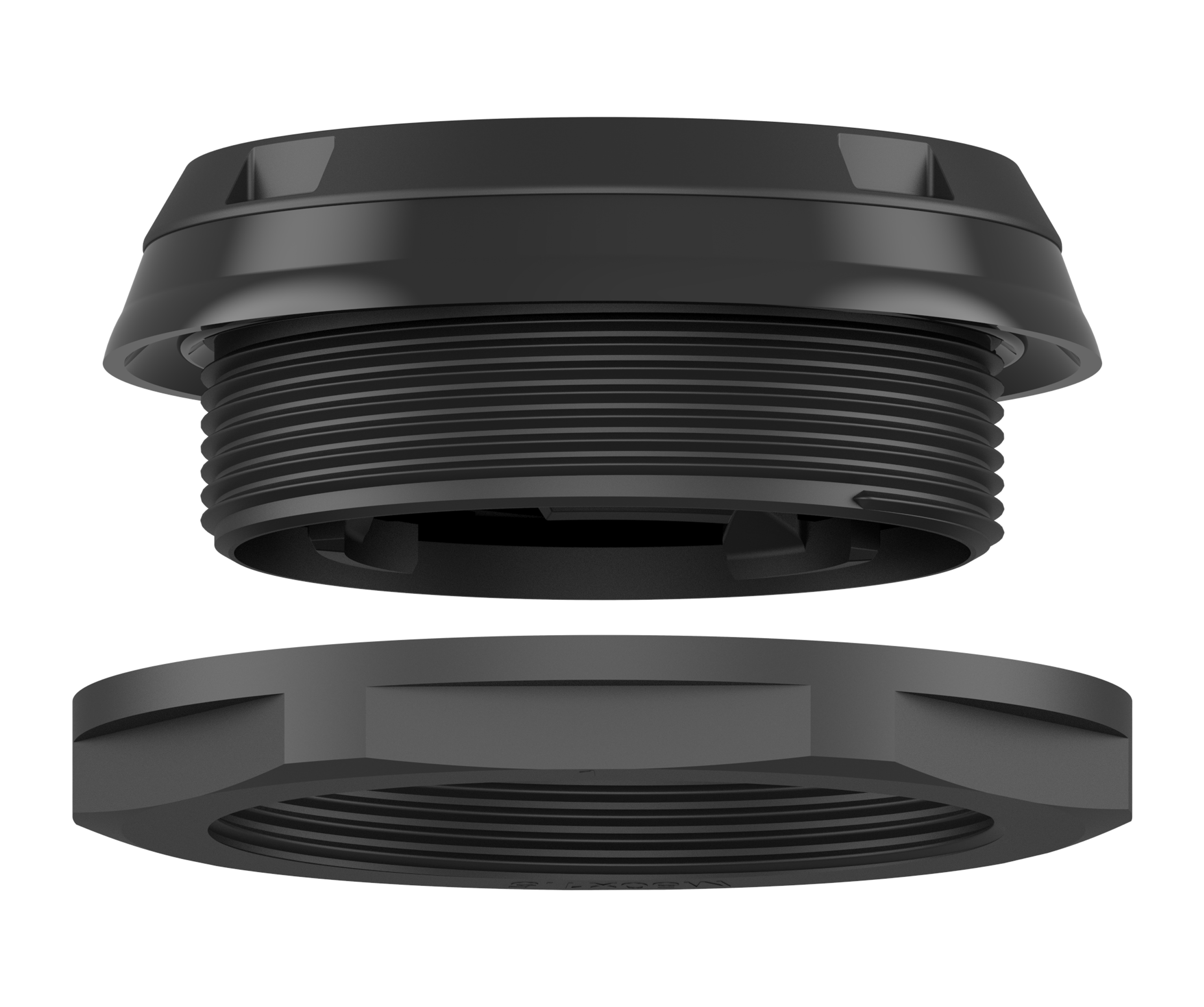

Accessories ▪ Locknut
Remarks ▪ Vibration test performed acc. to road vehicles standard ISO 16750
▪ Opening pressure value is adjustable according to request.

Calculate Pressure Compensation
With our vent calculator you can easily and precisely determine your needed air-passage, which is important for the proper function of your system.
