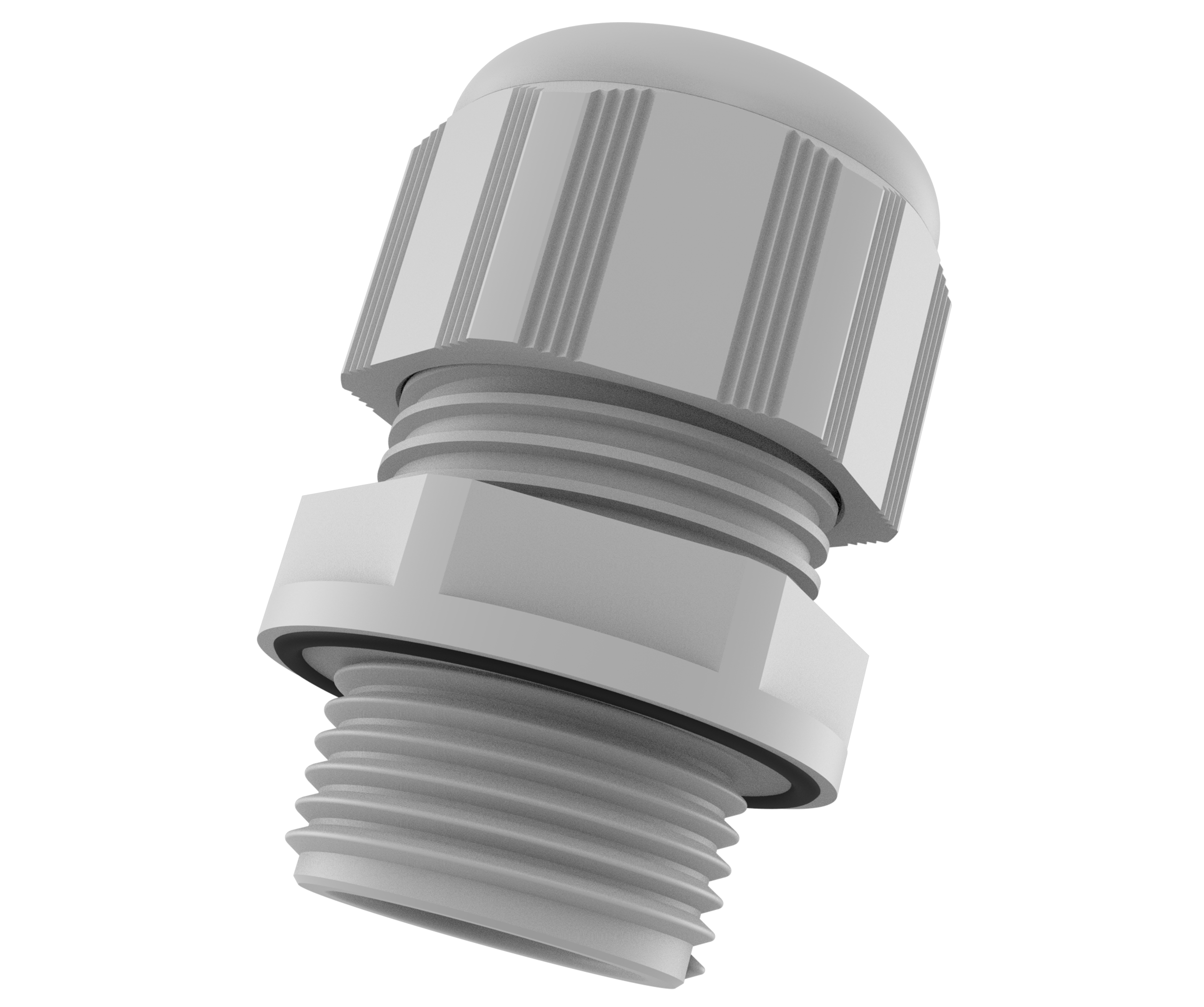

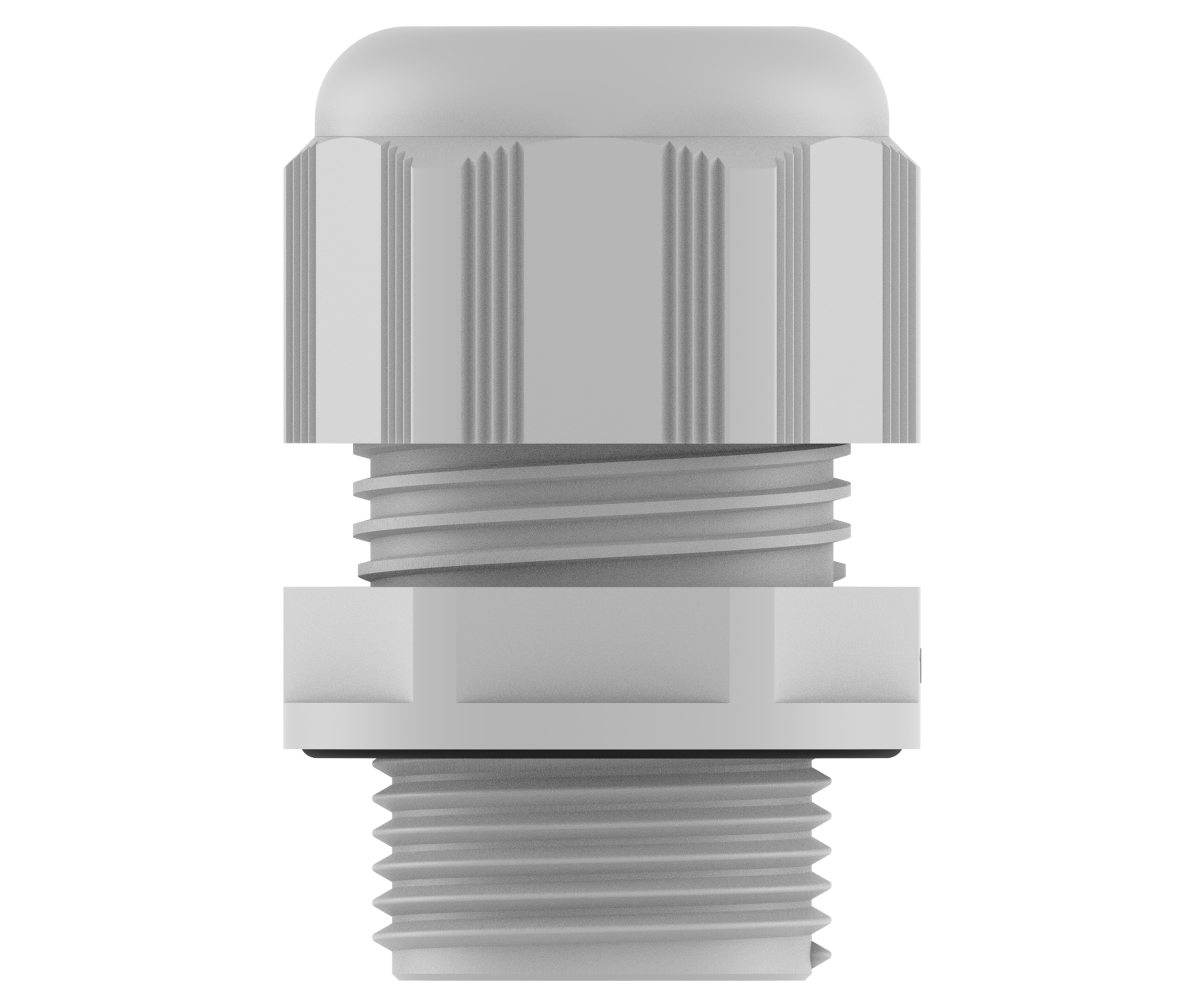

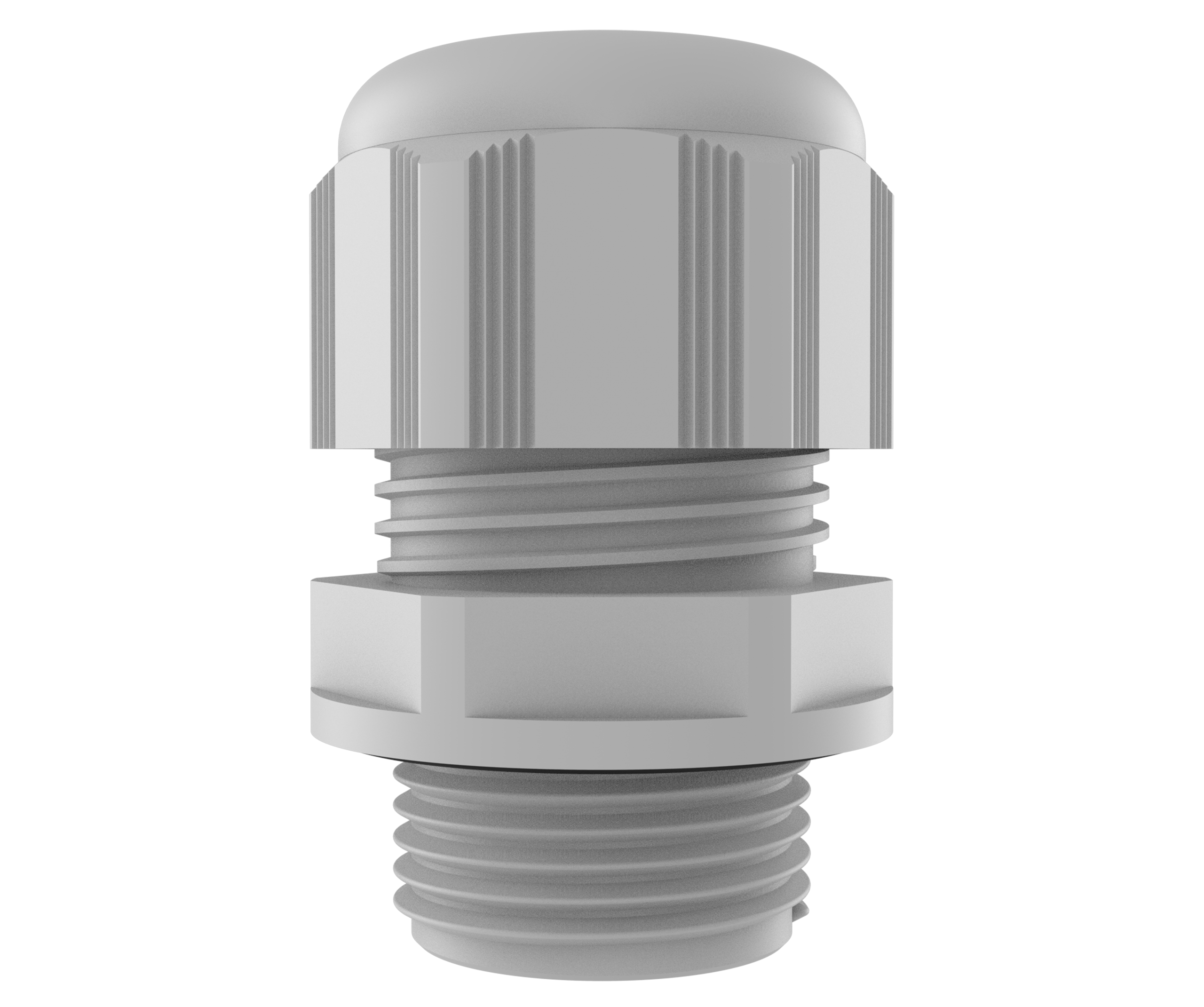

High Performance Cable Glands

Ideal for harsh industrial environments, offering robust and durable solutions and suitability for low-temperature applications

Manufactured from halogen-free, flame-retardant polyamide material, UL94 V0 rated for flammability

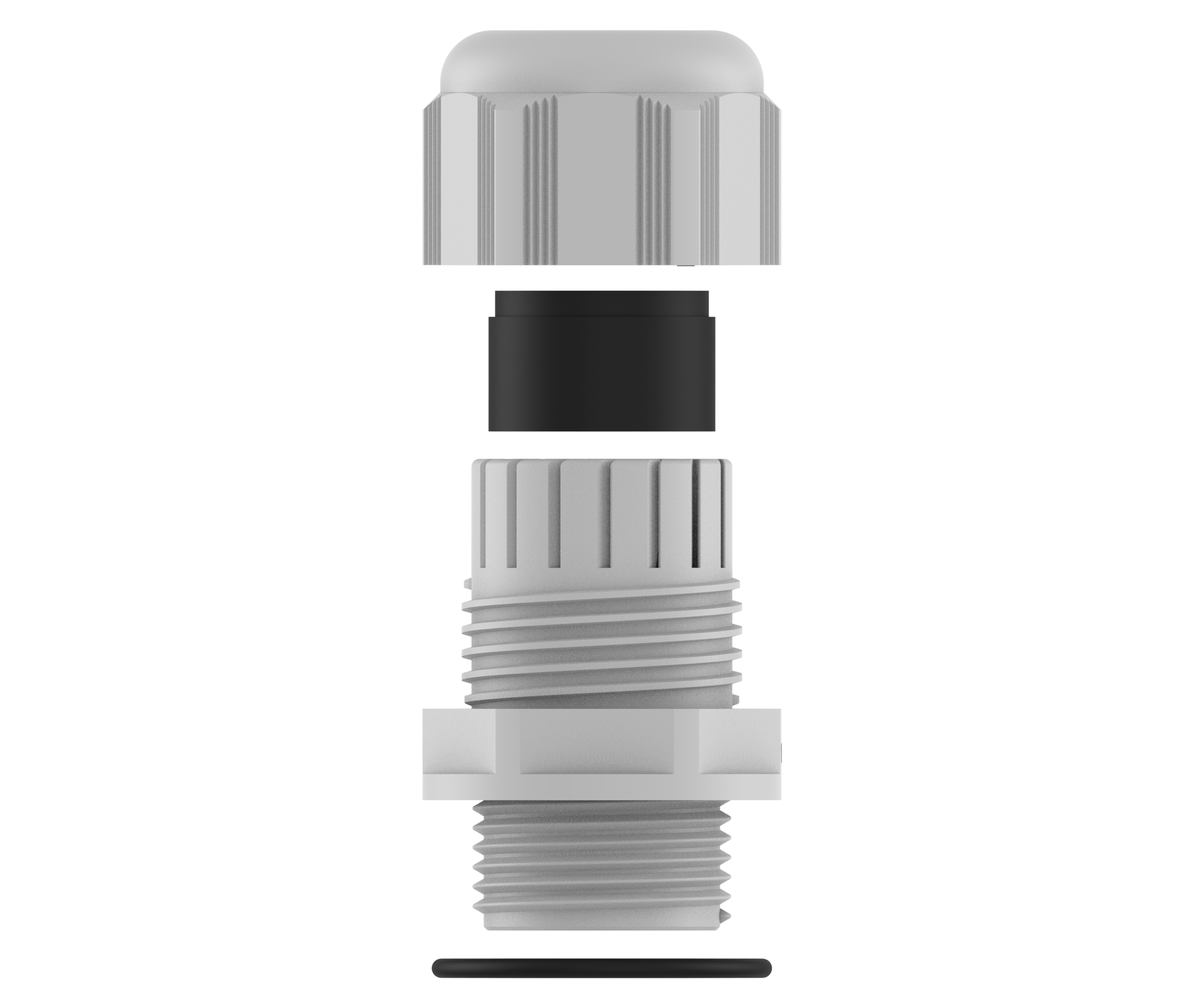

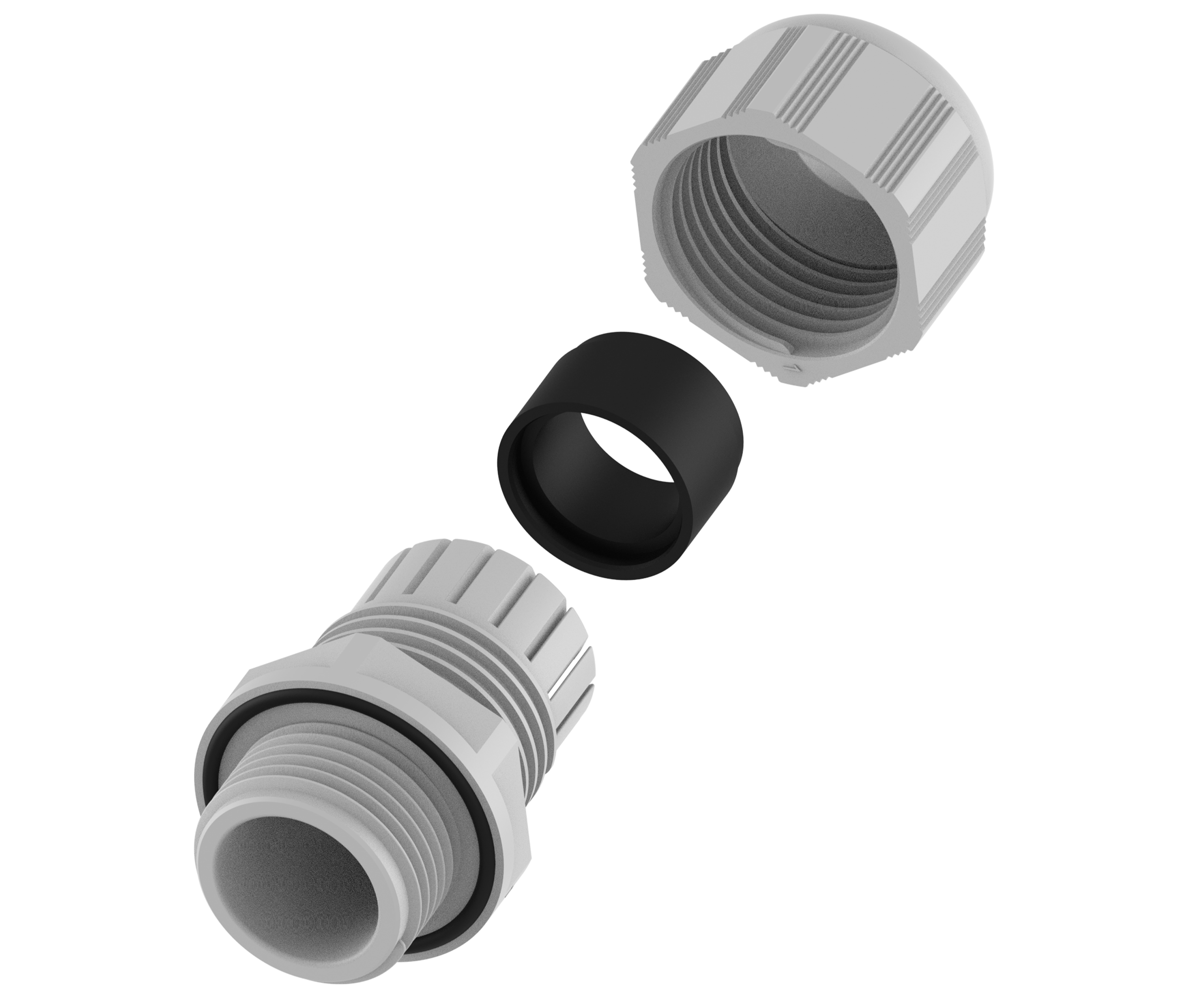

Features an O-ring channel and O-ring similar to metal cable glands, eliminating the need for additional washers

Provides excellent protection against dust and water ingress

Offers the highest tensile strength class (Type B) and reliable strain relief

Cap/Body Material	Polyamide 6 V0 acc. to UL 94
Seal/O-ring Material	Neoprene (Chloroprene)
Ingress Protection Rating	IP68 - 10 Bar 30 min, IP69, IP66
Type Rating	1, 4, 4X, 12, 13
Temperature Range	Permanent -40 °C to +100 °C Intermittent -60 °C to +150 °C
Temperature Range	Permanent -40 °C to +100 °C Intermittent -60 °C to +150 °C
Cable Anchorage	Type B acc. to EN 62444
Colour	Silver grey (RAL 7001) Light grey (RAL 7035) Black (RAL 9005)
Thread Type	Metric
Cable Type	Non-Armoured
Accessories	▪ Locknut ▪ Dome plug ▪ Gasket (Washer)
Remarks	▪ Accessories must be ordered separately
