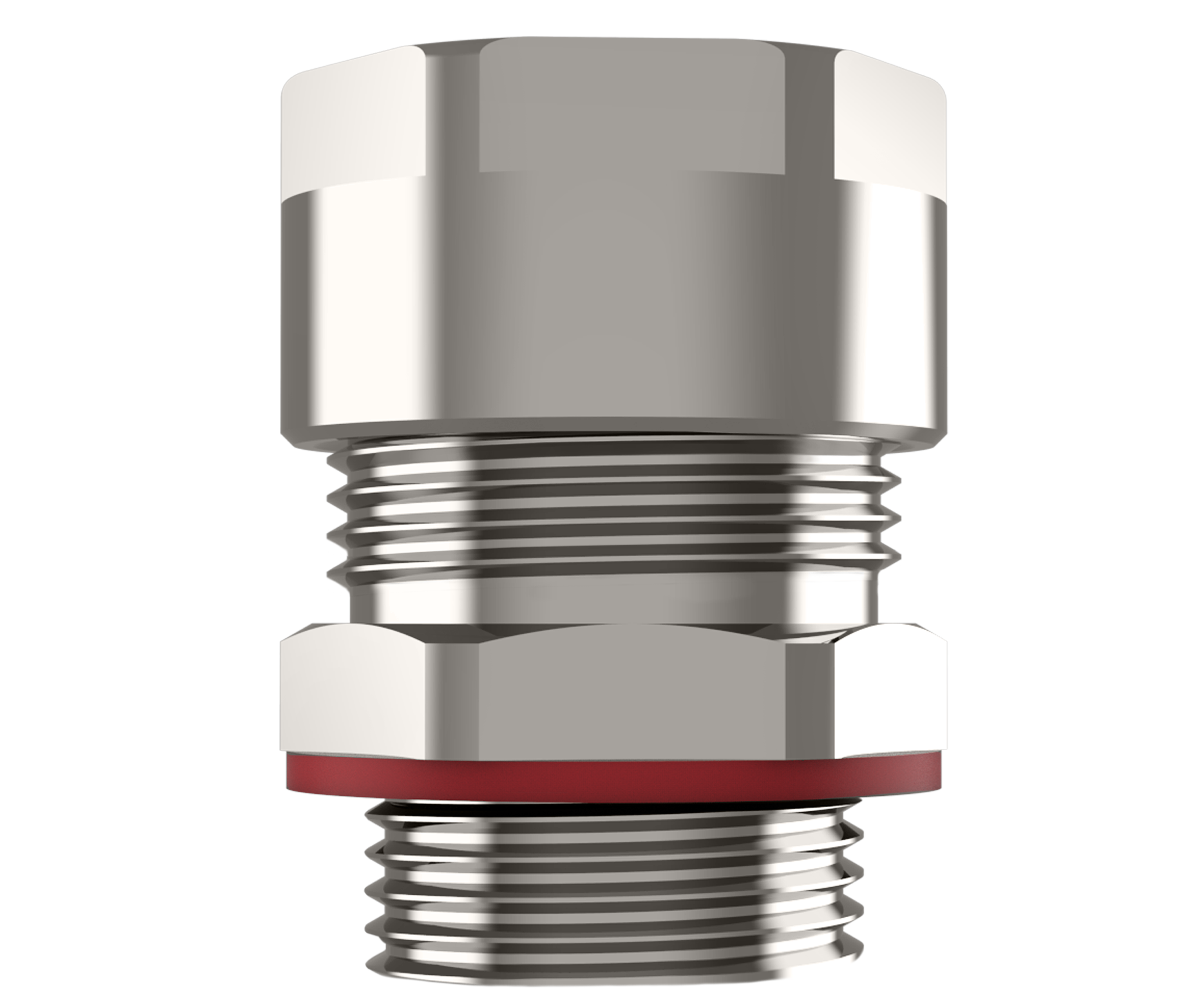

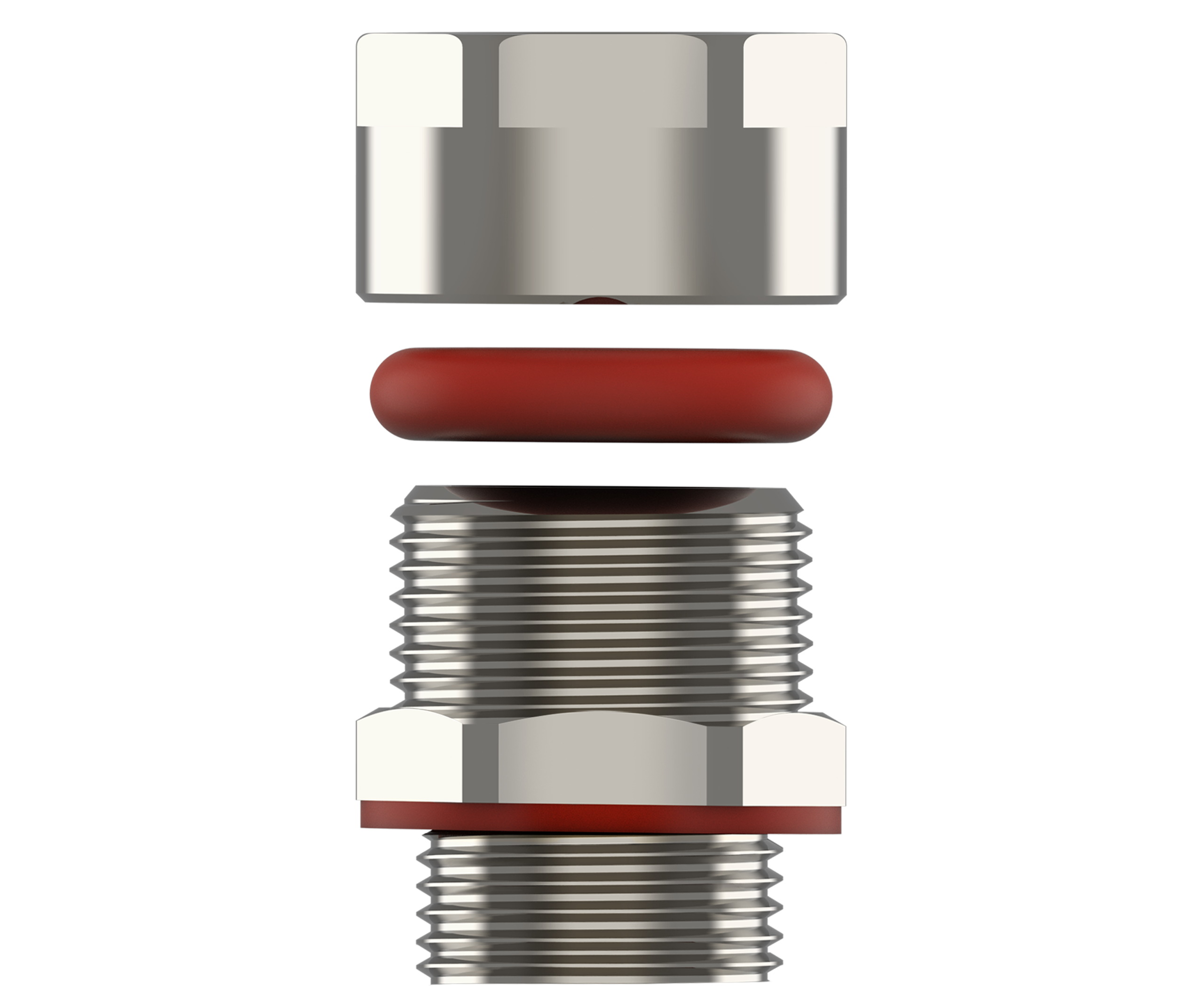

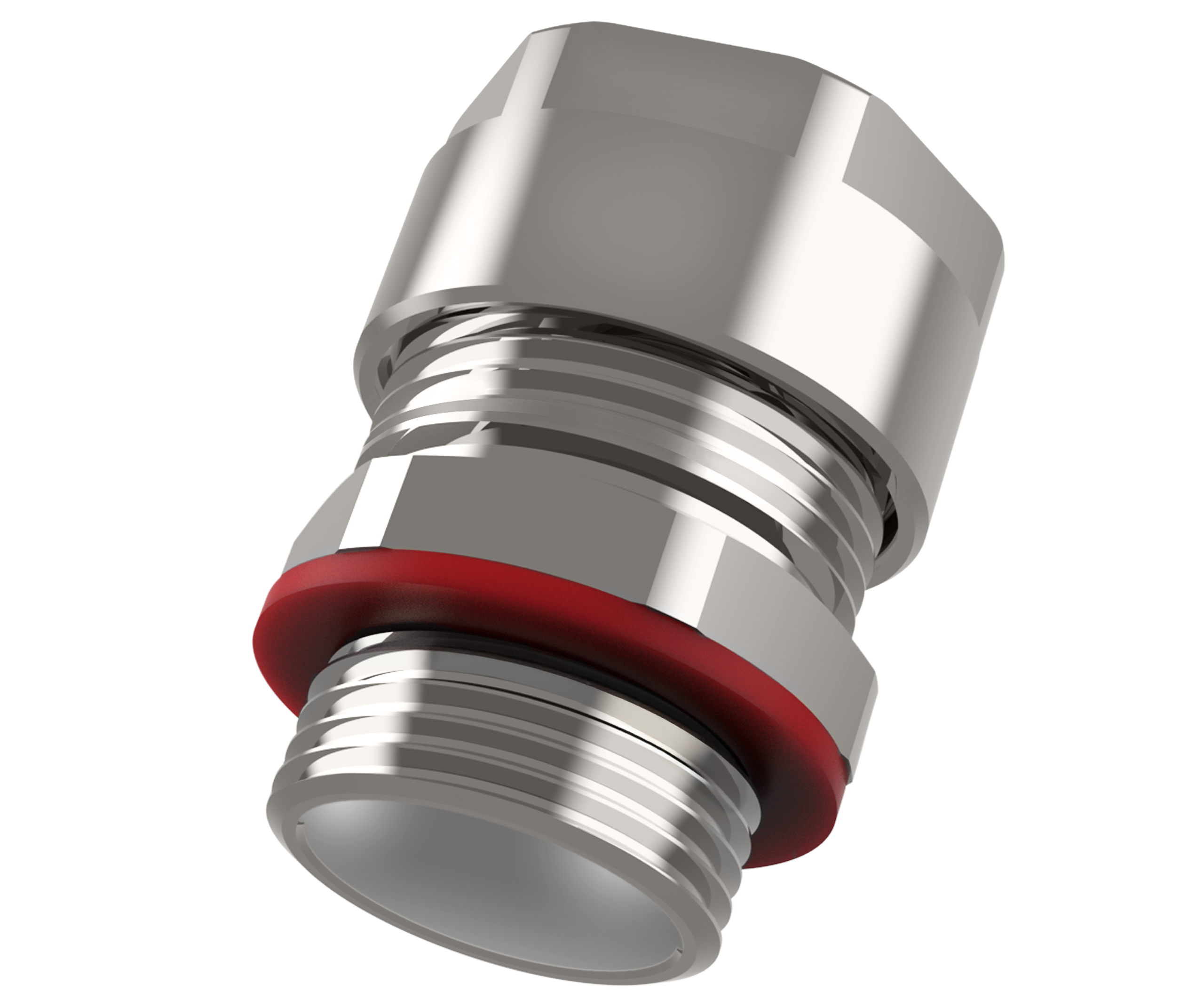

Crux

Group II stuffing type hazardous area cable gland, suitable for non-armoured cables (or braided cables where the braid and outer sheath pass into the enclosure, and the requirements of 60079-14 are met.)

Exe and Ext certified and suitable for installation in zones 1/21 and zones 2/22 hazardous areas.

The gland provides both a flameproof seal on the cable outer sheath which also provides IP and cable retention.

Reducing the effects of coldflow characteristics of cable

ATEX/IECEx certified along with various other approvals - see full technical details.

Available in brass, nickel plated brass or stainless steel  with both Metric and NPT threadforms.

Other threadforms available on request.


Suitable for use in Group II, Group III
Equipment Marking EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating IP66, IP68 - 5 Bar, 30 min
Cable Gland Material Brass, Brass Nickel Plated, Stainless Steel
Seal Material Silicone
Operating Temperature Silicone: -60°C to +130°C
Thread Type Metric, NPT
Other thread types available upon request.
Cable Type Non Armoured
Accessories Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags, Dome plugs
Remarks Accessories must be ordered separately.
O-ring available in Metric outer threads.
ATEX Certificates CESI 21 ATEX 031X
ATEX standards EN 60079-0, 7, 31
IECEx Certificates IECEx CES 22.0009X
IECEx standards IEC 60079-0, 7, 31
TR CU (EAC) No TC RU C-TR.AA87.B.01120/23
TR CU standards ГОСТ 31610.0; ГОСТ IEC 60079-7, 31
INMETRO Certificates DNV 23.0154 X
INMETRO Standards ABNT NBR IEC 60079-0, 1, 7, 31
Marine Approval TAE00004T4
CCC Certificates No 2024312313000605
ECASEX Certificate 23-10-88023/E23-09-089373/NB 0010
