Volans

Group II double sealing hazardous area cable gland, suitable for all types of armoured and braided cables (SWA, AWA, STA, SWB, PWA & Shielded.)

Exd, Exe and Ext certified and suitable for installation in zones 1/21 and zones 2/22 hazardous areas

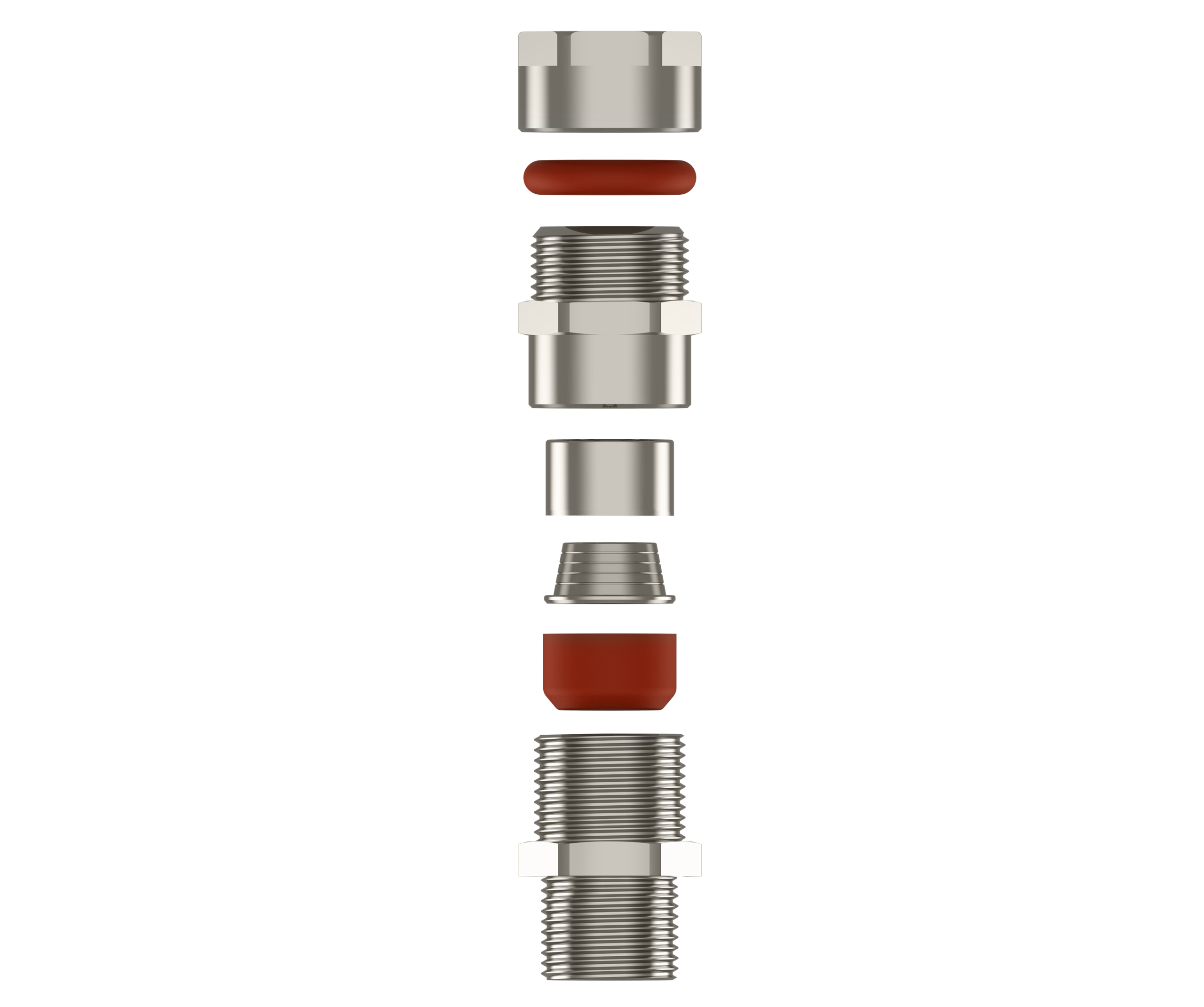

Displacement inner seal design

Reducing the effects of coldflow characteristics of cable

Provides both a flameproof seal on the inner cable sheath and an IP and cable retention seal on the outer jacket.

DTS 01 compatability without deluge seal.

ATEX/IECEx certified along with various other approvals - see below for full technical details.

Available in brass, nickel plated brass, stainless steel with both Metric and NPT threadforms.

Other threadforms available on request.

Suitable for use in	Group I, Group II, Group III
Equipment Marking	EX I M2 Ex db I Mb, Ex eb I Mb EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Cable Gland Material	Brass, Brass Nickel Plated, Stainless Steel
Seal Material	Silicone
Operating Temperature	Silicone: -60°C to +130°C
Thread Type	Metric, NPT
	Other thread types available upon request.
Cable Type	Armoured (SWA, AWA, STA, PWA, AWA), Braided, Shielded
Accessories	Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags
Remarks	Accessories must be ordered separately.
