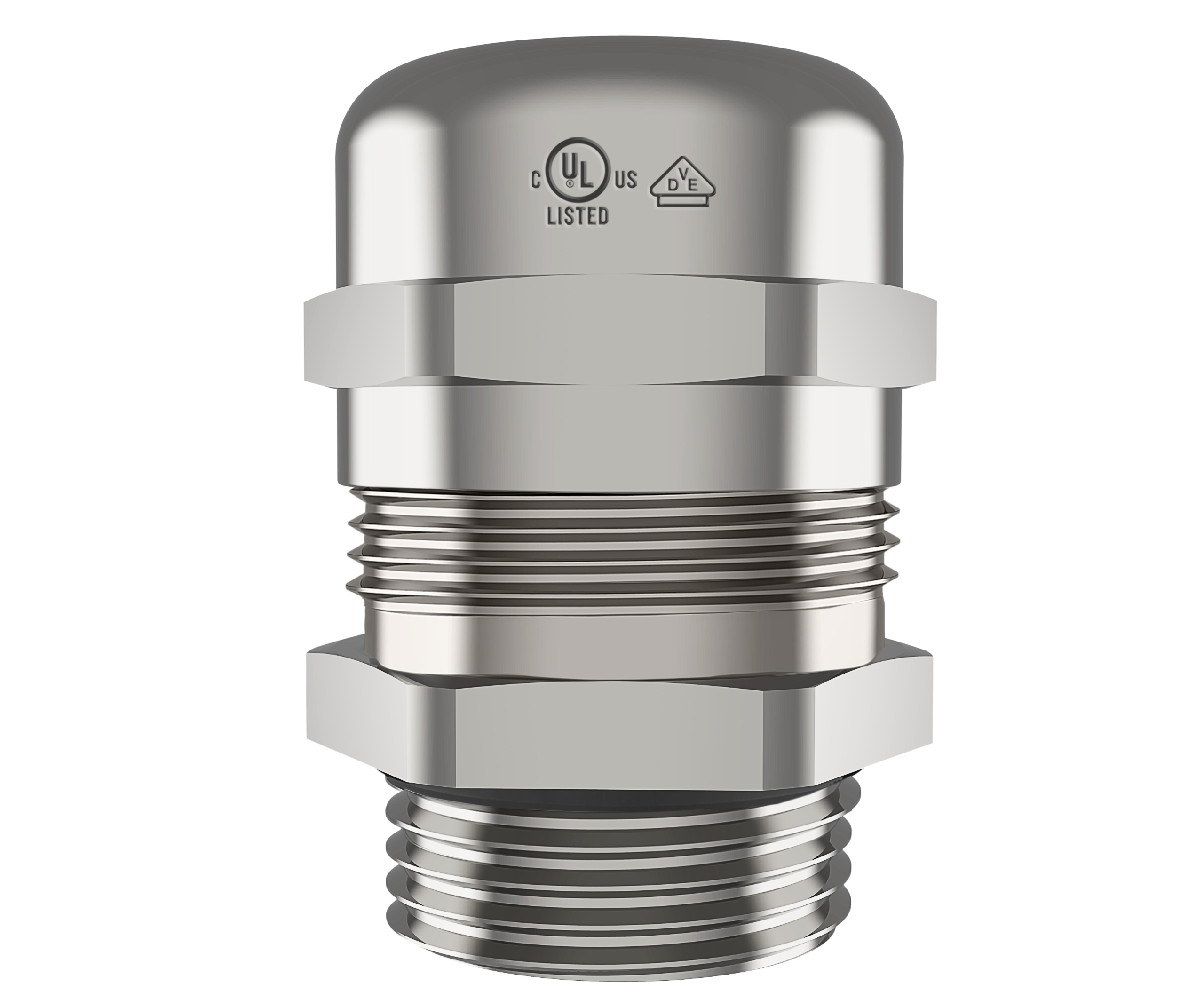

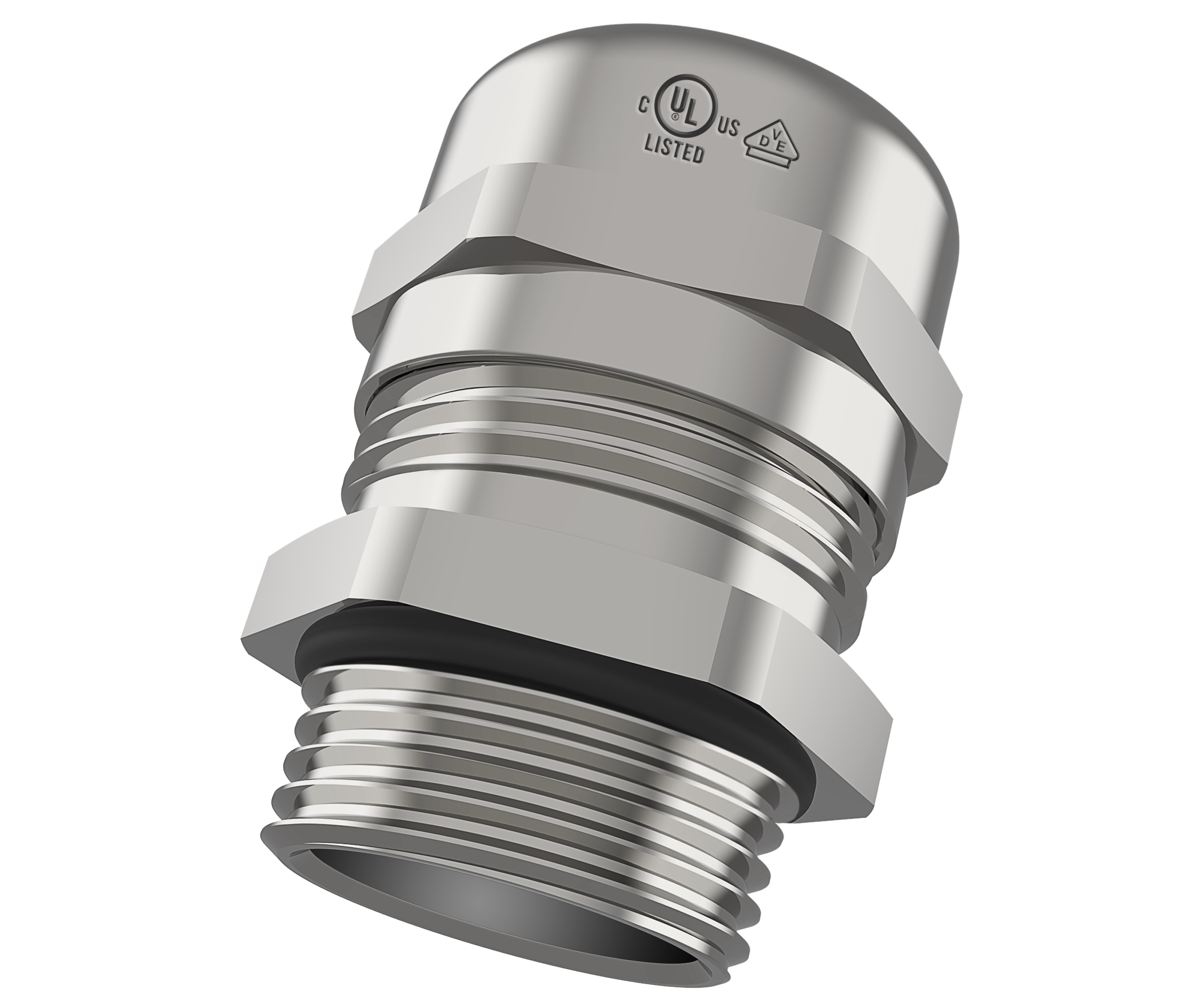

RJ 45 Cable Glands, Metal

For standard industrial applications using data cables with pre-assembled cables with RJ 45 connectors.

For metal machines and housings.

For industrial applications in harsh environments.

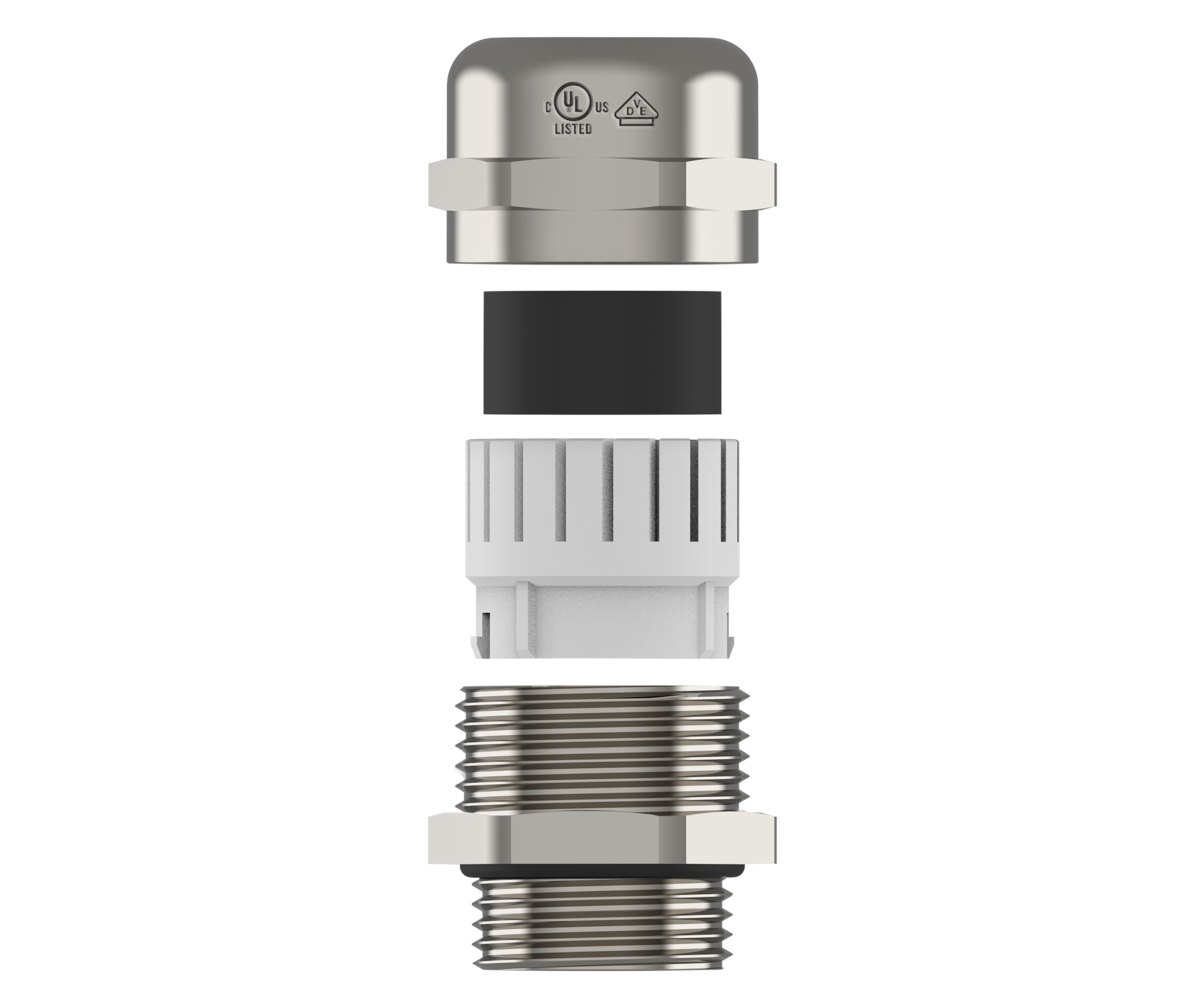

Easy assembly:

1- feed connector through cable gland 2- assemble splitted seal around cable

3- insert seal into gland body

4- install cable gland

5- tighten cap.

High quality strain relief and sealing, reliable performance for standard industrial applications

Cable Gland Material	Nickel Plated Brass
Seal Material	Chloroprene
Clamping Insert	PA 6 (Polyamide 6)
O-Ring	NBR
Ingress Protection Rating	IP68 - 5 Bar, 30 min
Type Rating	TYPE 1, 4X
Flammability	V2 according to UL94
Operating Temperature	Permanent -20 °C to +100 °C
Intermittent -40 °C to +150 °C
Thread Type	Metric
Other thread types available upon request.
Cable Type	Non armoured, with pre-assembled RJ45 connector

Accessories	Lock nuts Dome plugs Gaskets (Washers
Remarks	In compliance with DIN EN 62444. We recommend the use of lock nuts and gaskets to ensure IP rating for rough surfaces or through holes. O-ring available in Metric and PG threads. Accessories must be ordered separately.
