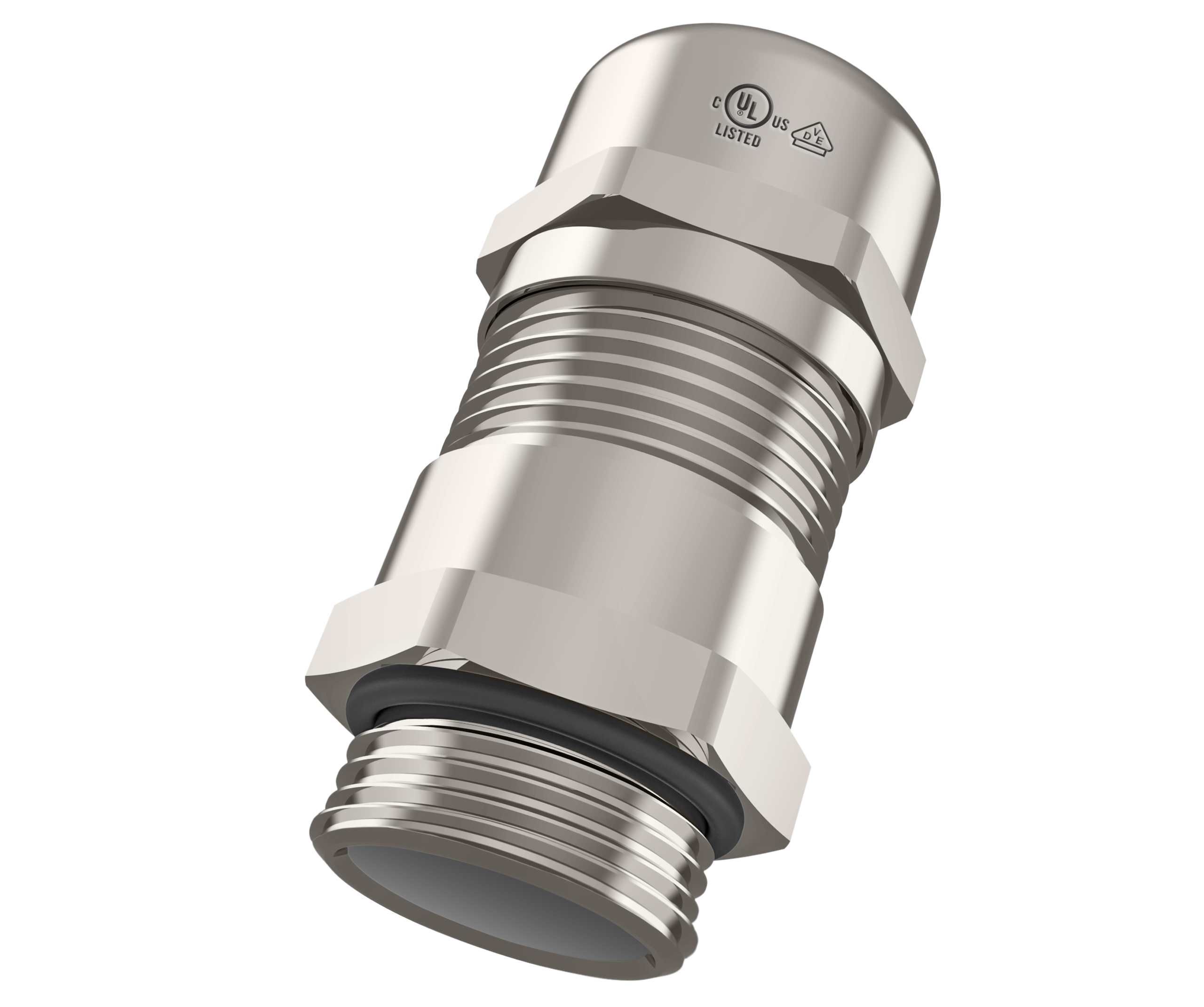

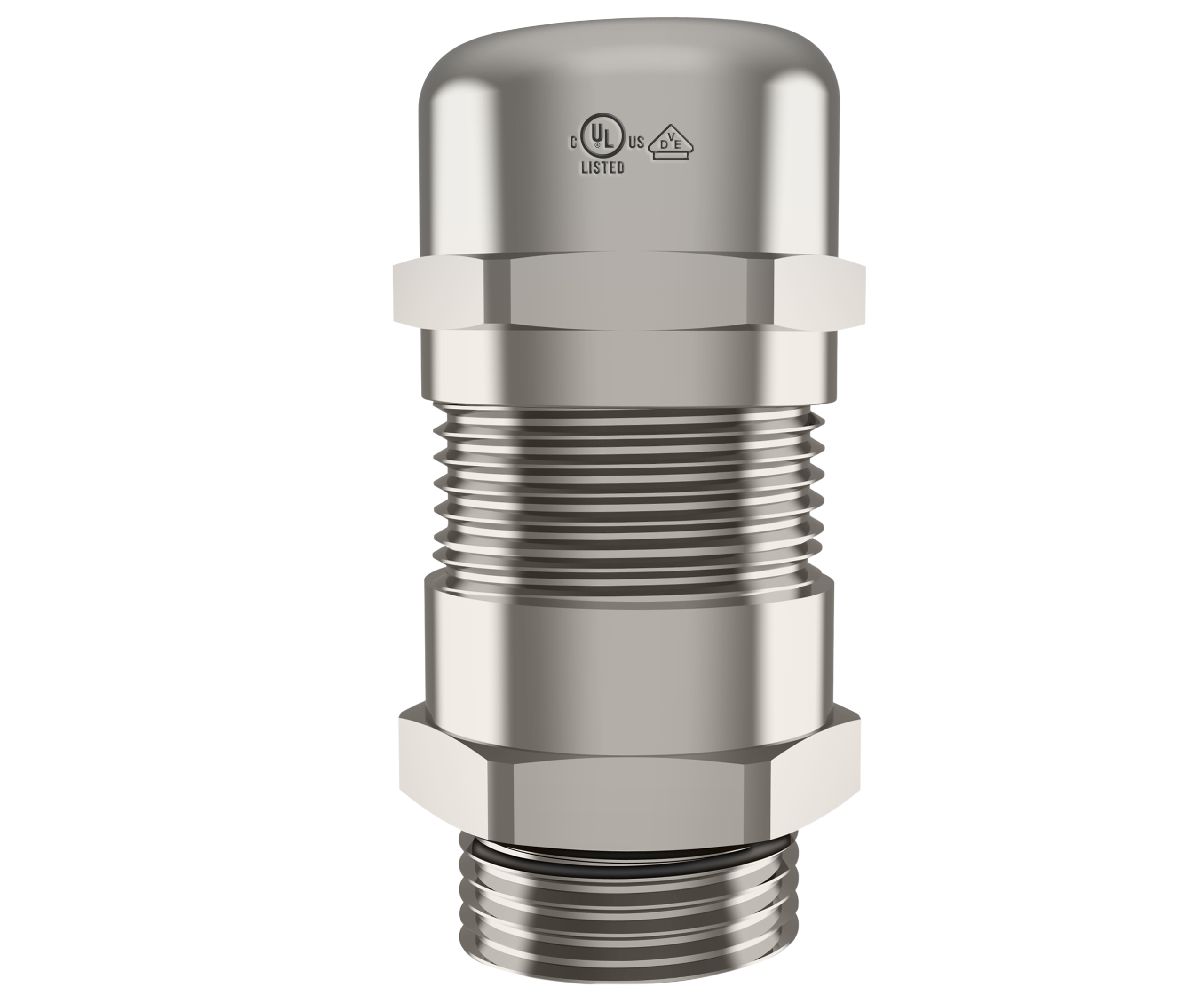

EMC Servo Ampacity Cable Glands LF

For metal machines and housings.

Vibration proof EMC performance thanks to double EMC springs.

For high current proof applications.

Conducts high electrical currents on the cable shield thanks to the increased number of contacts.

Specially designed EMC protective cable glands.

Long-lasting contact by high definition contact spring..

Moving spring contact offers reduced risk of sheath damage.

Easy movement of cable as long as not fastened.

Open contact fingers when the gland cap is not tightened.

Free rotational and axial movement of the cable without damaging the cable shield thanks to the open contact fingers.

Low contact resistance thanks to large contact surfaces.

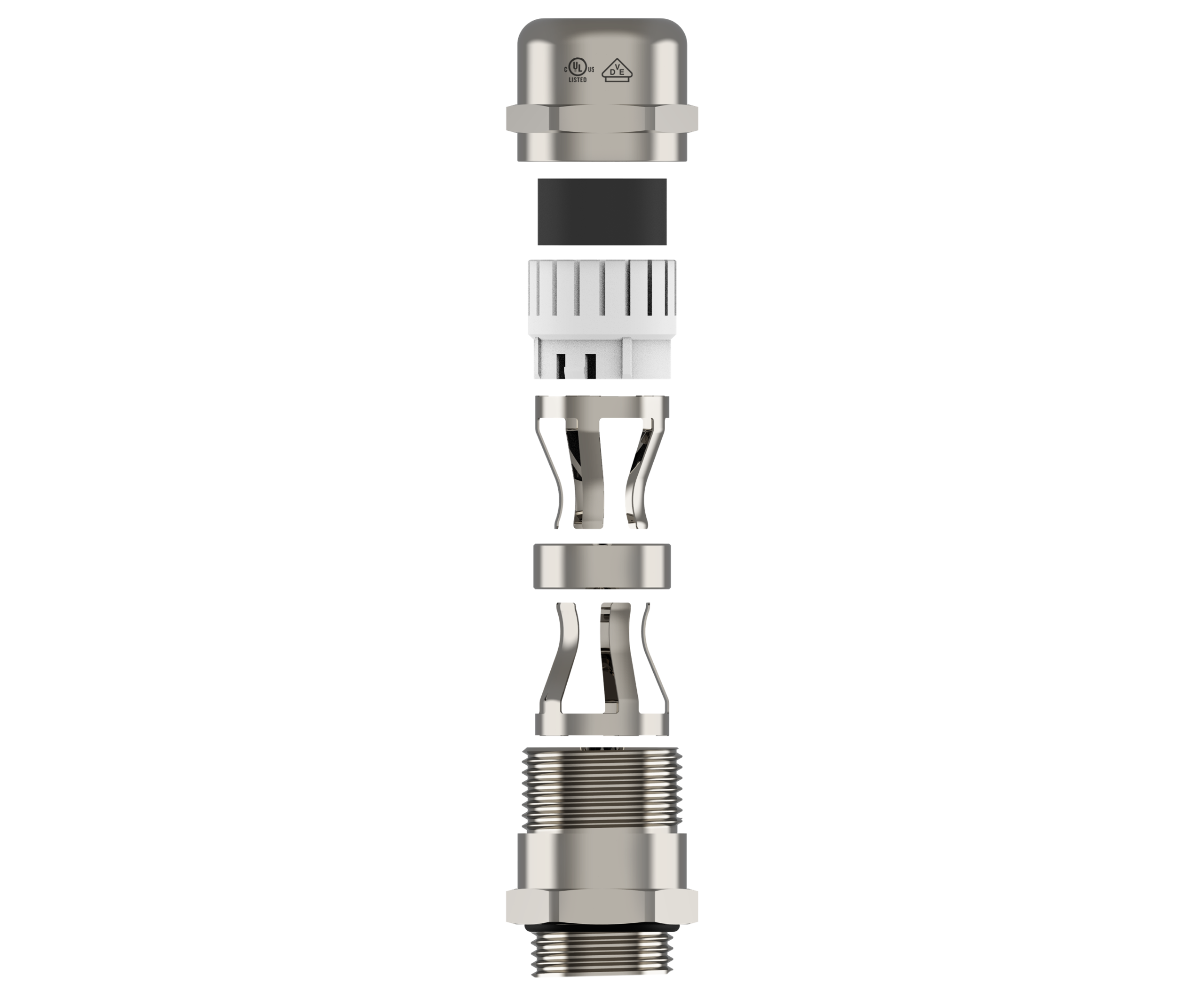

Easy assembly: install cable gland - prepare cable sheath - insert cable - tighten cap

Easy assembly: and disassembly of cable.Spring closes and opens according to fastening of the cap.

High quality strain relief and sealing, reliable performance for EMC applications.

Up-to-date international approvals.

Cable Gland Material	Nickel plated Lead-free Brass
Seal Material	Chloroprene
Clamping Insert	PA 6 (Polyamide 6)
Contact Spring	Special Copper Alloy
O-Ring	NBR
Ingress Protection Rating	IP 69, IP 68 - 5 Bar, 30 min
Flammability	V2 according to UL94
Operating Temperature	Permanent -20 °C to +100 °C
Intermittent -40 °C to +150 °C
Thread Type	Metric,NPT
Other thread types available upon request.
Cable Type	Shielded

Accessories	EMC Locknuts Dome plugs Gaskets (Washers)
Remarks	Manufactured according to DIN EN 62444/50262. Some approvals do not cover all sizes. O-ring is available in Metric thread as a standard. For NPT threads O-ring available upon request Accessories must be ordered separately. Other lock nut types also available upon request.
