Phoenix

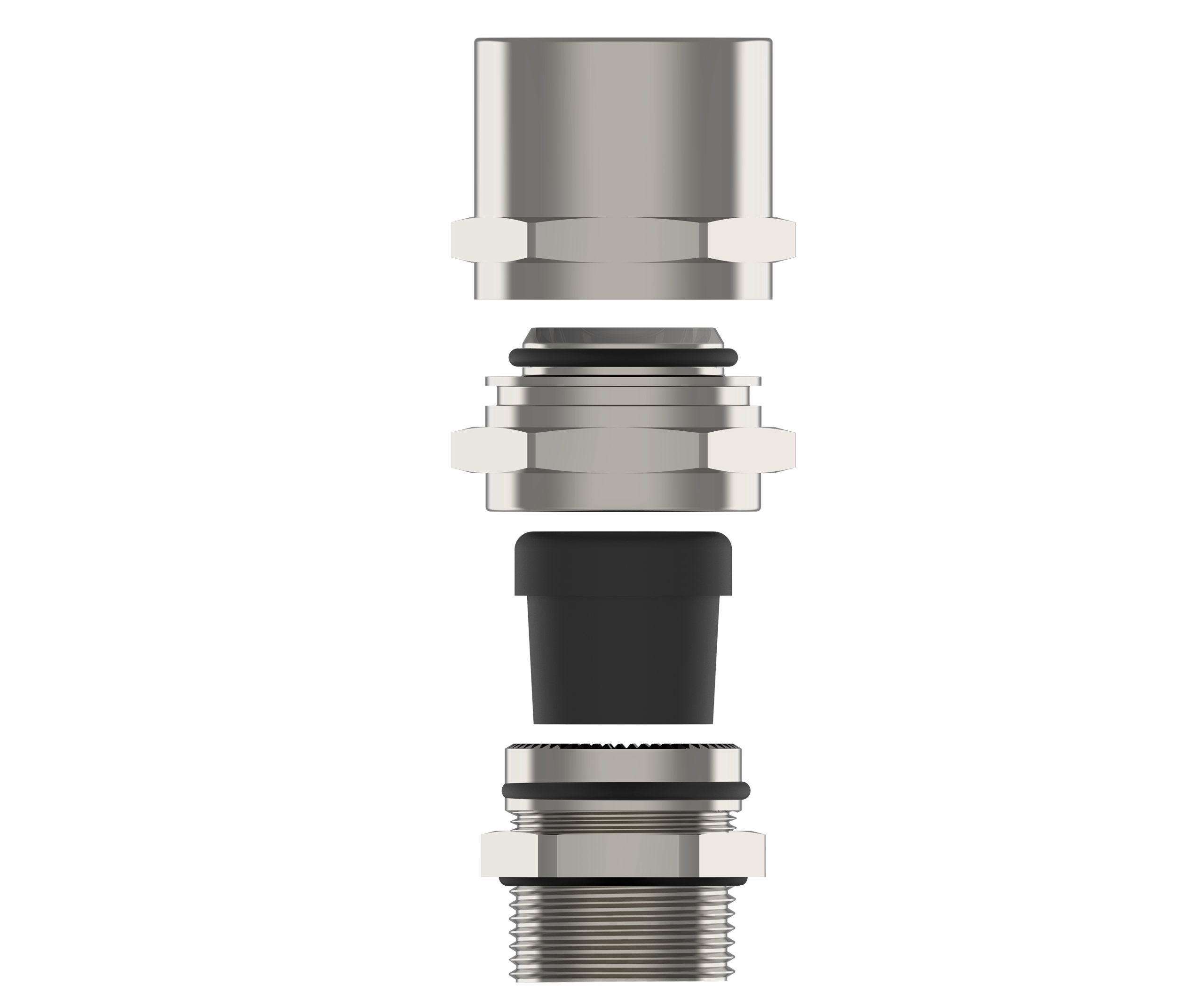

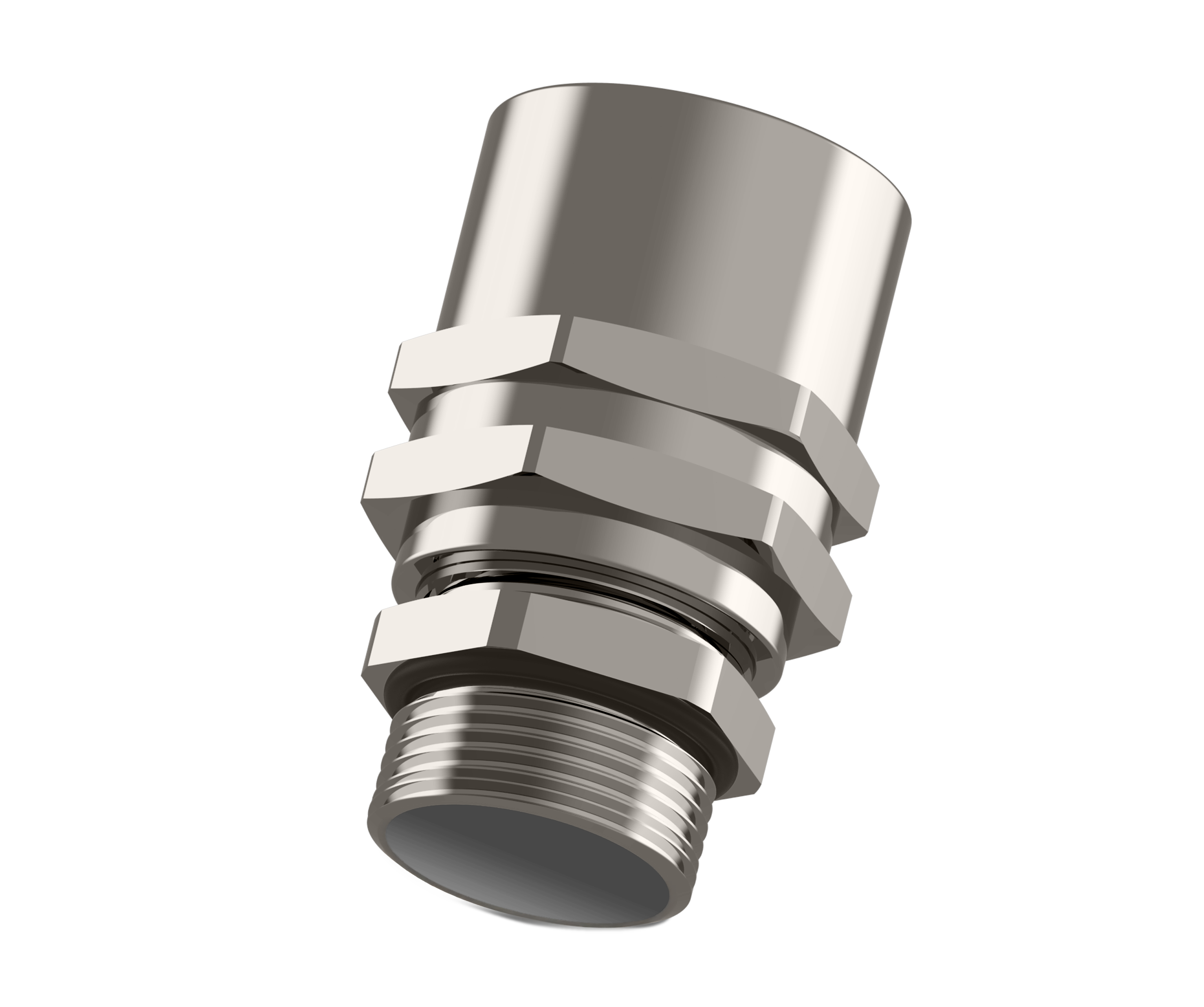

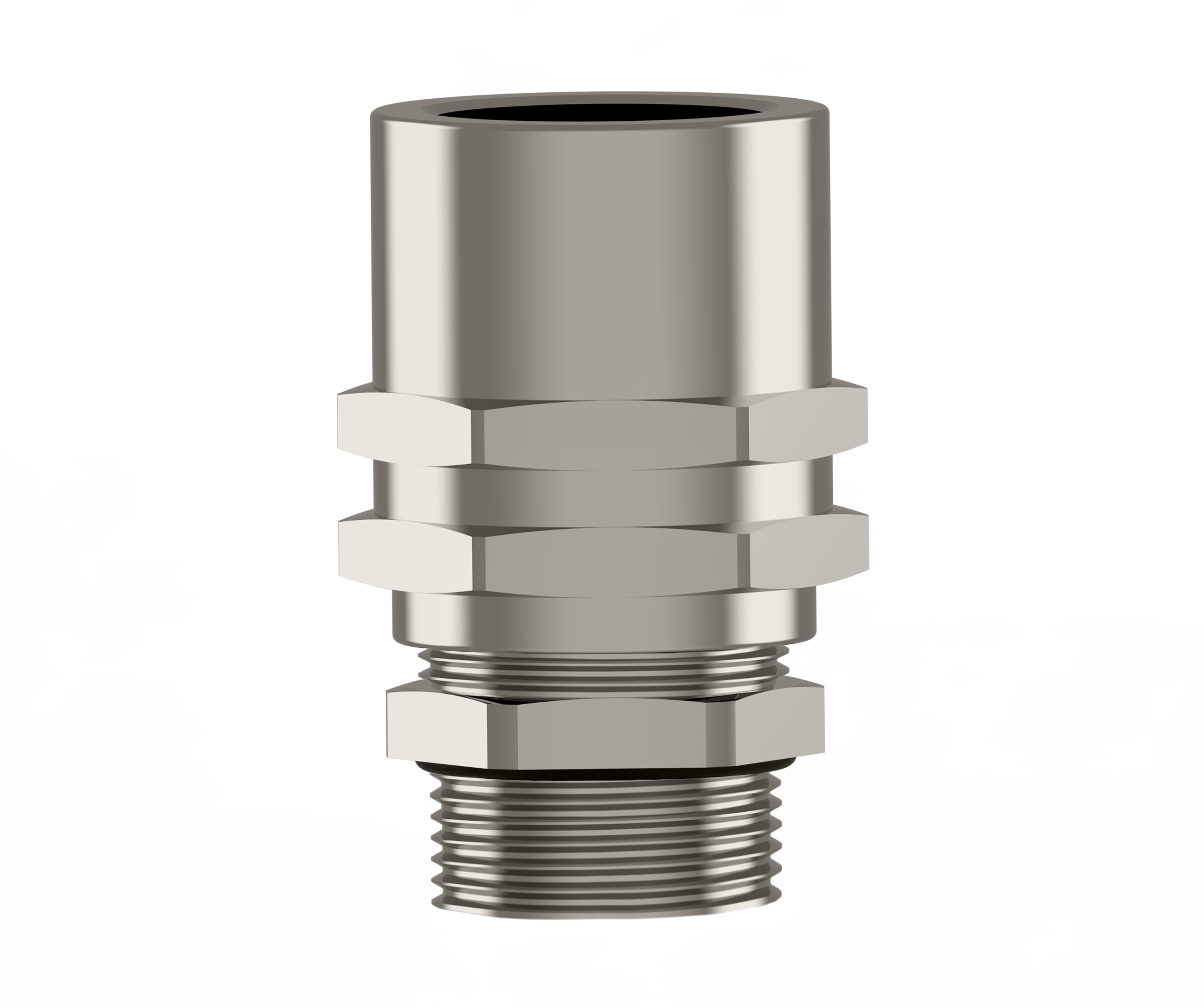

Group II multihole seal type hazardous area rigid conduit fittings, suitable for non-armoured cables

Exe and Ext certified and suitable for installation in zones 1/21 and zones 2/22 hazardous areas.

Swivel glands (SV.H. and SVP.H.) allow cable rotation while keeping the enclosure fixed.

Stable glands (ST.H. and STP.H.) non-swivel versions of SV.H. and SVP.H. cable glands.

Unused holes in SVP.H. and STP.H. are sealed with pins suitable for operating conditions.Pins must be ordered separately.

Split seals are mandatory if cables have connectors; optional for free-ended cables.

ATEX/IECEx certified along with various other approvals - see below for full technical details.

Available in brass, nickel plated brass or stainless steel with both Metric and NPT threadforms.

Other threadforms available on request.

Available in other thread combinations: Metric-Metric/Npt-Npt/Npt-Metric

Suitable for use in	Group II, Group III
Equipment Marking	EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Cable Gland Material	Brass, Brass Nickel Plated, Stainless Steel
Seal Material	Silicone
Operating Temperature	Silicone: -60°C to +80°C
Thread Type	Metric, NPT
	Other thread types available upon request.
Cable Type	Non Armoured
Accessories	Lock nuts, Gaskets (Washers), Serrated Washers, Earth tags
Remarks	Accessories must be ordered separately.
