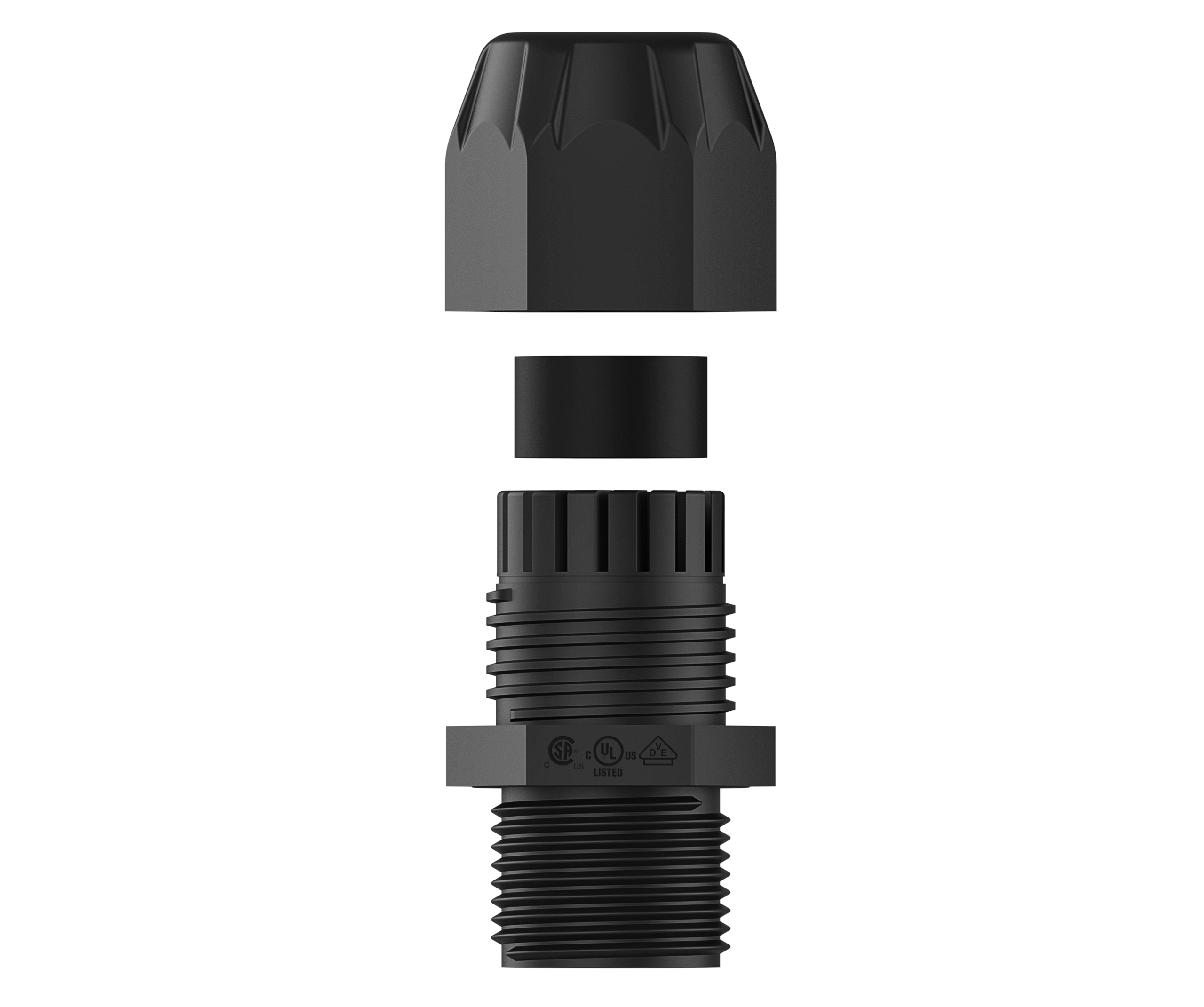

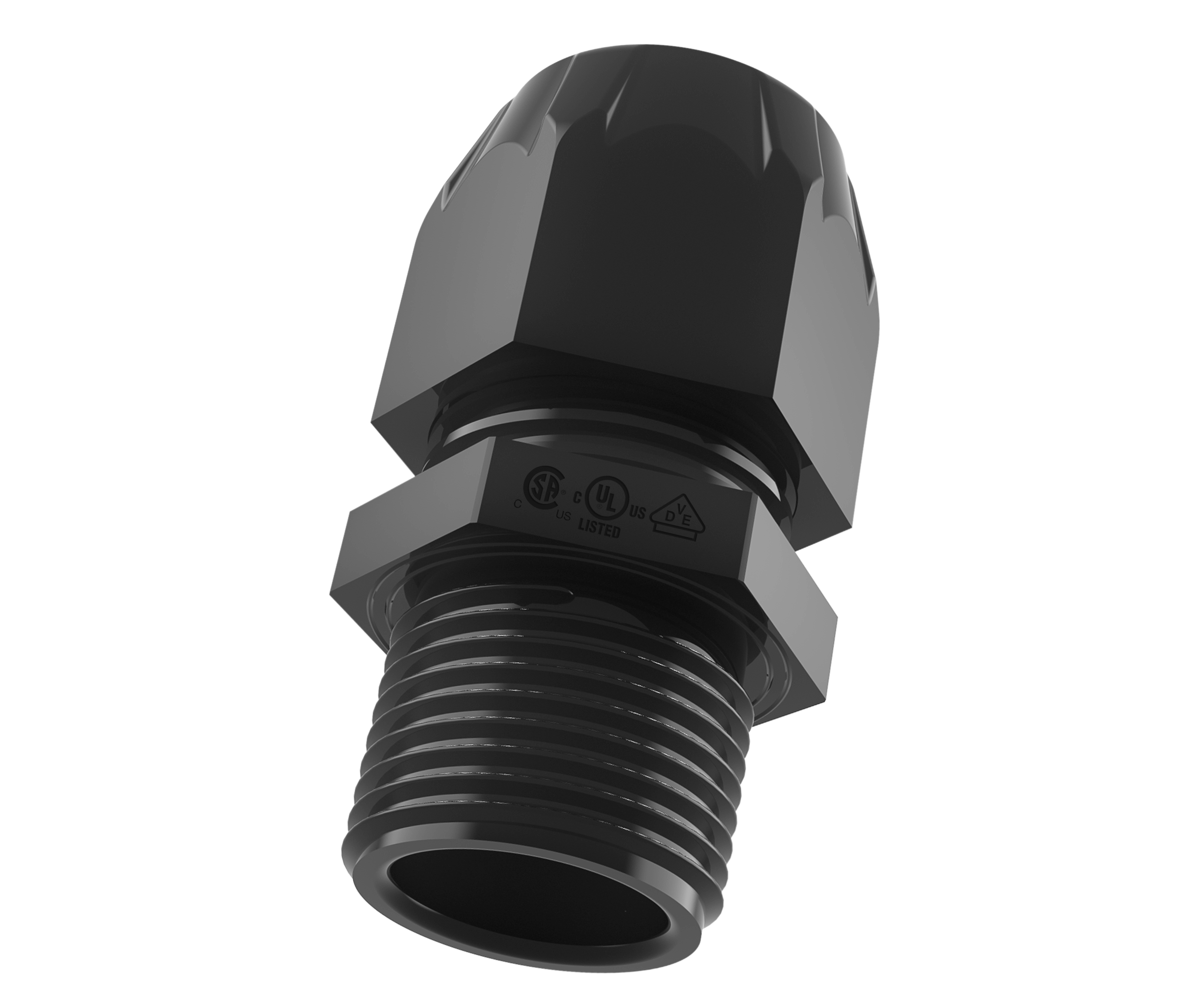

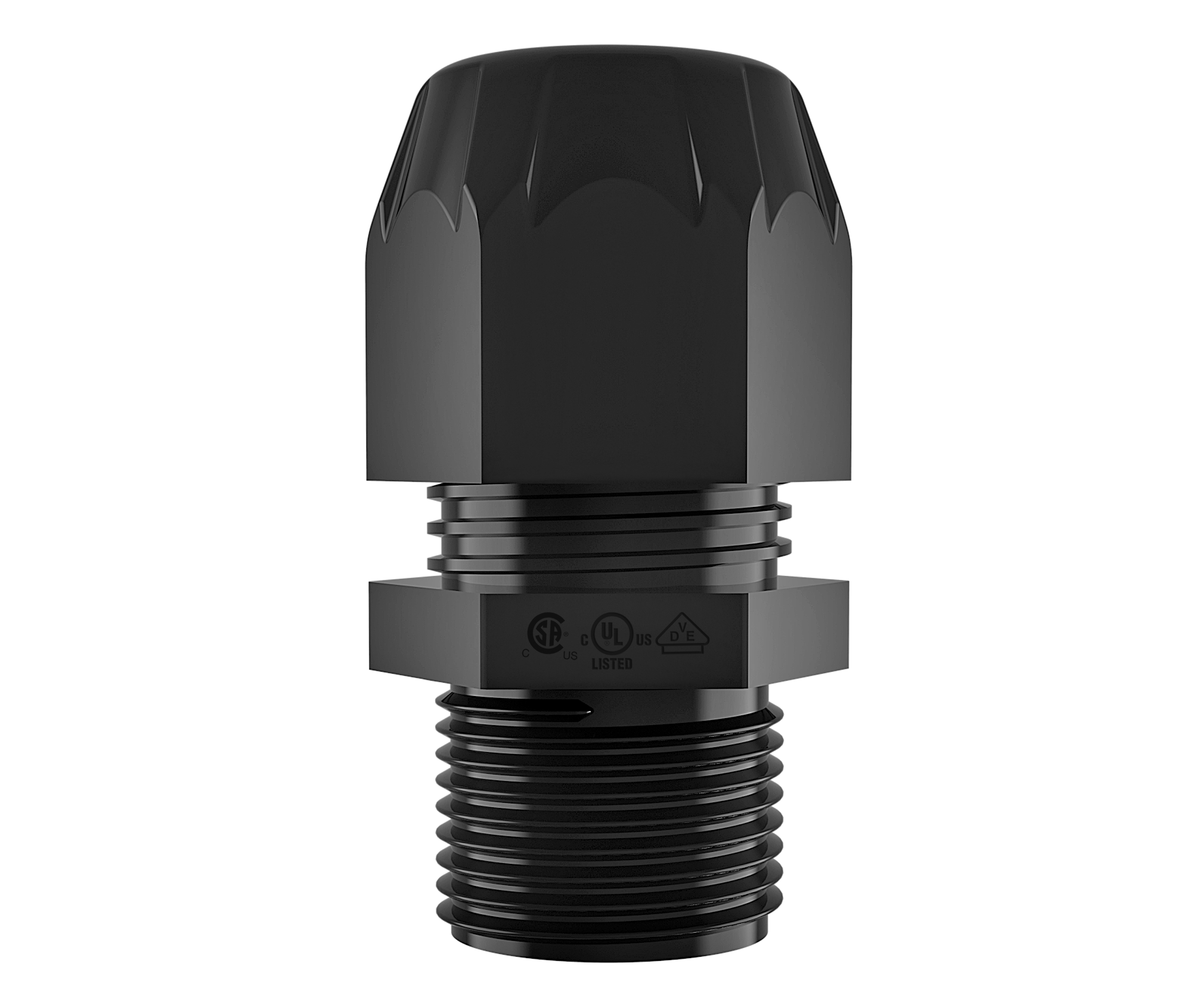

Vega

For applications in explosive environments.

Can be used for 7J high impact applications.

Special design.

Easy assembly.

Can be used with intrisically safe circuits.

High quality strain relief and sealing, reliable performance for standard hazardous area applications.

Up-to-date international approvals.

Suitable for use in	Group II, Group III
Equipment Marking	EX II 2GD Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Cable Gland Material	PA 6 (Polyamide 6)
Seal Material
Operating Temperature	Chloroprene, Silicone
Chloroprene: -40°C to +70°C
Silicone: -60°C to +70°C
Thread Type	Metric, NPT
Other thread types available upon request.
Cable Type	Non Armoured
Accessories	Lock nuts, Gaskets (Washers), Dome plugs, Dust plugs, Double Seals
Remarks	Accessories must be ordered separately. O-ring available in Metric outer threads.

NPT PG

		Datasheet	Ordering Code
