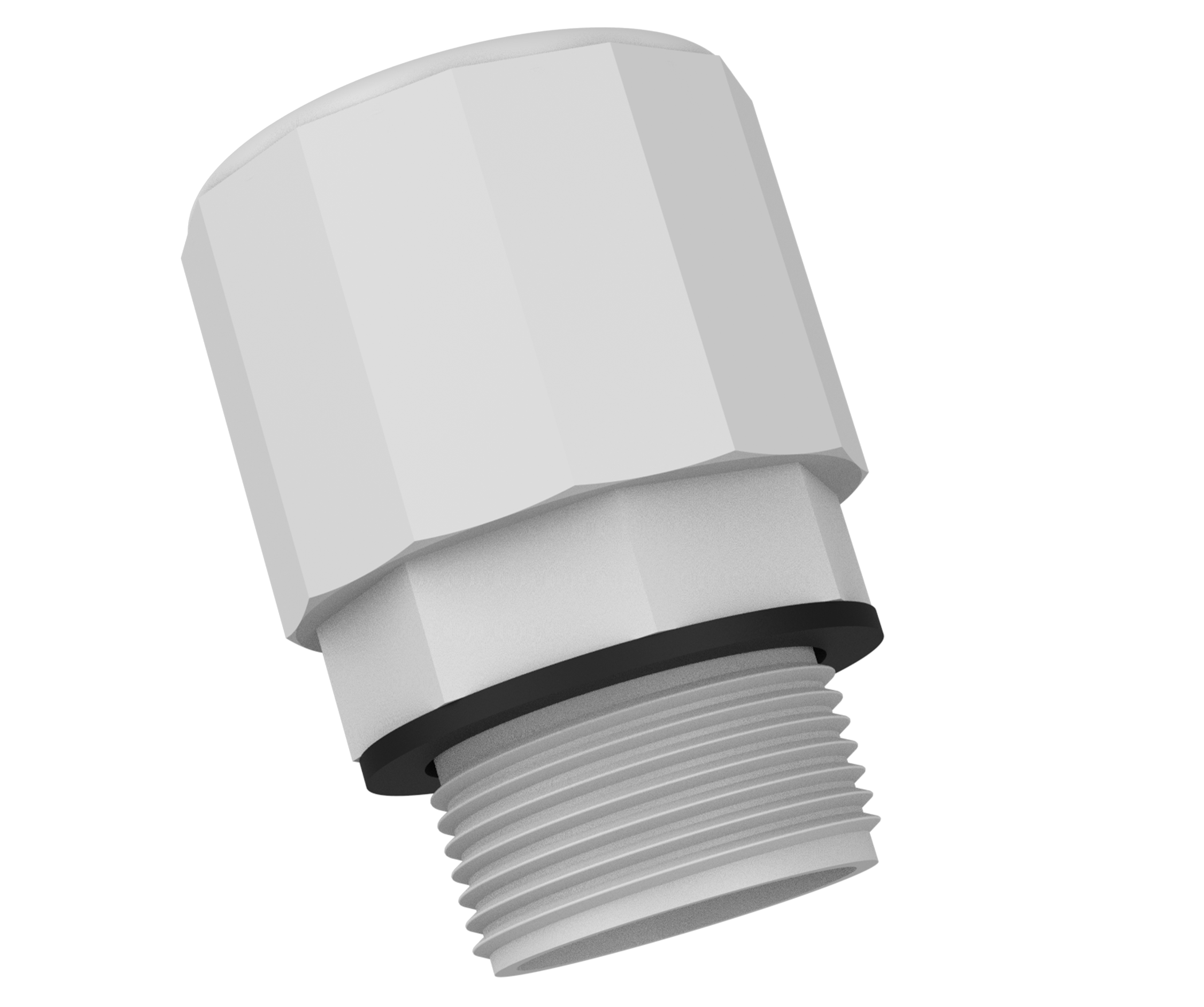

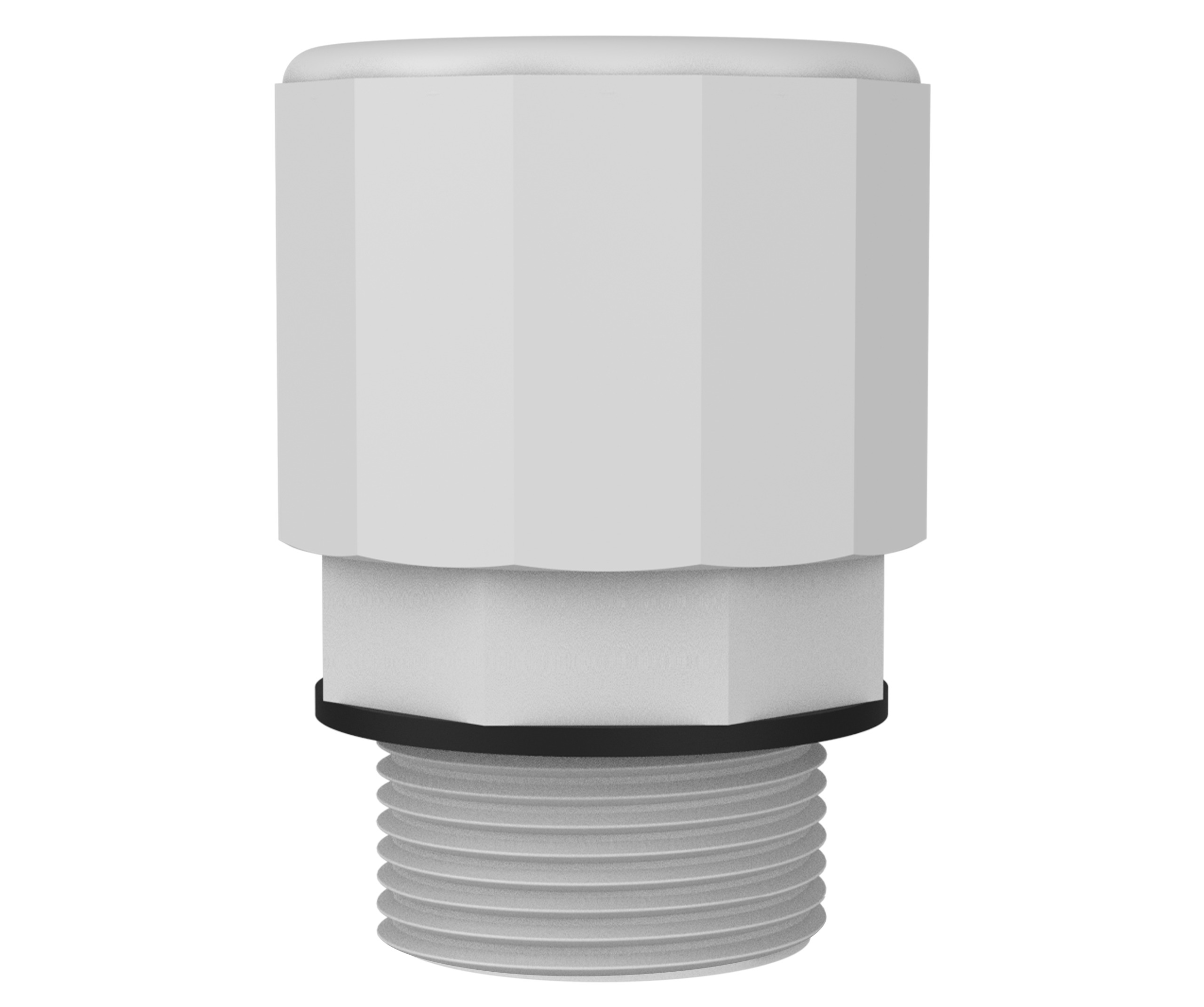

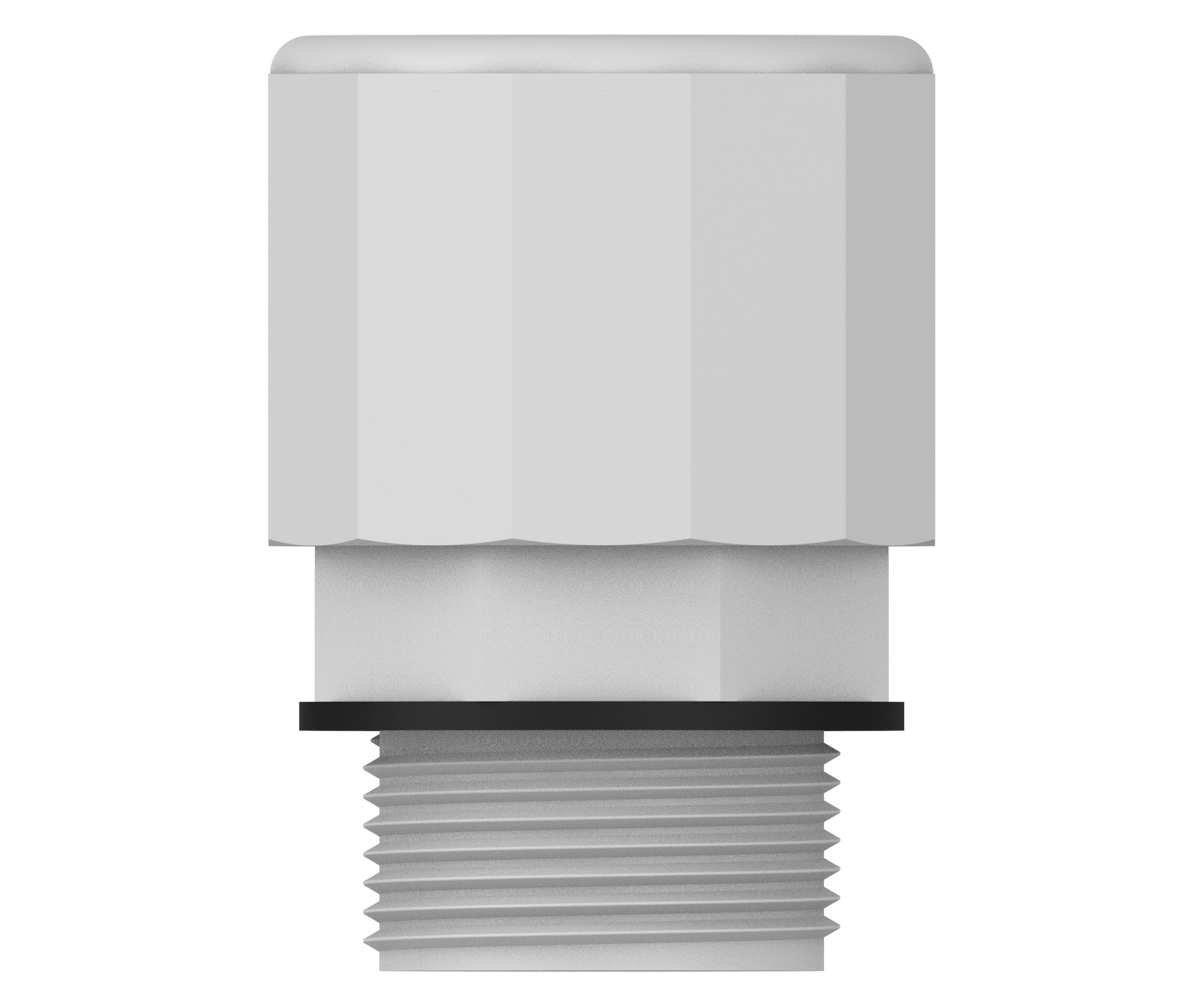

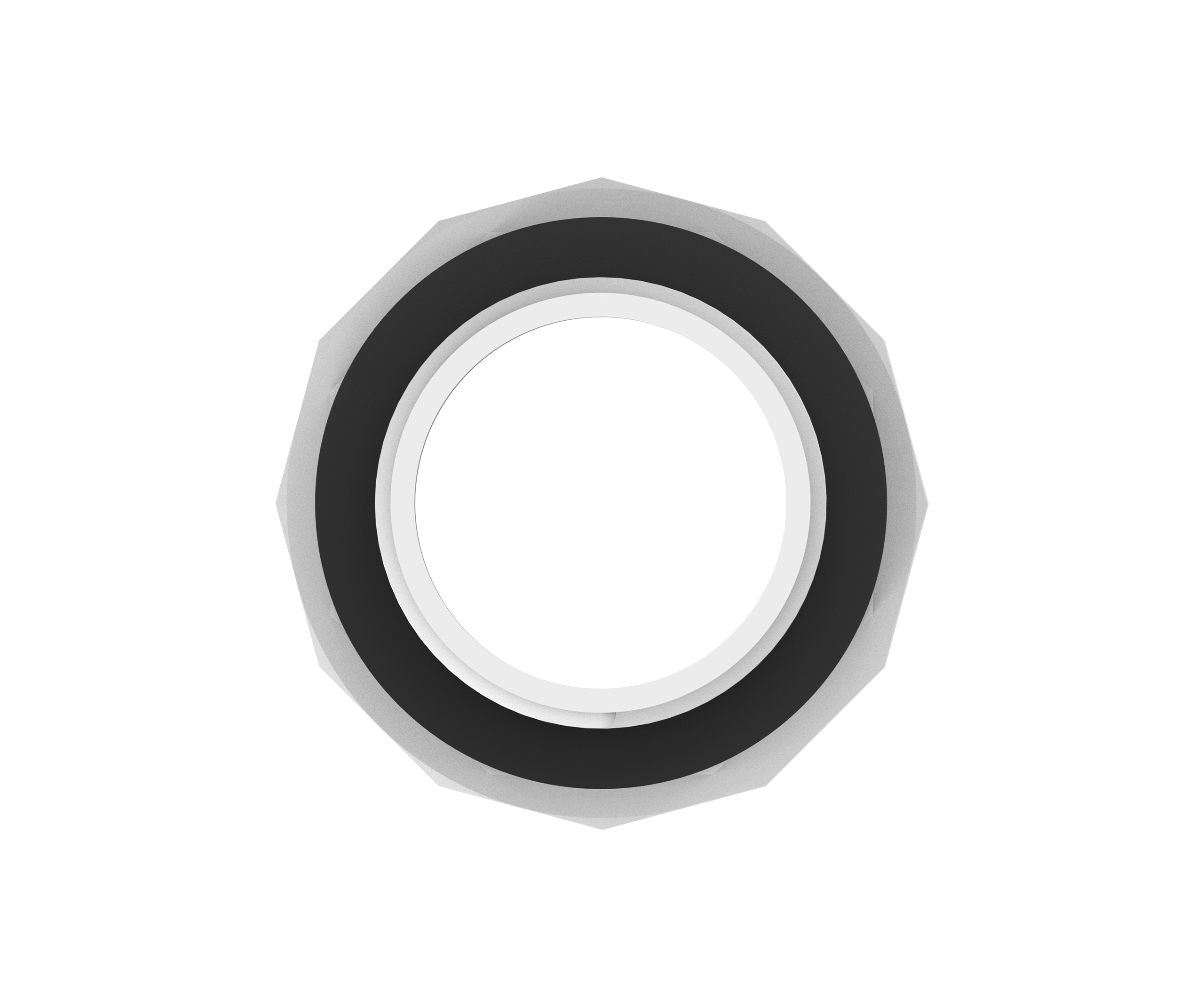

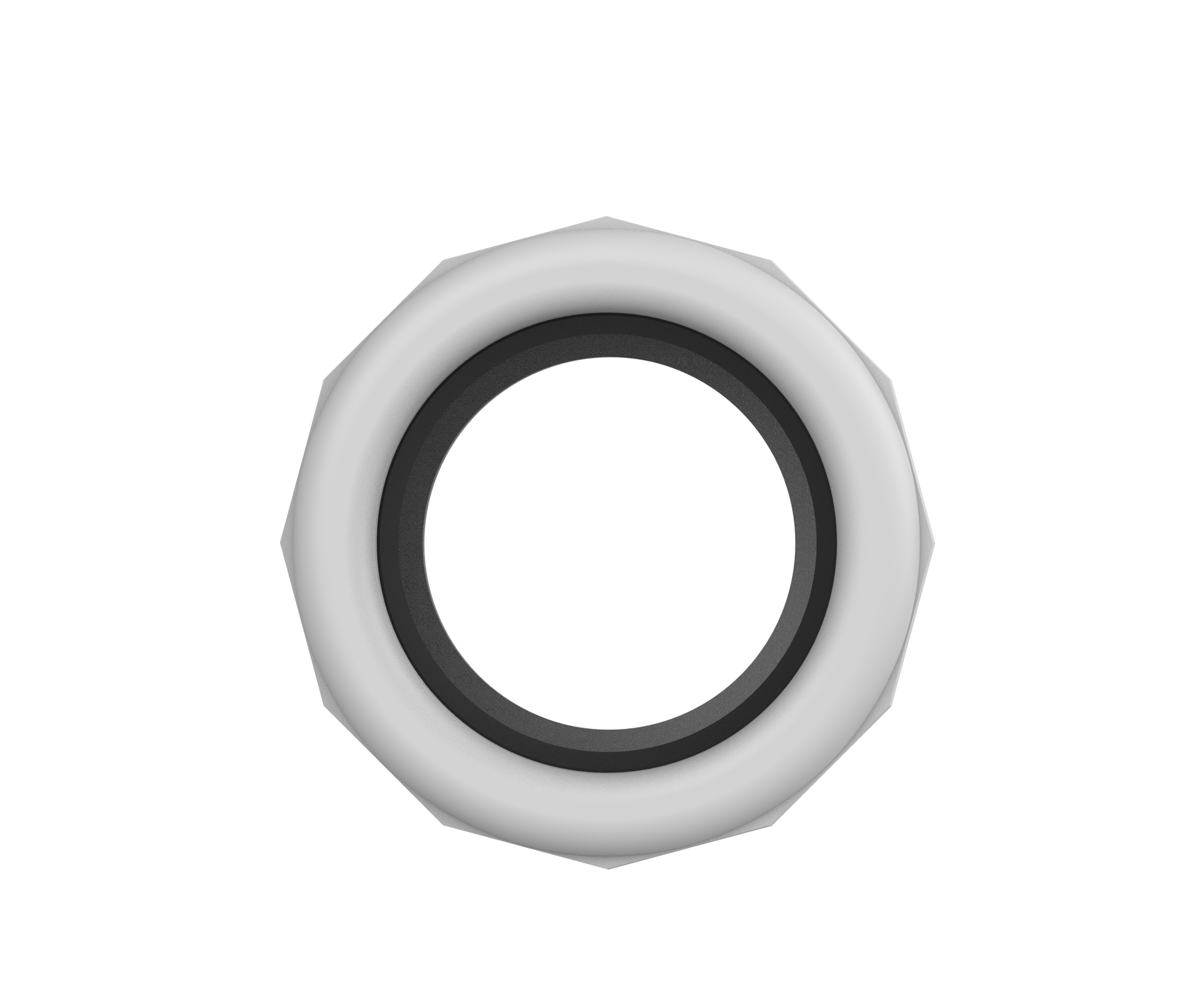

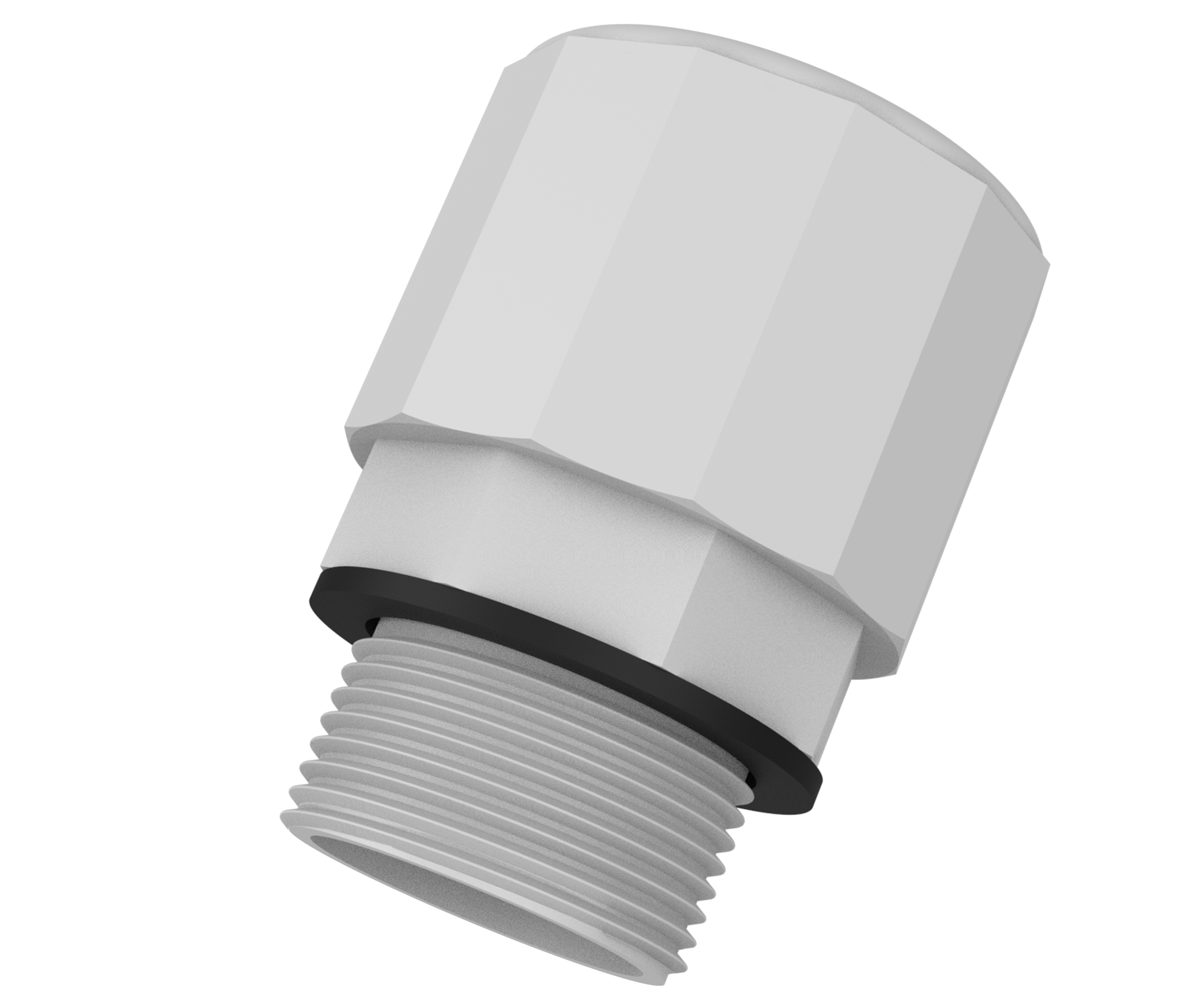

Enclosure Couplers

Halogen free.

No toxic fumes when involved in a fire

For conduit tubes.

One side with standard metric or PG thread and special thread for conduit spiral on the other side.

Fitting Material Polyamide 6 Halogene free
Seal Material TPE Halogene Free
Ingress Protection Rating IP 67
Operating Temperature Permanent -20 °C to +80°C
Thread Type Metric
Accessories Lock nuts
Remarks We recommend the use of lock nuts to ensure IP rating for rough surfaces or through holes.
Accessories must be ordered separately.
