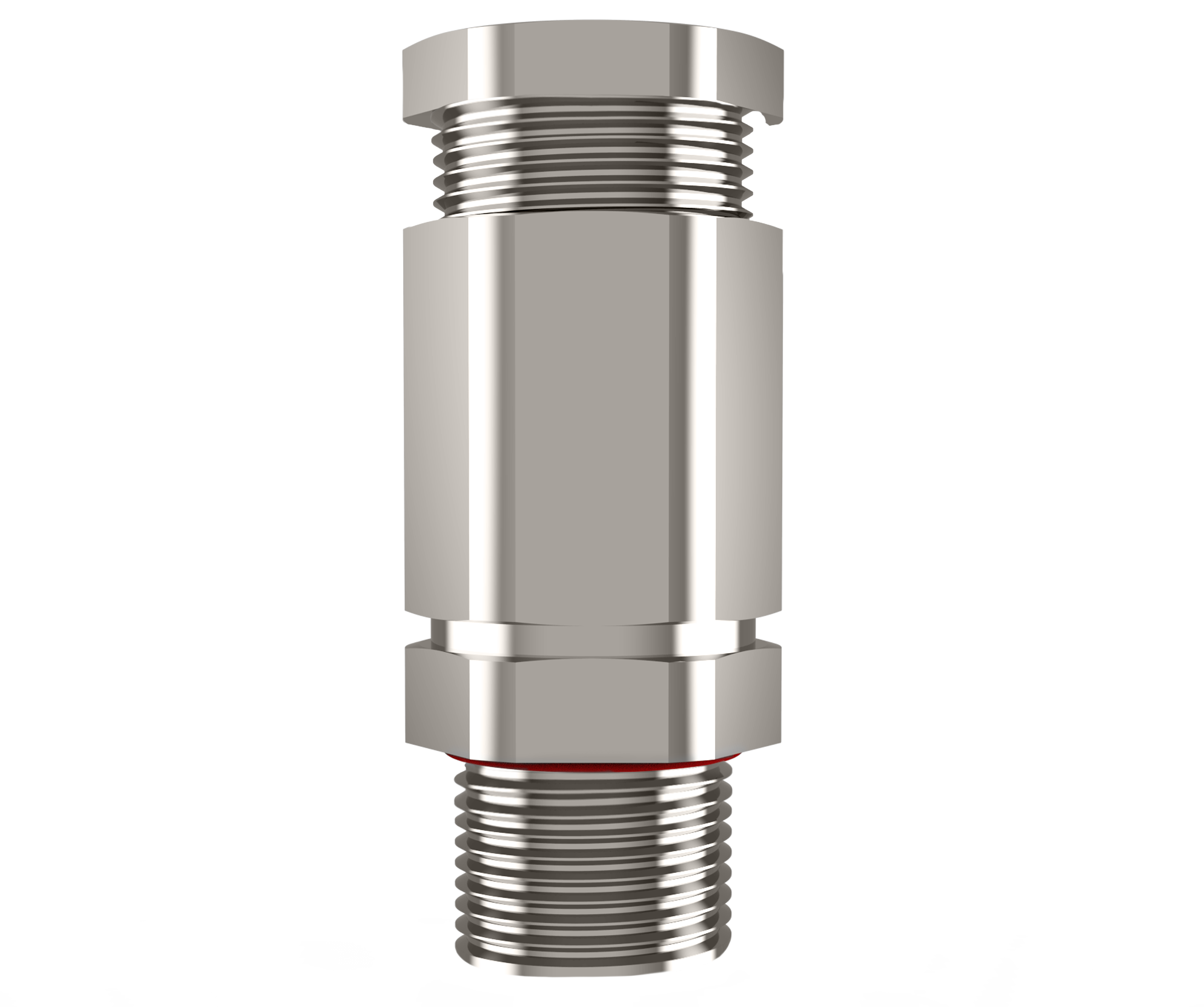

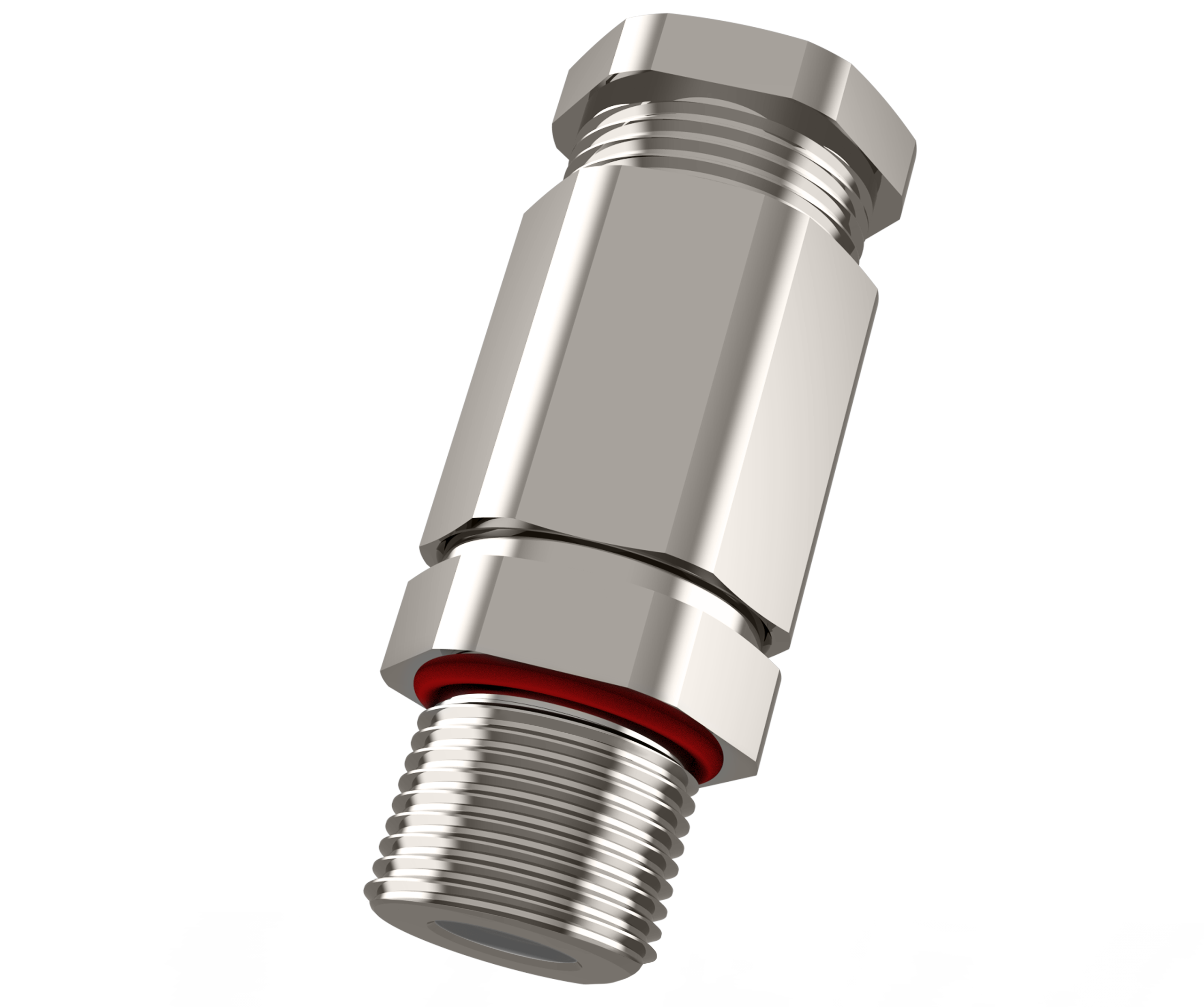

Centaurus Nonarmoured

Barrier sealing hazardous area cable gland, suitable for non-amoured cables.

Compliant with Ex eb, Ex db, and Ex tb safety standards.

Suitable for use in Group I, II and III Hazardous areas.

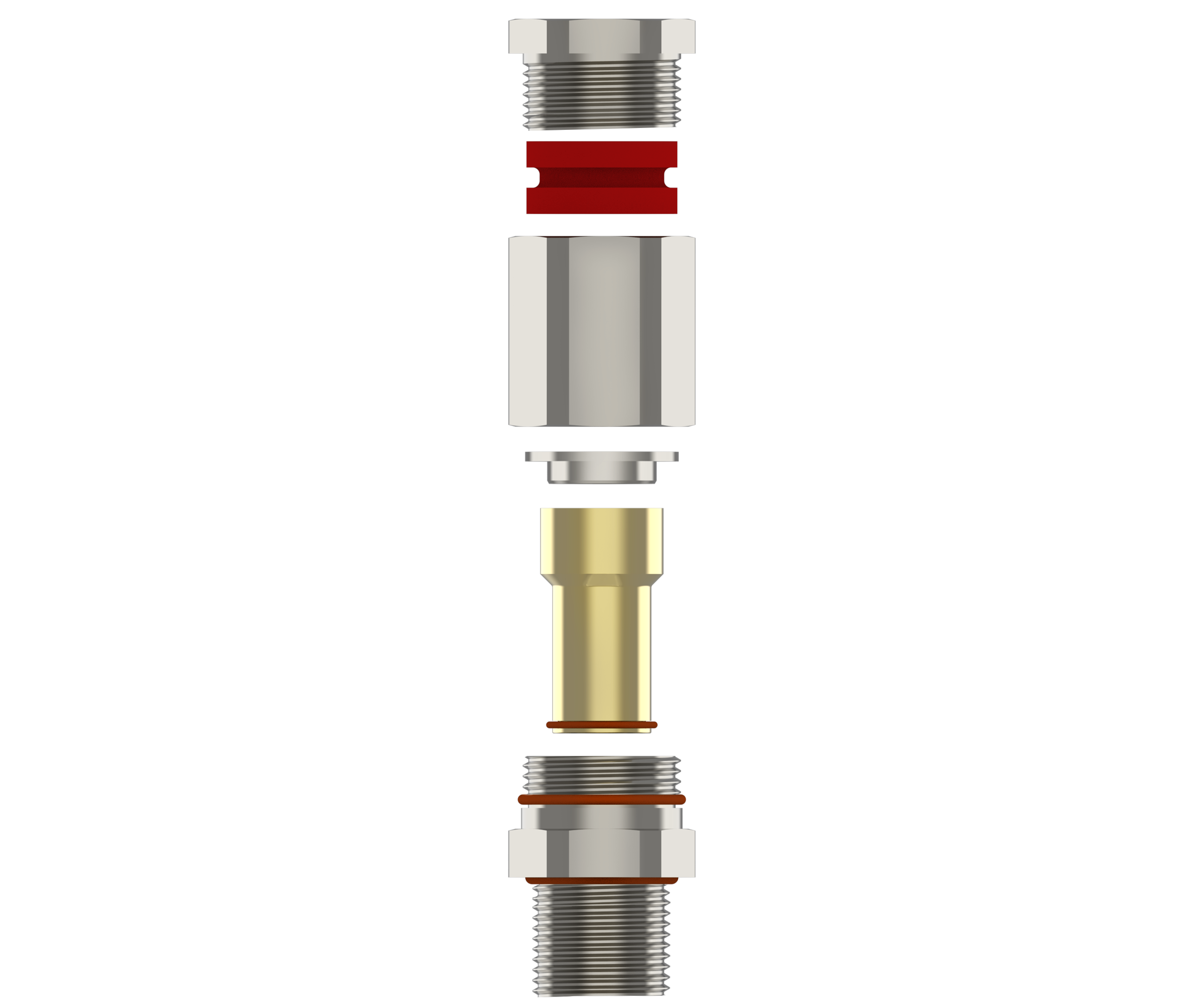

The gland provides a flameproof compound seal around the individual cable cores, making this suitable for cables which exhibit "cold flow" characteristics.

The Centaurus-N also provides an IP and cable retention seal on the outer jacket.

Certified to ATEX and IECEx standards with additional global approvals available (see technical for full list).

Other threadforms available on request.

Cap/Body Material	Brass, Brass Nickel Plated, Stainless Steel
Seal Material	Silicone
Application	Zone 1, Zone 21, Zone 2, Zone 22
Equipment Group	Group I, Group II, Group III
Equipment Marking	EX I M2 Ex db I Mb, Ex eb I Mb
Equipment Marking	EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Temperature Range	Silicone: -60°C to +100°C
Thread Type	Metric, NPT
Cable Type	Non Armoured
Accessories	Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags
Remarks	O-ring available in Metric outer threads.
	Standard marking includes ATEX, IECEx and Group II,III info.
	All accessories must be ordered separately.
	For other special certificate marking requests, please contact us.
	Some approvals do not cover all sizes, check datasheets for details.
	Other thread types available upon request.

Certificate
ATEX Certificate	CESI 17 ATEX 007X
ATEX Standards	EN 60079-0, 1, 7, 31
IECEx Certificate	IECEx CES 17.0029X
IECEx Standards	IEC 60079-0, 1, 7, 31
TR CU (EAC)	No TC RU C-TR.AA87.B.01120/23
TR CU Standards	ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31
Marine Appraval	TAE00003WU
UKCA Certificate	CML 22UKEX1185X
ECASEX Certificate	24-11-129569/E24-10-132975/NB0010
