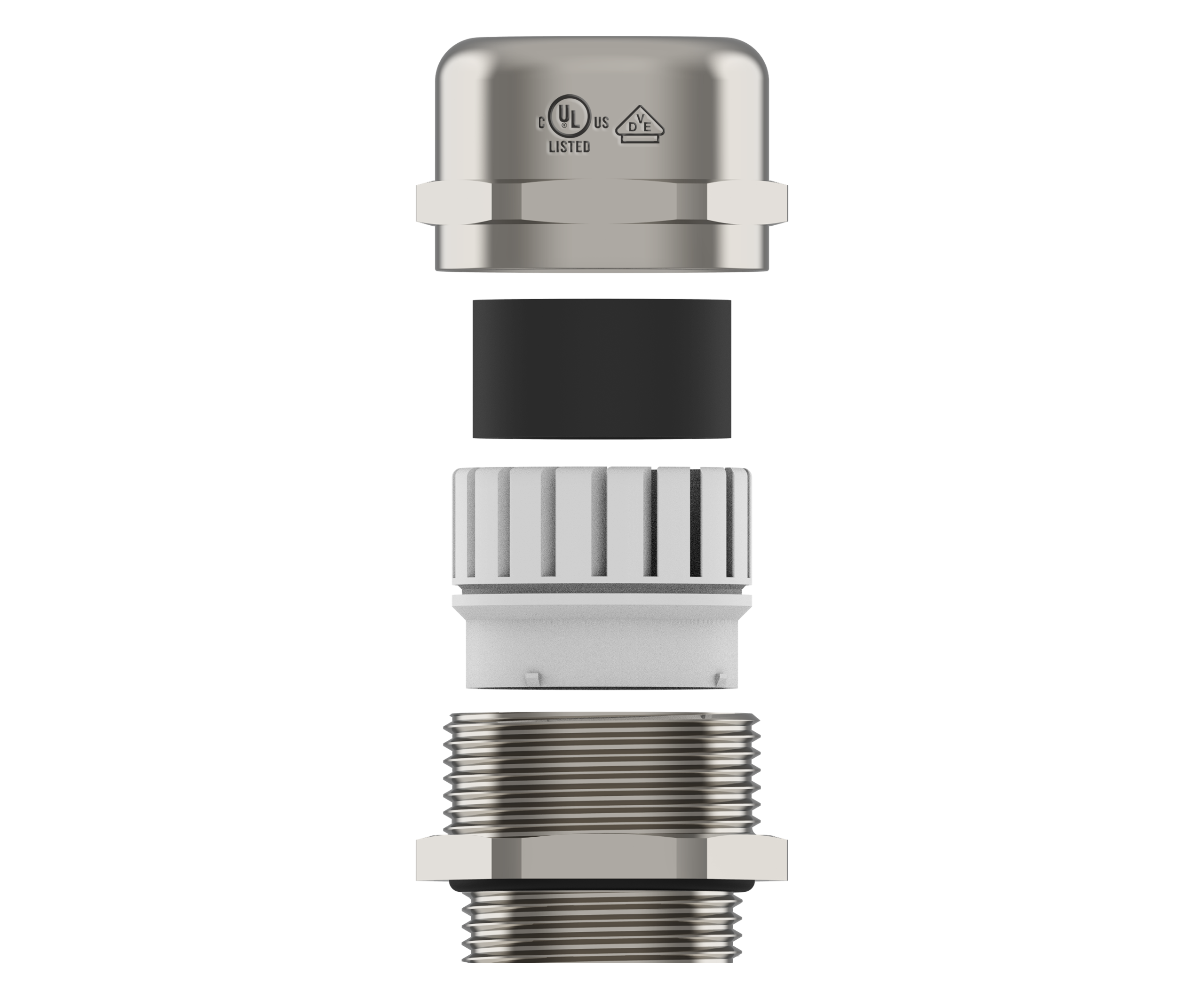

Railway Cable Gland

Designed for railway applications, providing reliable mechanical protection and secure cable retention

Manufactured from high-quality materials for durability and long service life

Complies with EN45545-2 fire safety standard

Maintains effective sealing against dust, moisture, and environmental exposure

Ensures stable performance under vibration, shock, and mechanical stress

Suitable for indoor, outdoor, and harsh industrial environments

Easy to install, providing safe and reliable connections in rail vehicles and infrastructure

Cap/Body Material Nickel Plated Brass
Seal/O-ring Material Special EPDM
Clamping Insert Material Polyamide 6 V0 acc. to UL 94
Ingress Protection Rating IP68 - 5 Bar 30 min, IP69, IP66
Flammability Class R22/HL3 acc. to EN45545-2
R23/HL3 acc. to EN45545-2
Temperature Range -40 °C to +100 °C
Thread Type Metric
Cable Type Non-Armoured
Accessories ▪ Locknut
▪ Dome plug
▪ Serrated washer
▪ Earthtag
Remarks ▪ Accessories must be ordered separately
▪ Other materials available on request: Stainless Steel 303, 316L
