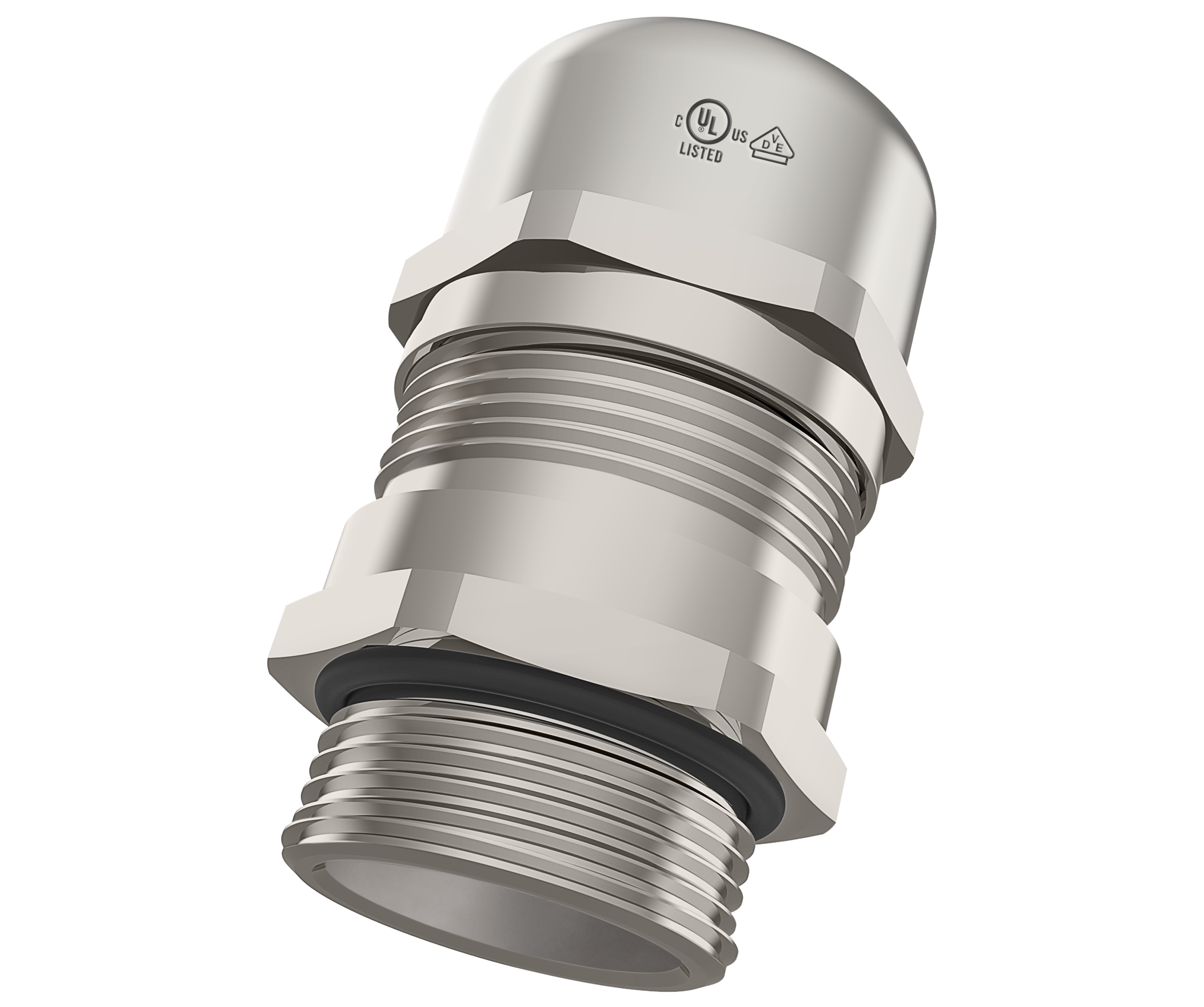

Railway EMC-4 Cable Glands

Designed for railway applications, ensuring reliable electromagnetic compatibility (EMC) performance.

Provides excellent shielding for braided or shielded cables, minimizing EMI and maintaining signal integrity.

Maintains effective EMC performance under vibration, shock, and mechanical stress typical in rail vehicles.

Complies with EN45545-2 fire safety standard

Manufactured from high-quality materials for durability and long service life

Provides reliable mechanical protection and secure cable retention.

Maintains effective sealing against dust, moisture, and environmental exposure

Suitable for indoor, outdoor, and harsh industrial environments

Easy to install, providing safe and reliable connections in rail vehicles and infrastructure

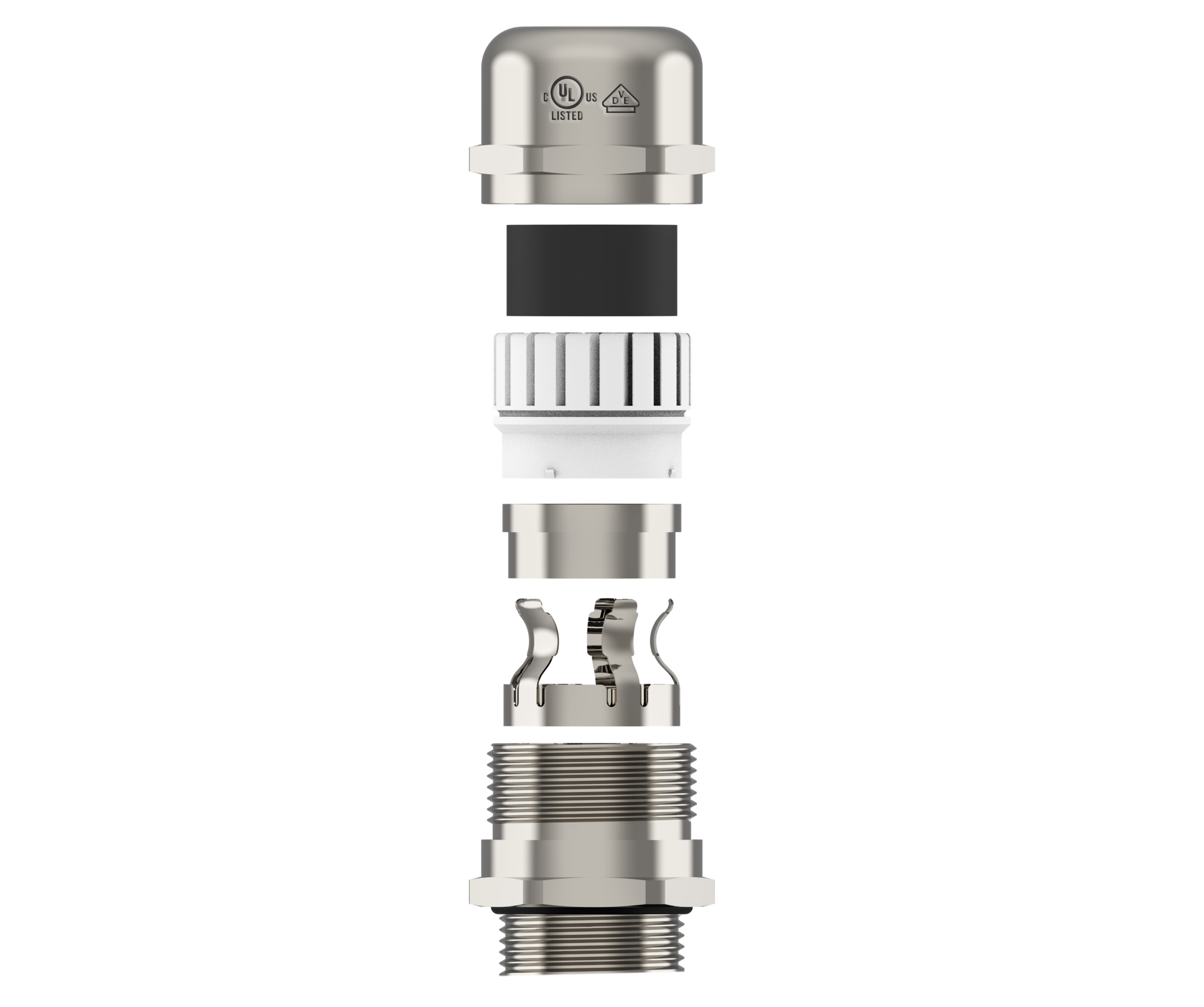

Cap/Body Material Nickel Plated Brass
Seal/O-ring Material Special EPDM
Clamping Insert Material Polyamide 6 V0 acc. to UL 94
Contact Spring Material Special Copper Alloy
Ingress Protection Rating IP68 - 5 Bar 30 min, IP69, IP66
Flammability Class R22/HL3 acc. to EN45545-2
R23/HL3 acc. to EN45545-2
Temperature Range -40 °C to +100 °C
Thread Type Metric
Cable Type Shielded / Braided
Accessories ▪ EMC Locknut
▪ Serrated washer
▪ Earthtag
Remarks ▪ Accessories must be ordered separately
▪ Other materials available on request: Stainless Steel 303, 316L
