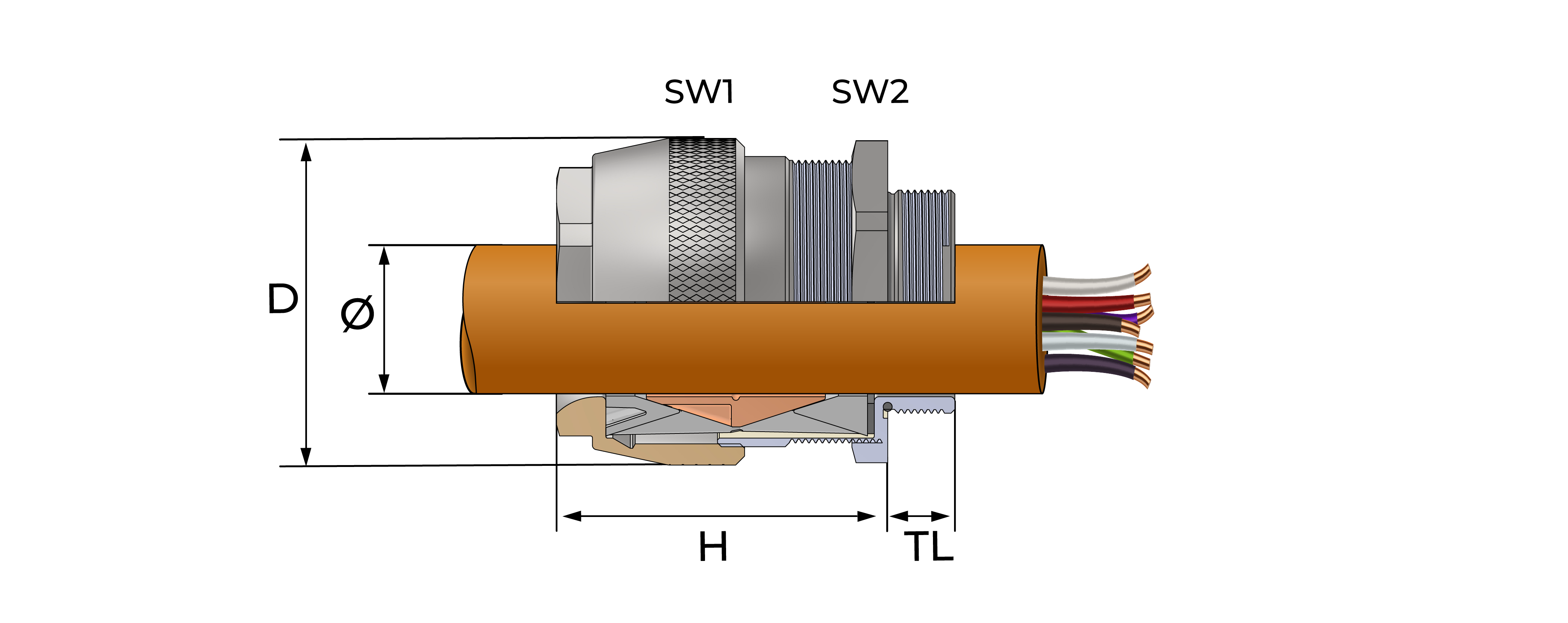

The Conical Cage Cable Gland utilizes an innovative, friction-based clamping mechanism that distributes force over a wide area of the cable sheath. This prevents cold flow deformation, accommodates changes in cable diameter, and ensures long-lasting IP protection
Up to 1000 N cable retention without damage
Suitable for indoor and outdoor installations
Withstands high temperatures in fast-charging applications
Prevents water, dust, and moisture ingress, even in extreme conditions
Large-area friction-based clamping for stable sealing
Fully compatible with liquid-cooled, high-power EV cables
Cap/Body Material
Nickel Plated Brass
Seal Material
CR (Chloroprene)
Clamping Insert Material
Polyamide 6 V2 acc. to UL 94
O-Ring Material
CR
Ingress Protection Rating
IP68 - 5 Bar 30 min, IP66
NEMA Type Rating
1, 4, 4X, 12, 13
Temperature Range
Permanent -40 °C to +100 °C Intermittent -40 °C to +120 °C
