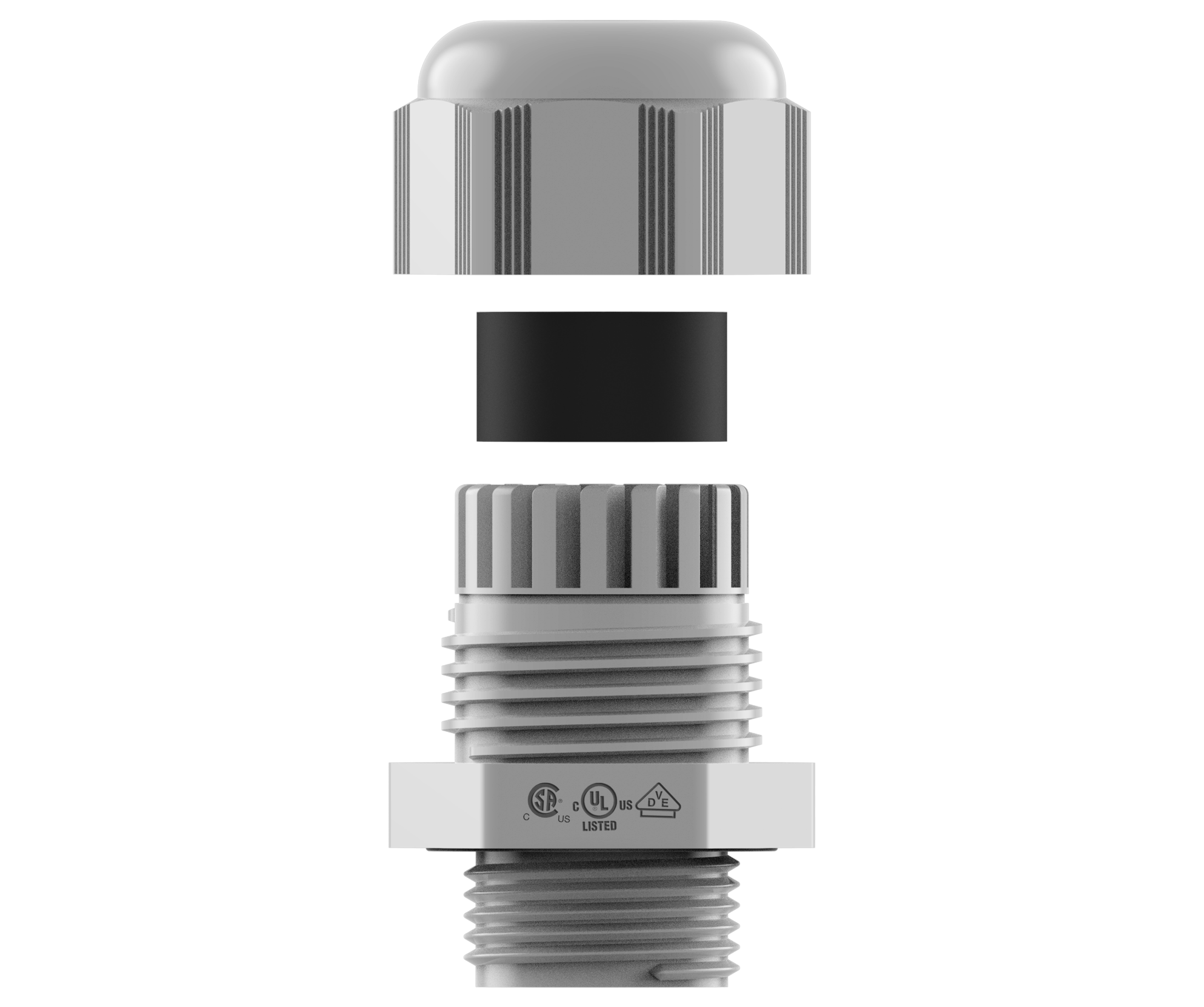

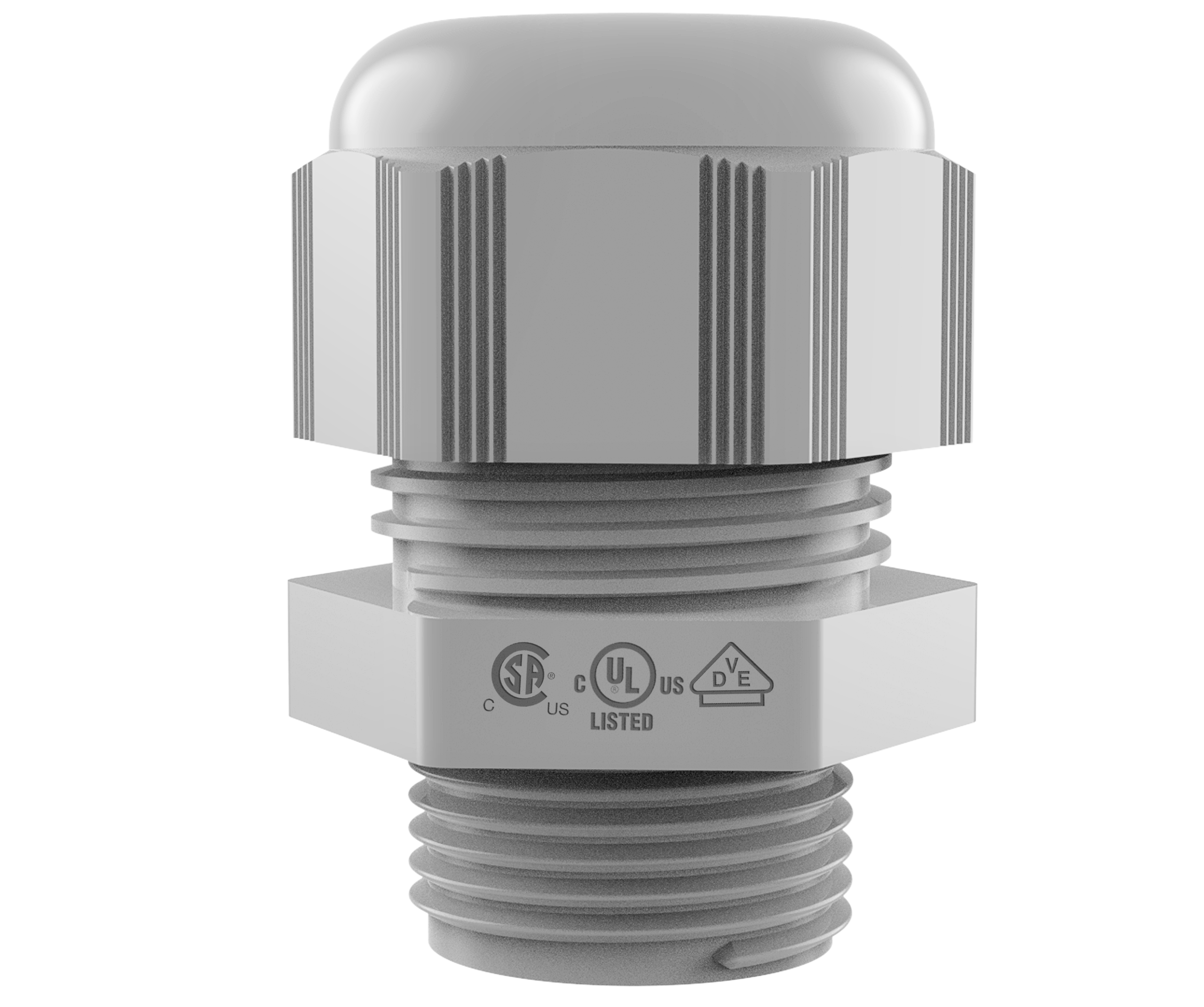

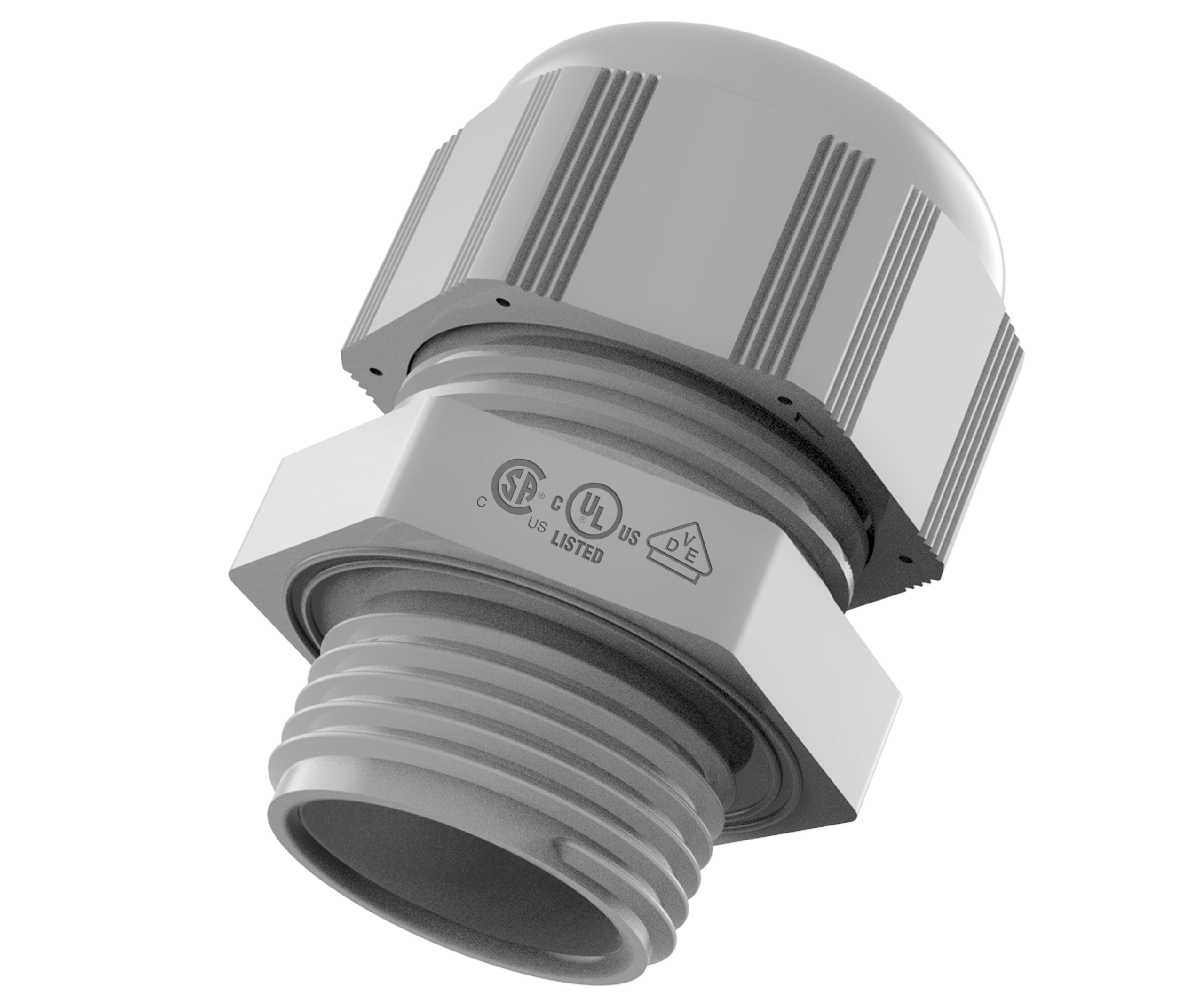

Railway Plastic Cable Glands

For railway application.

Easy assembly

High quality strain relief and sealing

Up-to-date international approvals.

Cable Gland Material	PA 6 (Polyamide 6
Seal Material	EPDM
Ingress Protection Rating	IP 68 - 5 Bar, 30 min, IP 66
Flammability	R22 acc. to EN45545-2 R23 acc. to EN45545-2 HL2 acc. to EN45545-2 HL3 acc. to EN45545-2
Operating Temperature	Permanent -40 °C to +100 °C
Thread Type	Metric, PG
Other thread types available upon request.
Cable Types	Non armoured

Accessories	Lock nuts Dome plugs Reducing seals Flat cable seals Multihole seals Gaskets (Washers)
Remarks	Manufactured according to DIN EN 62444/50262. We recommend the use of locknuts and gaskets to ensure IP rating for rough surfaces or through holes. Some approvals do not cover all sizes. Accessories must be ordered separately. Other colours on request: RAL 7001 (grey), RAL 9005 (black)
