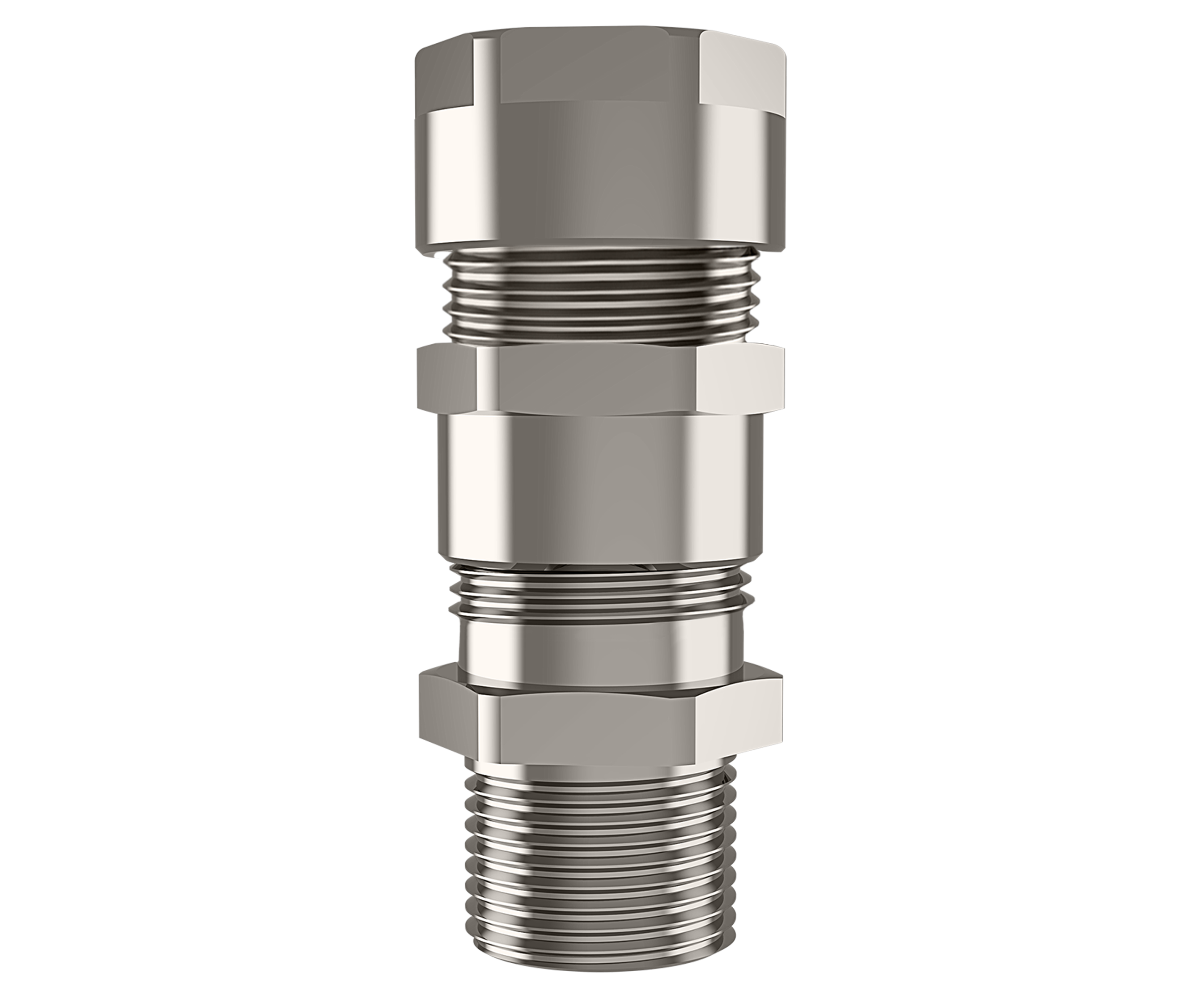

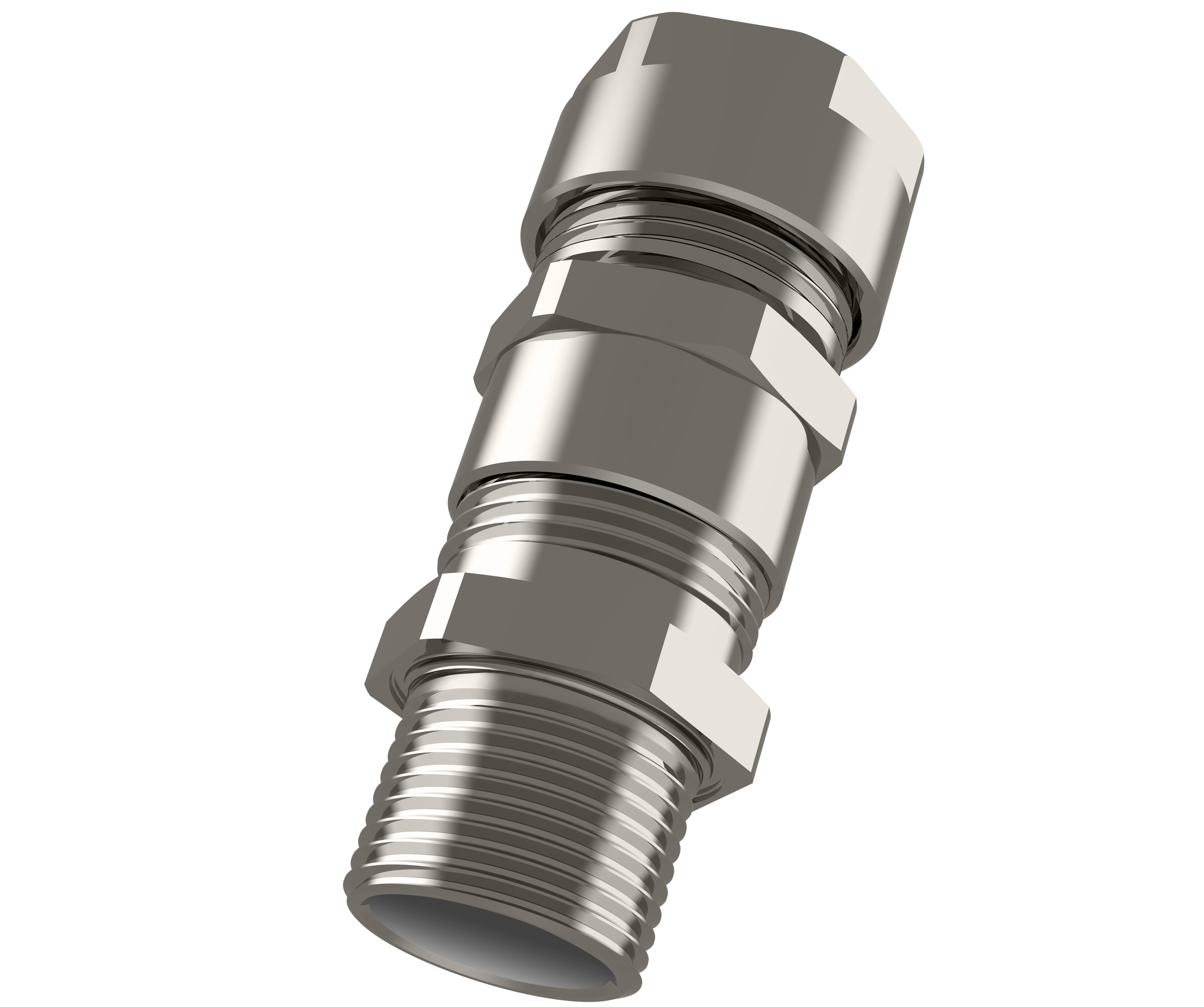

Group II double sealing hazardous area cable gland, suitable
for all types of armoured and braided cables (SWA, AWA, STA, SWB, PWA &
Shielded.)
Exd, Exe and Ext certified and suitable for installation in
zones 1/21 and zones 2/22 hazardous areas
Displacement inner seal design
Reducing the effects of coldflow characteristics of cable
Provides both a flameproof seal on the inner cable sheath
and an IP and cable retention seal on the outer jacket.
DTS 01 compatability without deluge seal.
ATEX/IECEx certified along with various other approvals -
see below for full technical details.
Available in brass, nickel plated brass, stainless steel
with both Metric and NPT threadforms.
Other threadforms available on request.
