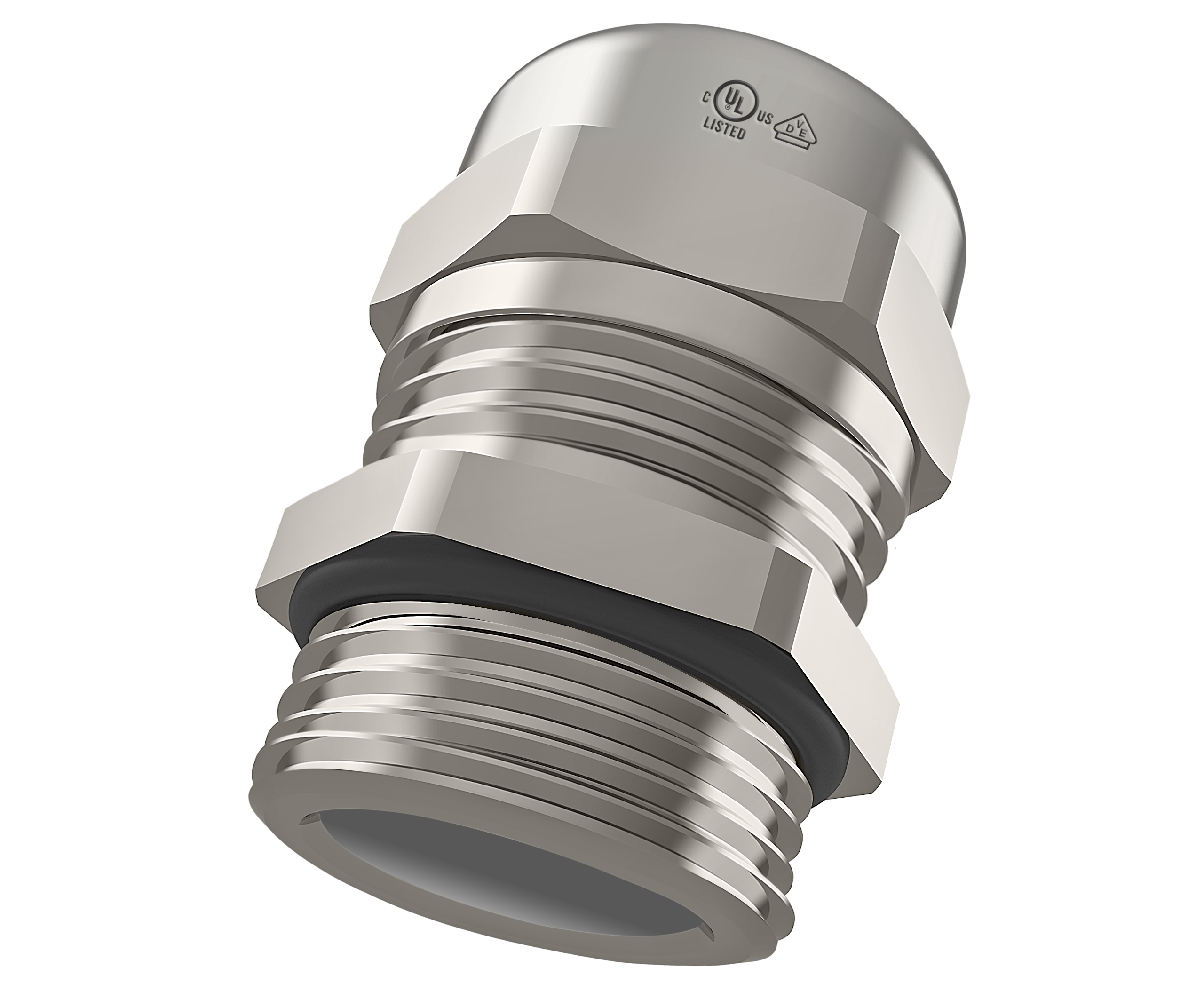

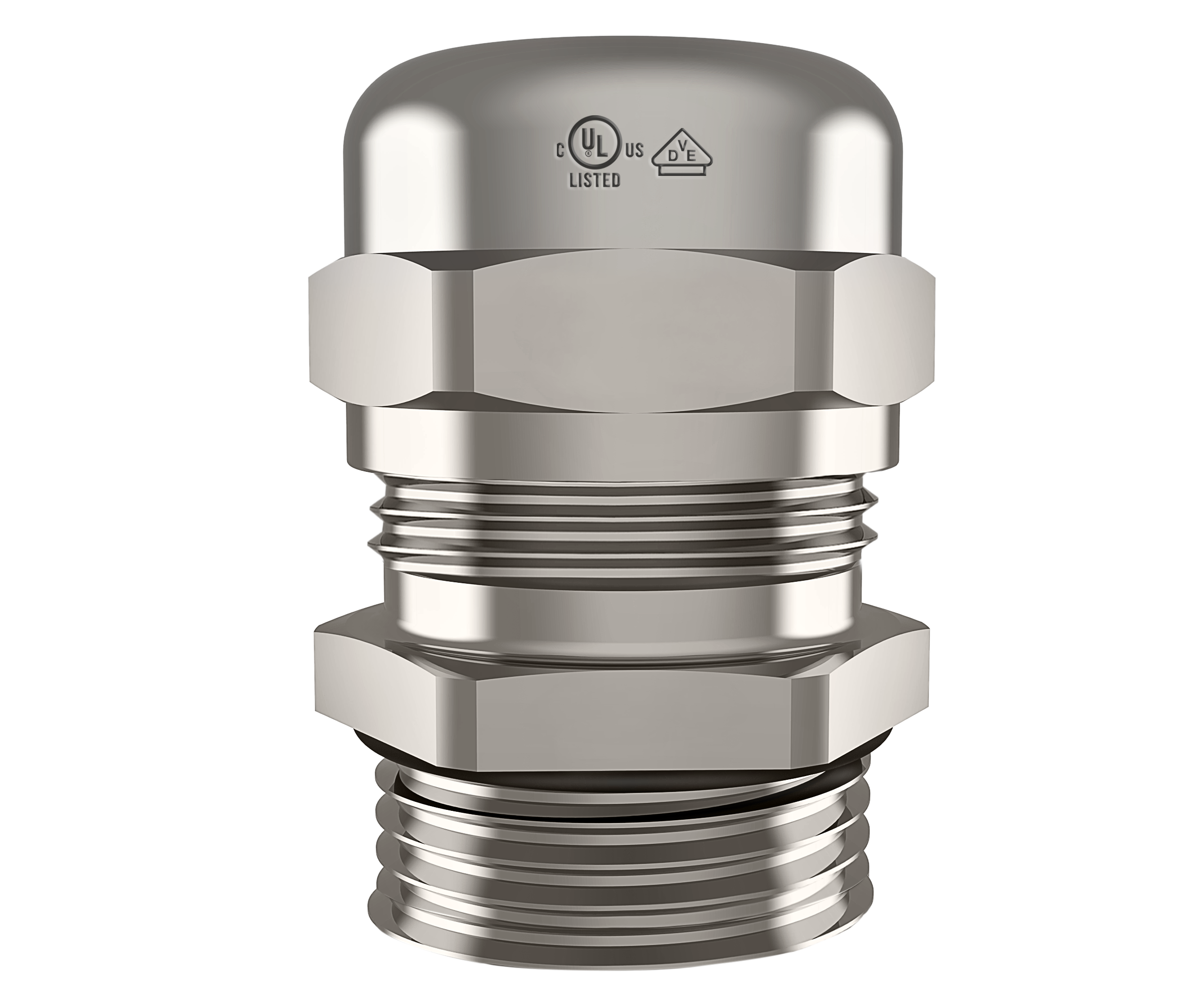

EMC 2 Cable Glands

Provides reliable electromagnetic compatibility (EMC) protection for Shielded/Braided cables

Suitable for use in industrial applications with EMC requirements

Ensures secure cable entry while minimizing electromagnetic interference

Designed for use with Shielded/Braided cables, conforming to EN 62444 and UL514B standards

High protection against dust, moisture, and water ingress

High tensile strength and reliable strain relief

Cap/Body Material	Nickel Plated Brass
Seal Material	Neoprene (Chloroprene)
Clamping Insert Material	Polyamide 6 V2 acc. to UL 94
Contact Spring Material	Special Copper Alloy
O-Ring Material	NBR
Ingress Protection Rating	IP68 - 5 Bar 30 min, IP66
Type Rating	1, 4, 4X, 12, 13
Temperature Range	Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C
Thread Type	Metric,PG,NPT
Cable Type	Shielded / Braided
Accessories	▪ EMC Locknut ▪ Dome plug ▪ Gasket (Washer) ▪ Serrated washer ▪ Earthtag
Remarks	▪ Accessories must be ordered separately ▪ Some approvals may not apply to all sizes ▪ Other materials available on request: NBR, Silicone ▪ Other materials available on request: Stainless Steel 303, 316L

NPT PG

		Datasheet	3D File	Ordering Code
