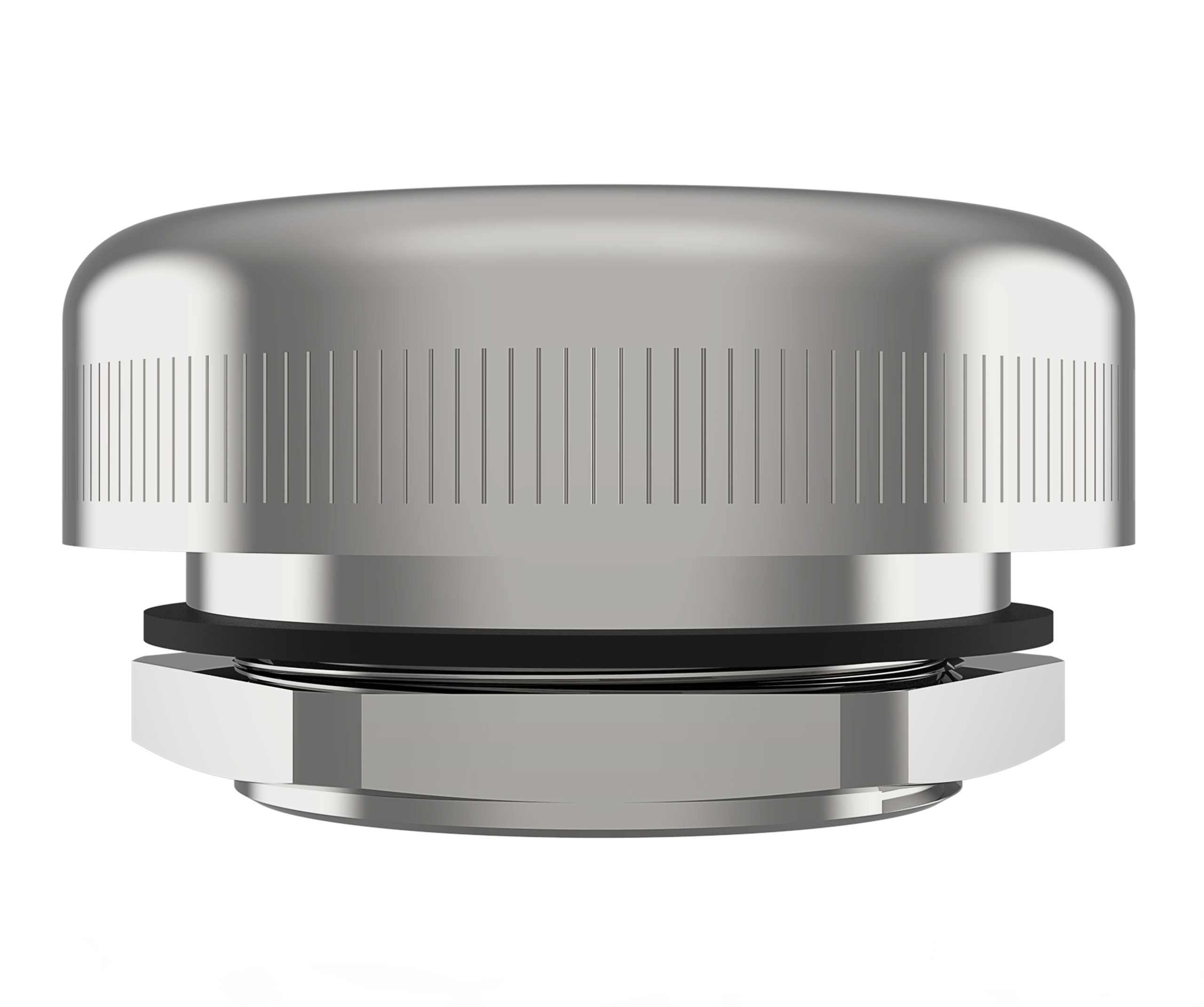

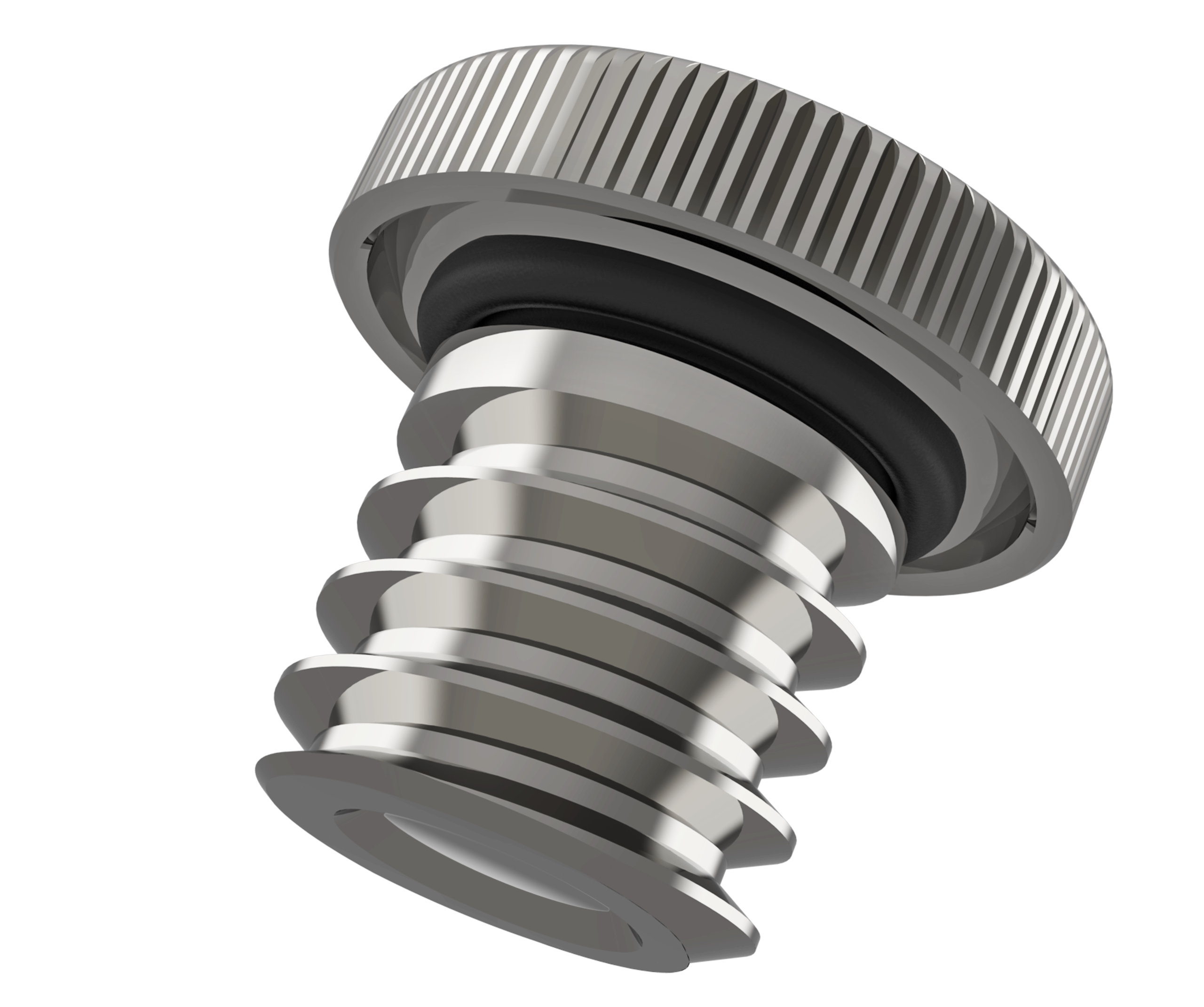

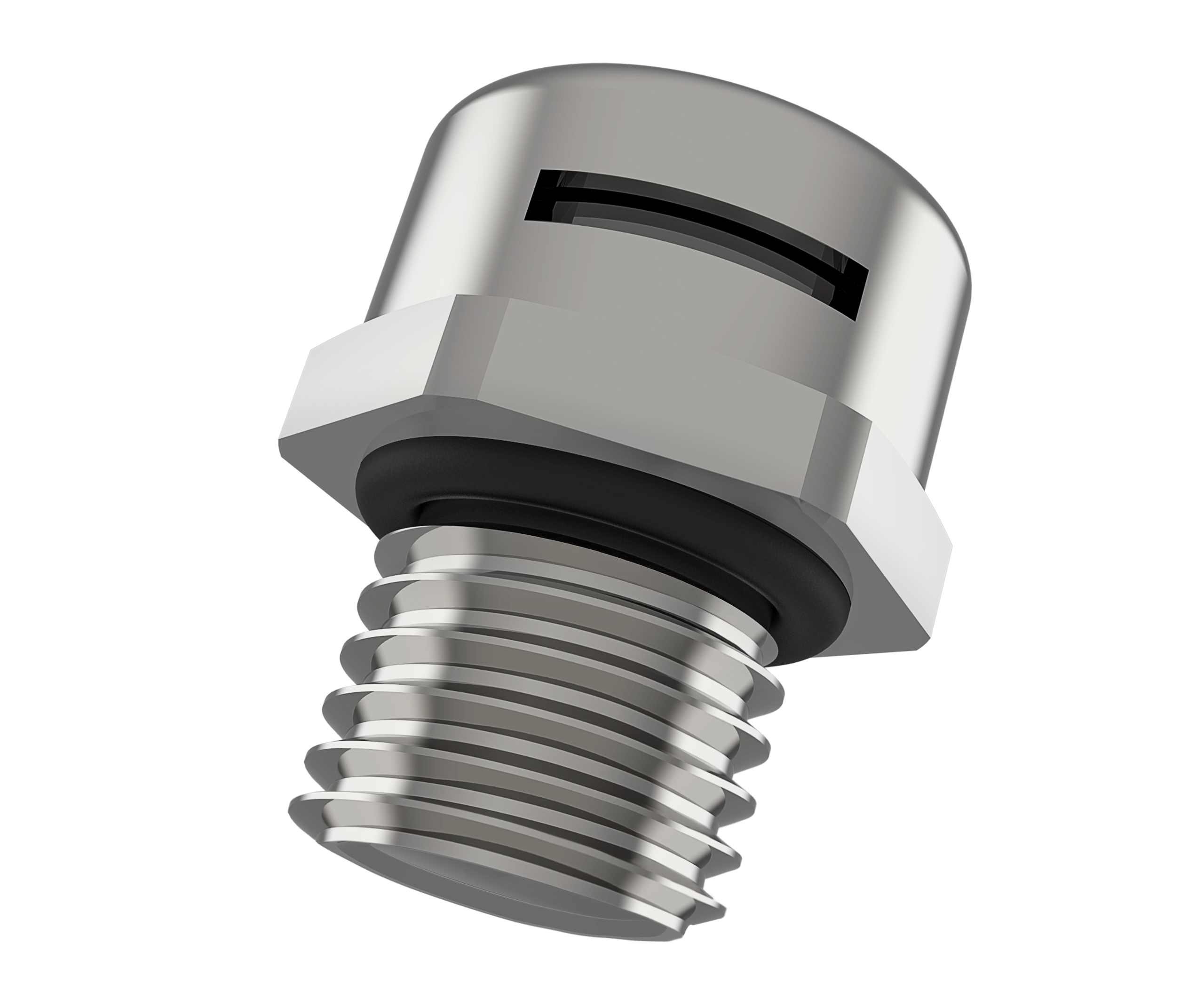

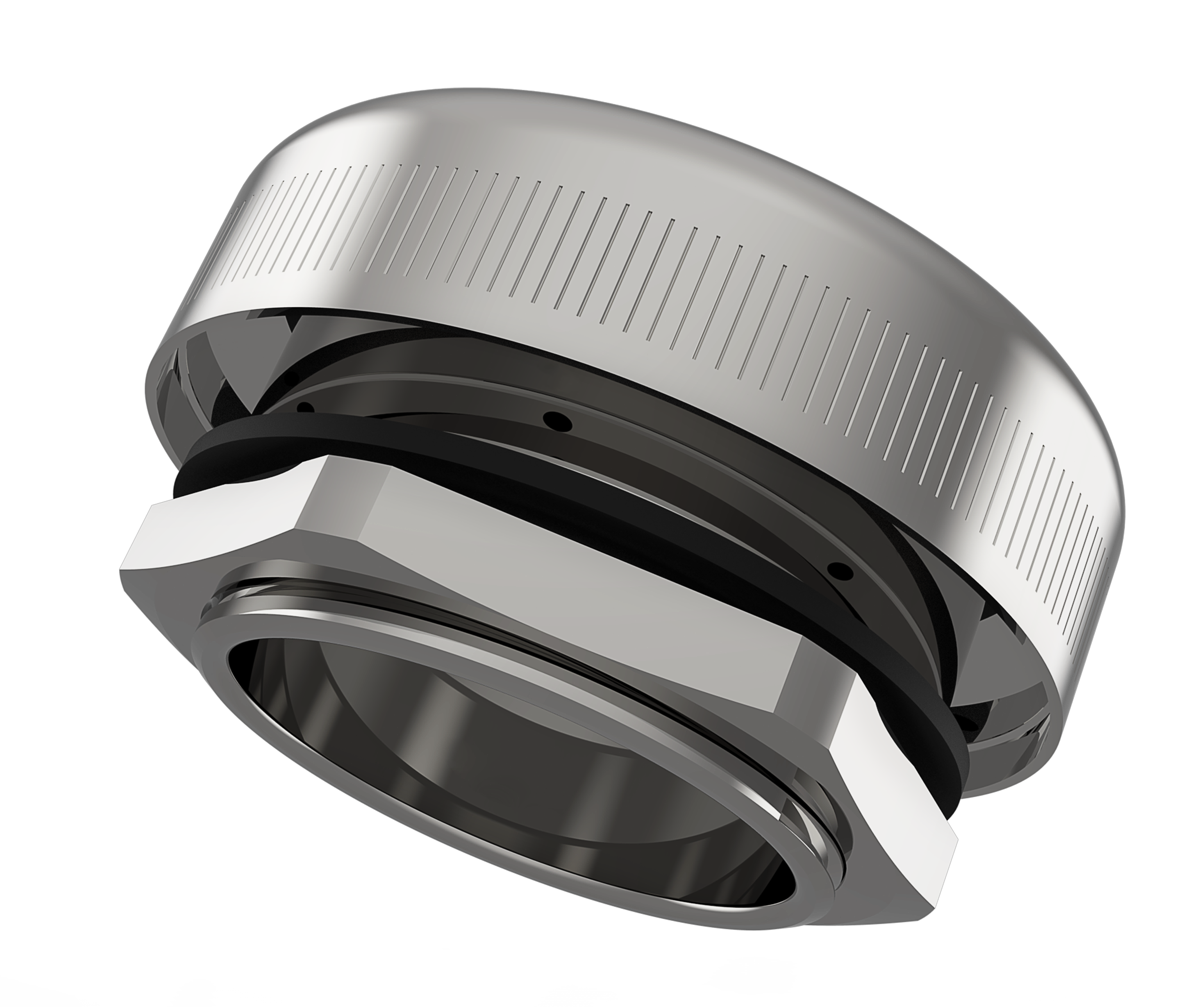

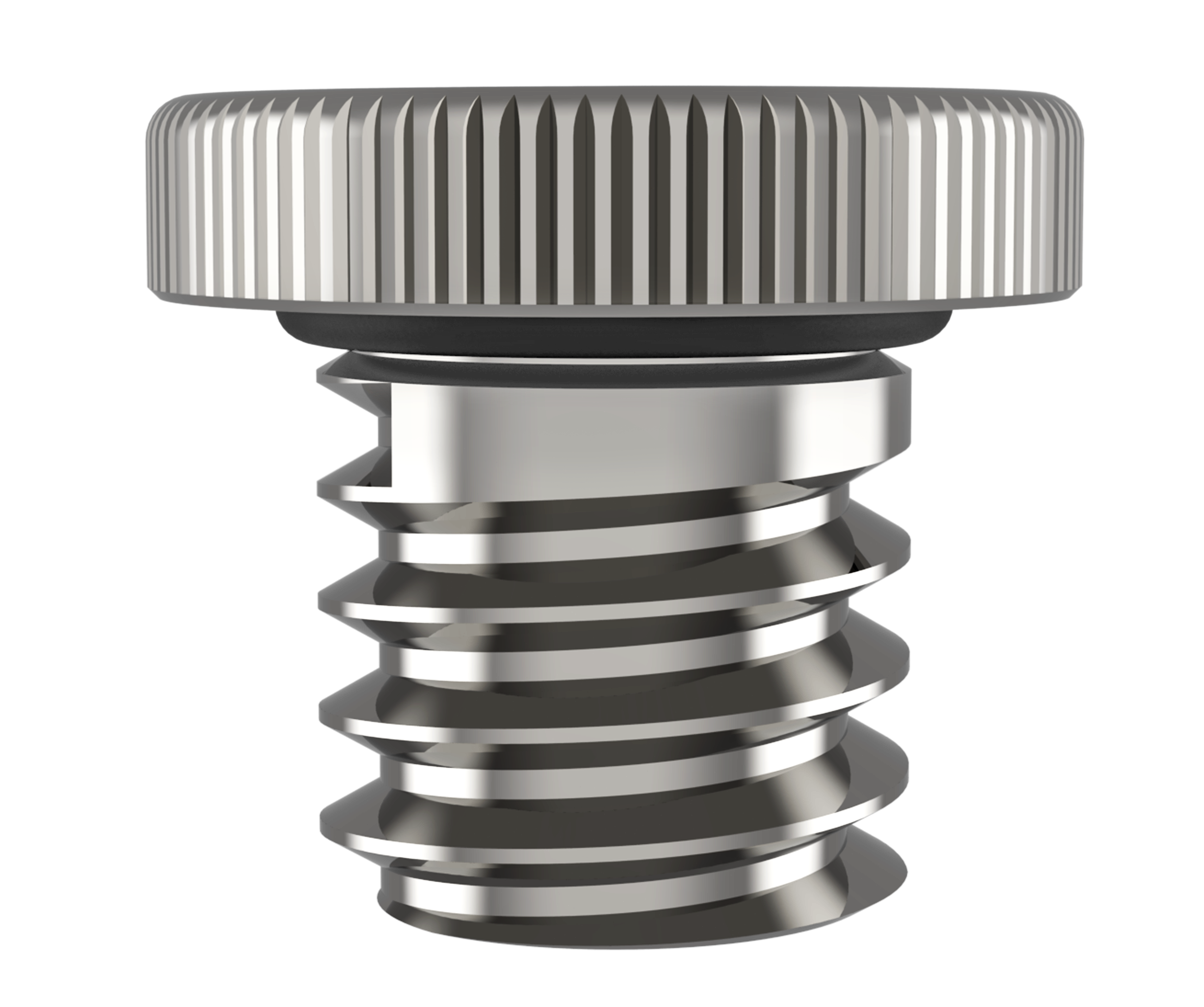

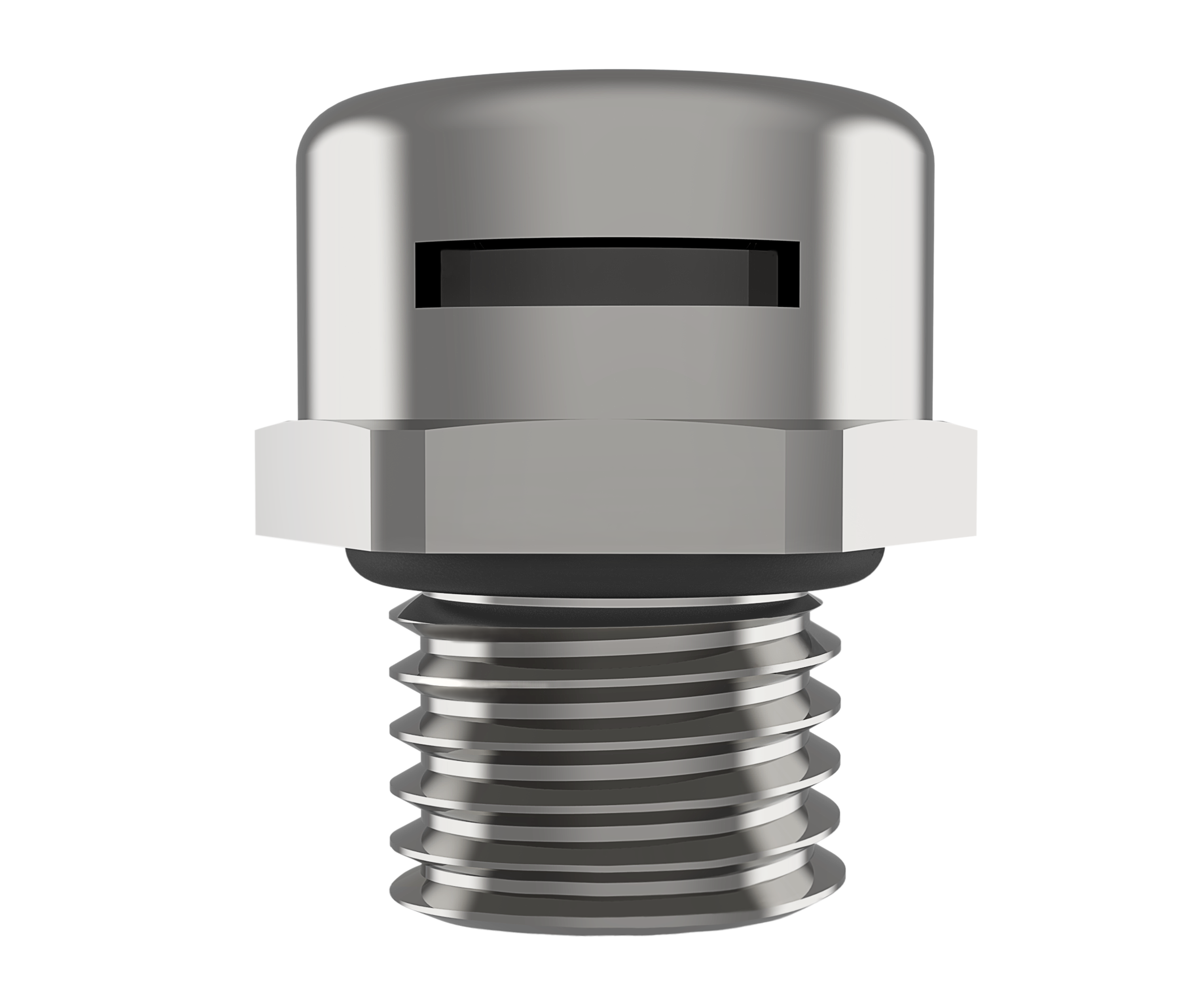

Ventilation Plugs, Stainless Steel

Designed to provide reliable pressure equalization inside sealed housings and enclosures.

Prevents the formation of water condensation and protects against damage caused by pressure differences.

Extends the service life of equipment by reducing stress on enclosure gaskets and seals.

Provides effective protection against water, dust and contaminants while allowing controlled airflow.

Manufactured from high-quality, corrosion-resistant stainless steel.

Suitable for indoor, outdoor, and harsh industrial environments

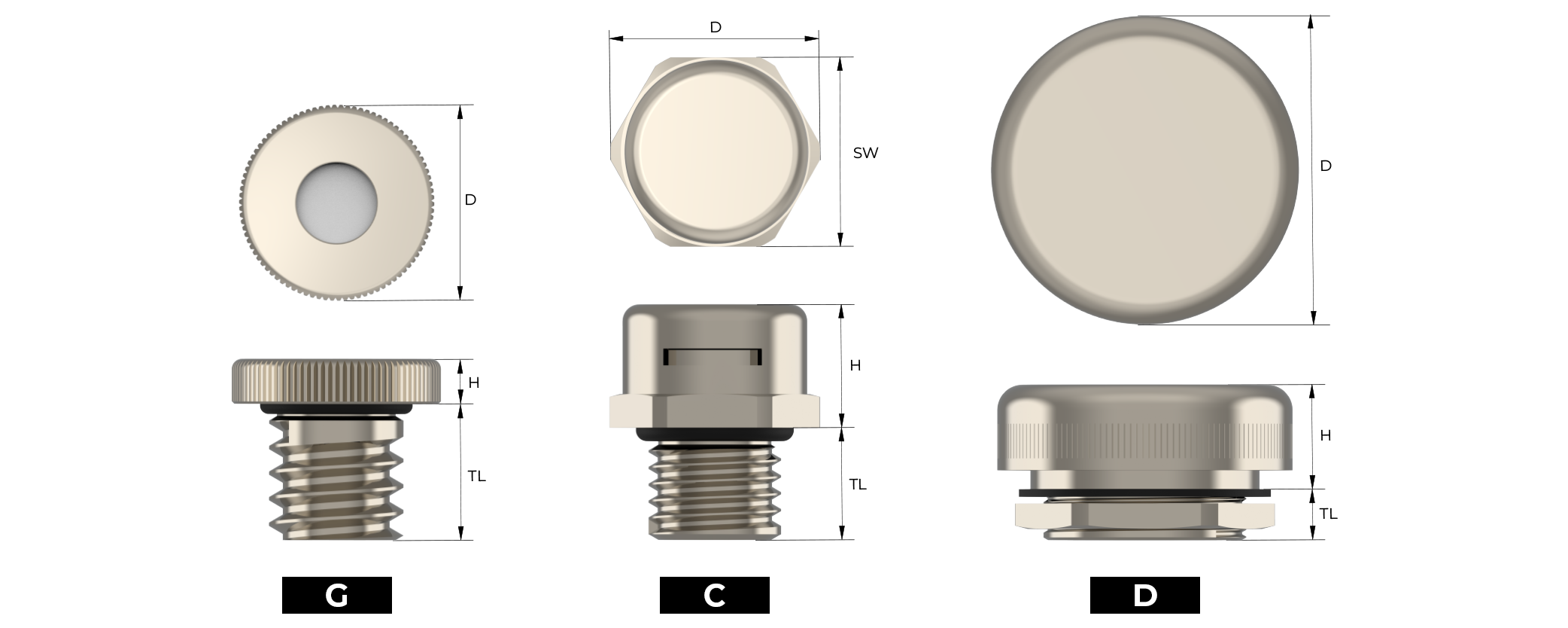

Available in types that provide ventilation performance from very low to very high levels, depending on application needs.

Offered with different mounting options, including threaded connection or snap-in installation.

Plug Material Stainless Steel (1.4305/303)
Vent.(Membrane) Material  Acrylic copolymer on nylon-support
O-Ring Material NBR
Ingress Protection Rating IP68, IP67
Temperature Range -40 °C to +100 °C
Thread Type Metric, PG
Accessories Locknut
Remarks ▪ Accessories must be ordered separately
▪ Other materials available on request: Stainless Steel 316L

Calculate Pressure Compensation
With our vent calculator you can easily and precisely determine your needed air-passage, which is important for the proper function of your system.
