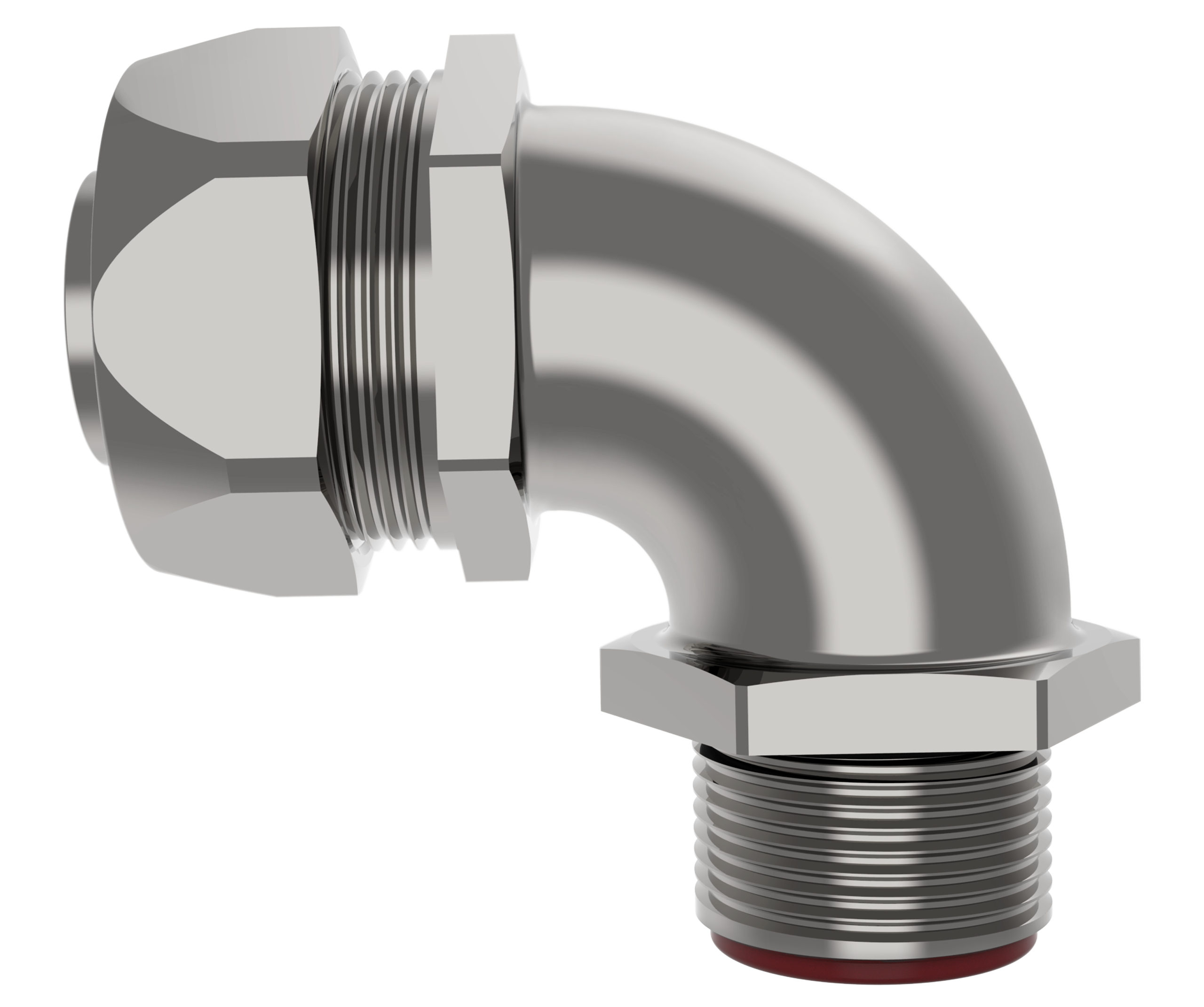

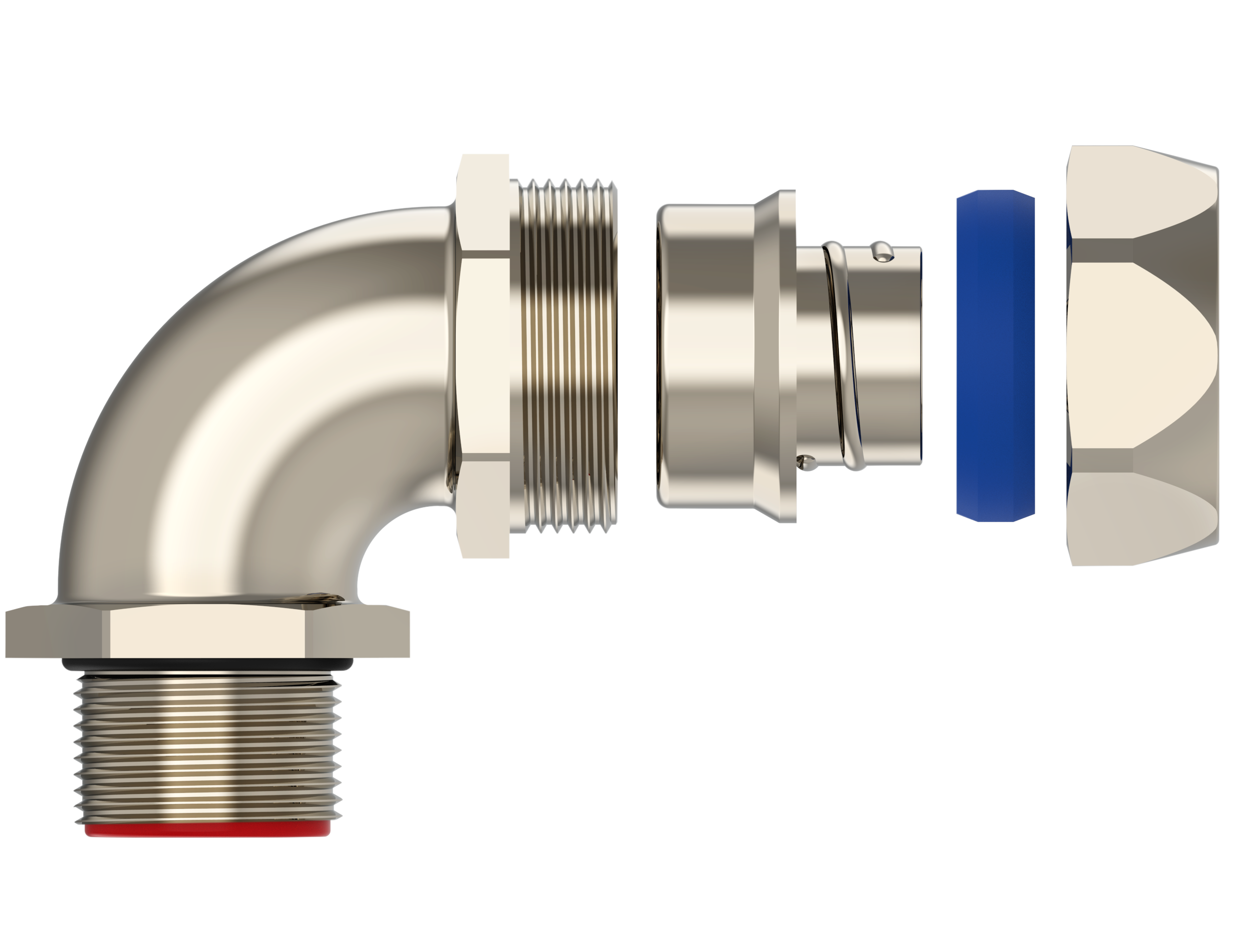

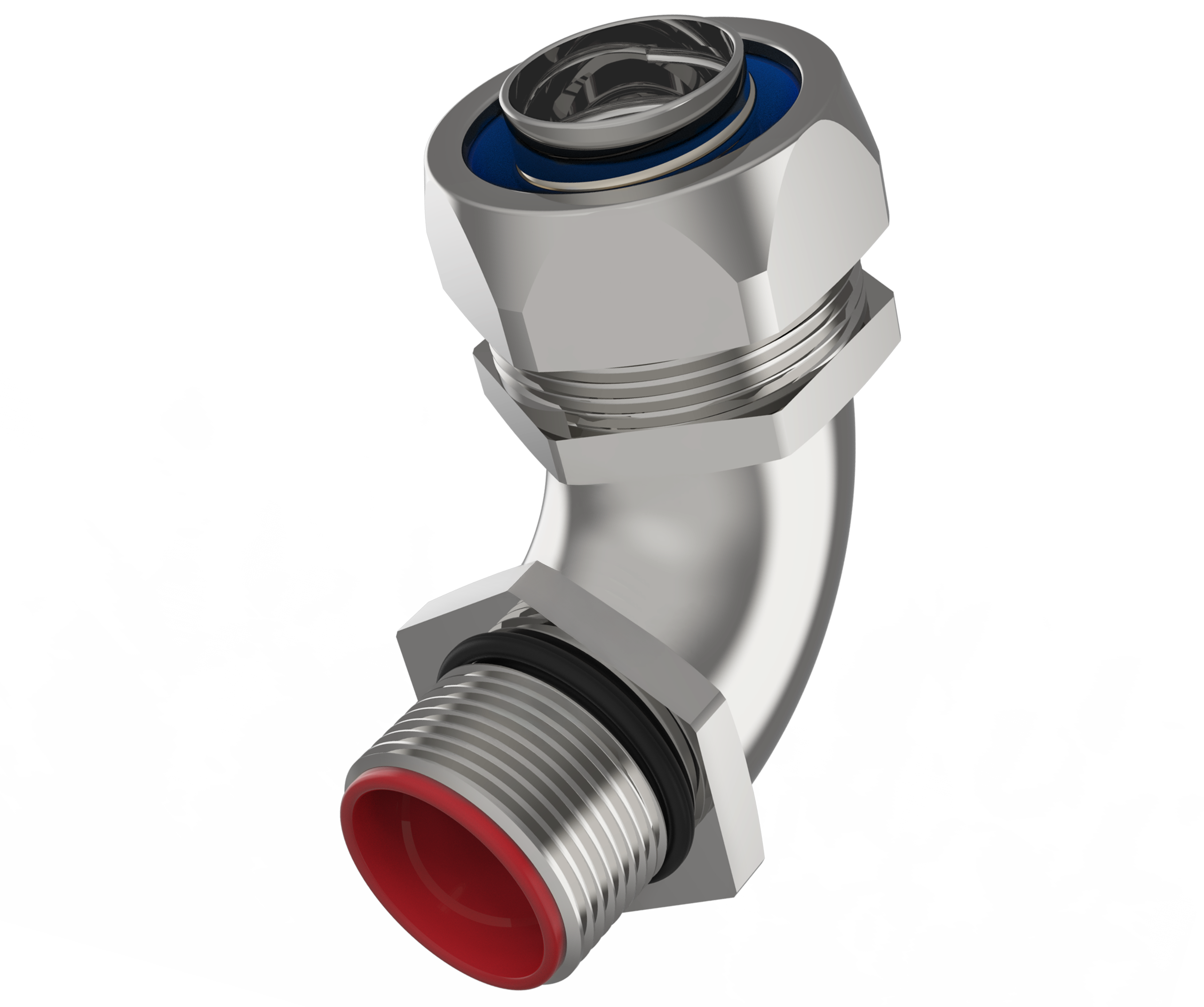

90° Liquidtight

Fittings for Sealtite conduits.

For metal machines and housings.

For standard industrial applications in harsh environments.

Great corrosion protection.

Easy assembly.

High quality strain relief and sealing, reliable performance for standard industrial applications

Cable Gland Material	Nickel Plated Brass
Ferrule Material	Nickel Plated Brass or Zinc Plated Steel
Prot,Bushing Material	Polyamide 6 V2
Seal Ring	Polyamide 6 V2
O-Ring	NBR
Ingress Protection Rating	IP 66, IP 65
Operating Temperature	Permanent -45°C to +105°C
Cable Type	Non armoured
Thread Type	Metric,PG,NPT

Accessories	Lock nuts
Remarks	Also available in Stainless Steel O-ring available in Metric and PG threads. Accessories must be ordered separately.
