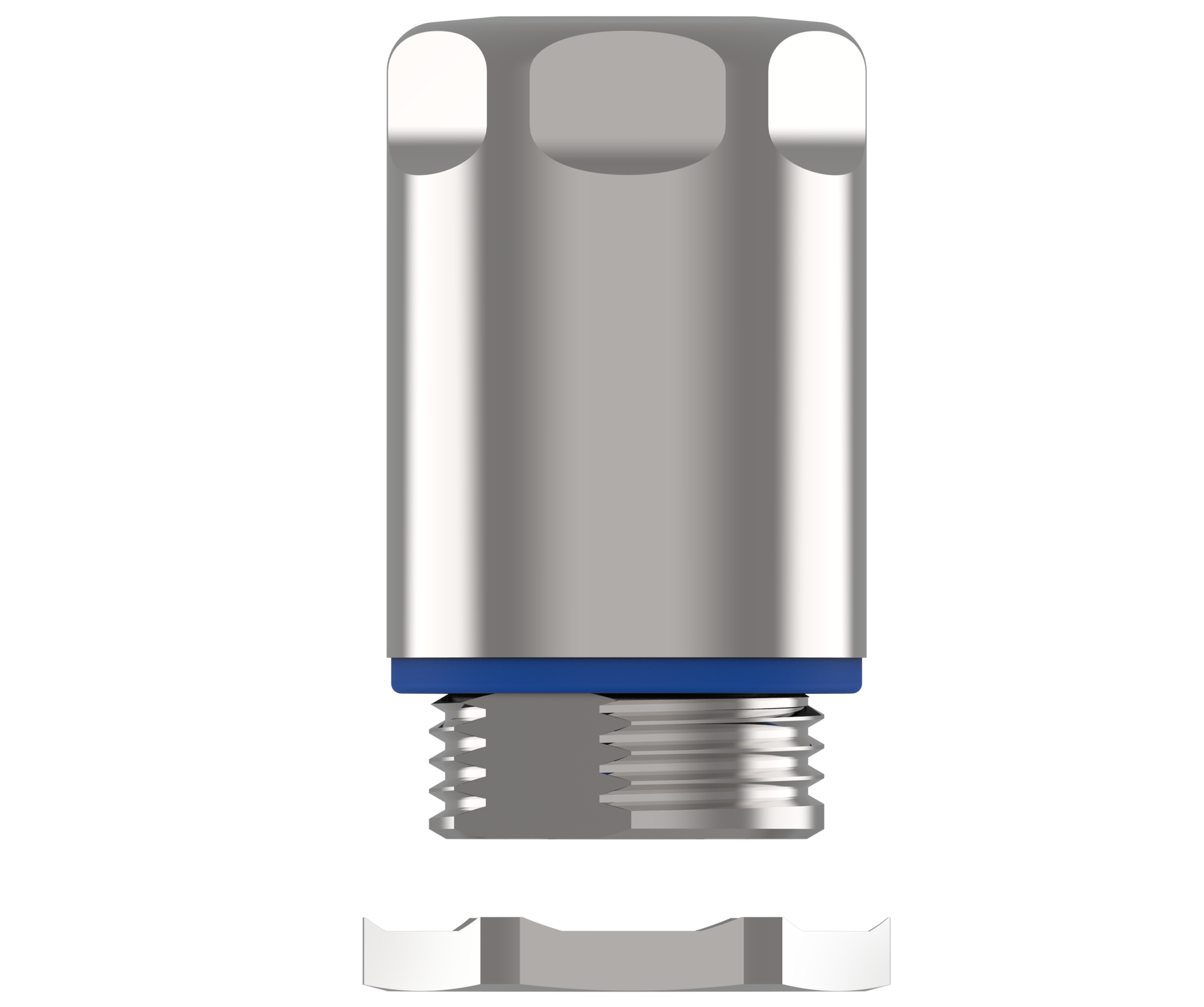

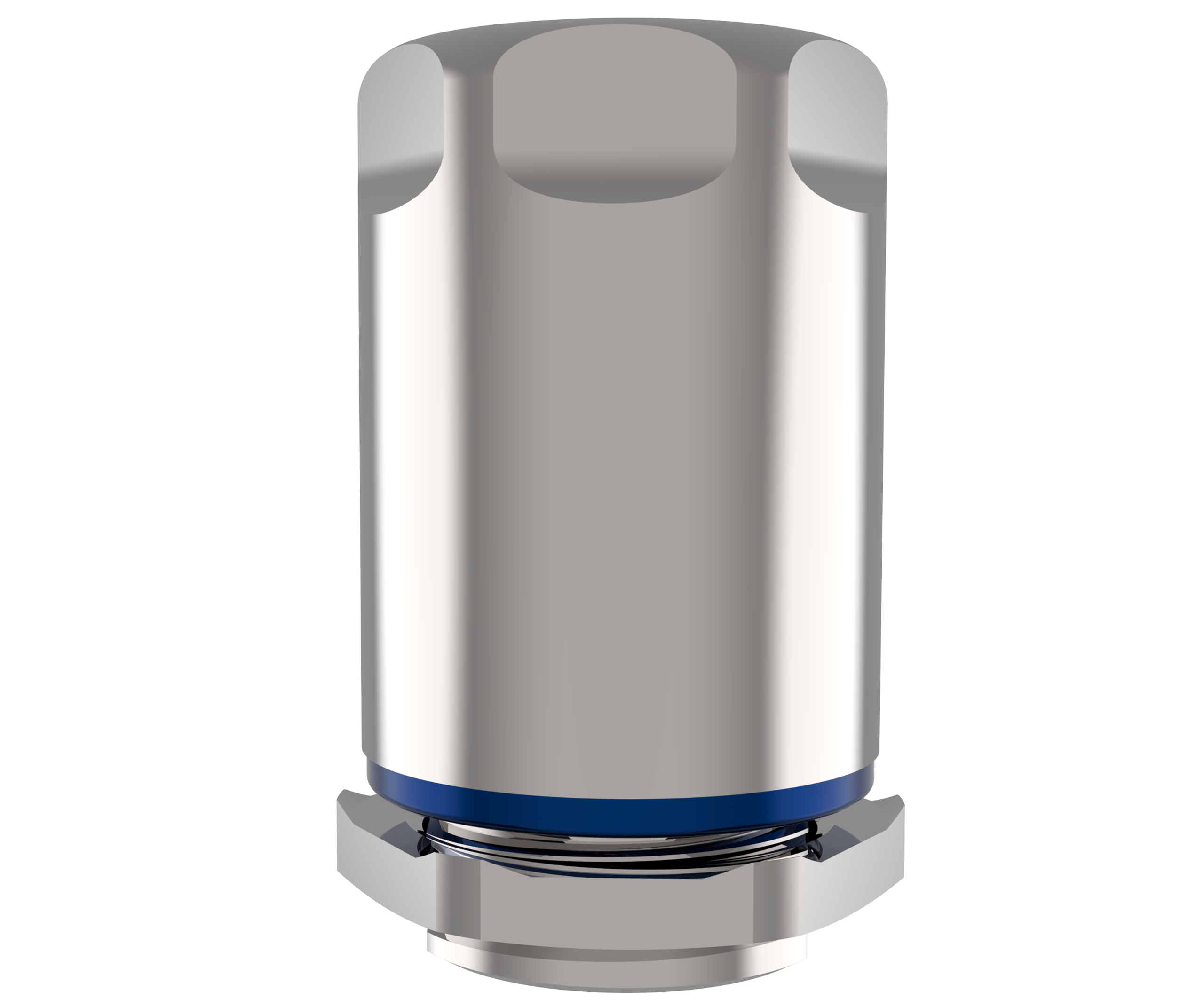

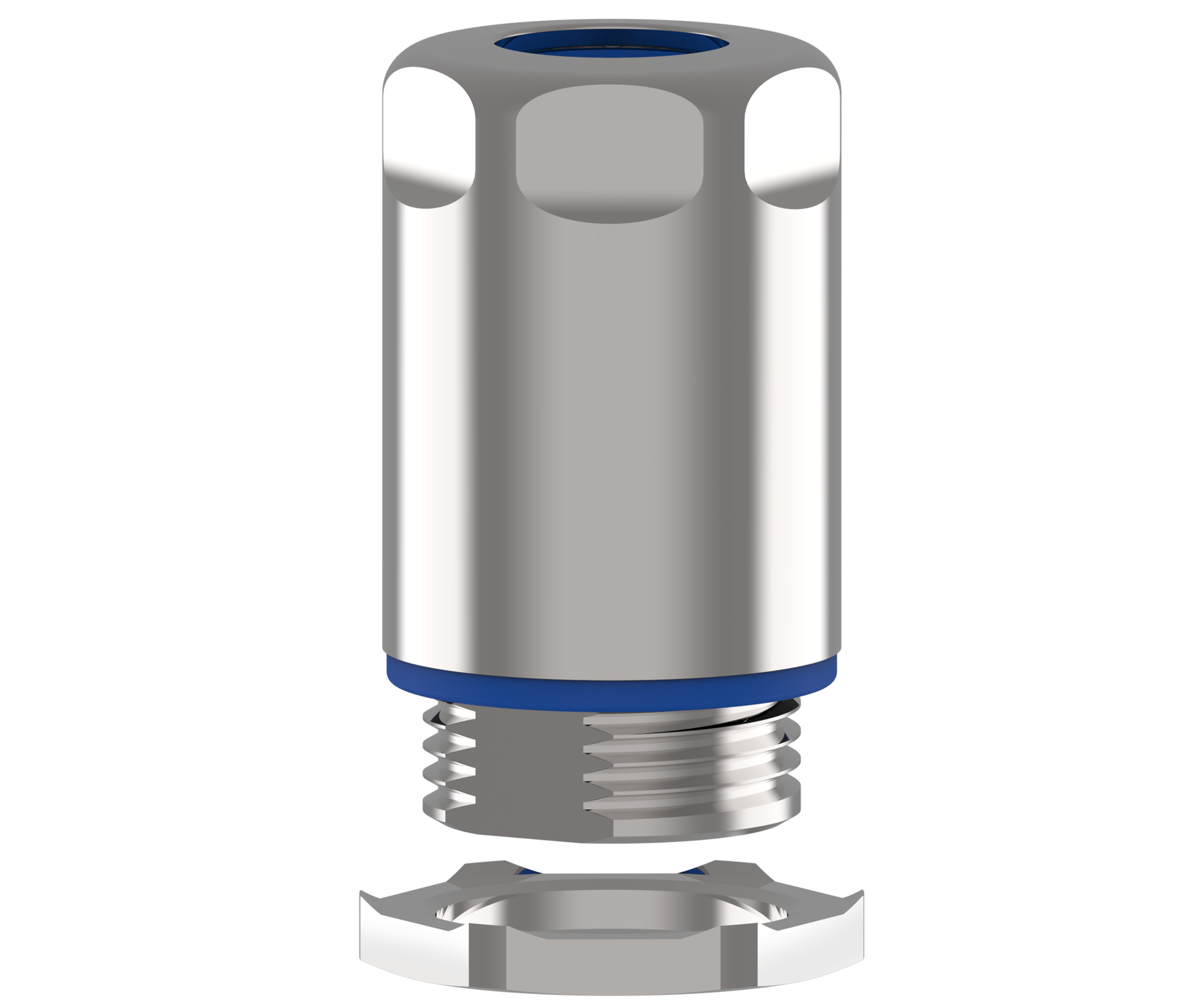

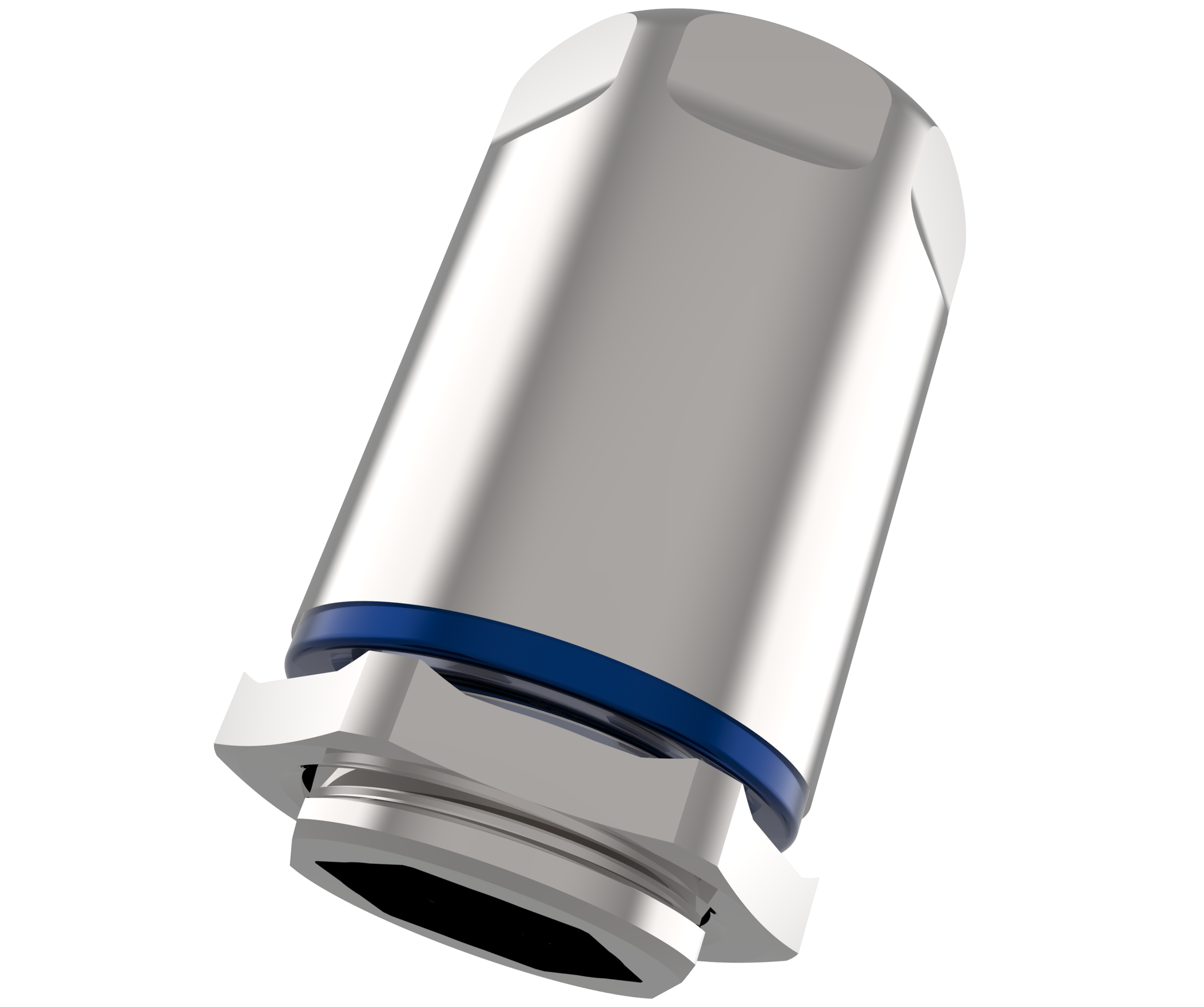

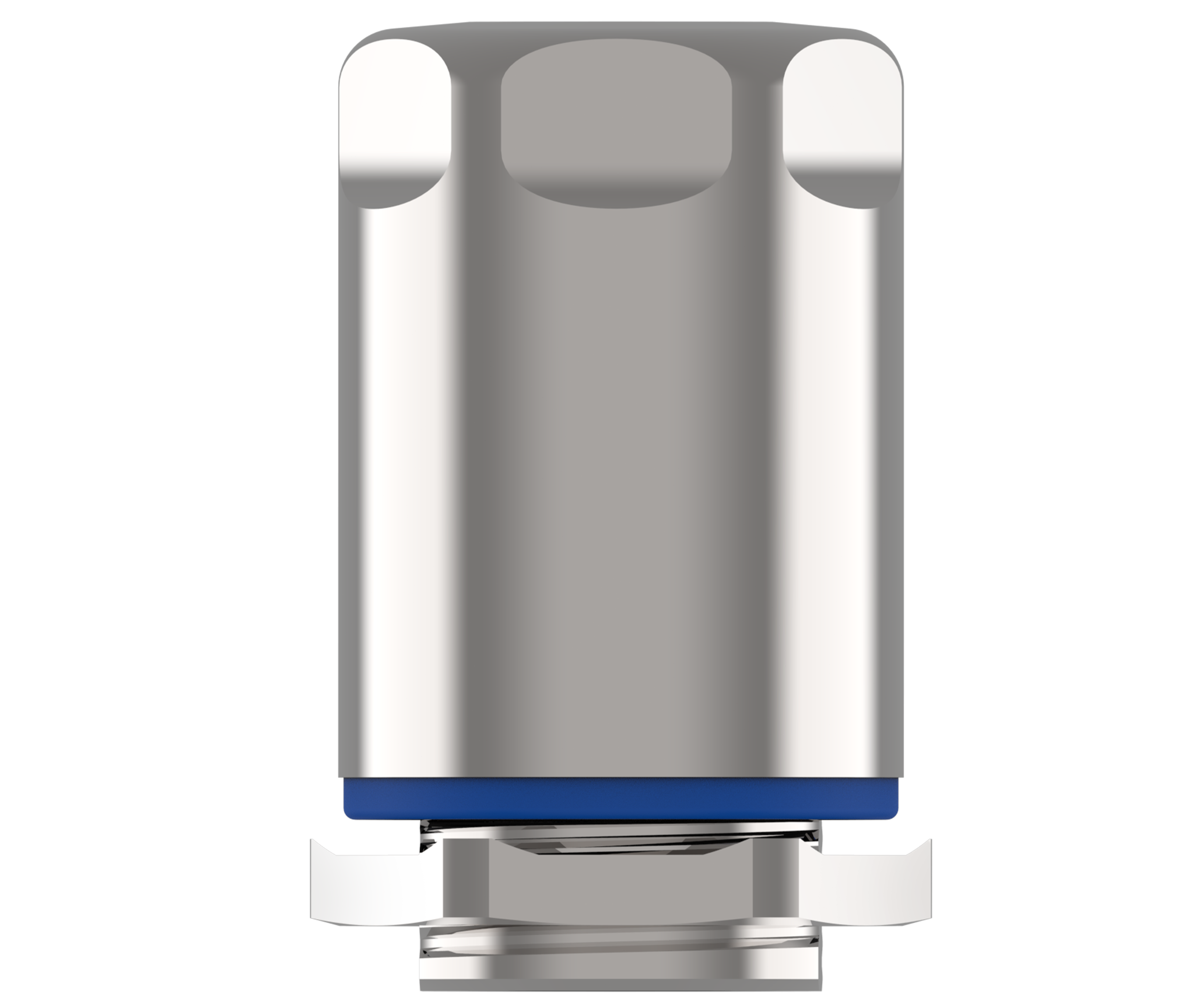

Hygienic EMC Cable Glands

Designed for hygienic applications in food, pharmaceutical, cleanroom, biotech, and chemical industries, providing reliable electromagnetic compatibility (EMC).

Provides reliable electromagnetic compatibility (EMC) protection for Shielded/Braided cables

Suitable for use in Hygienic applications with EMC requirements

Manufactured from high-quality, corrosion-resistant stainless steel.

Smooth surfaces prevent microorganism buildup and ensure easy cleaning.

No threads are exposed, ensuring improved hygiene and easier cleaning

Seal material complies with FDA guideline 21 CFR 177.2600.

Maintains effective sealing against dust, moisture, and cleaning agents.

Suitable for high-pressure steam cleaning and frequent washdowns in hygienic environments.

Complies with relevant hygienic standards and regulations.

Cap/Body Material Stainless Steel (1.4305/303)
Locknut/Inner Part Material Stainless Steel (1.4305/303)
Contact Spring Material Special Copper Alloy
Seal/Gasket Material EPDM, acc. to FDA guideline 21 CFR 177.2600
Ingress Protection Rating IP68 - 5 Bar 30 min, IP69, IP66
Type Rating 1, 2 , 4 , 4X, 12, 12K, 13
Temperature Range Permanent  -20 °C to +100 °C
Intermittent  -40 °C to +150 °C
Thread Type Metric, NPT
Cable Types Shielded
Accessories ▪ Adapter for Hygienic glands
Remarks ▪ Other material available on request: Stainless Steel 316L
