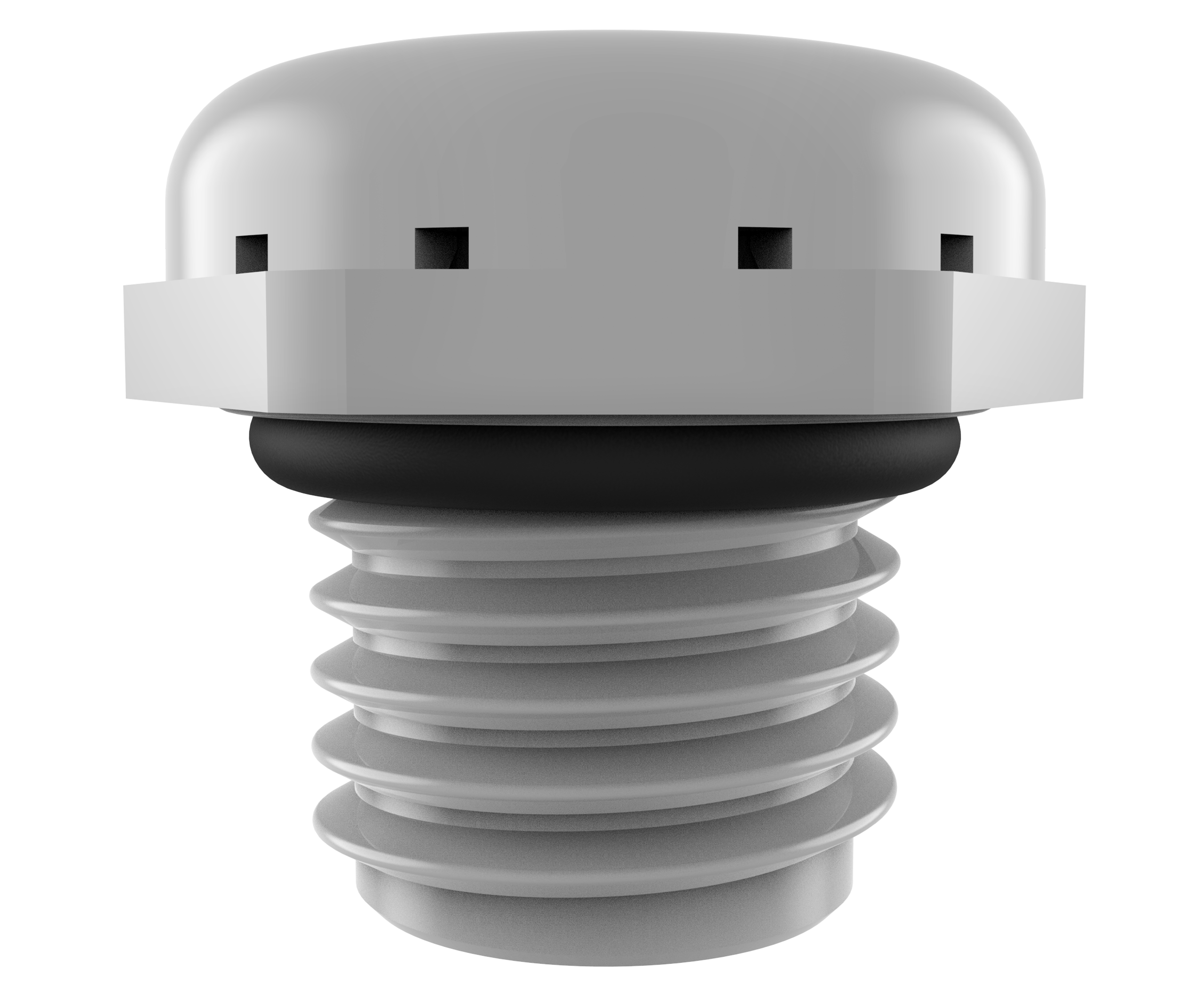

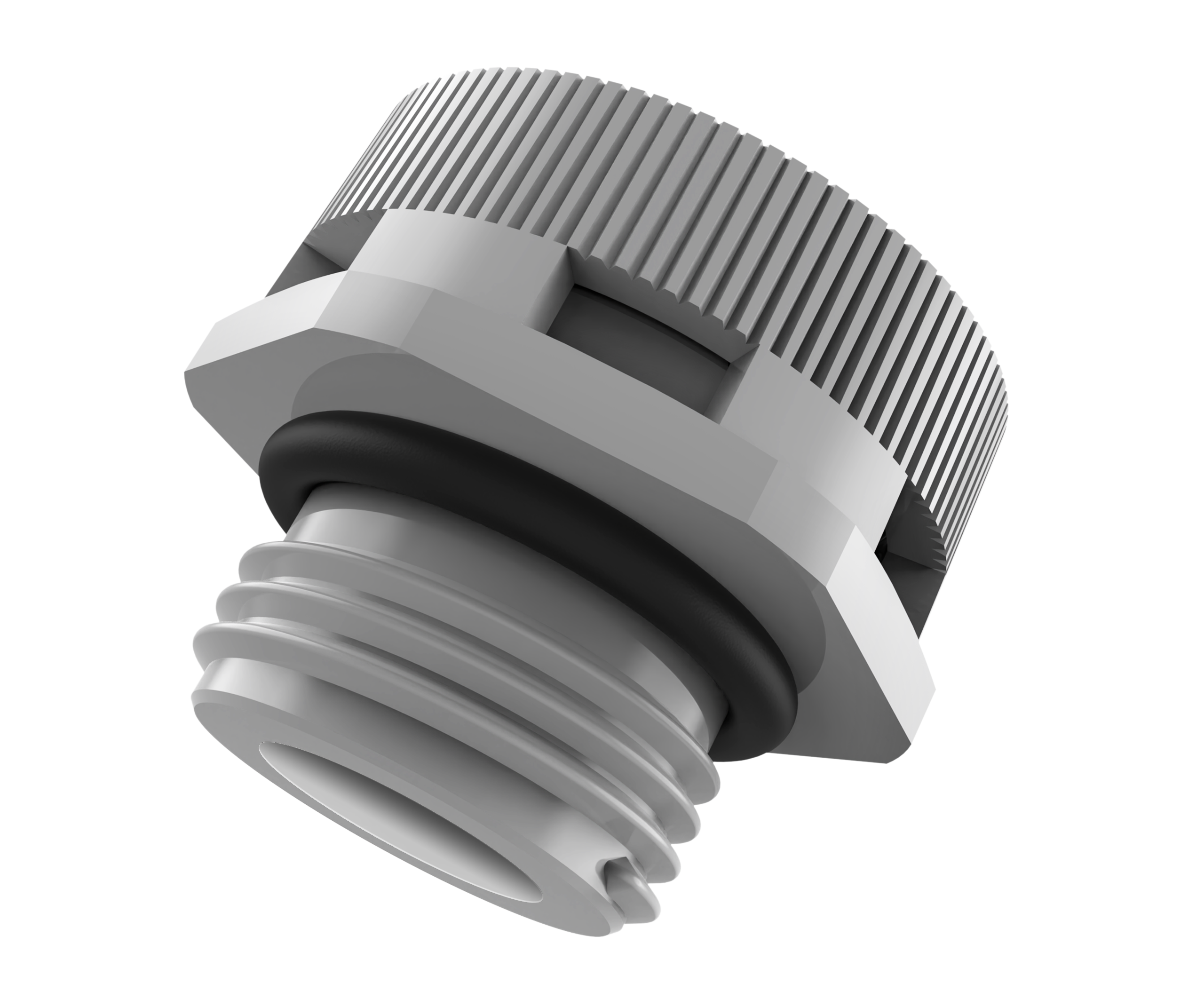

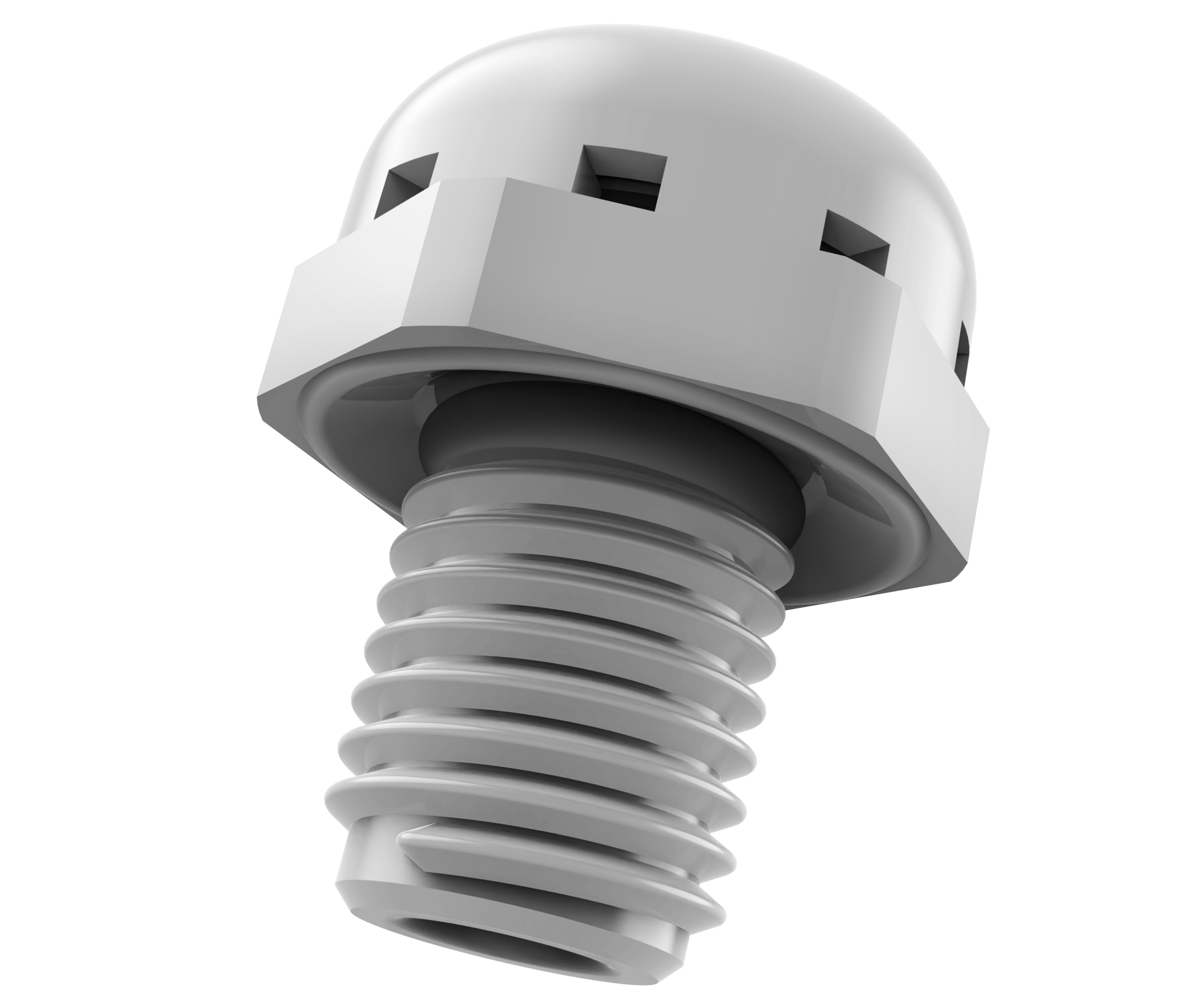

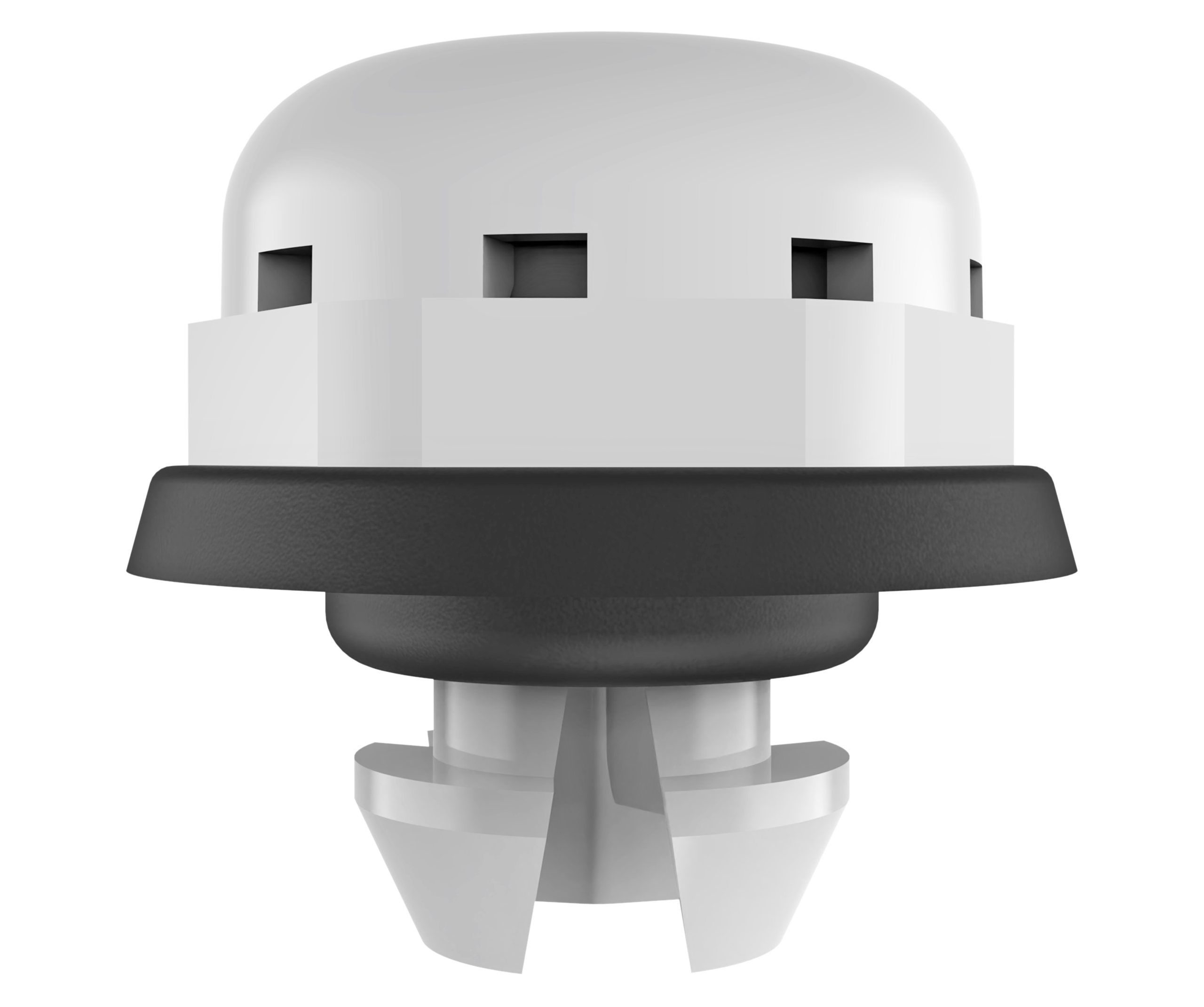

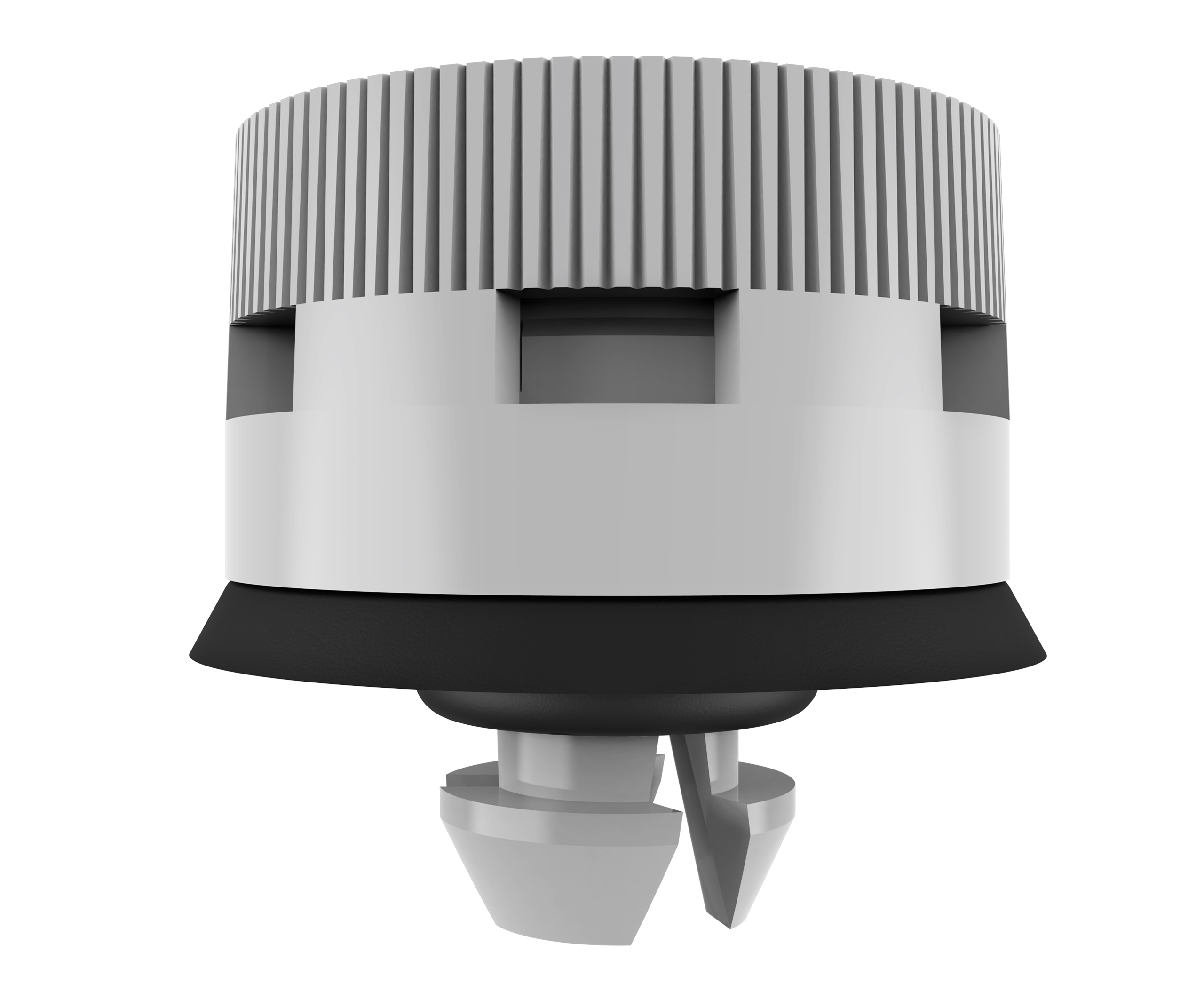

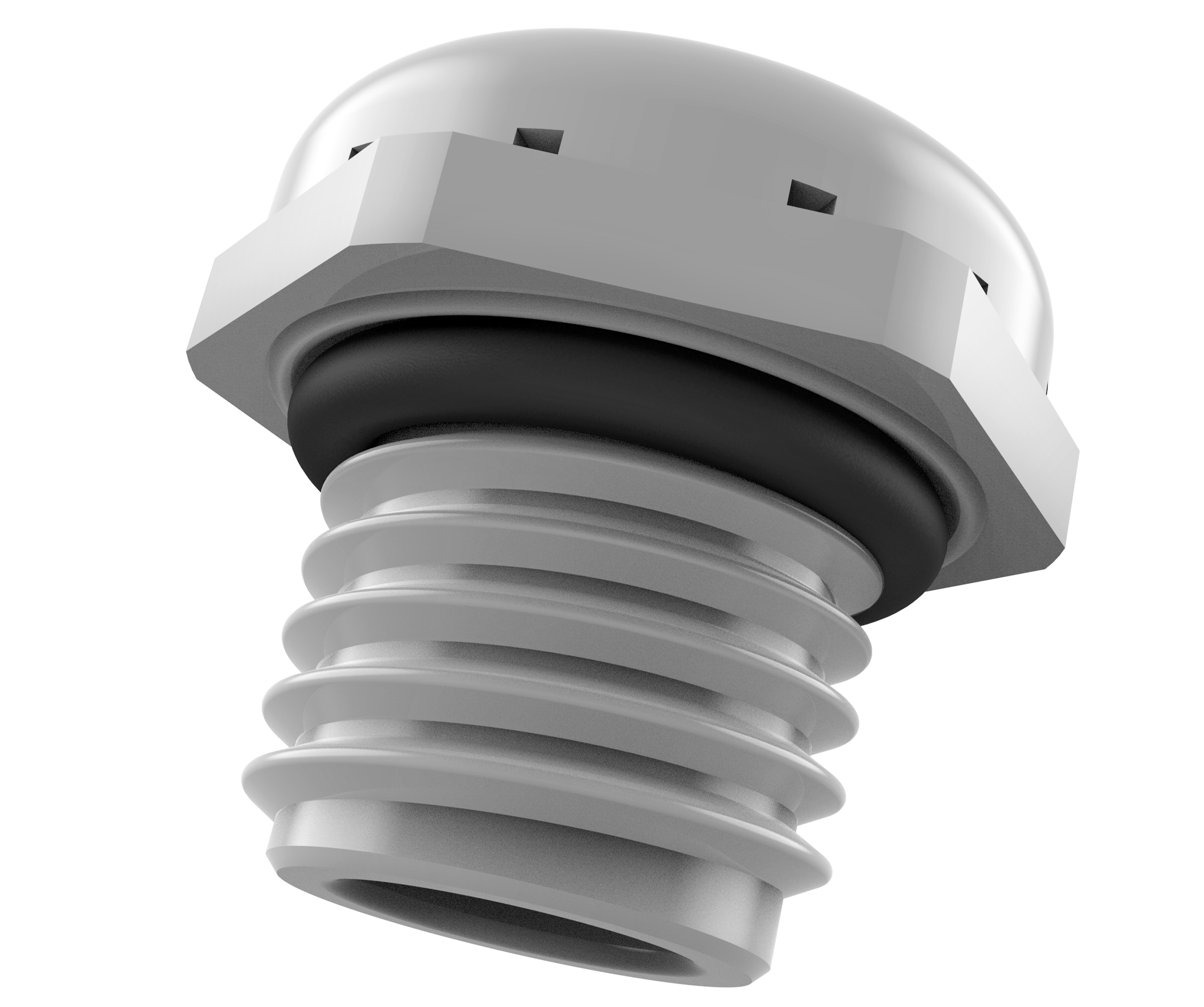

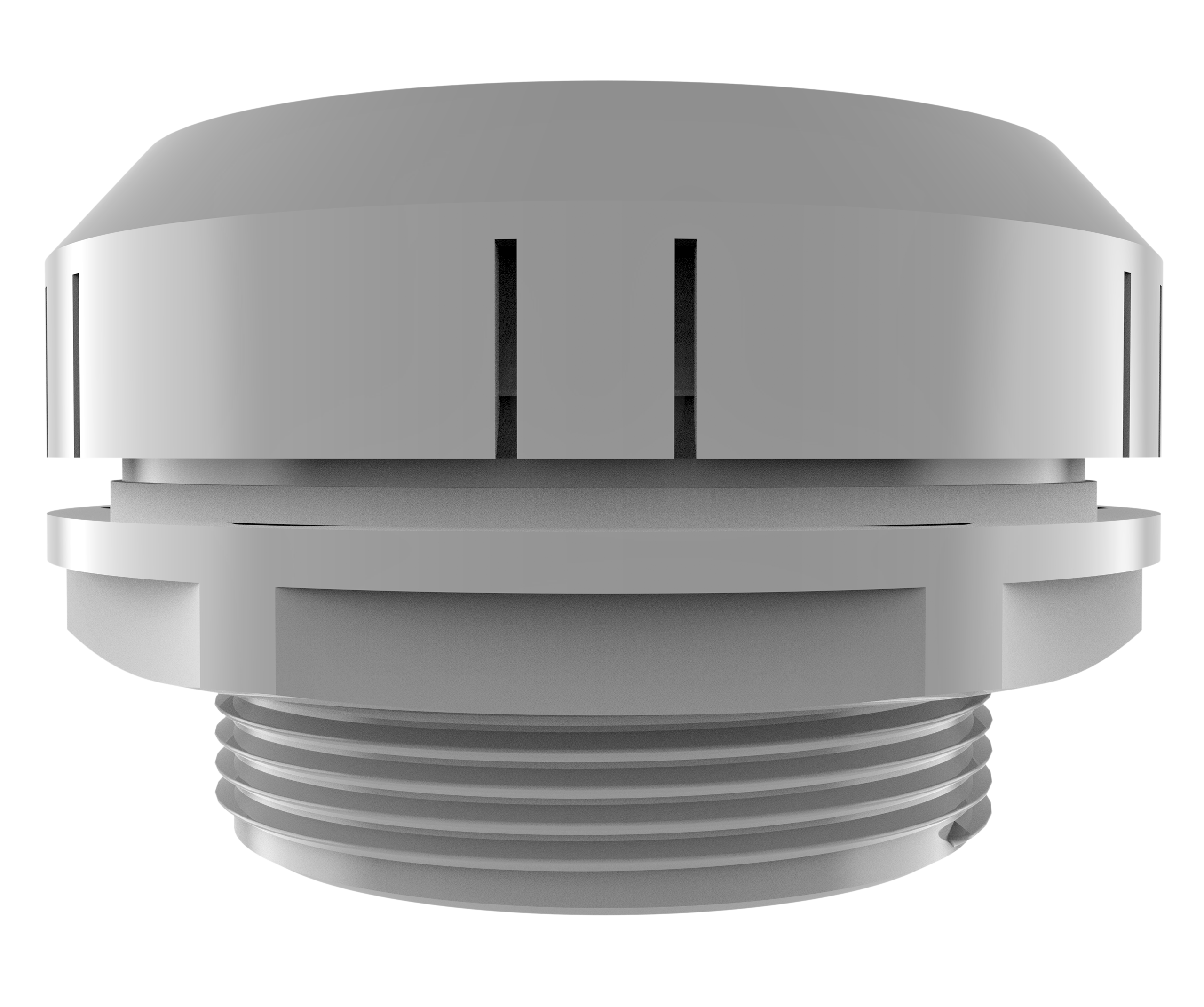

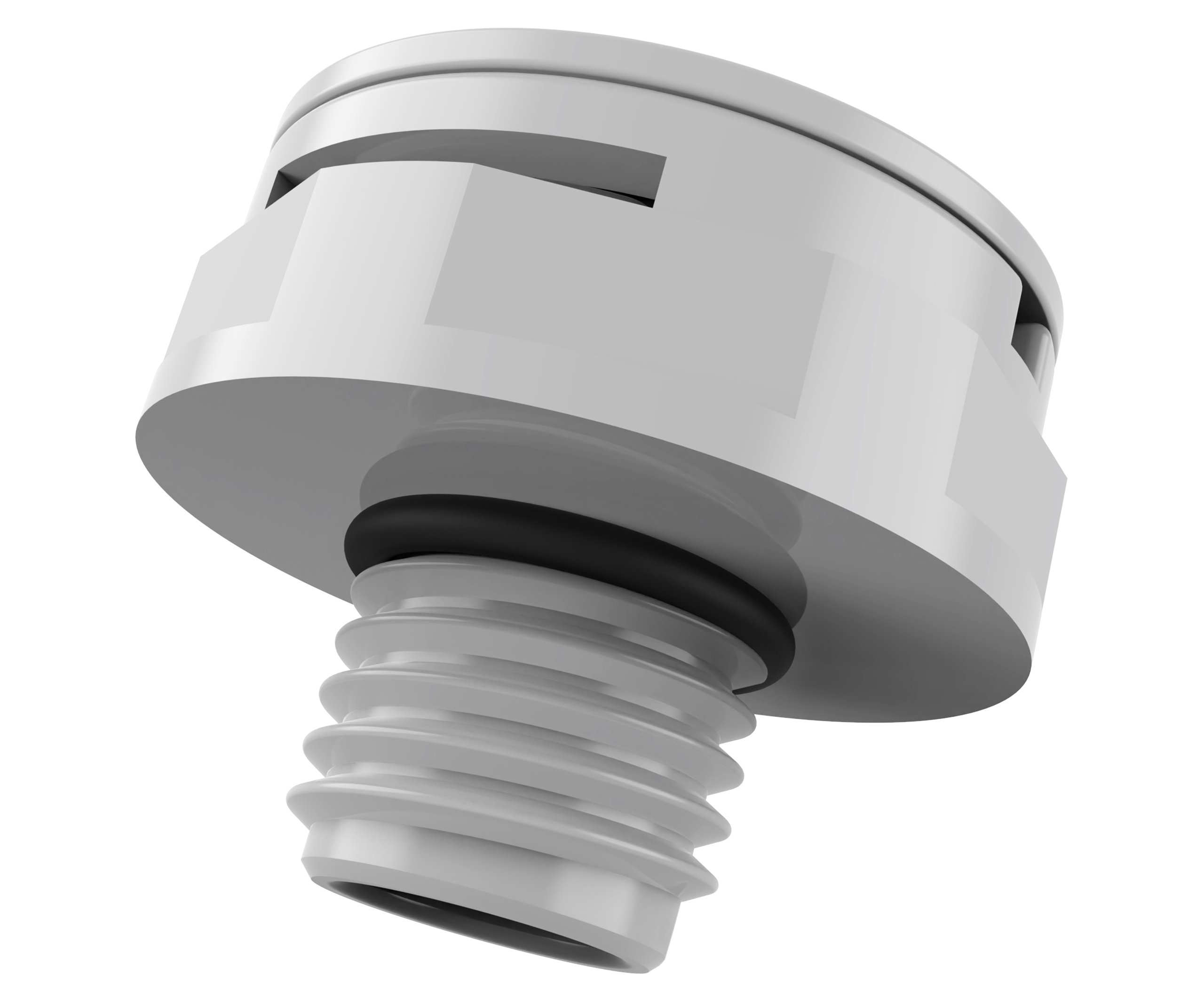

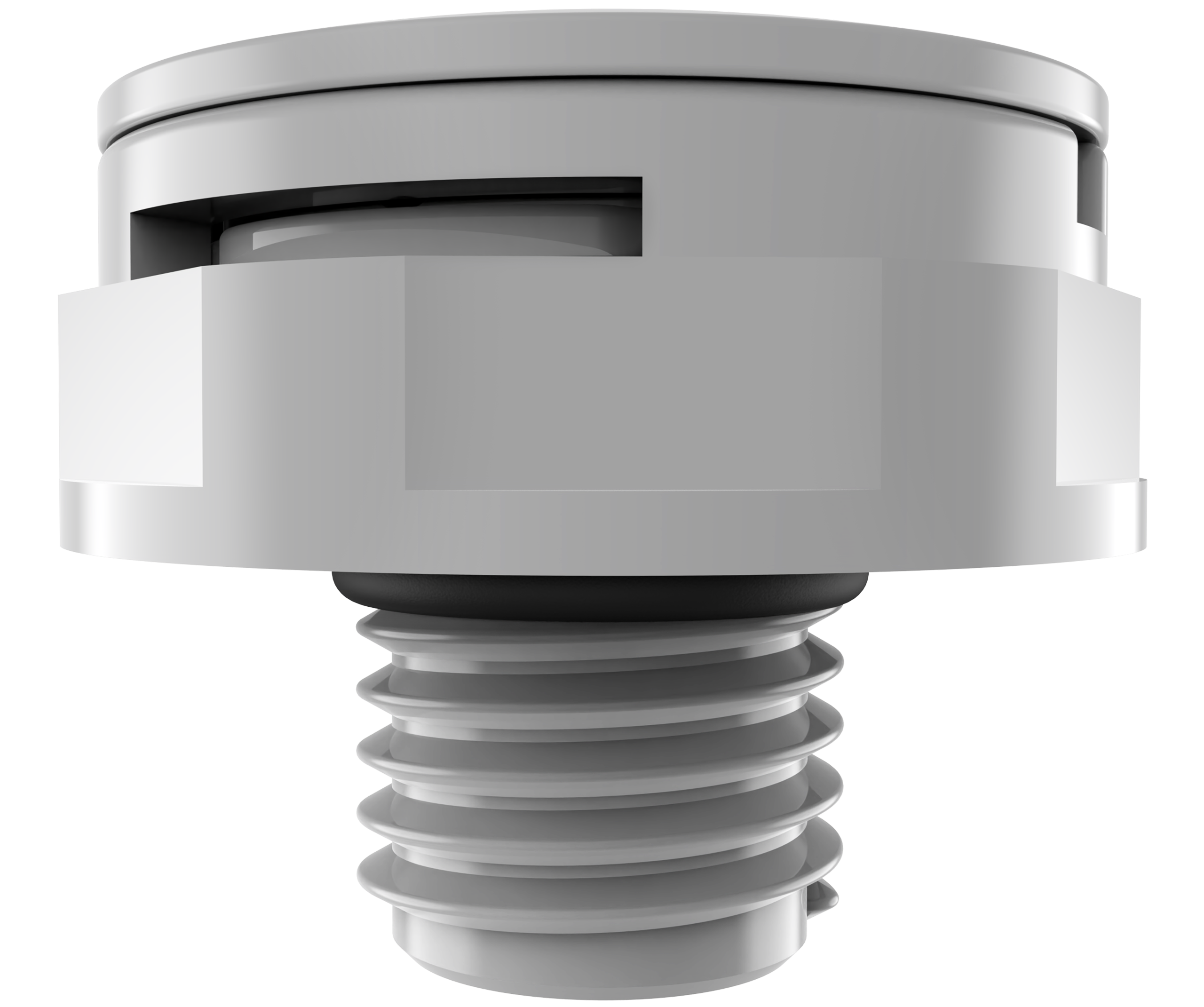

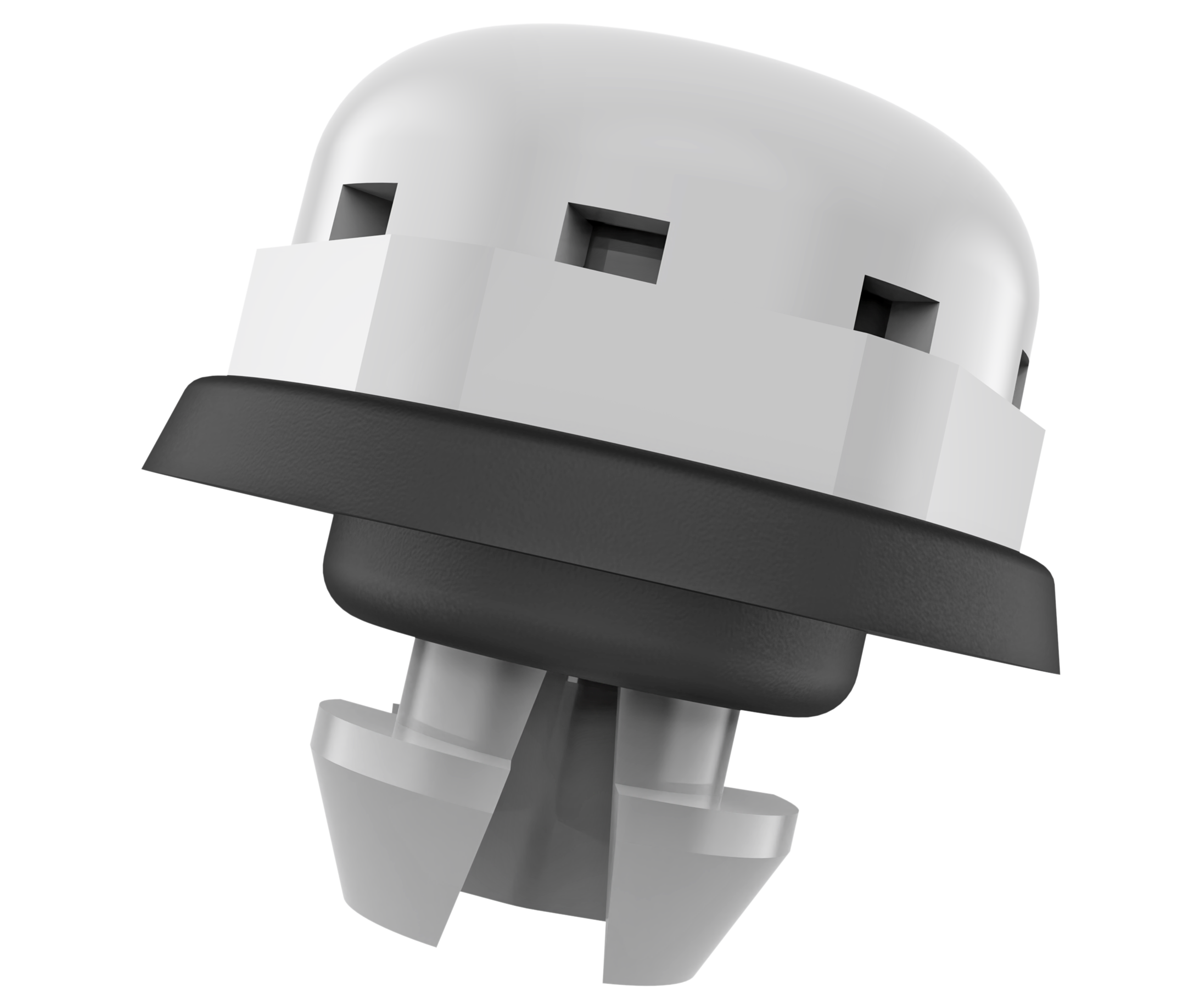

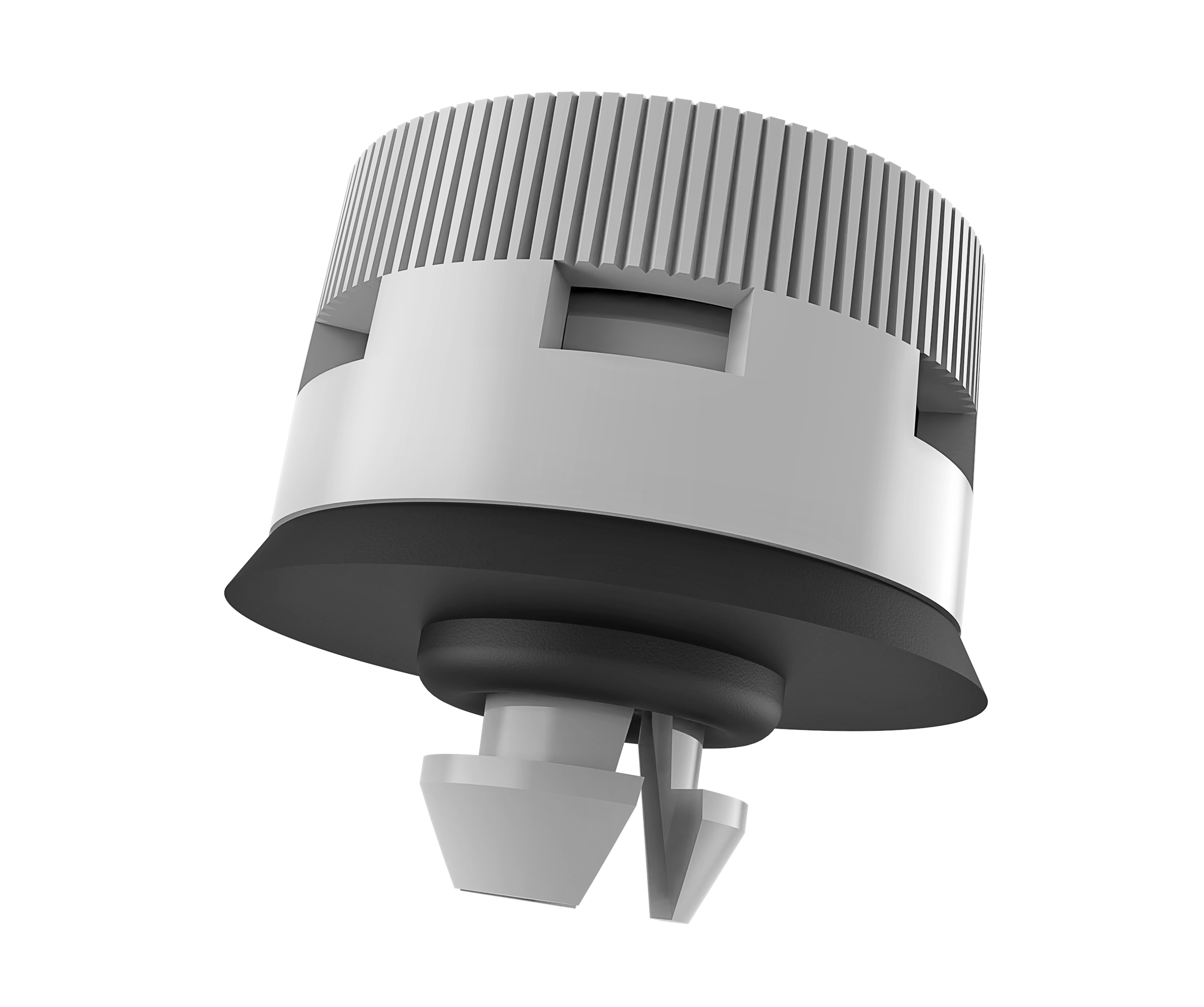

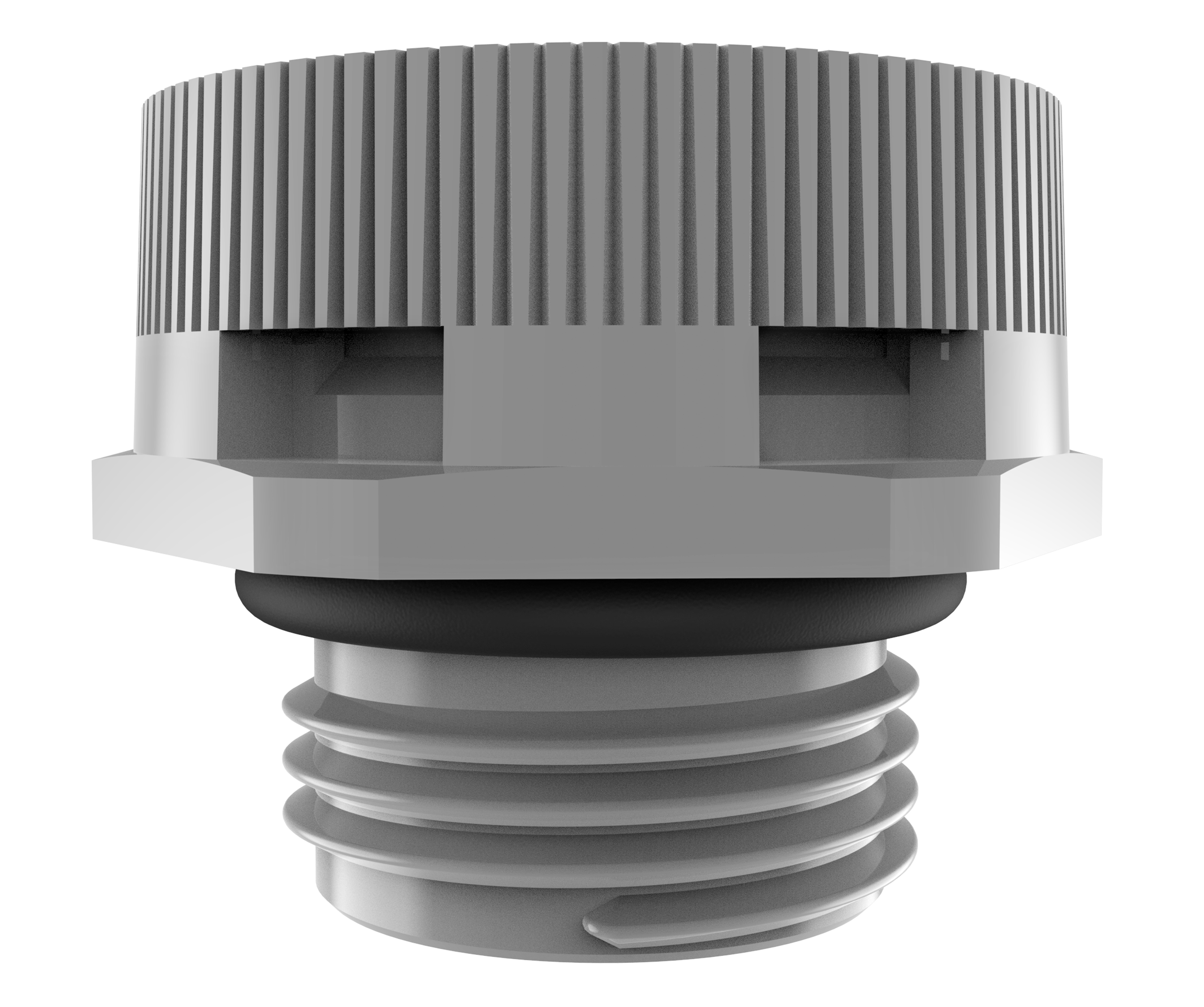

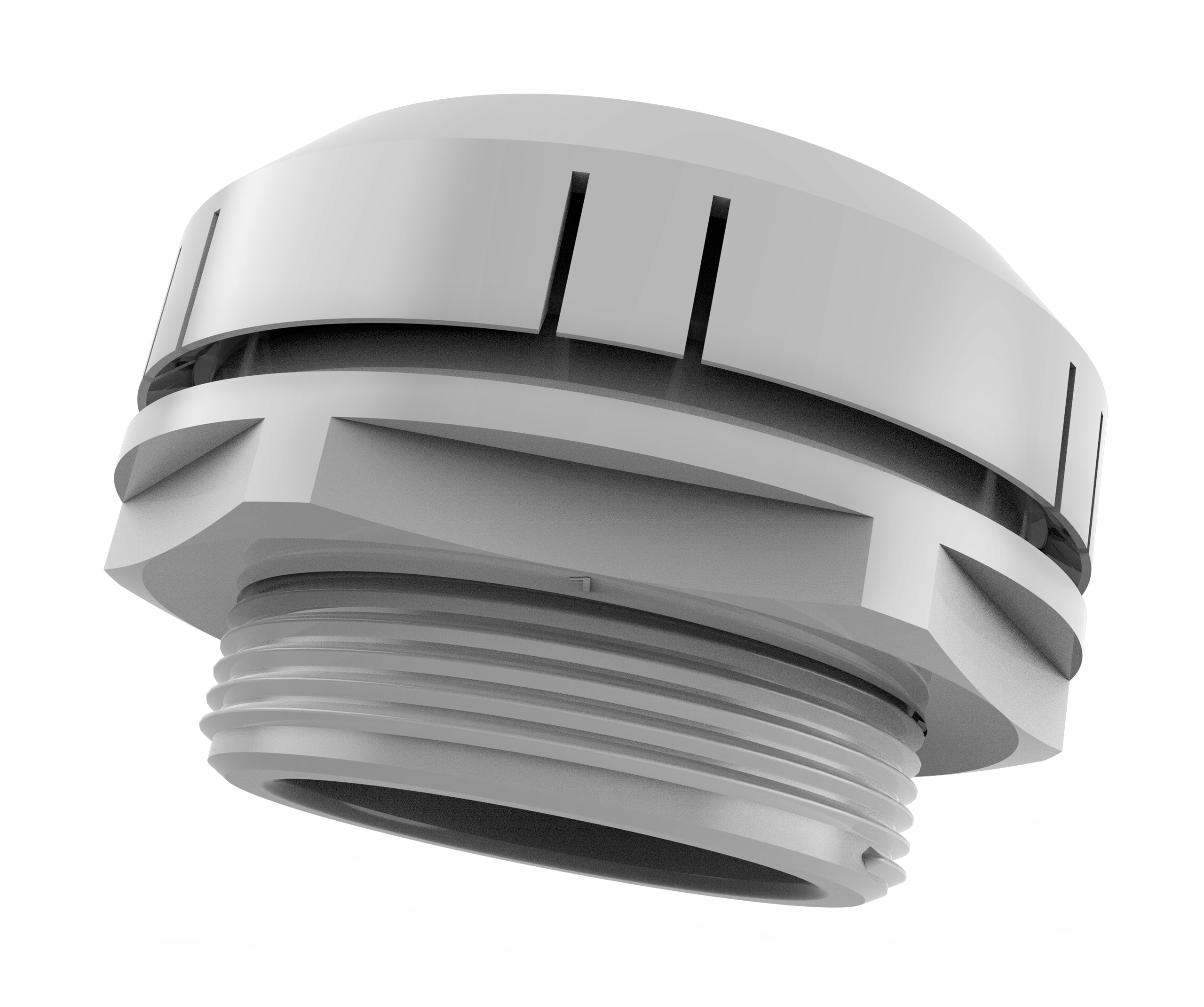

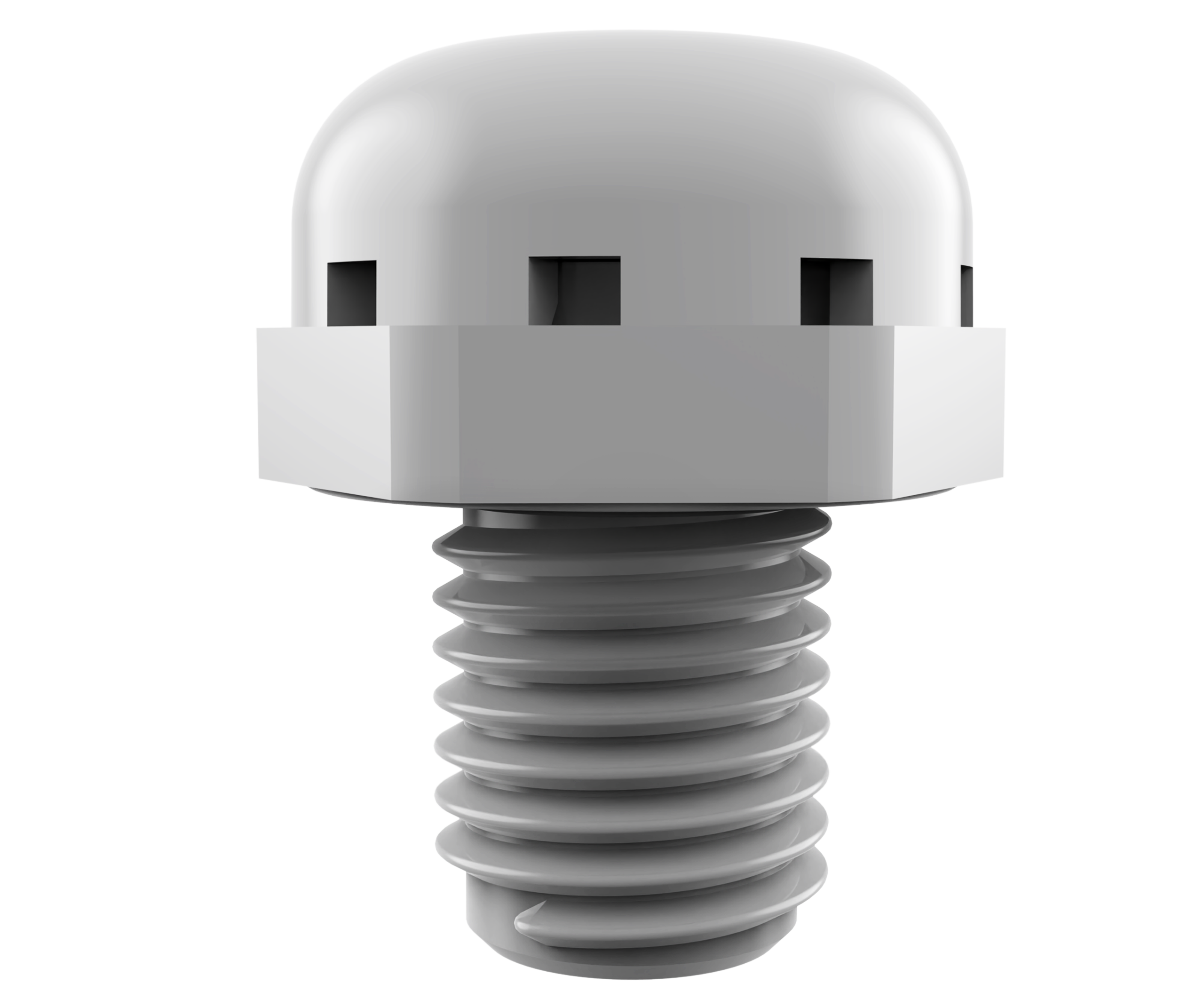

Ventilation Plugs, Plastic

Balances pressure differences between inner housing and the outside environment

Prevents damages according to pressure differences.

Prevents the formation of water condensation in tightly-sealed standard housings.

Membrane properties: hydrophobic, oleophobic

Cable Gland Material	PA 6 (Polyamide 6)
Vent.(Membran)	Acrylic co-polymer on nylon-support

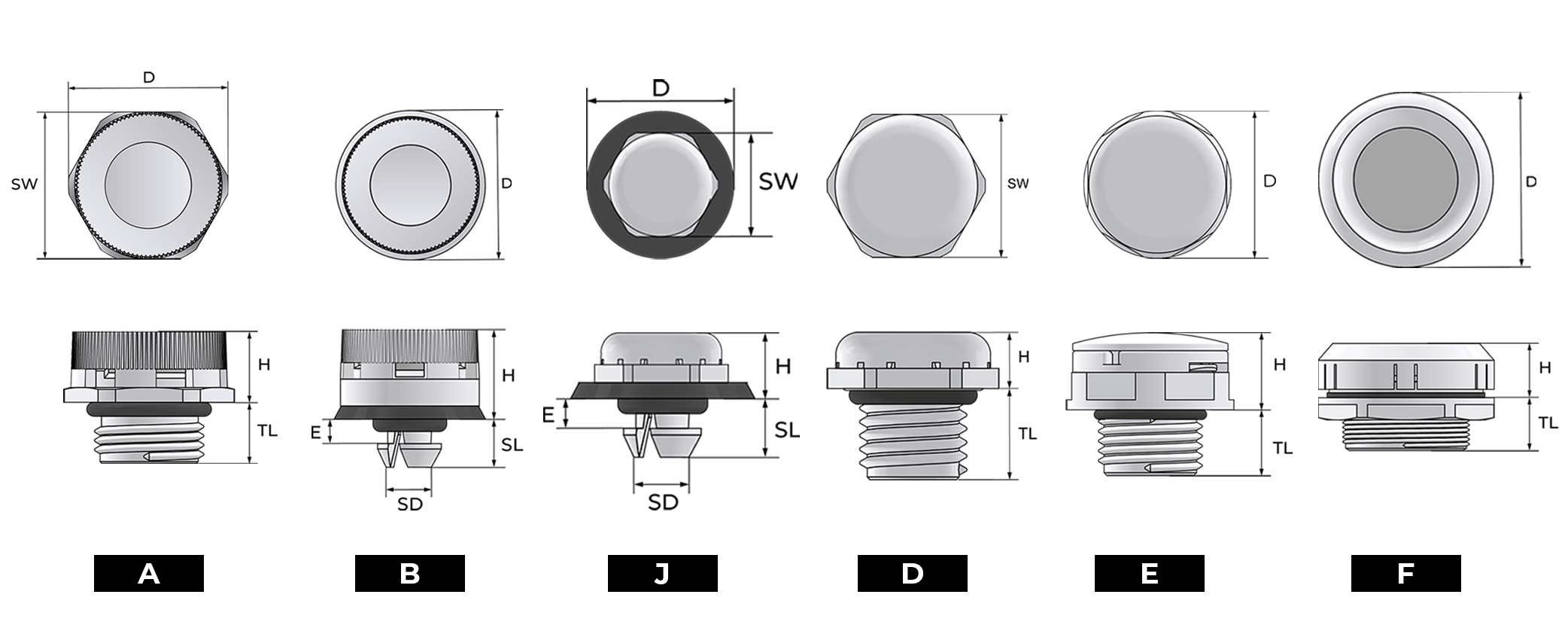

Gasket	NBR (standard for B, J and F types)
O-Ring	NBR (standard for A, D and E types)
Ingress Protection Rating	IP 68 / IP 67 (for water intrusion pressure 0.1 bar) IP 69K (only for D type)
Flammability	V2 according to UL94
Operating Temperature	Permanent -40 °C to +100 °C
Intermittent -45 °C to +150 °C
Thread Type	Metric without thread

Accessories	Lock nuts
Remarks	Some approvals do not cover all colours or sizes.

Calculate Pressure Compensation
With our vent calculator you can easily and precisely determine your needed air-passage, which is important for the proper function of your system.
