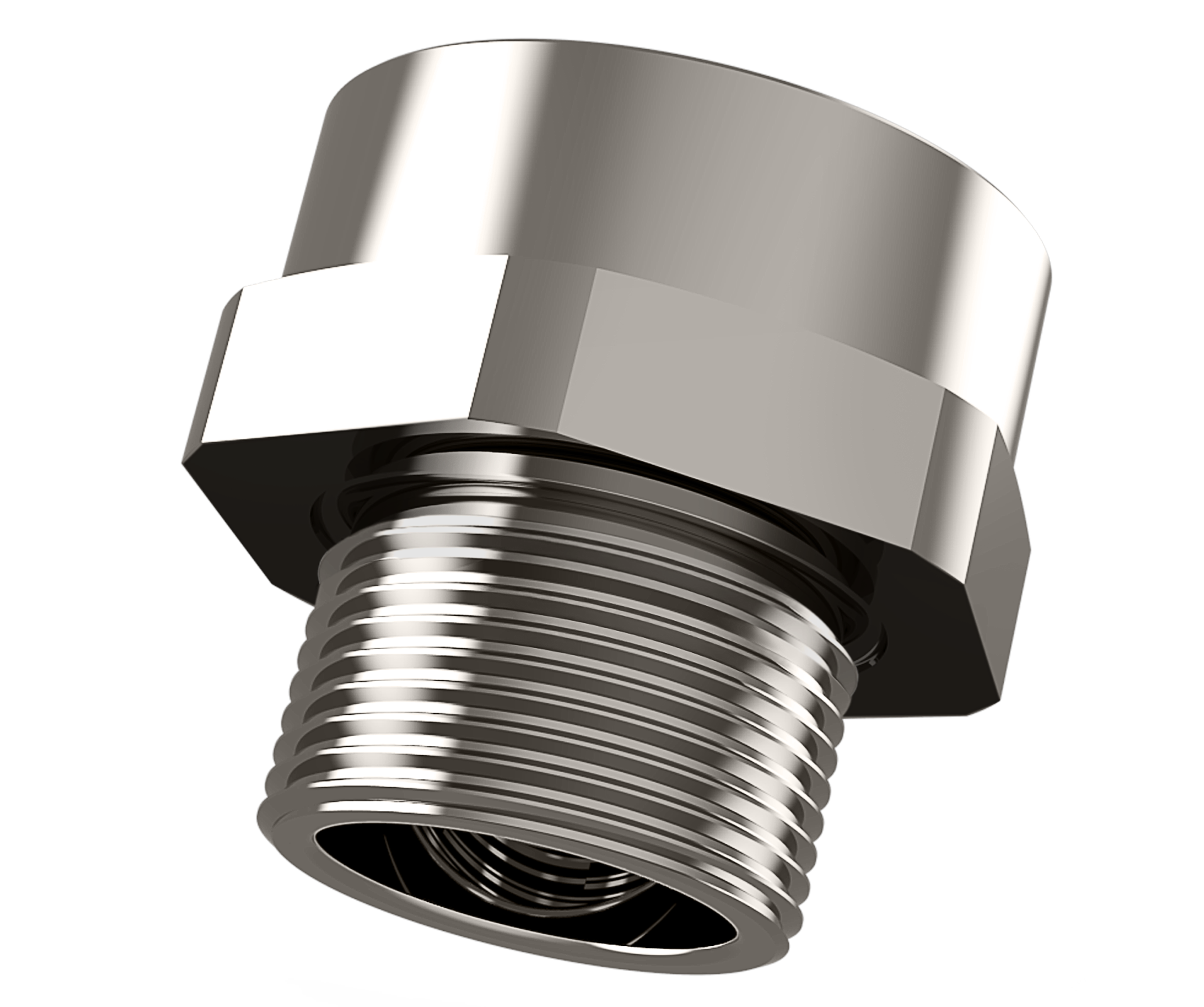

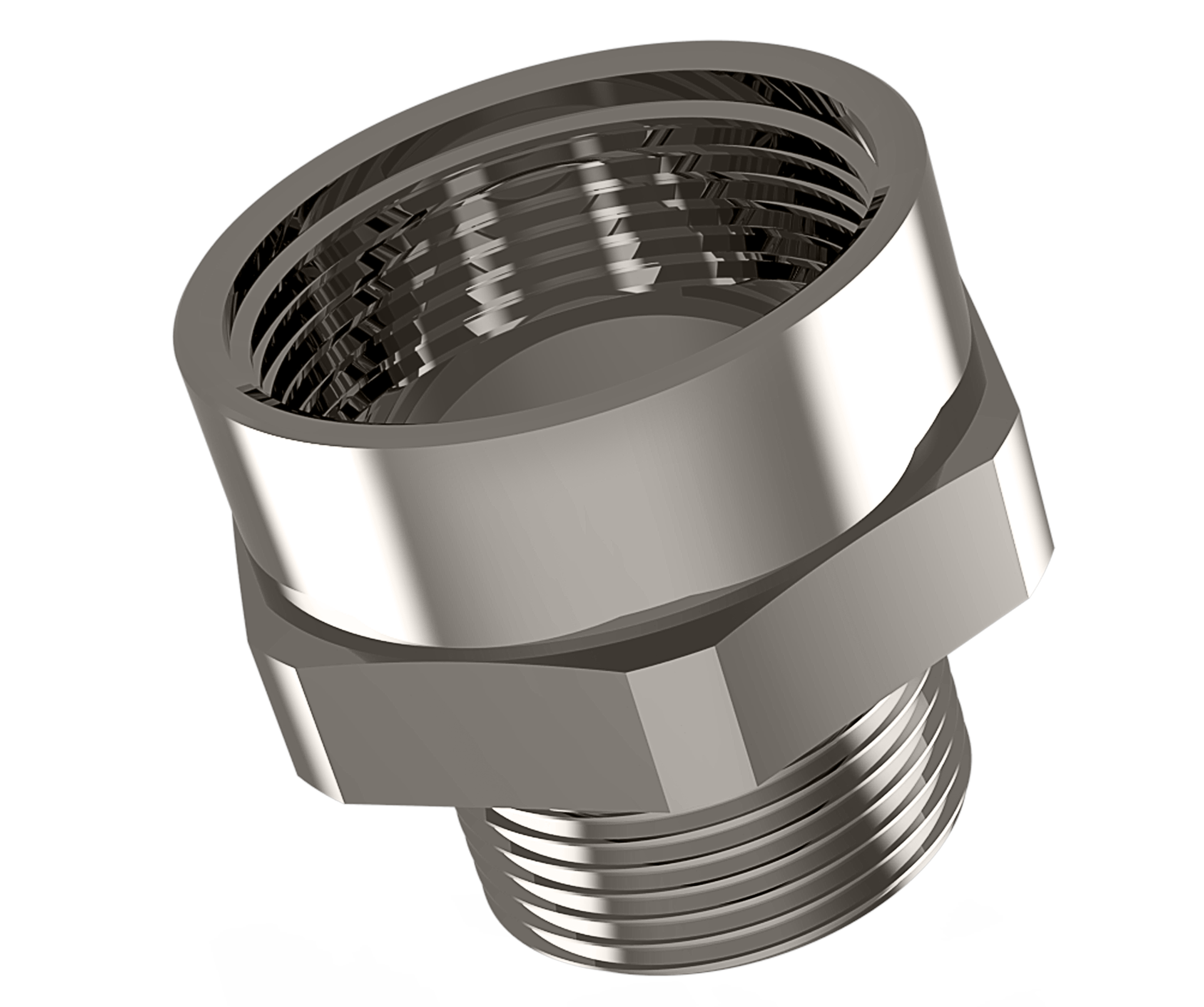

Apus

For applications in explosive environments.

For Group II & III (Gas & Dust) - Ex-d/e.

Enlargers for the transition of different thread types and sizes.

Can be used with intrinsically safe circuits.

Up-to-date international approvals.

Suitable for use in	Group I, Group II, Group III
Equipment Marking	EX I M2 Ex db I Mb, Ex eb I Mb EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Cable Gland Material	Brass, Brass Nickel Plated, Stainless Steel, Aluminium
Seal Material	Chloroprene, Silicone
Operating Temperature	Chloroprene: -40°C to +100°C
Silicone: -60°C to +130°C
Thread Type	Metric, NPT
Other thread types available upon request.
Accessories	Lock nuts, Gaskets (Washers)
Remarks	Accessories must be ordered separately. O-ring available in Metric outer threads.
