Innovation & Quality

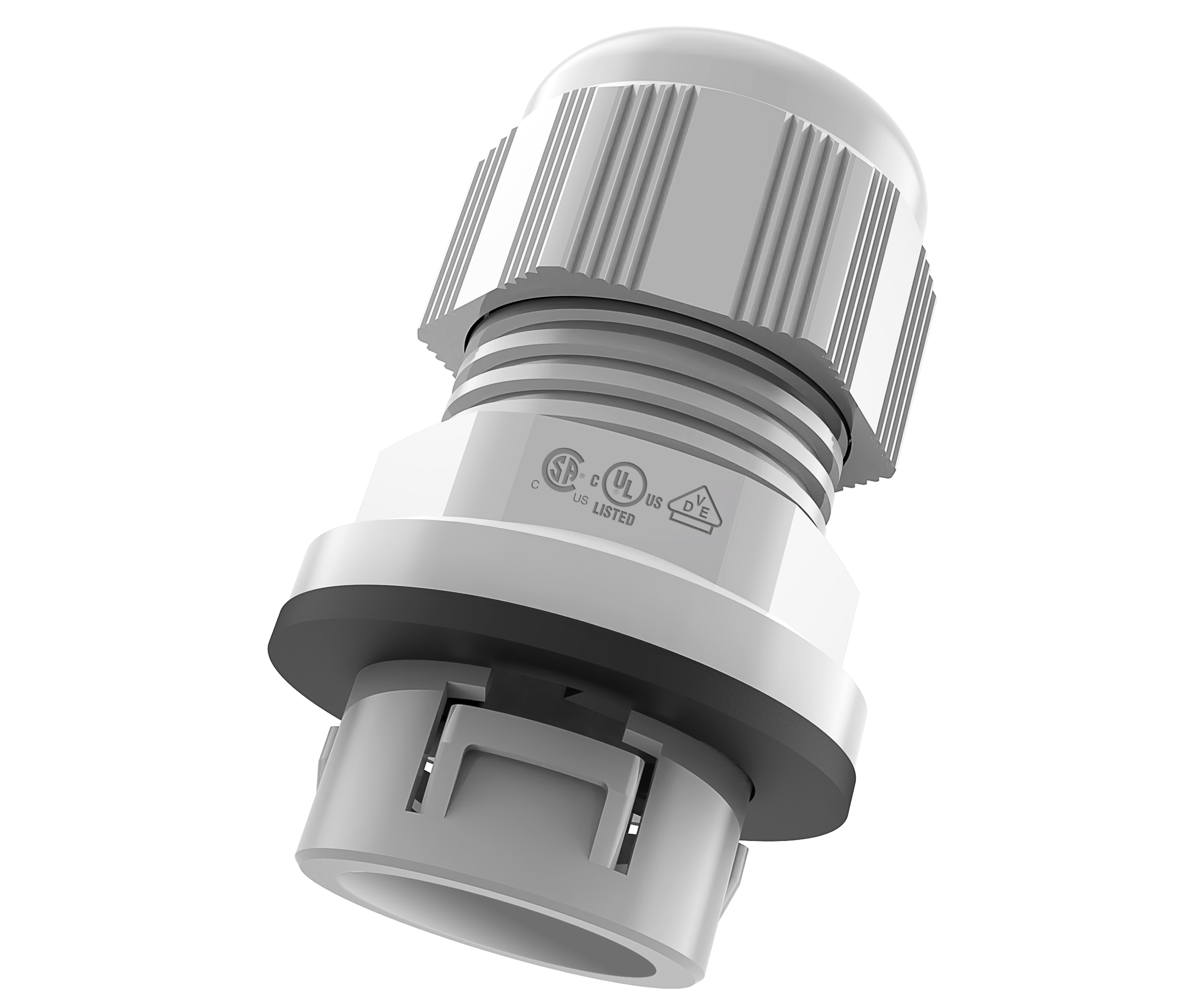

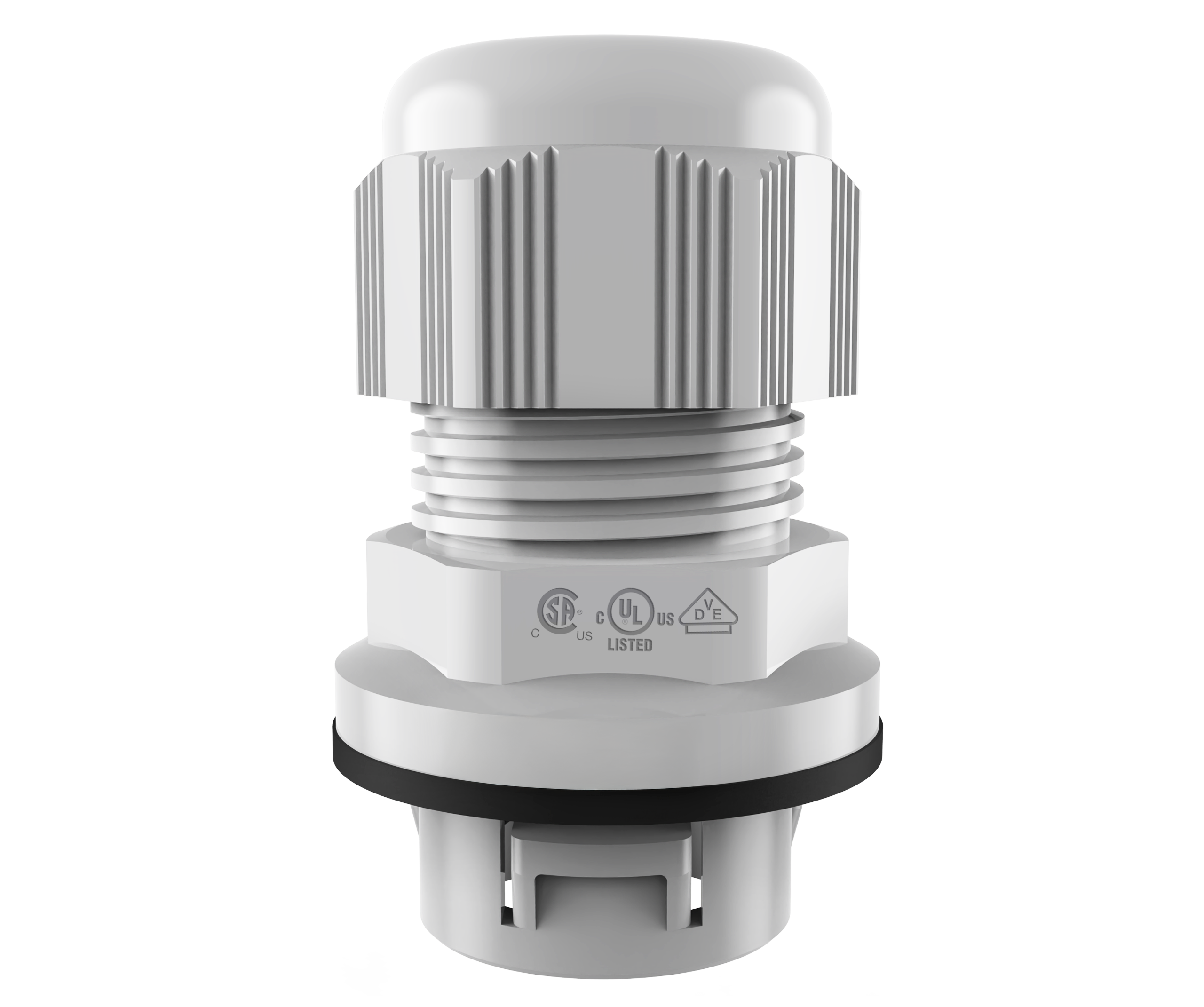

Snap-In Cable Glands, Plastic

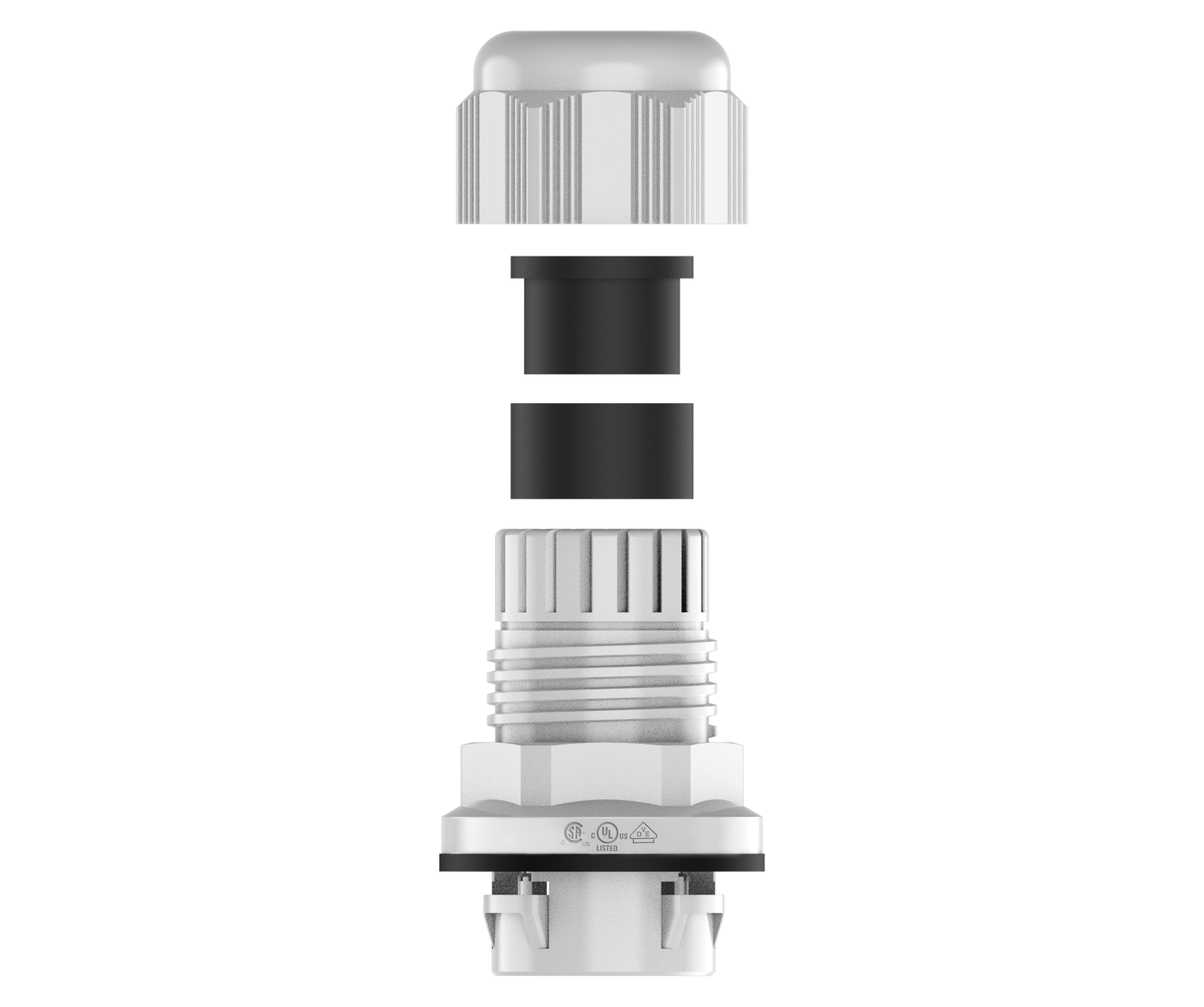

Easy and fast assembly: Push cable gland and turn body clockwise. Mounted in a few seconds.

Suitable for through-holes. No locknut required

UL and VDE certified along with various other approvals - see technical data for full details

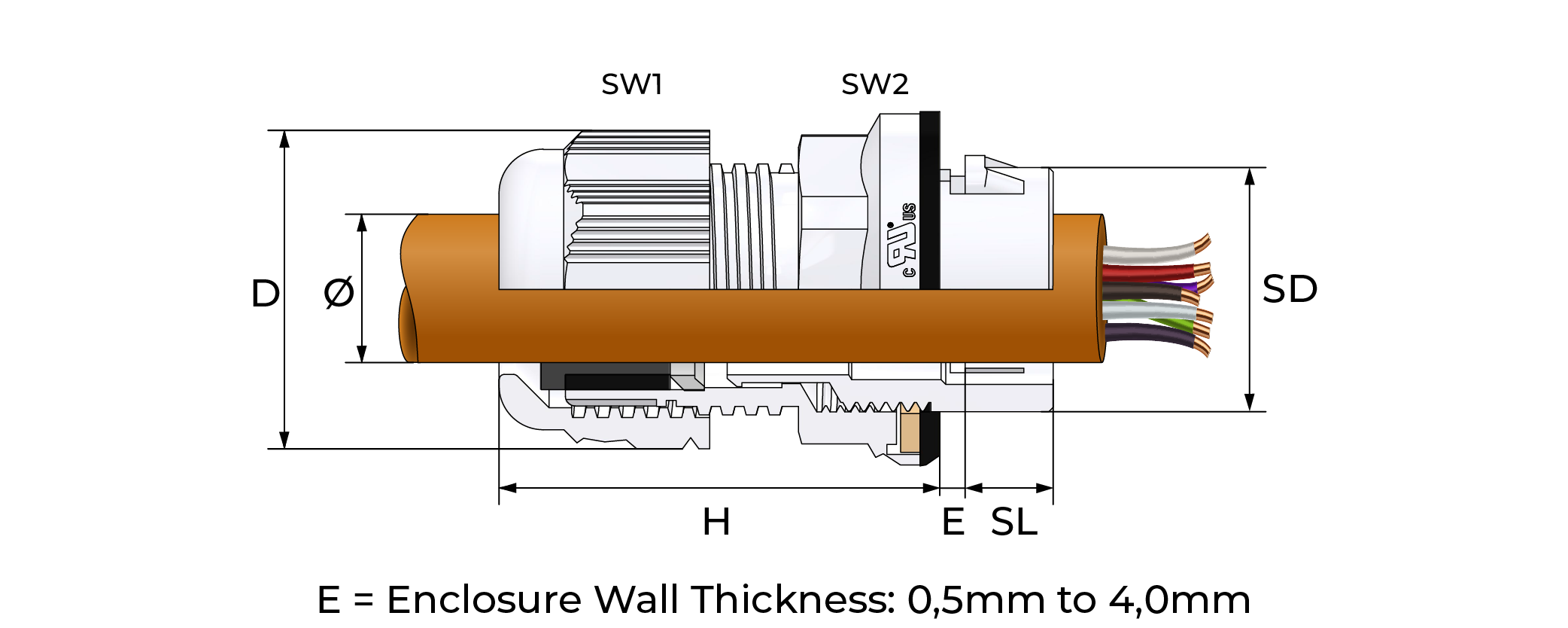

For wall thickness 0,5 mm to 4,0 mm.

High quality strain relief and sealing, reliable performance for standard industrial applications.

Easy disassembly (with separate tool).

Cable Gland Material	PA 6 (Polyamide 6)
Gasket Material	Chloroprene
Seal Material	Chloroprene
Ingress Protection Rating	IP68 - 5 Bar - 30 min, IP66
Type Rating	TYPE 1, 4X
Flammability	V2 according to UL94
Operating Temperature	Permanent -20 °C to +100 °C
Intermittent -40 °C to +150 °C
Cable Type	Non armoured
