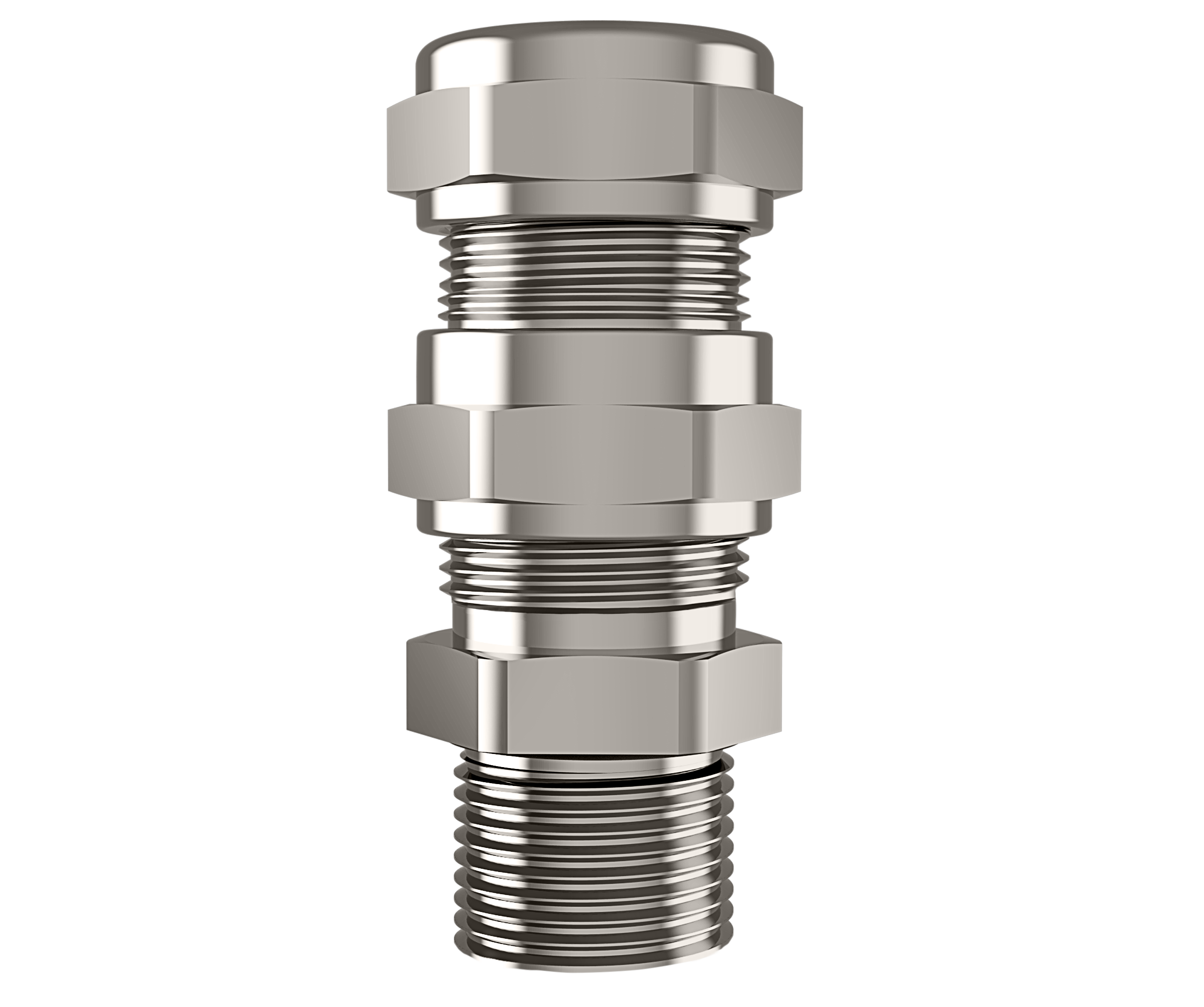

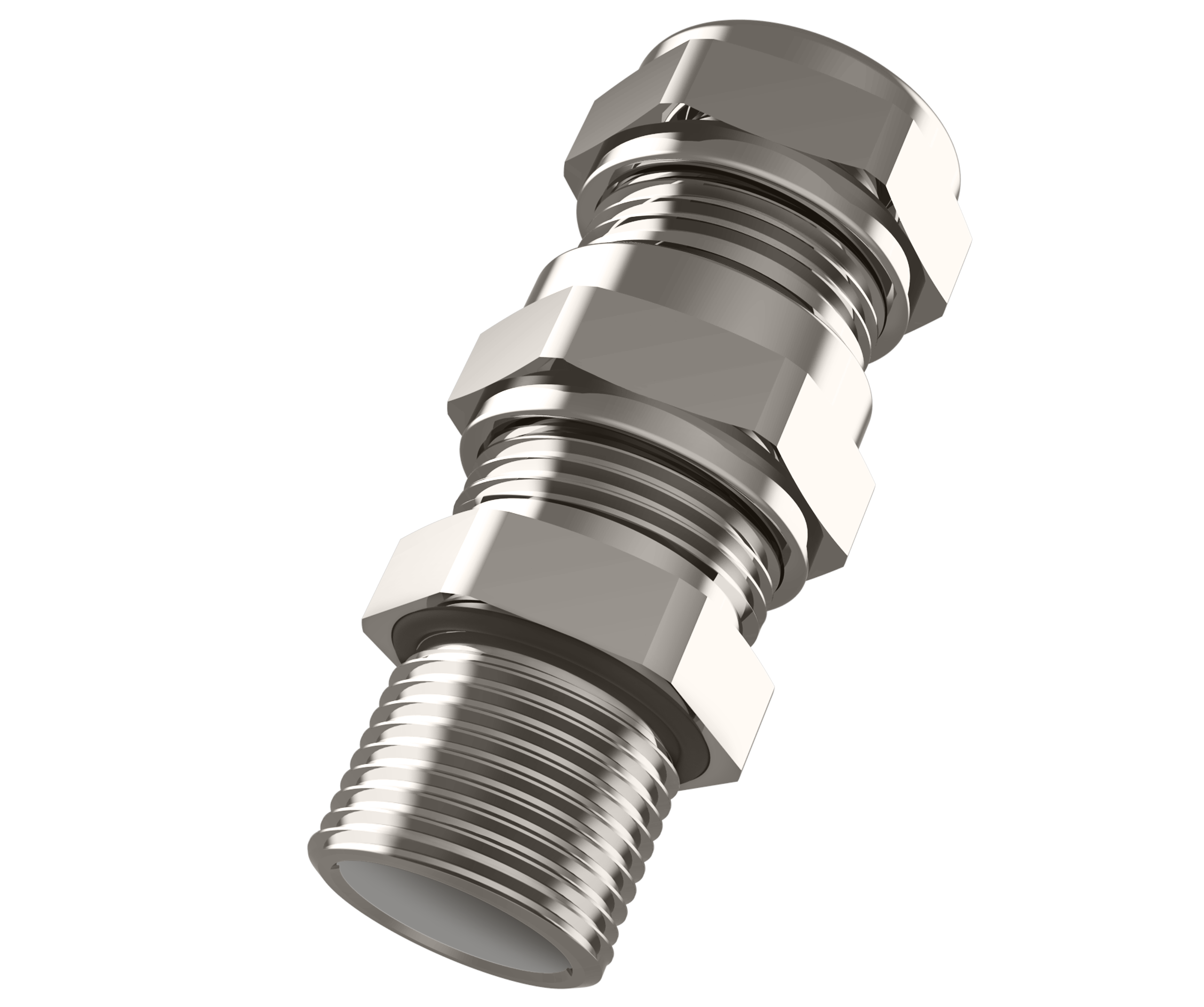

Orion

Group I and Group II double sealing hazardous area cable gland.

Suitable for armoured cables (SWA, AWA.)

The Orion is Exe, Exd and Ext certified and suitable for installation in zones 1/21 and zones 2/22 hazardous areas.

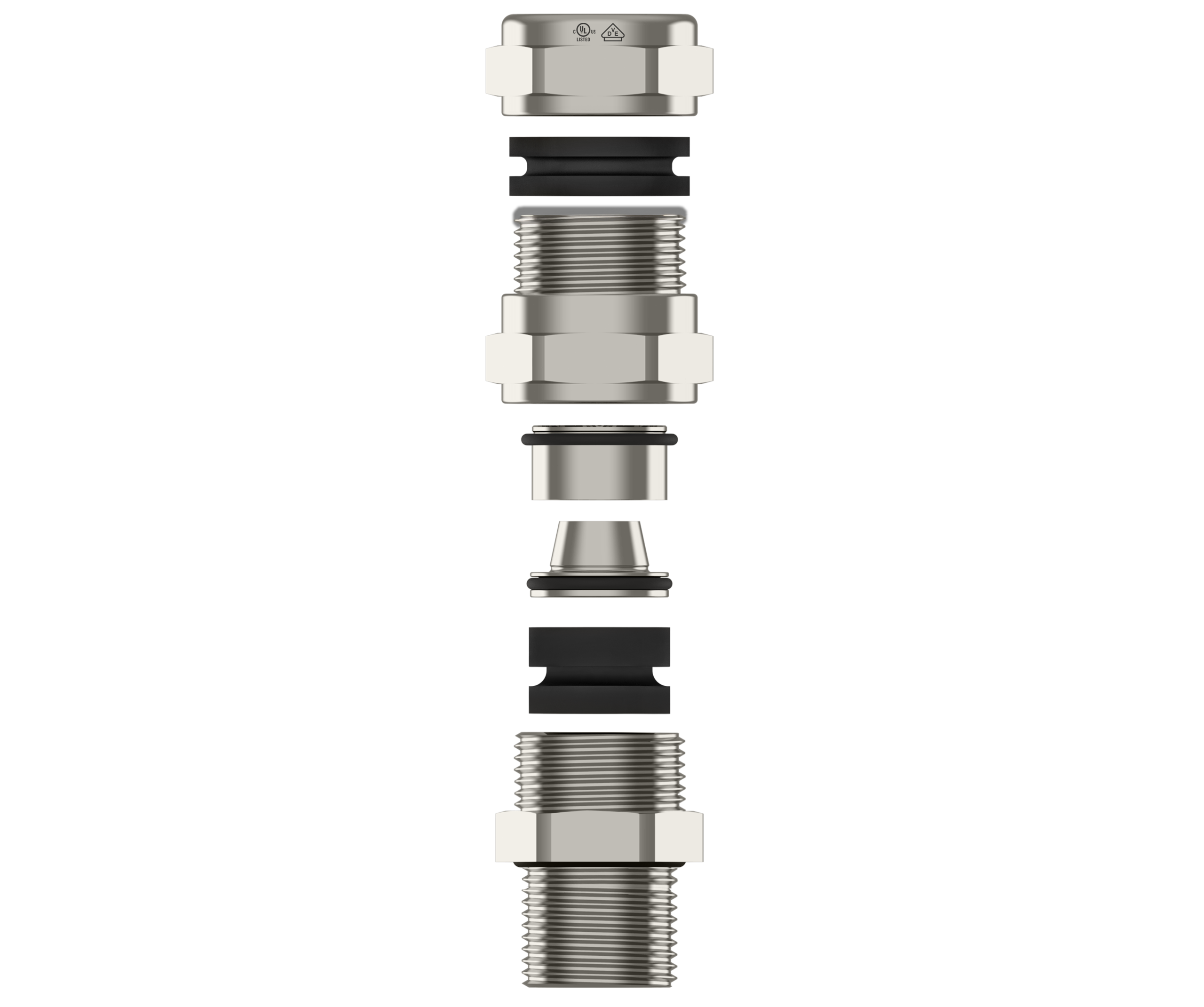

The gland provides both a flameproof seal on the inner cable sheath and an IP and cable retention seal on the outer jacket.

ATEX/IECEx certified along with various other approvals - see technical data for full details.

Available in brass, nickel plated brass, stainless steel or aluminium with both Metric and NPT threadforms.

Other threadforms available on request.

Suitable for use in	Group I, Group II, Group III
Equipment Marking	EX I M2 Ex db I Mb, Ex eb I Mb EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Type Rating	TYPE 4X
Cable Gland Material	Brass, Brass Nickel Plated, Stainless Steel, Aluminium
Seal Material	Chloroprene, Silicone
Operating Temperature	Chloroprene: -40°C to +100°C
	Silicone: -60°C to +130°C
	For cable glands with Product code LT, the upper temperature is limited to +80°C
Thread Type	Metric, NPT
	Other thread types available upon request.
Cable Type	Armoured (SWA, AWA, STA), Braided, Shielded
Accessories	Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags
Remarks	Accessories must be ordered separately. O-ring available in Metric outer threads.

ATEX Certificate	CESI 13 ATEX 033X
ATEX Standards	EN 60079-0, 1, 7, 31
IECEx Certificate	IECEx CES 13.0013X
IECEx Standards	IEC 60079-0, 1, 7, 31
TR CU (EAC)	No TC RU C-TR.AA87.B.01120/23
TR CU Standards	ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31
UL Certificate for Industrial Locations	E199260
UL Certificate for Hazardous Locations	E474828
UL Standards	UL514B, UL50E, UL 2225, CSA22.2 No 18.3-12, No 94.2-15, No. 14-18 UL 60079-0, 7, 31
UL Type Rating	TYPE 4X
INMETRO Certificate	DNV 21.0184 X
INMETRO Standards	ABNT NBR IEC 60079-0, 1, 7, 31
Marine Approval	TAE00003WU
UKCA Certificate	CML 22UKEX1183X
CCC Certificate	No 2021312313000411
ECASEX Certificate	22-08-20314/E22-08-046603/NB0010
