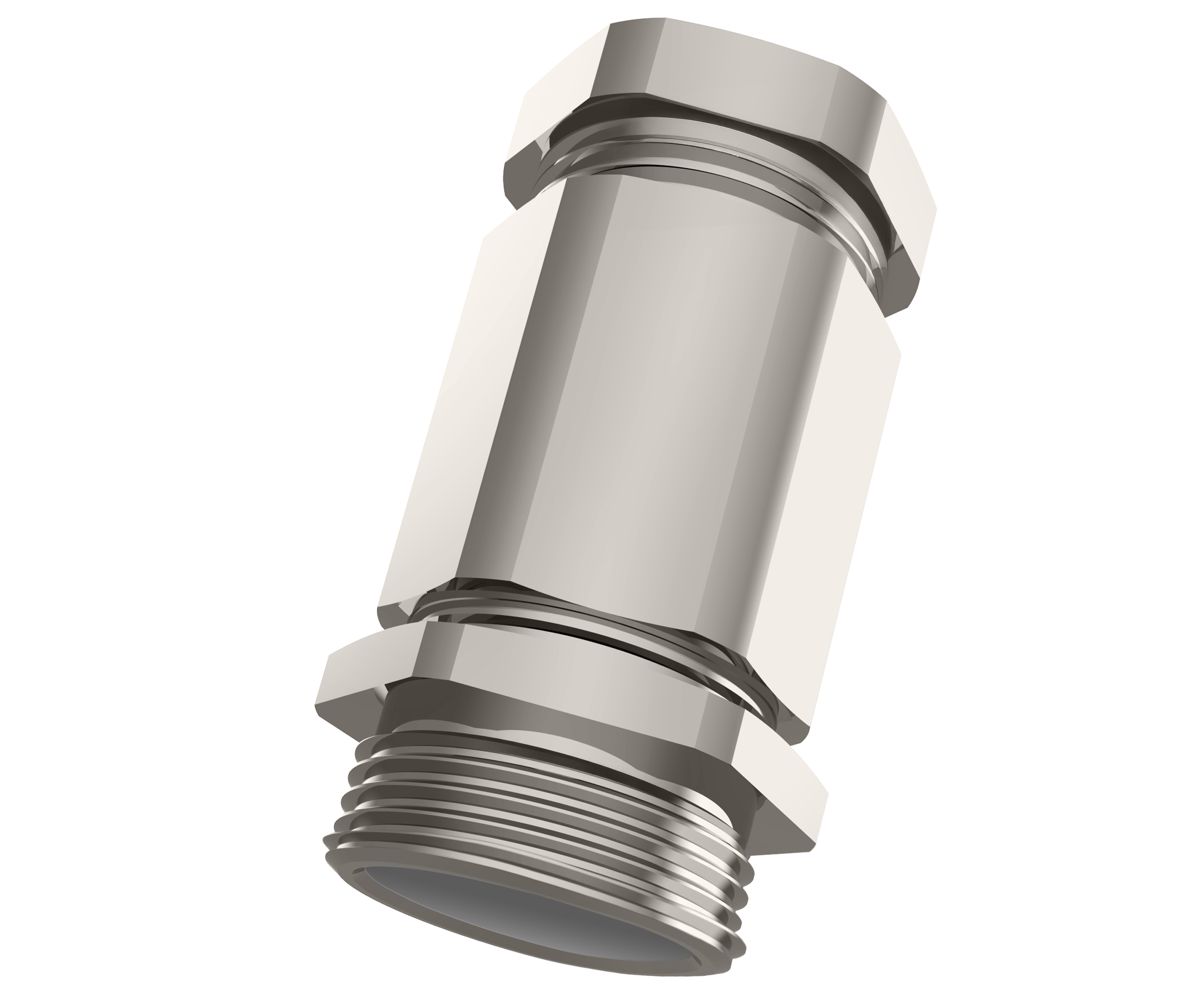

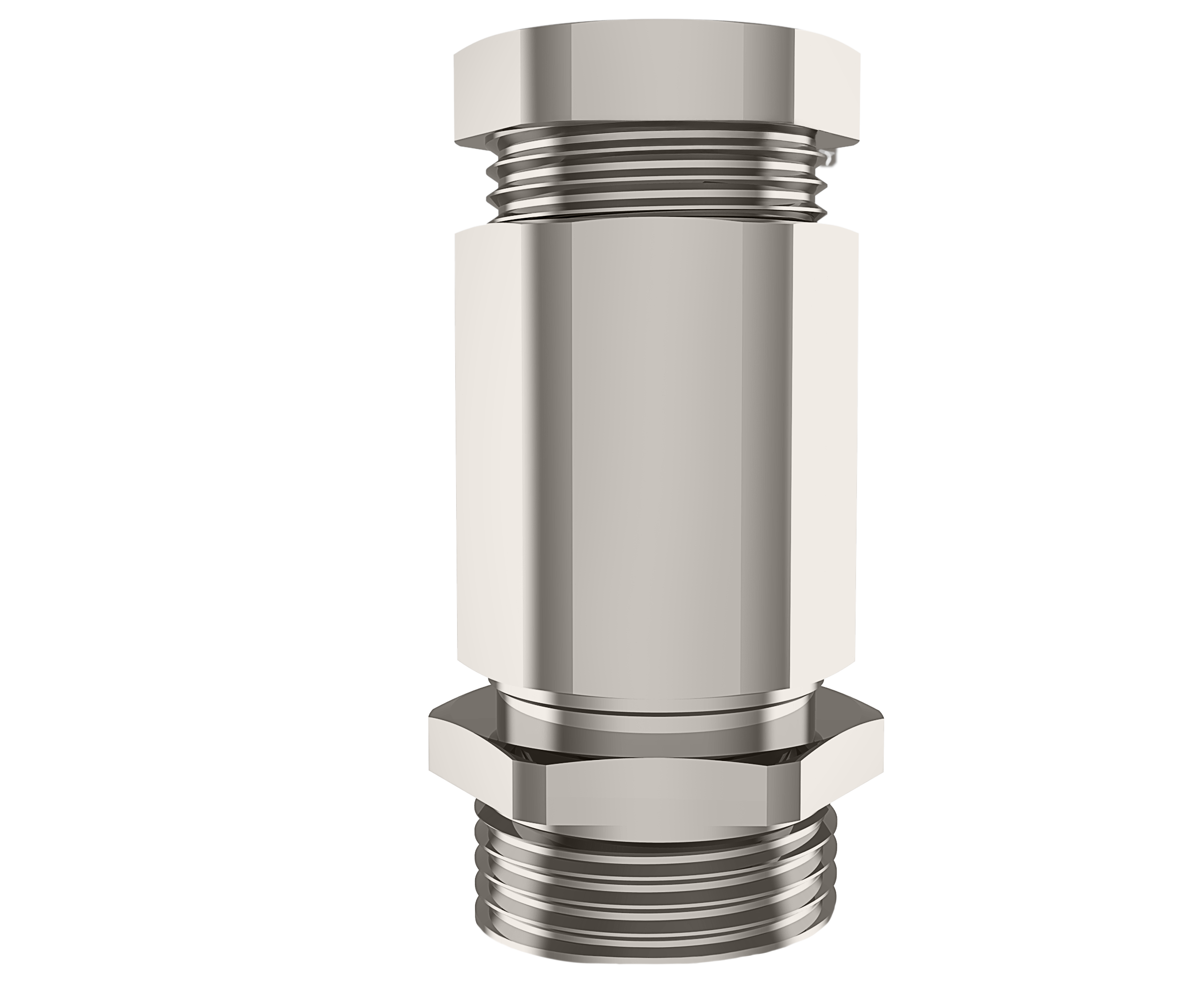

Armoured Cable Gland

Specially designed cable glands for armoured cables.

Large temperature range applications.

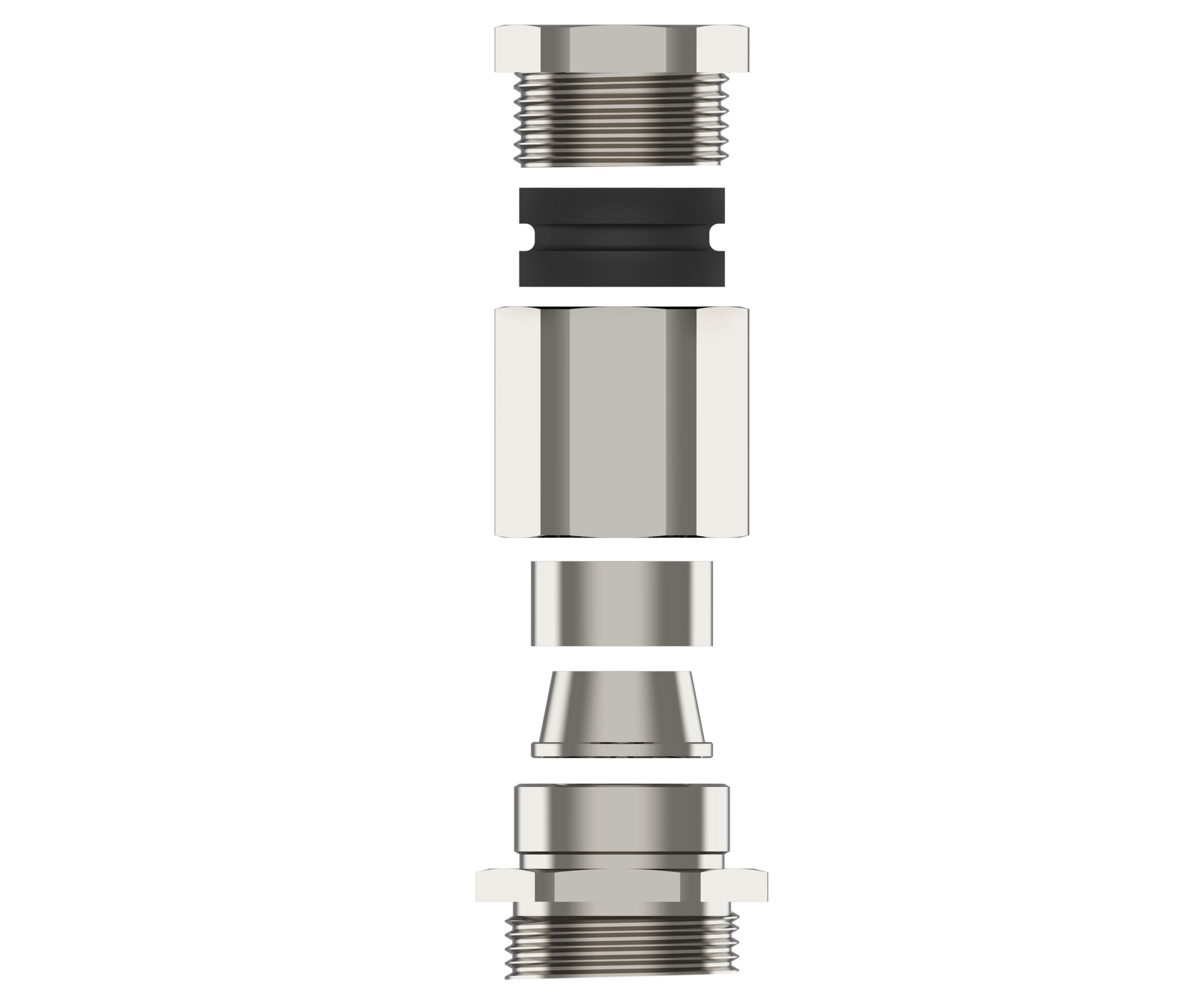

Easy assembly: install cable gland - prepare steel wires - insert cable - tighten cap.

High quality strain relief and sealing, reliable performance for standard industrial applications.

Cable Gland Material Nickel Plated Brass, Stainless Steel
Seal Material Chloroprene
Inner Part Nickel Plated Brass, Stainless Steel
Ingress Protection Rating IP66
Operating Temperature Chloroprene -40 °C to +100 °C
Silicone -60 °C to +180 °C
Thread Type Metric,NPT
Other thread types available upon request.
Cable Type SWA, SWB, AWA, STA and Shielded
Accessories Lock nuts
Shroud
Gaskets (Washers)
Remarks In compliance with DIN EN 62444.
Accessories must be ordered separately.
