BRM Cable Plates

Designed for reliable and secure multi-cable entry through bulkheads, panels, and enclosures, especially when space is limited and as an economical solution.

Suitable for non-connectorised cables.

Compatible with various cable types and diameters, offering flexible configuration options.

High protection against dust, moisture, and water ingress.

Suitable for both indoor and outdoor use in industrial environments.

Easy to install, allowing safe and organized cable management.

Frame Material	PA Glass Fibre Reinforced
Ingress Protection Membrane Material	BUTYL (IIR) RUBBER
Spacer Material	Neoprene (Chloroprene)
Obstruction Membran Material	Polyurethane
Frame Seal Material	Silicone or Polyurethane
Ingress Protection Rating	IP65
Type Rating	1, 4, 4X, 12, 13
Flammability	HB Acc. To UL94
Temperature Range	-40 °C to +80 °C

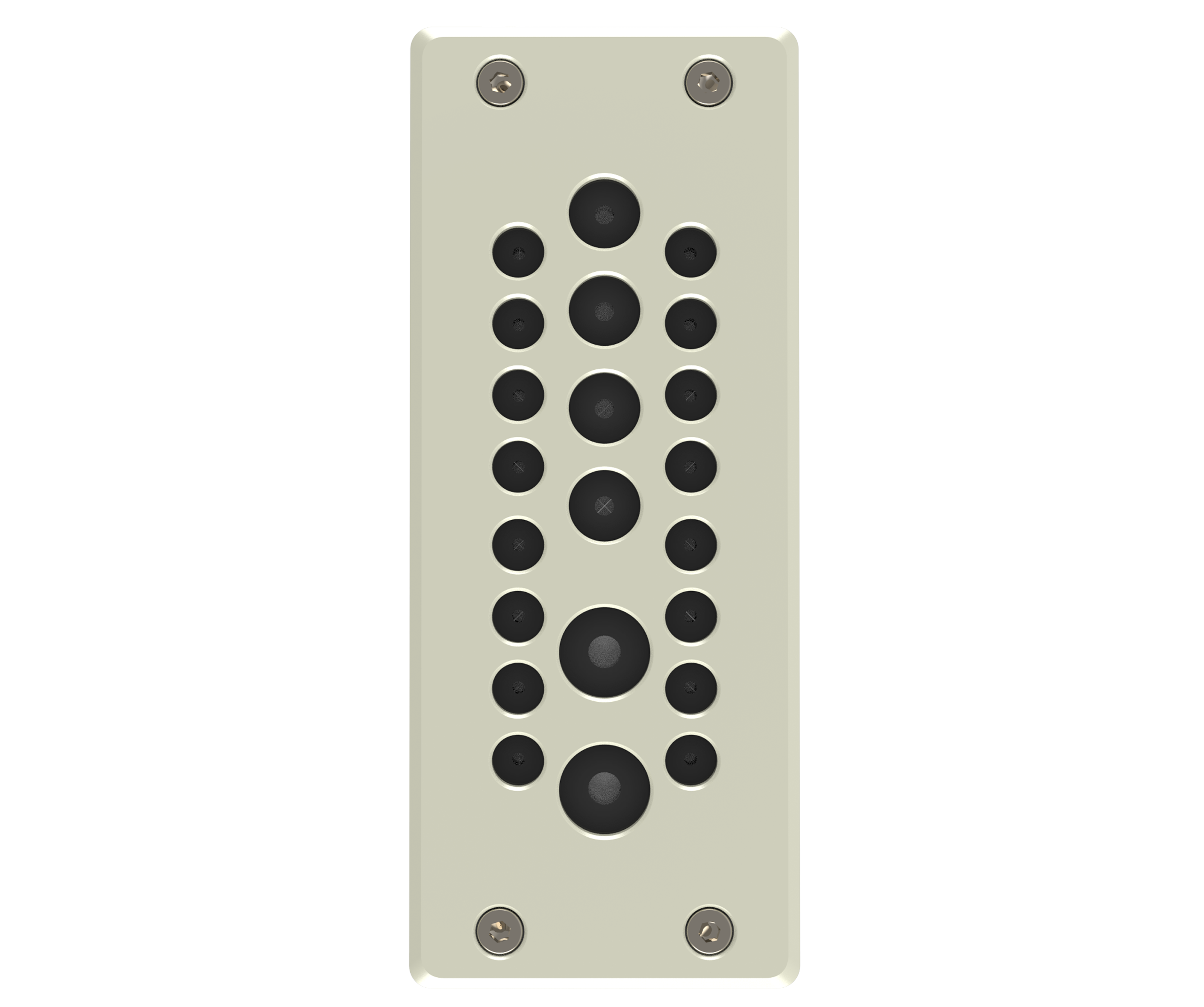

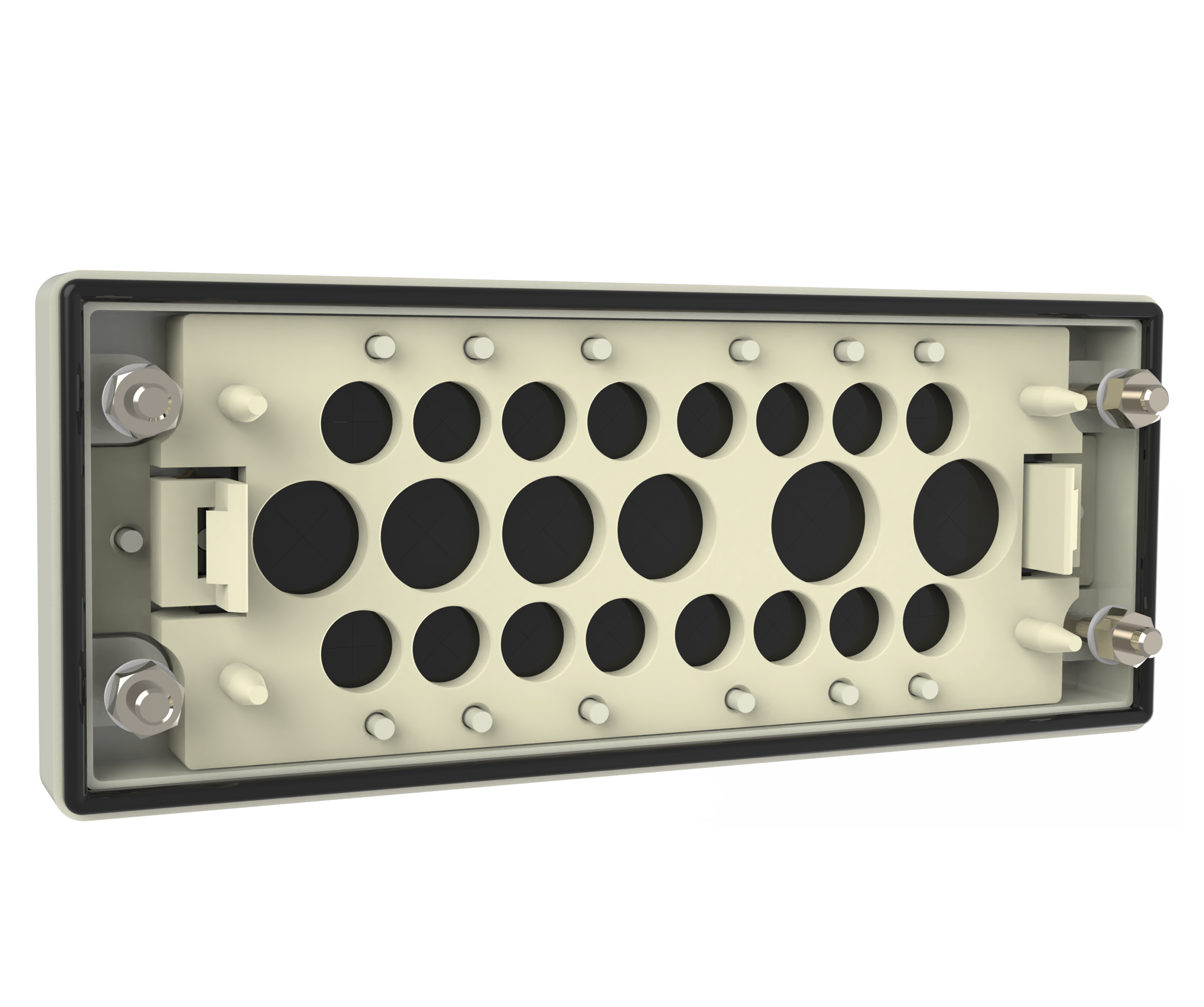

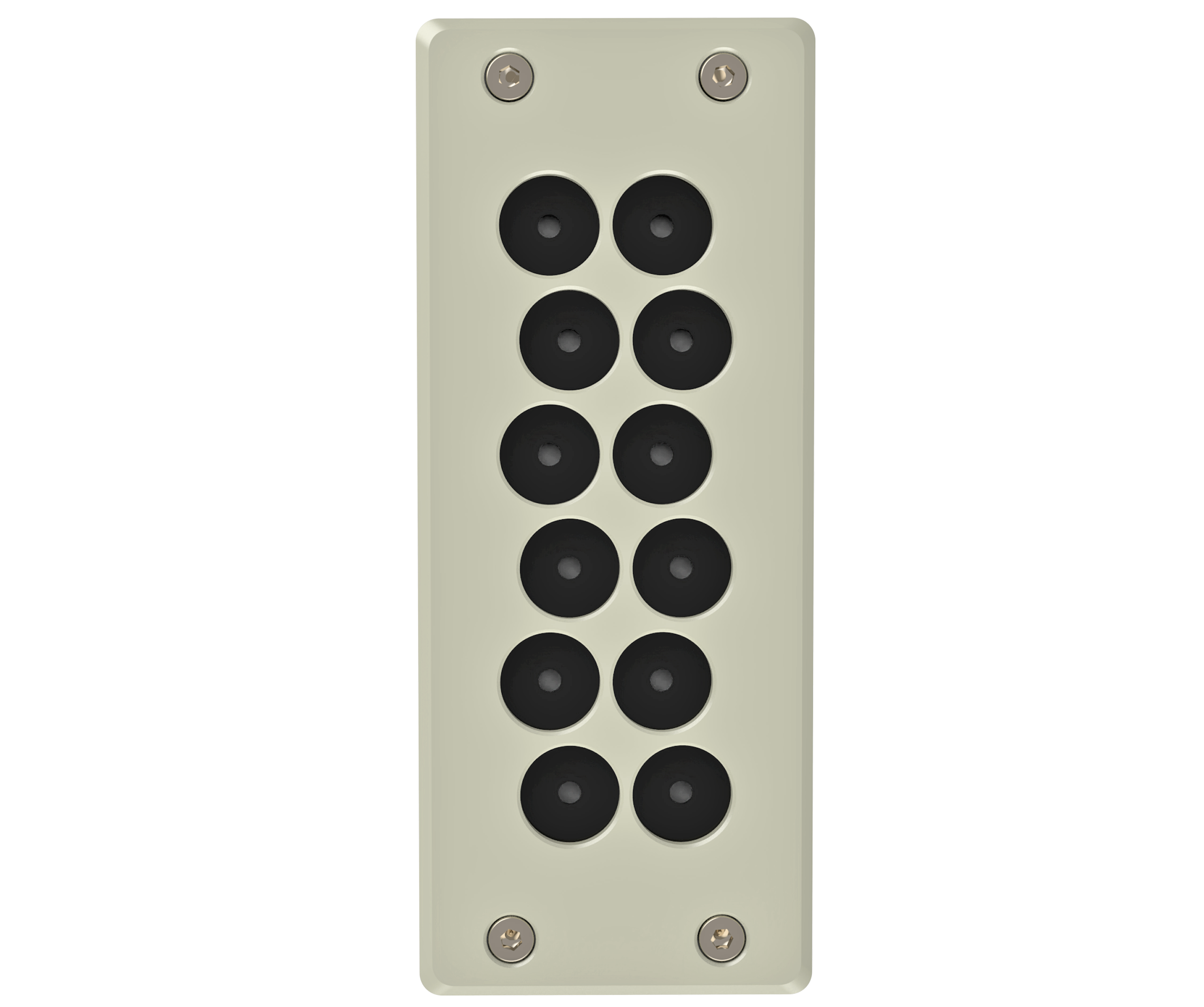

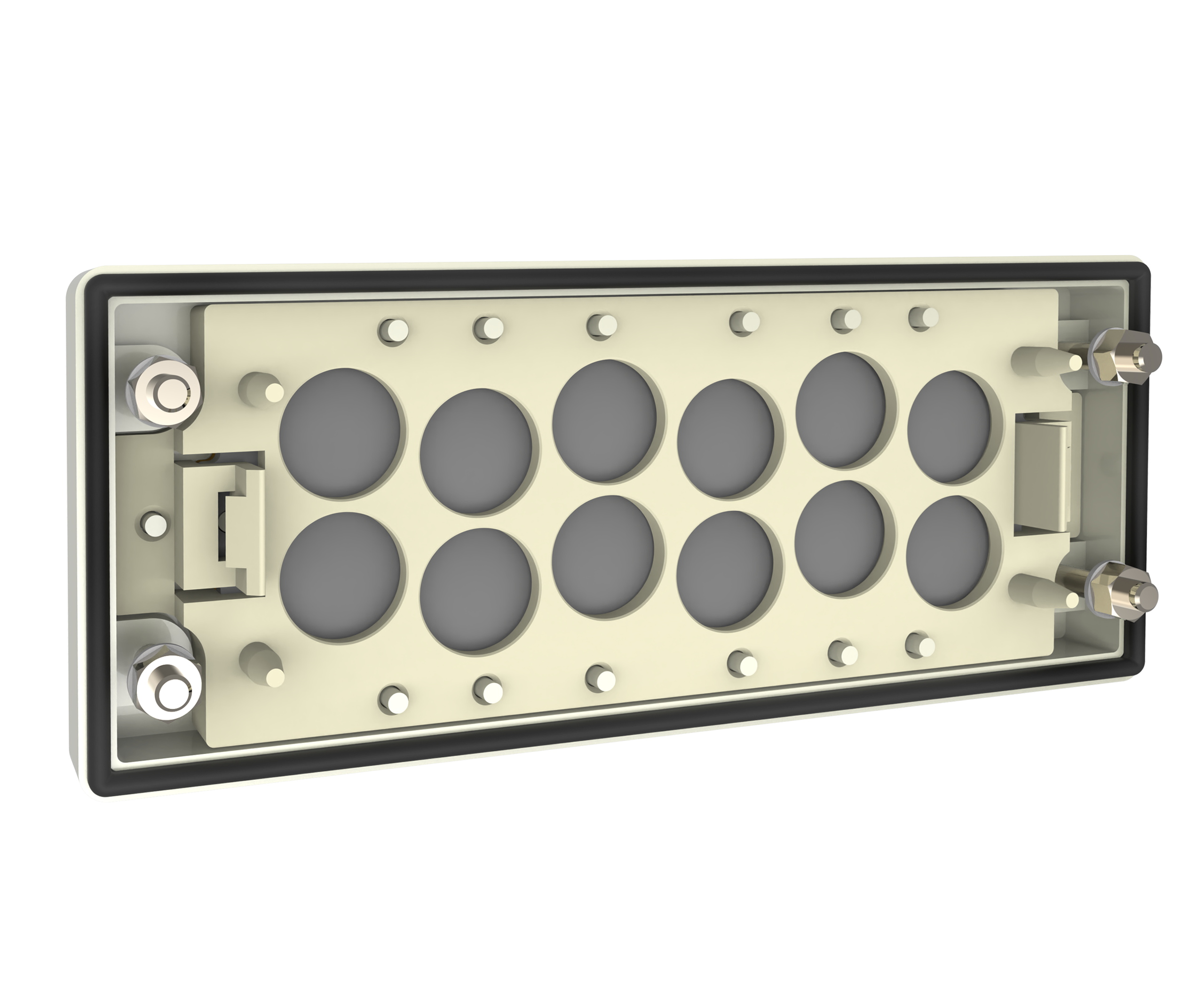

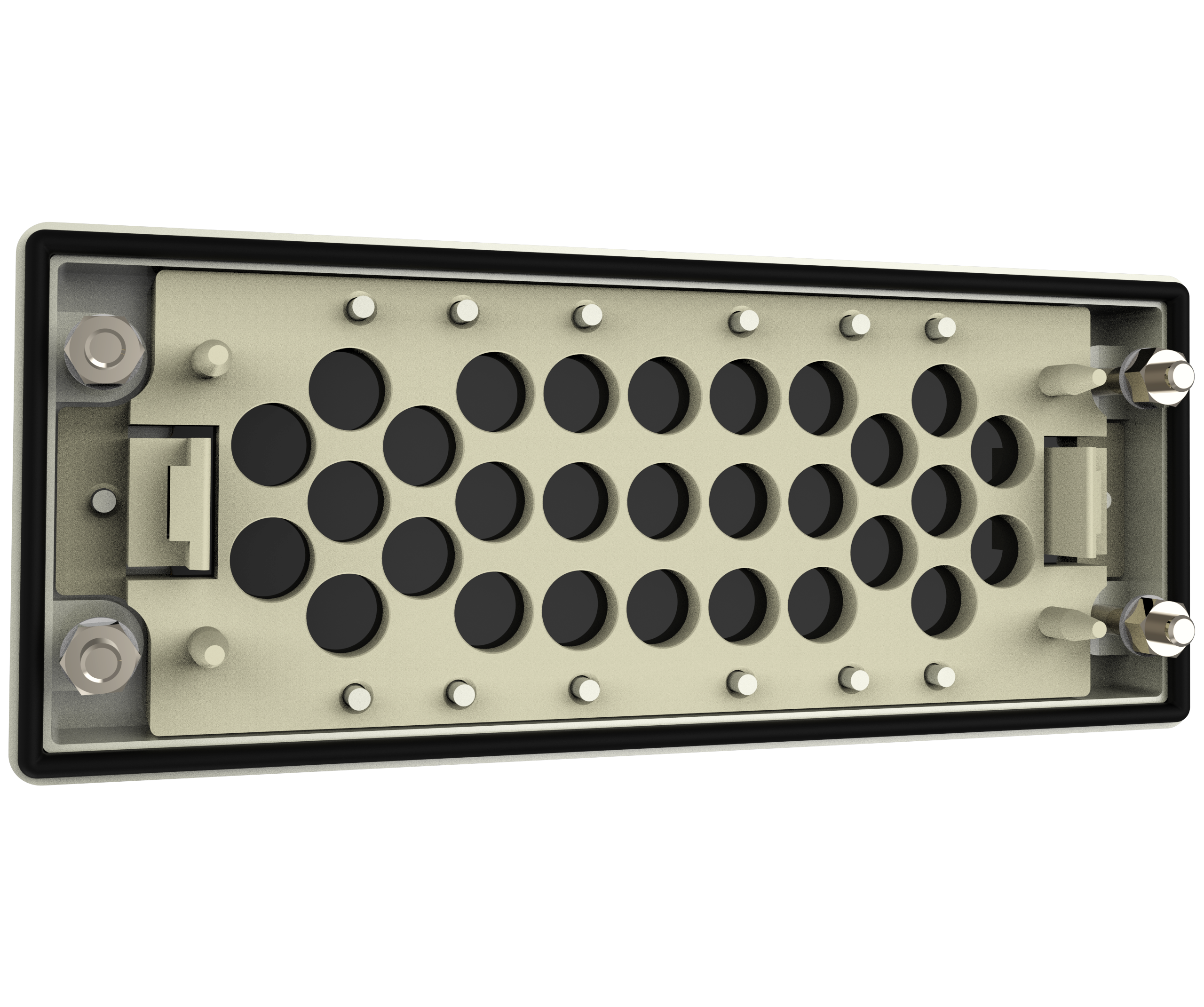

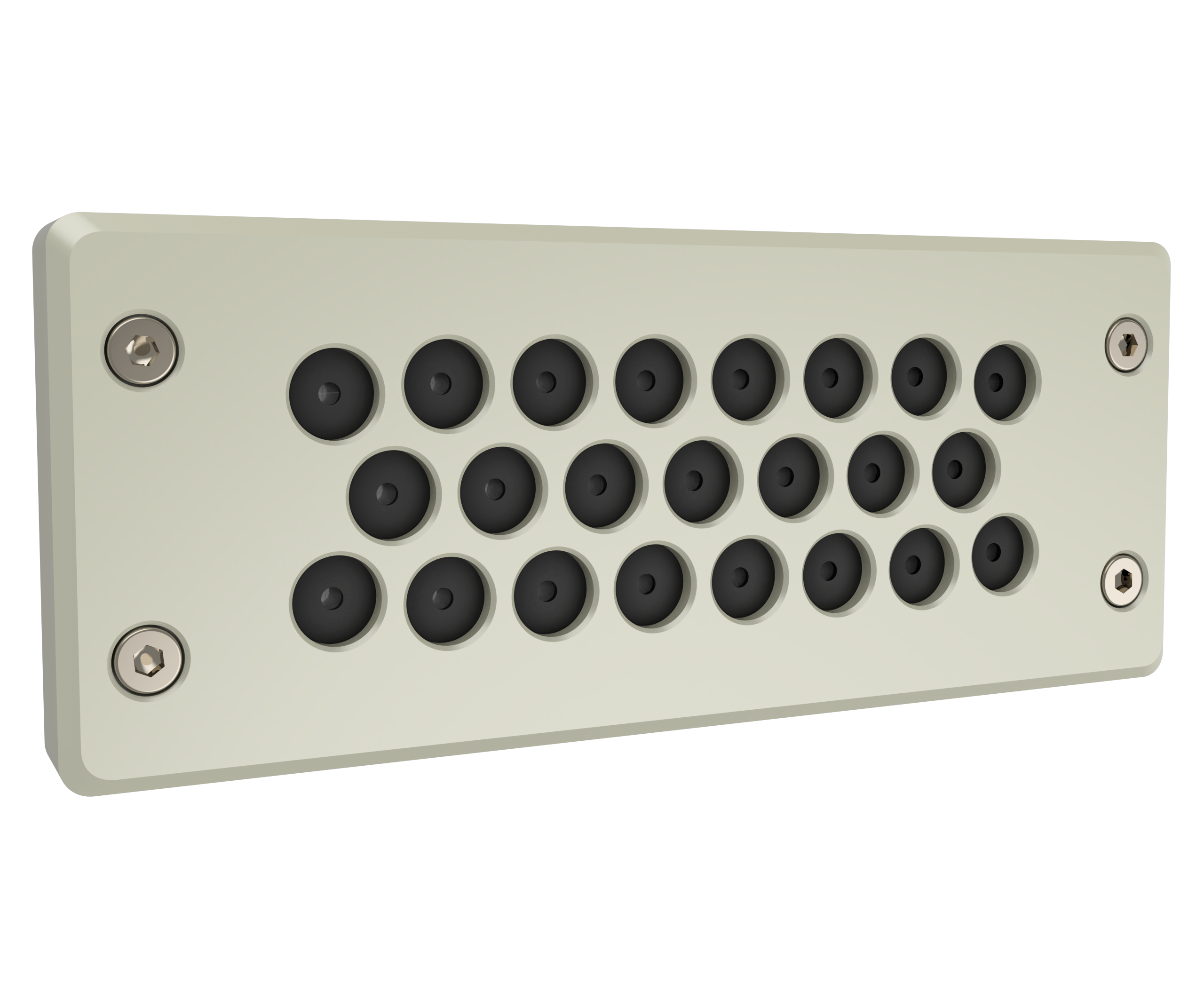

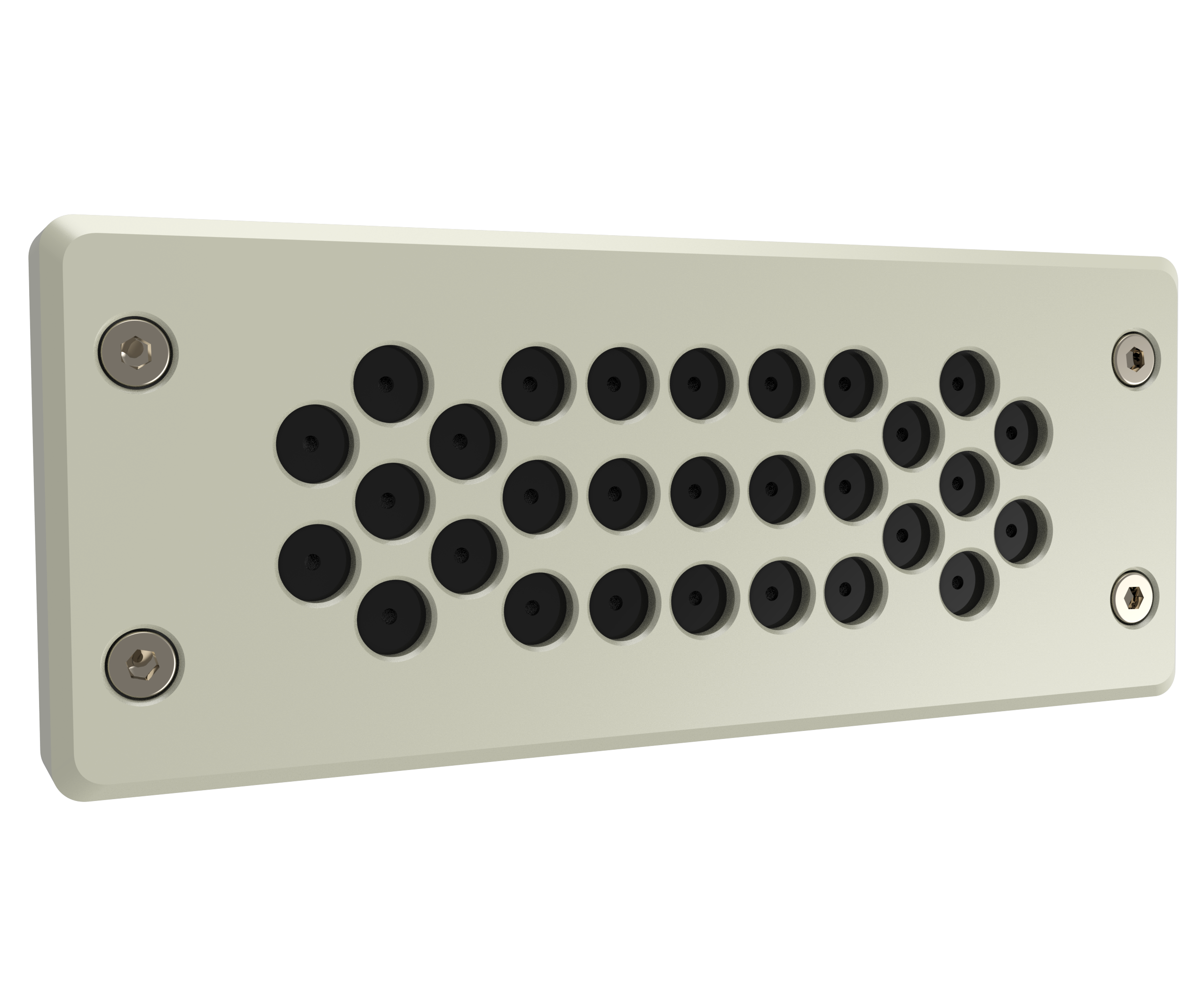

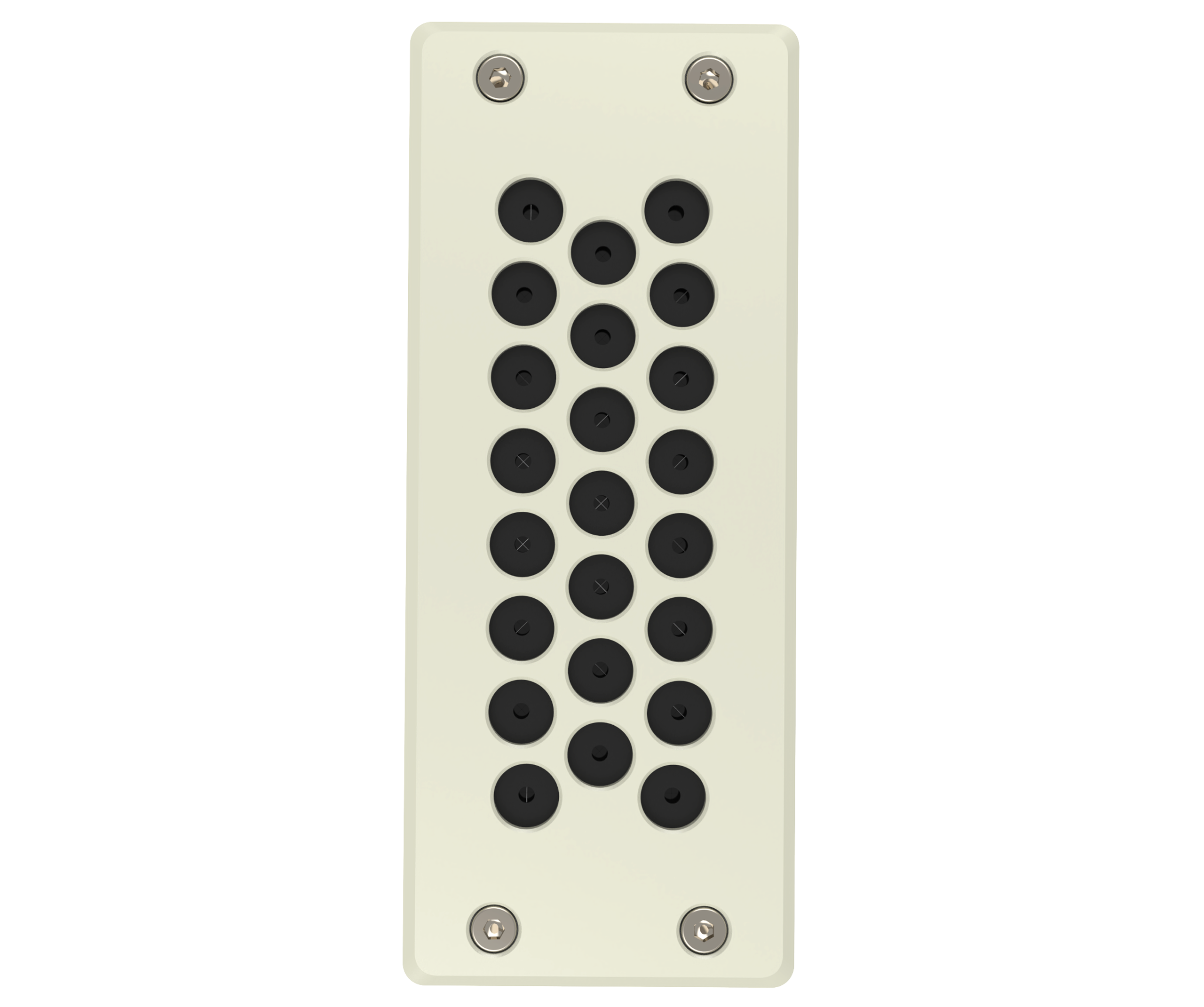

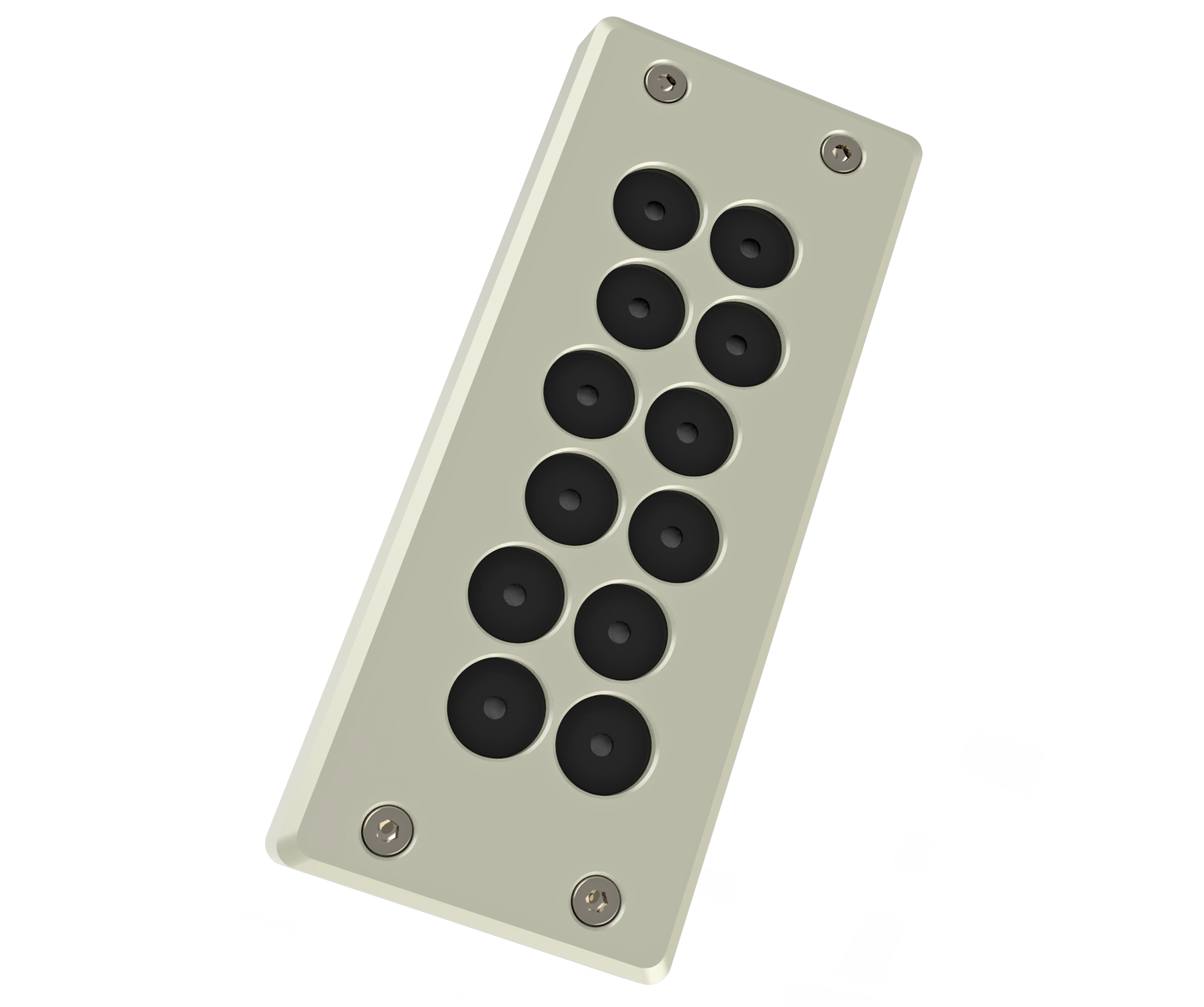

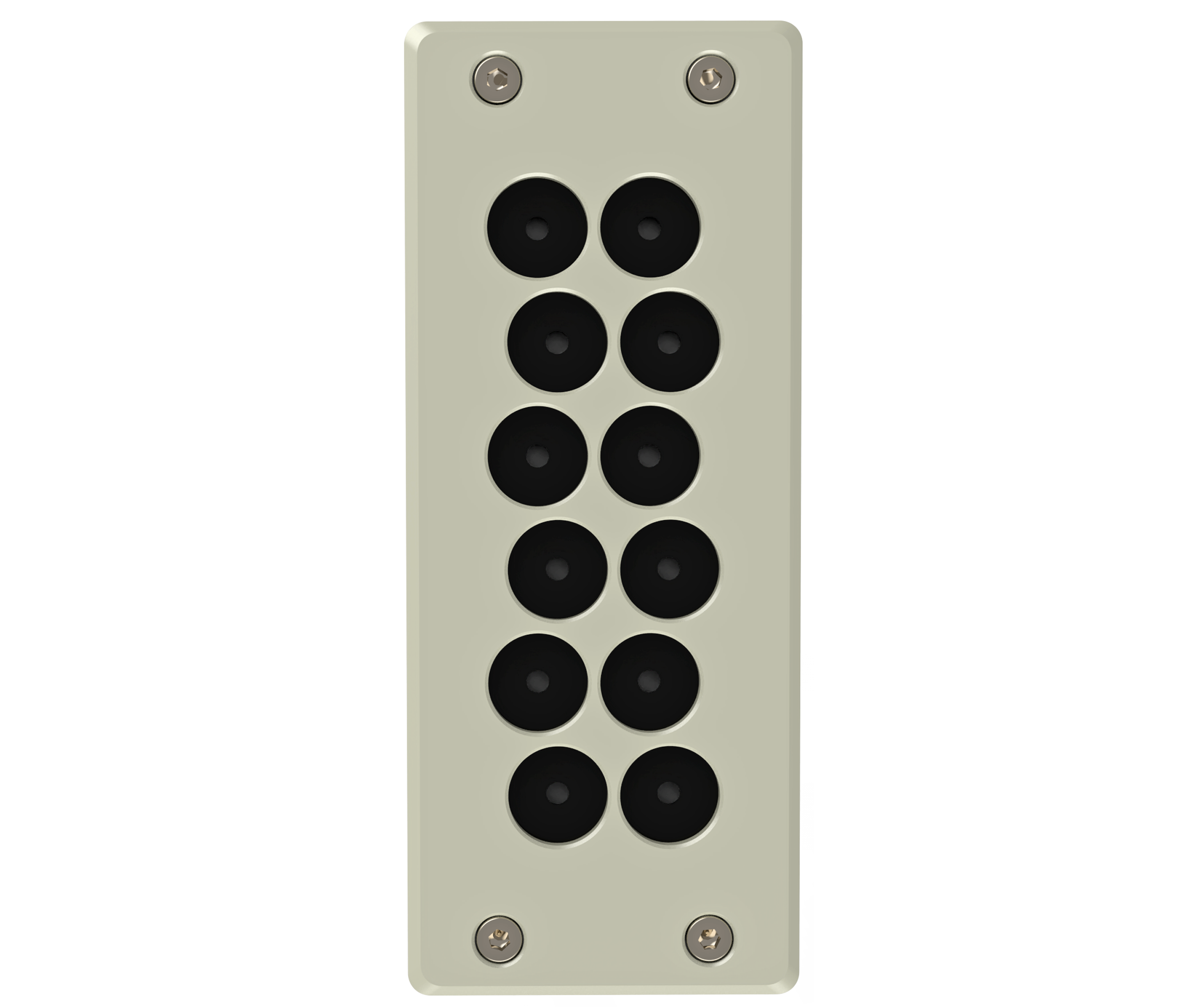

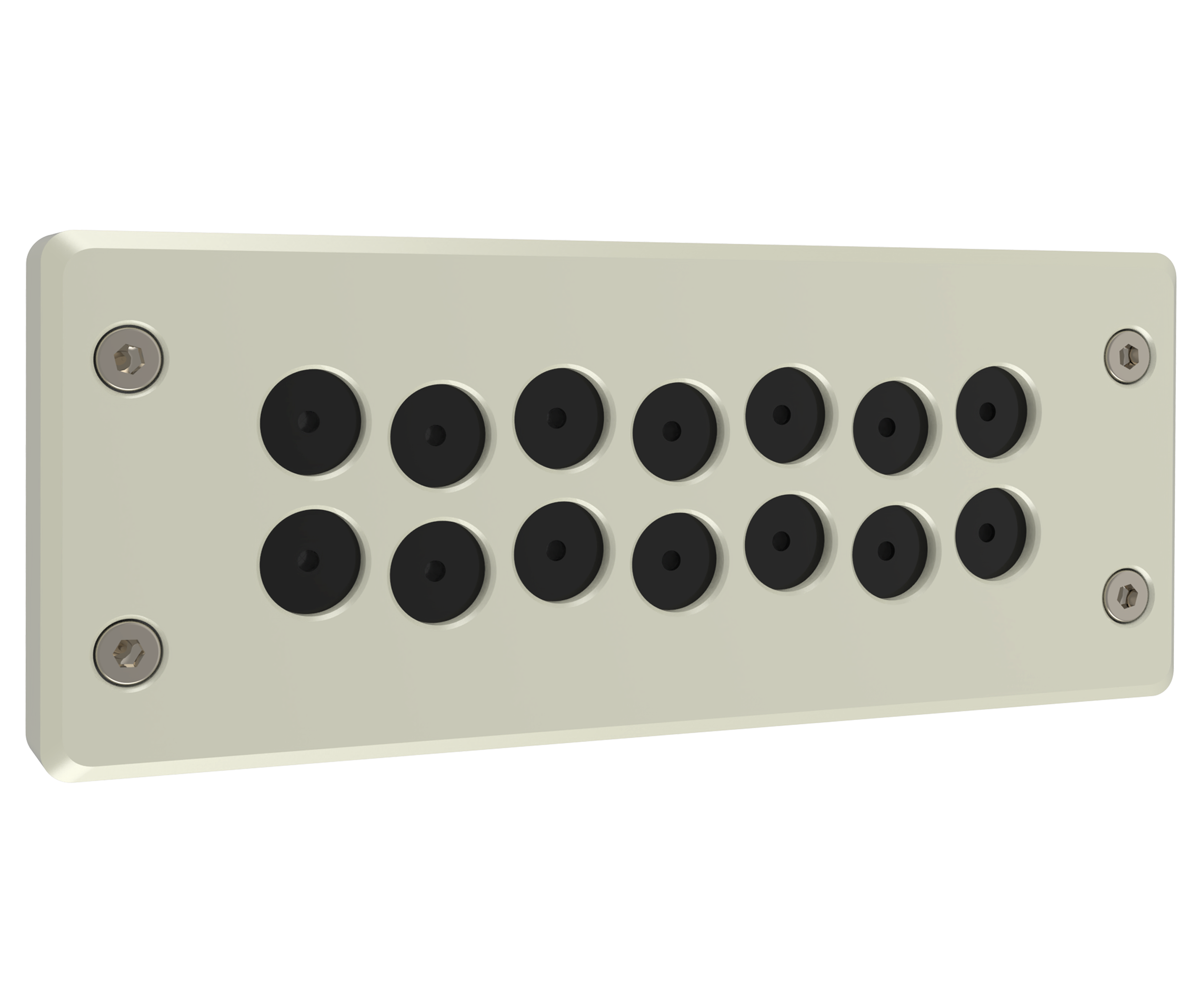

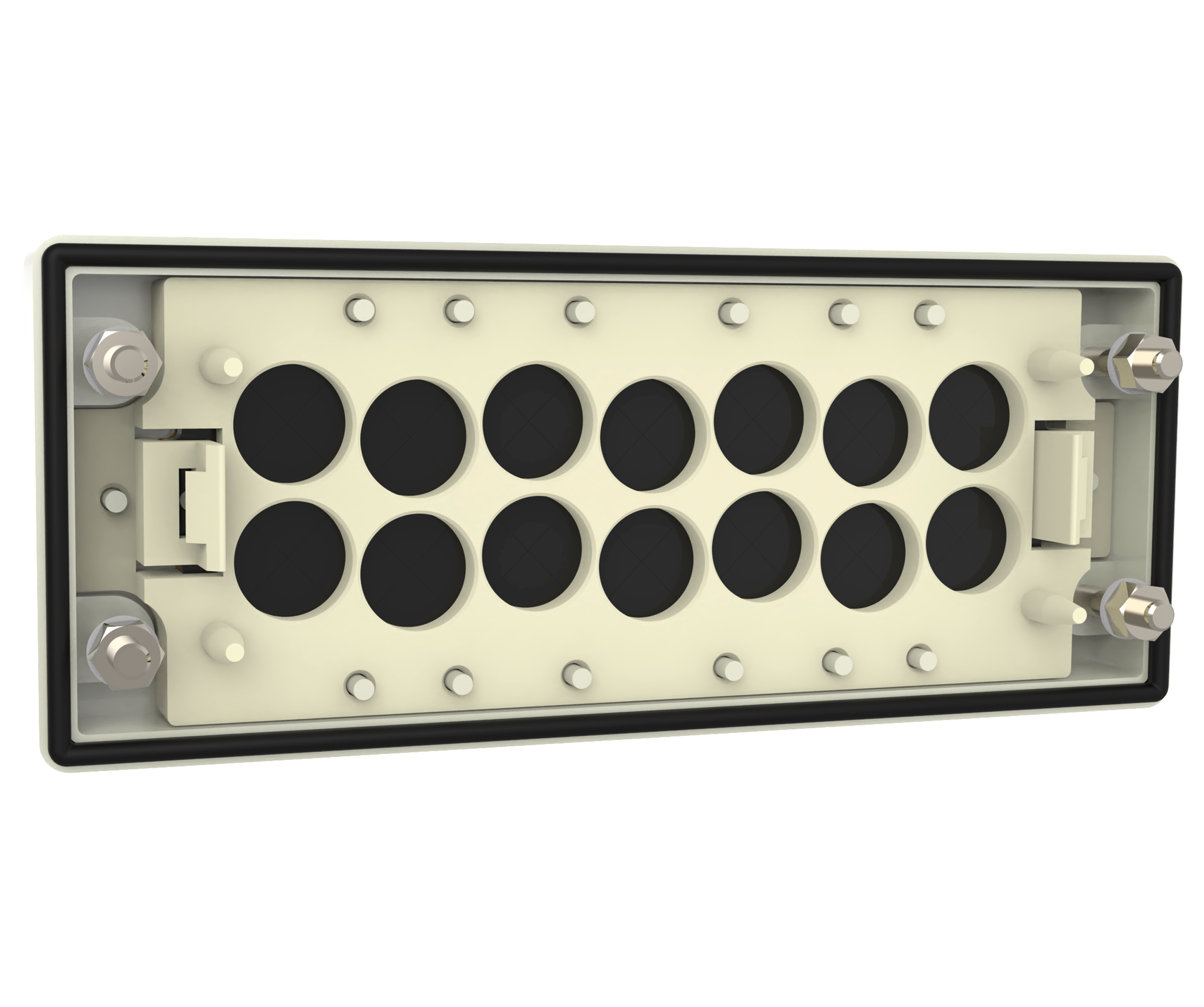

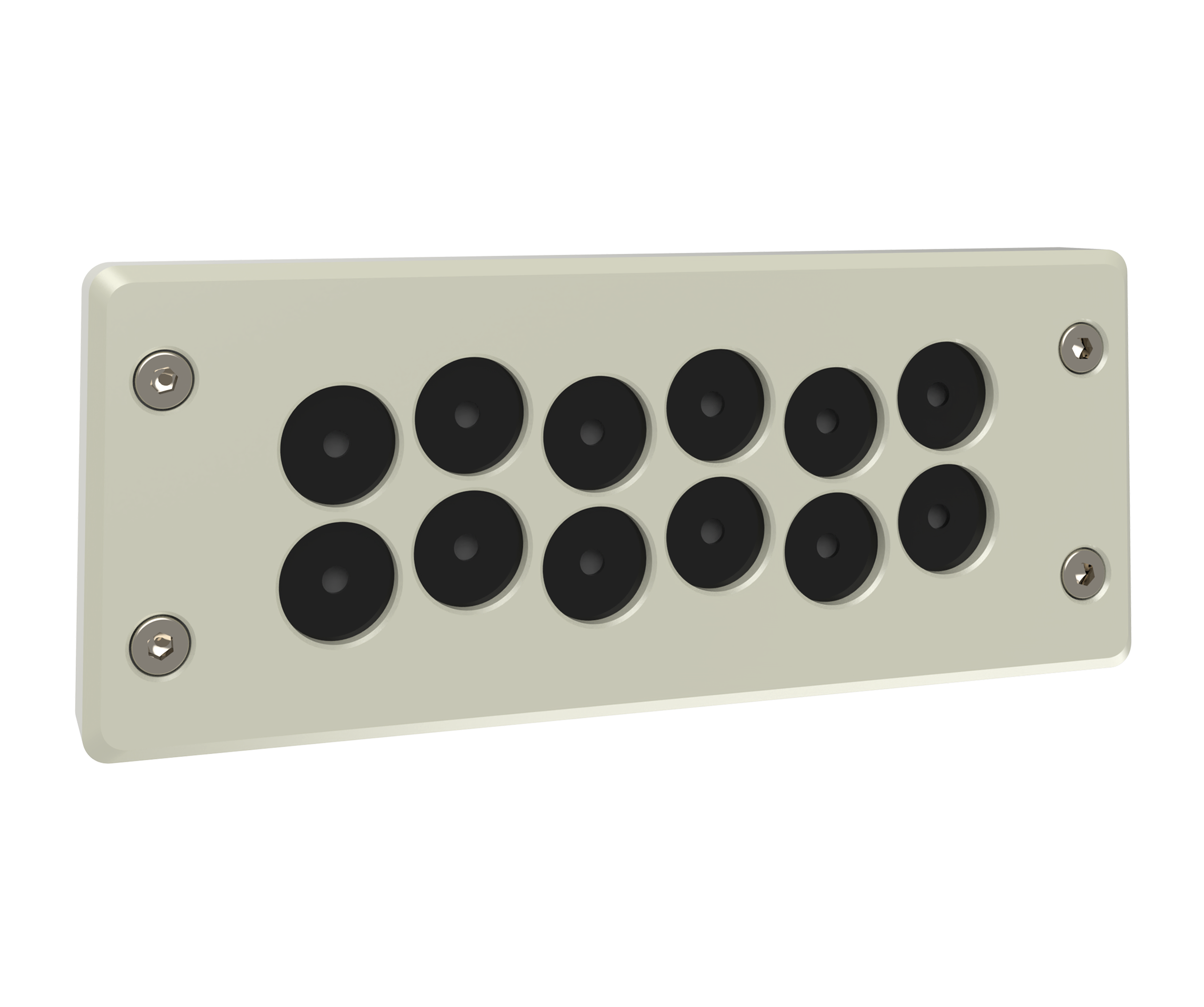

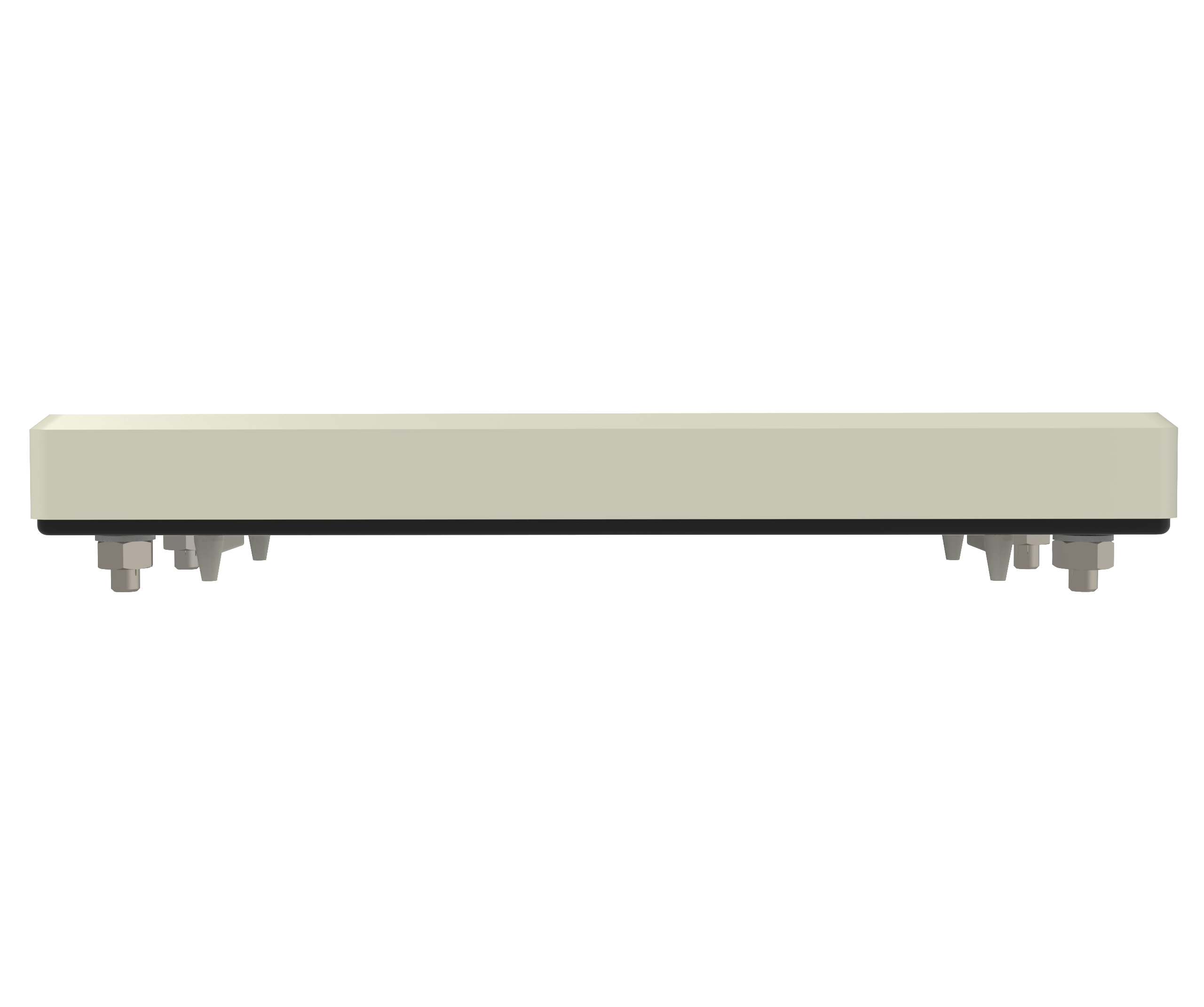

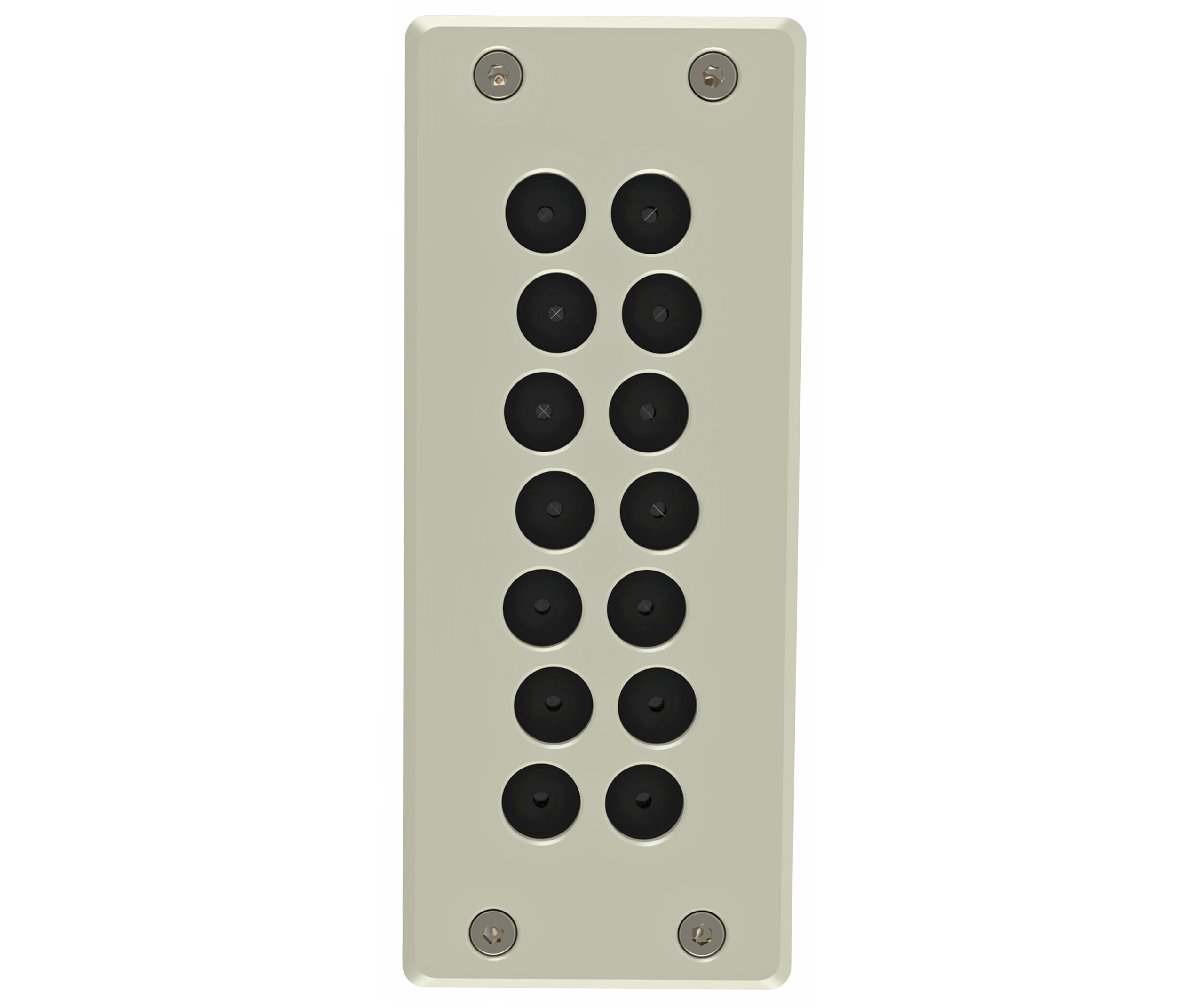

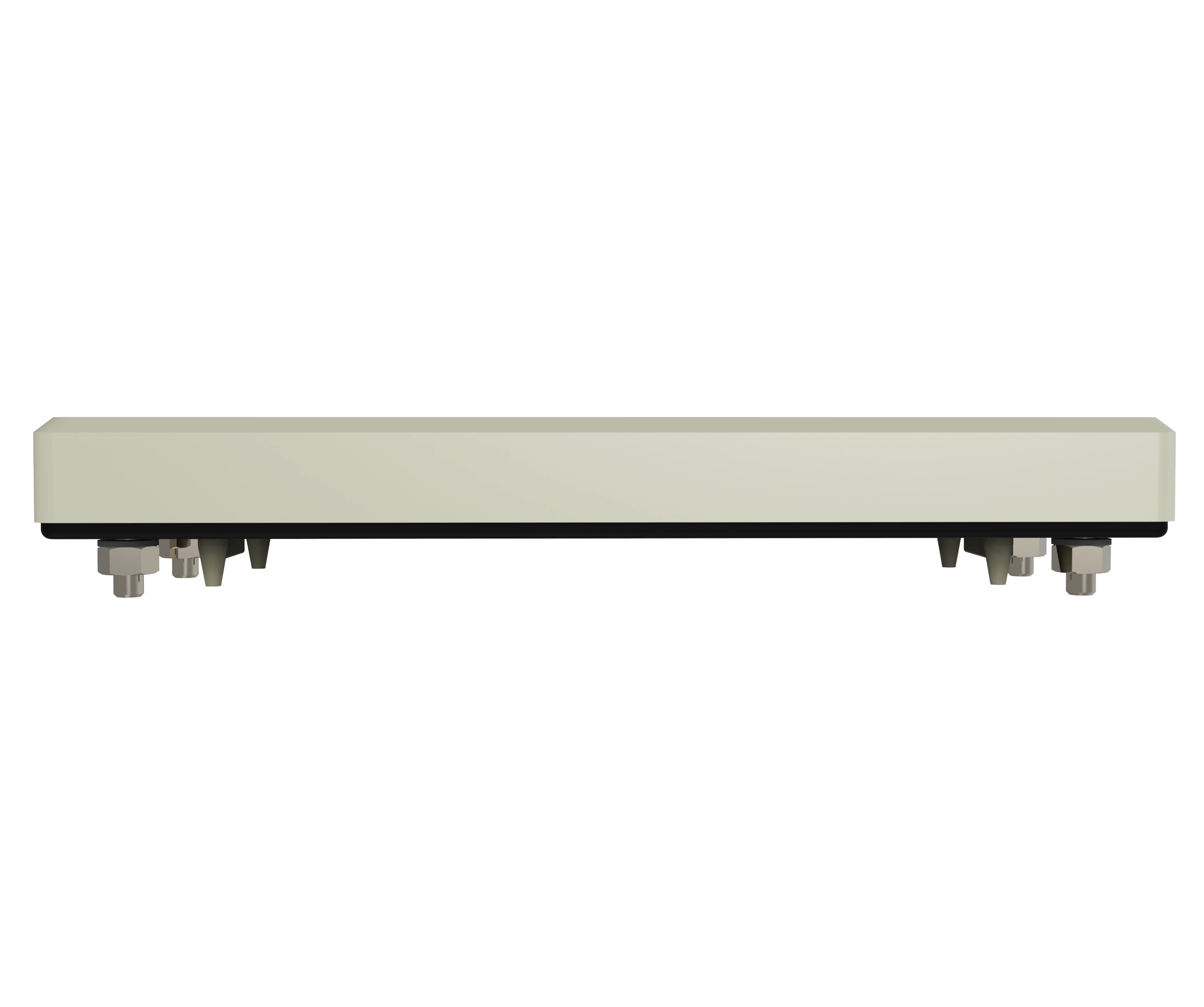

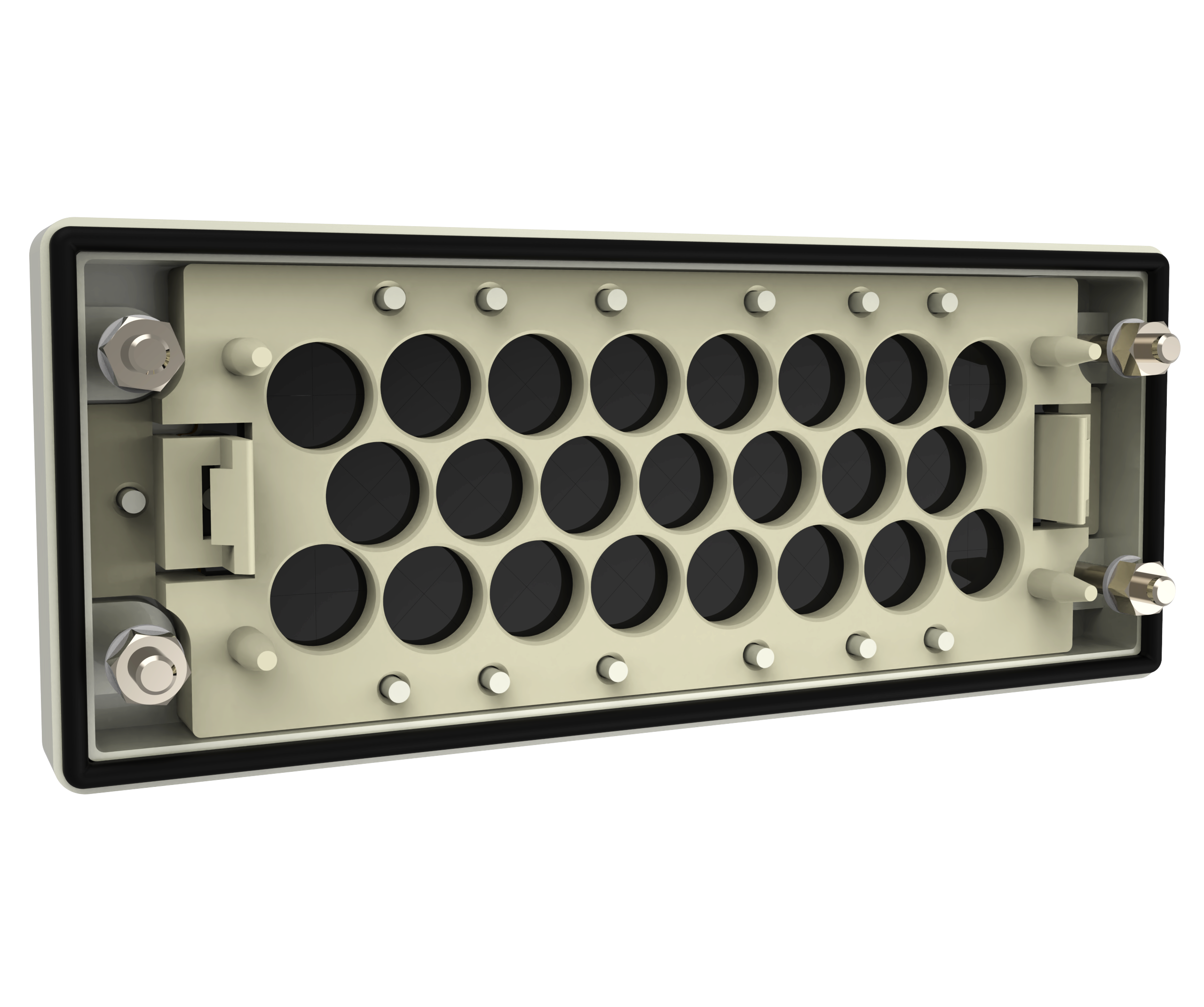

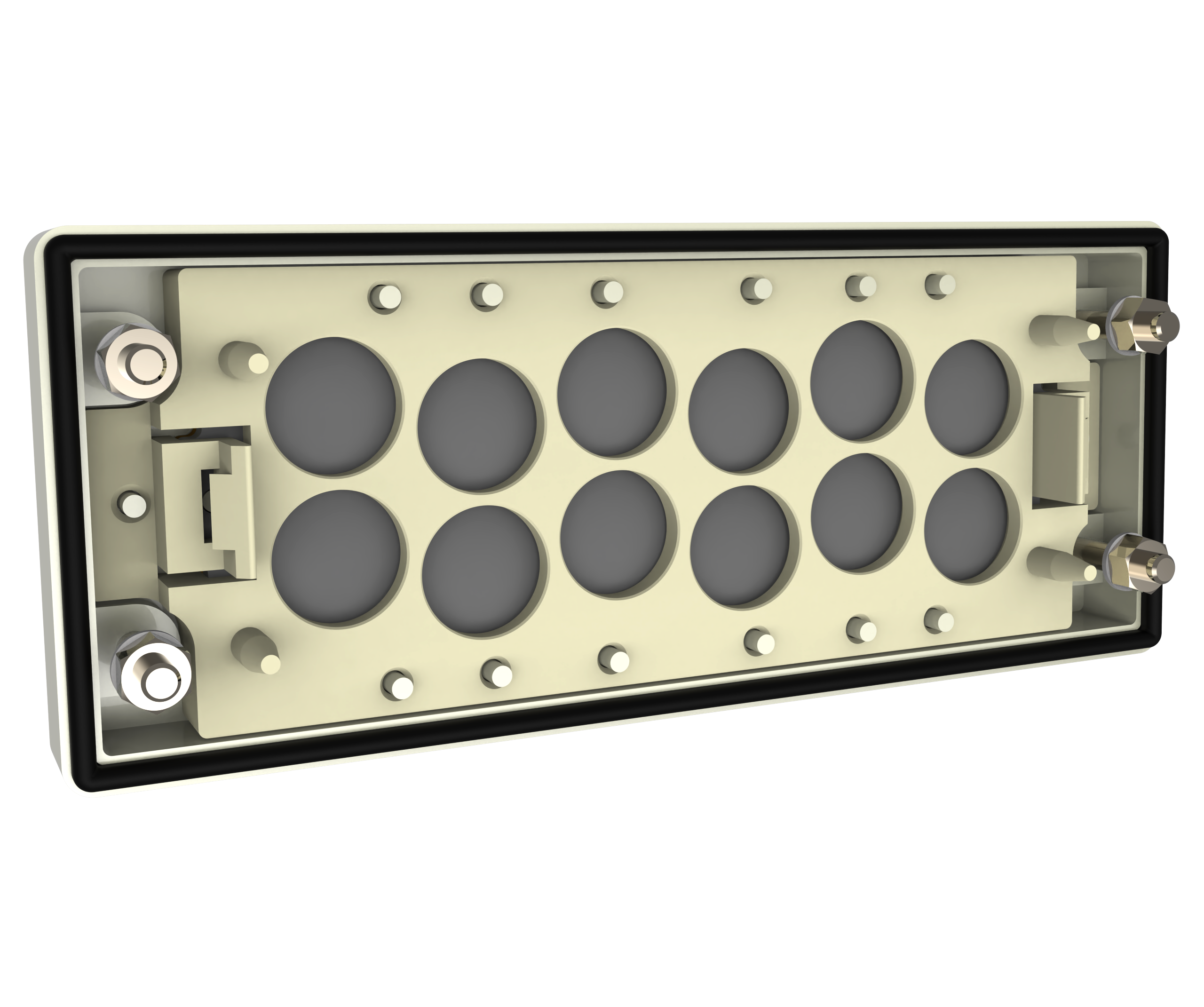

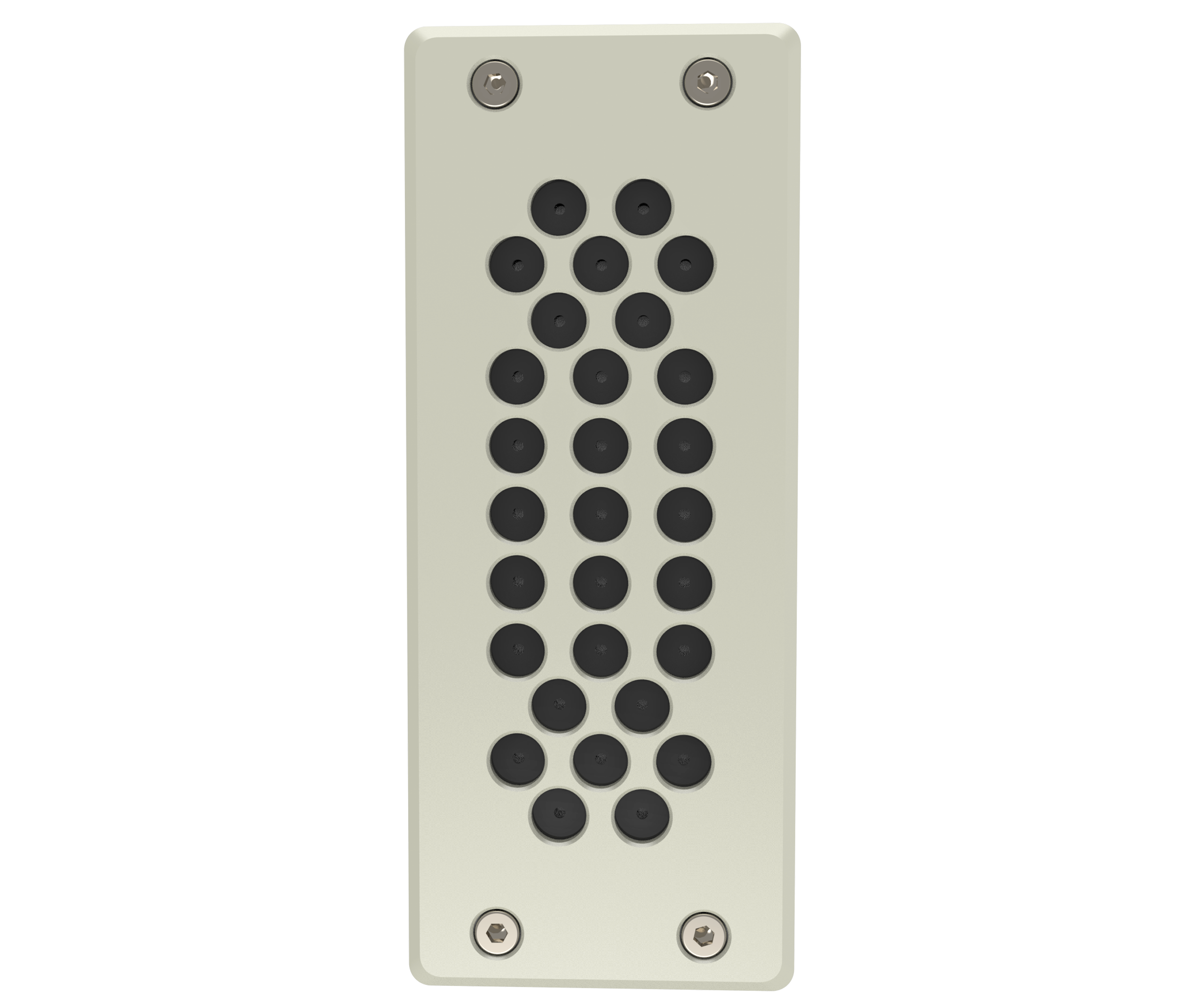

Variants and Clamping Ranges	Blind 12 Ways for Ø4,0mm - Ø13,0 mm cables 14 Ways for Ø5,0mm - Ø11,0 mm cables 22 Ways for 16 x Ø3,0mm – Ø6,5 mm cables 4 x Ø5,0mm – Ø9,2 mm cables 2 x Ø8,0mm – Ø12,5 mm cables 23 Ways for Ø4,0mm - Ø8,5 mm cables 29 Ways for Ø4,0mm – Ø7,0 mm cables
Enclosure Cut Out	112x36mm
Accessories	M4x0,7x20 mm Fitted with M3 Allen Head
Overall Dimensions	148x60x13,5 mm
Remarks	*covers all diameters larger than 5.0 mm up to specified maximum diameter
