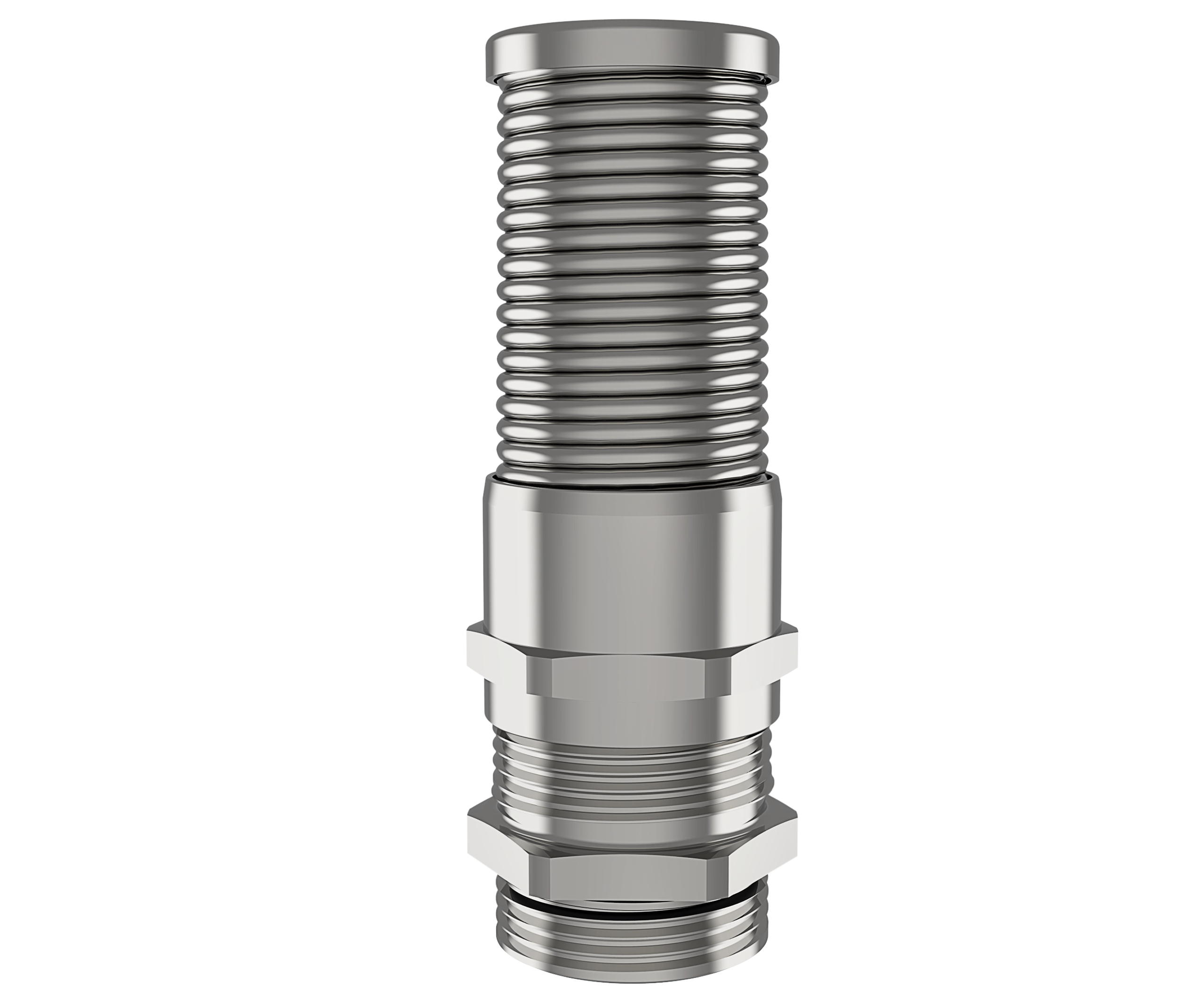

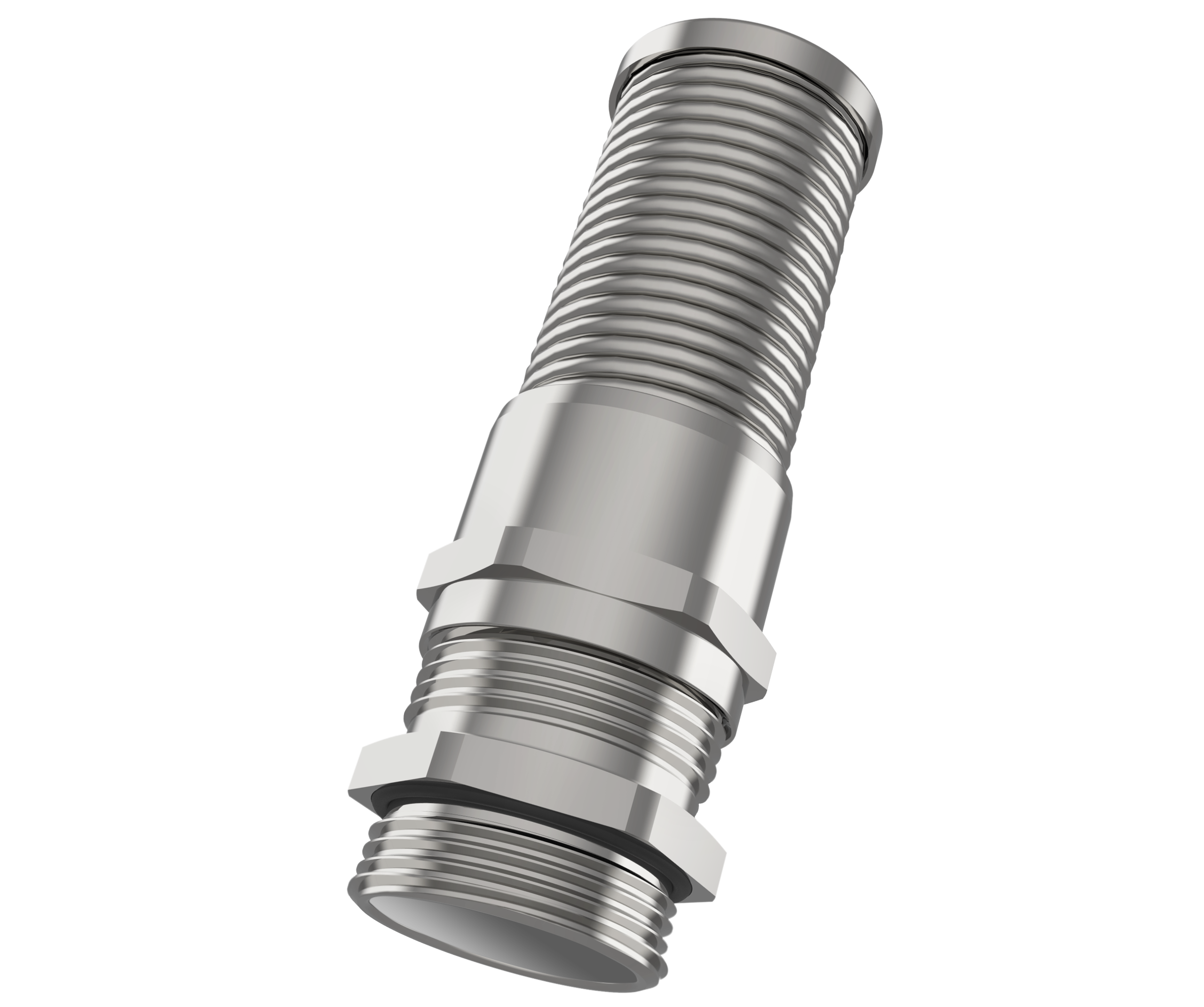

EMC Protection Cable Glands

For cable bending protection.

Specially designed EMC protective cable glands.

Long-lasting contact by high definition contact spring.

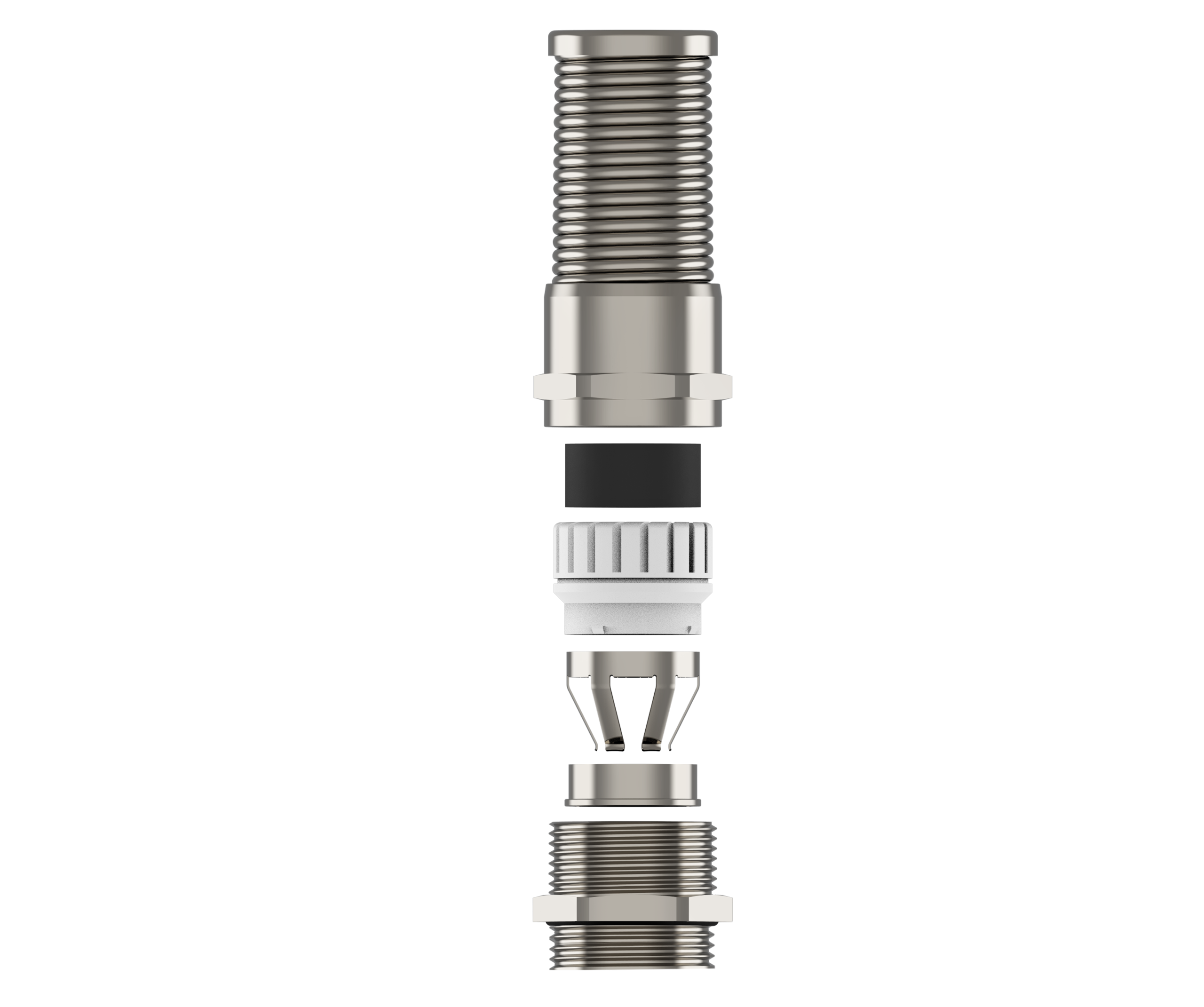

Easy assembly: install cable gland-prepare cable sheath-insert cable-fighten cap.

High quality strain relief and sealing, reliable performance for EMC applications.

Cap/Body Material	Nickel Plated Brass
Seal Material	Neoprene (Chloroprene)
Clamping Insert Material	Polyamide 6 V2 acc. to UL 94
Bending Spiral	Stainless Steel
Contact Spring Material	Special Copper Alloy
O-Ring Material	NBR
Ingress Protection Rating	IP68 - 5 Bar 30 min, IP69, IP66
NEMA Type Rating	1, 4, 4X, 12, 13
Temperature Range	Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C
Thread Type	Metric
Cable Type	Shielded

Accessories	EMC Locknuts Dome plugs Gaskets (Washers)
Remarks	In compliance with DIN EN 62444. We recommend the use of threaded holes and/or the use of special EMC lock nuts to ensure high quality EMC contact quality. Some approvals do not cover all sizes.O-ring available in Metric as a standard. All accessories must be ordered separately.
