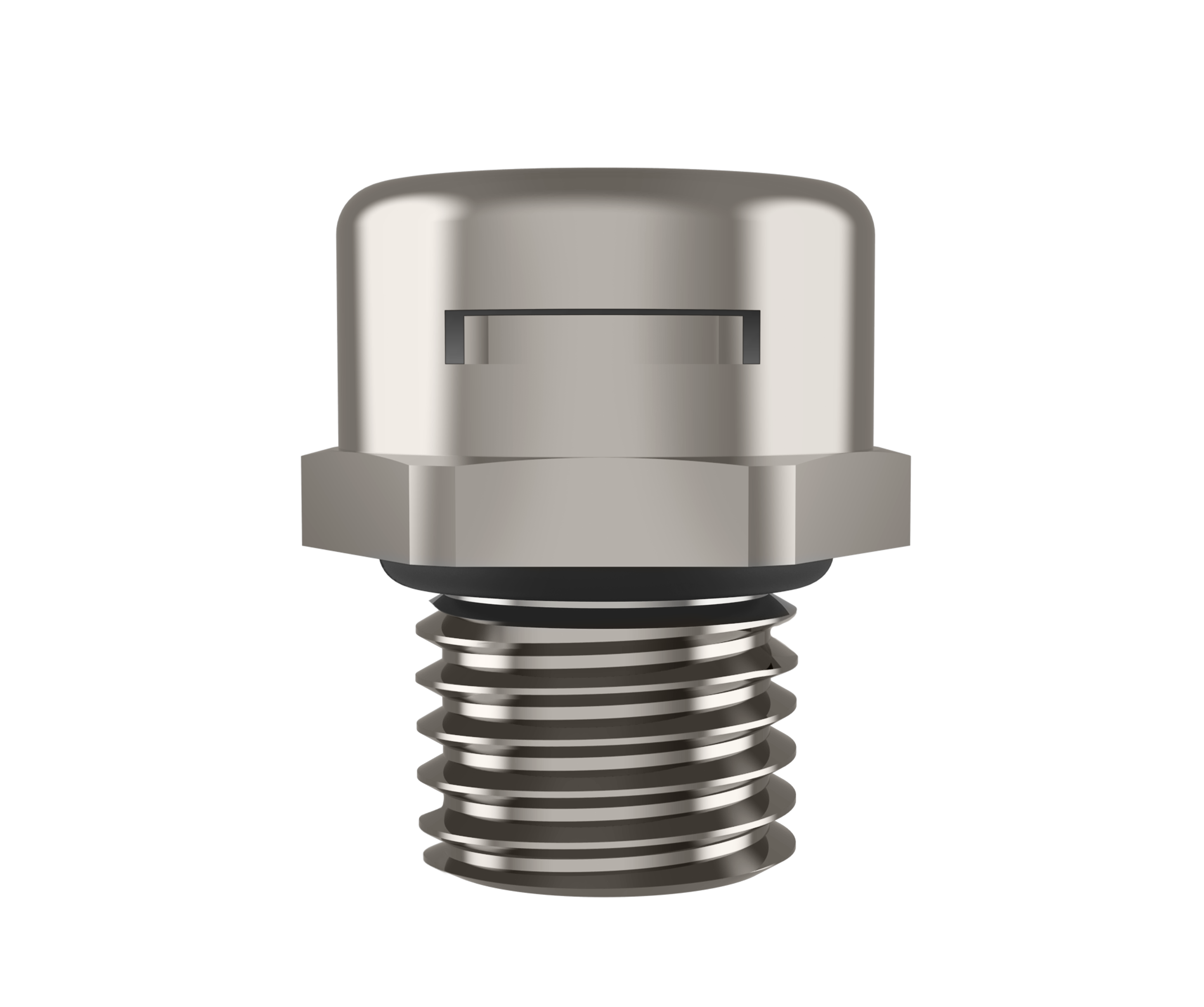

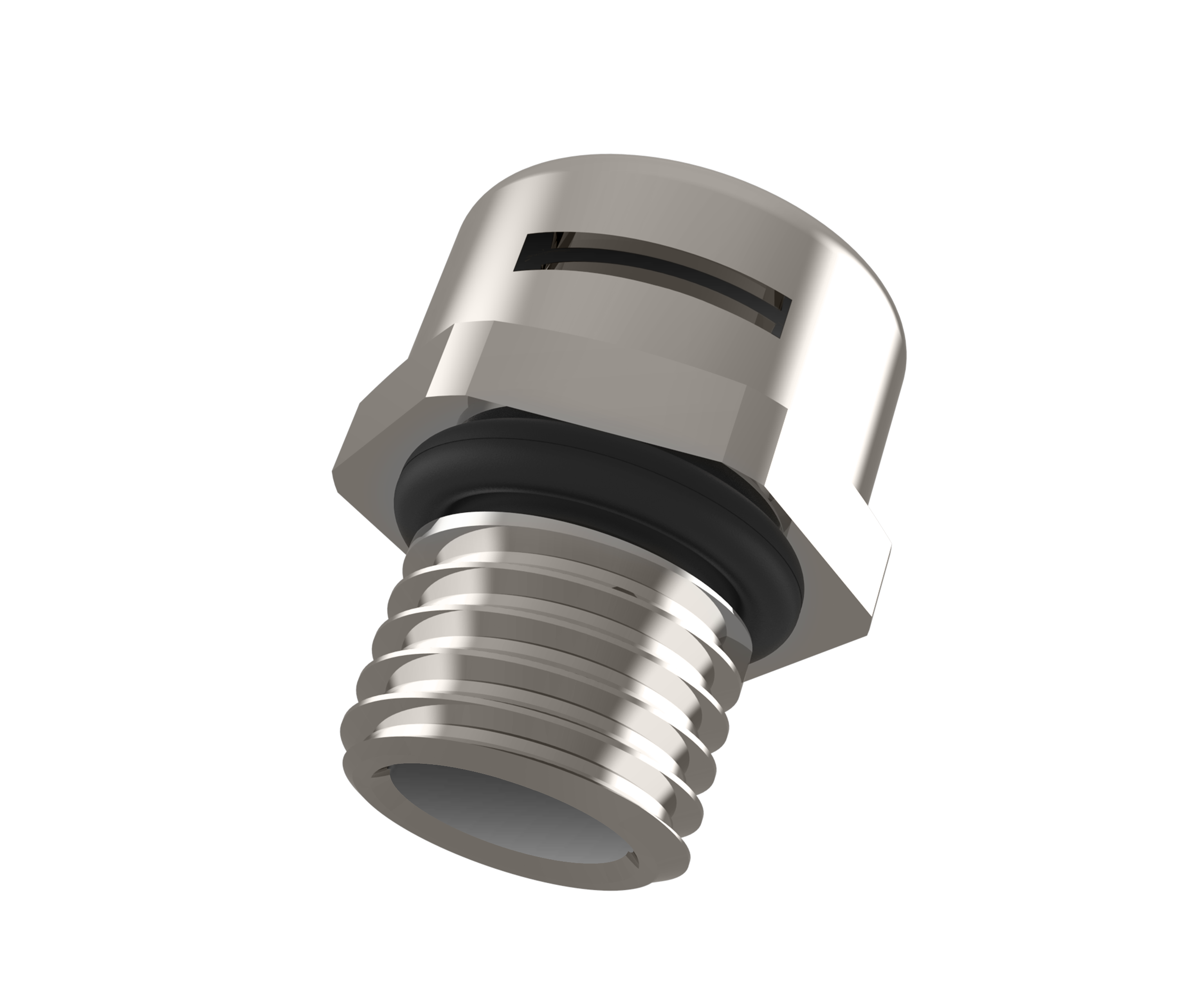

Hydra

For applications in explosive environments.

Drains condensed water in the housing.

Helps to avoid any potential damage to sensitive electric/electronic equipment in the housing due to condensed water.

Allows air in the housing to breathe with the surrounding atmosphere.

Compliant with Ex eb and Ex tb safety standards.

Certified to ATEX and IECEx standards with additional global approvals available (see technical for full list).

Cap/Body Material	Stainless Steel
Seal Material	NBR
Application	Zone 1, Zone 21, Zone 2, Zone 22
Equipment Group	Group II, Group III
Equipment Marking	EX II 2GD Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	S,M,H Membrane : IP66, IP68 UH Membrane : IP64
Temperature Range	-40°C to +100°C
Thread Type	Metric, NPT
	Other thread types available upon request.
Accessories	Lock nuts, Gaskets (Washers)
Remarks	Oring available in Metric outer threads.
	All accessories must be ordered separately.
	Standard marking includes ATEX, IECEx and Group II,III info.
	For other special certificate marking requests, please contact us.
	Some approvals do not cover all sizes, check datasheets for details.
	Other thread types available upon request.

NPT PG
