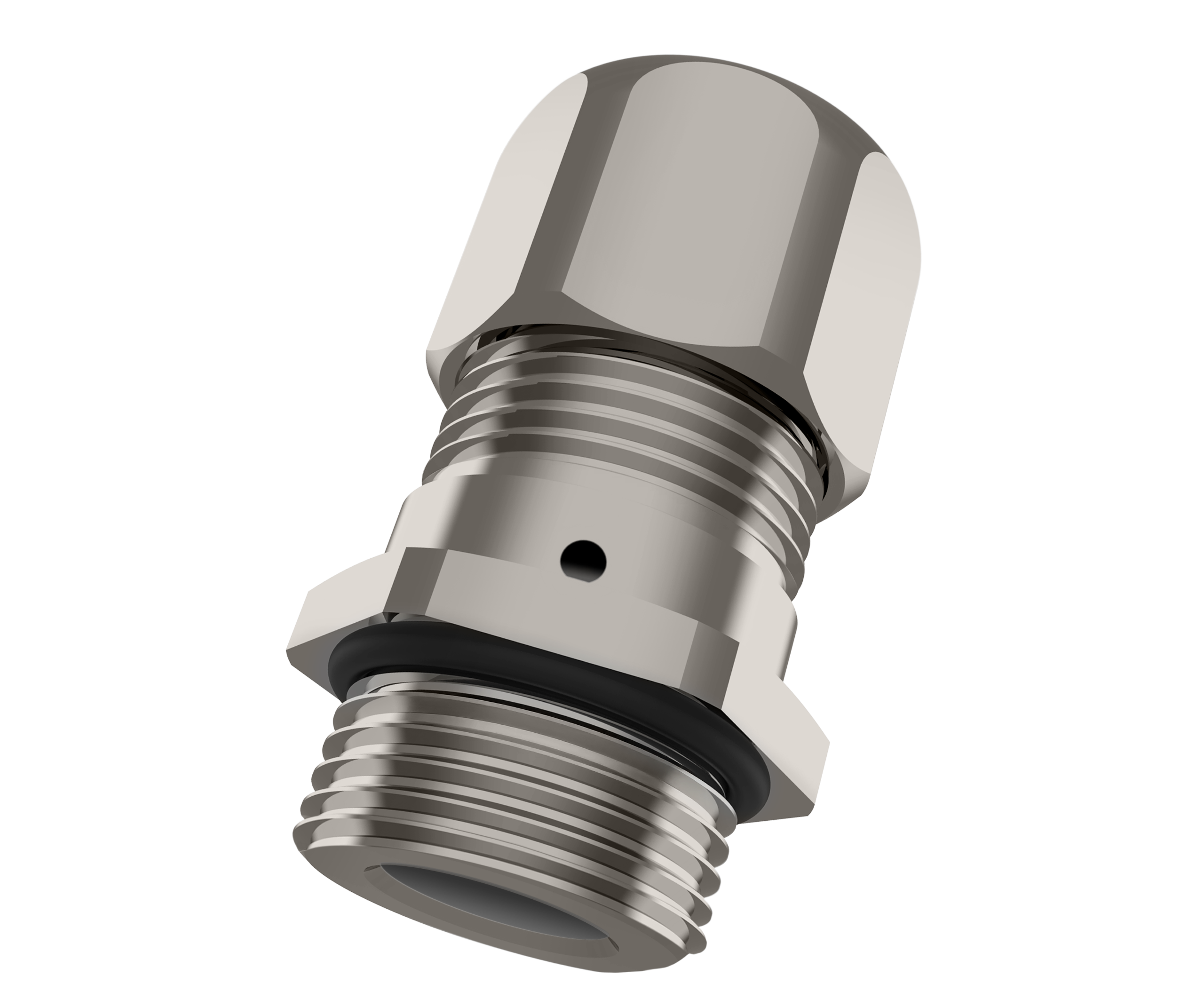

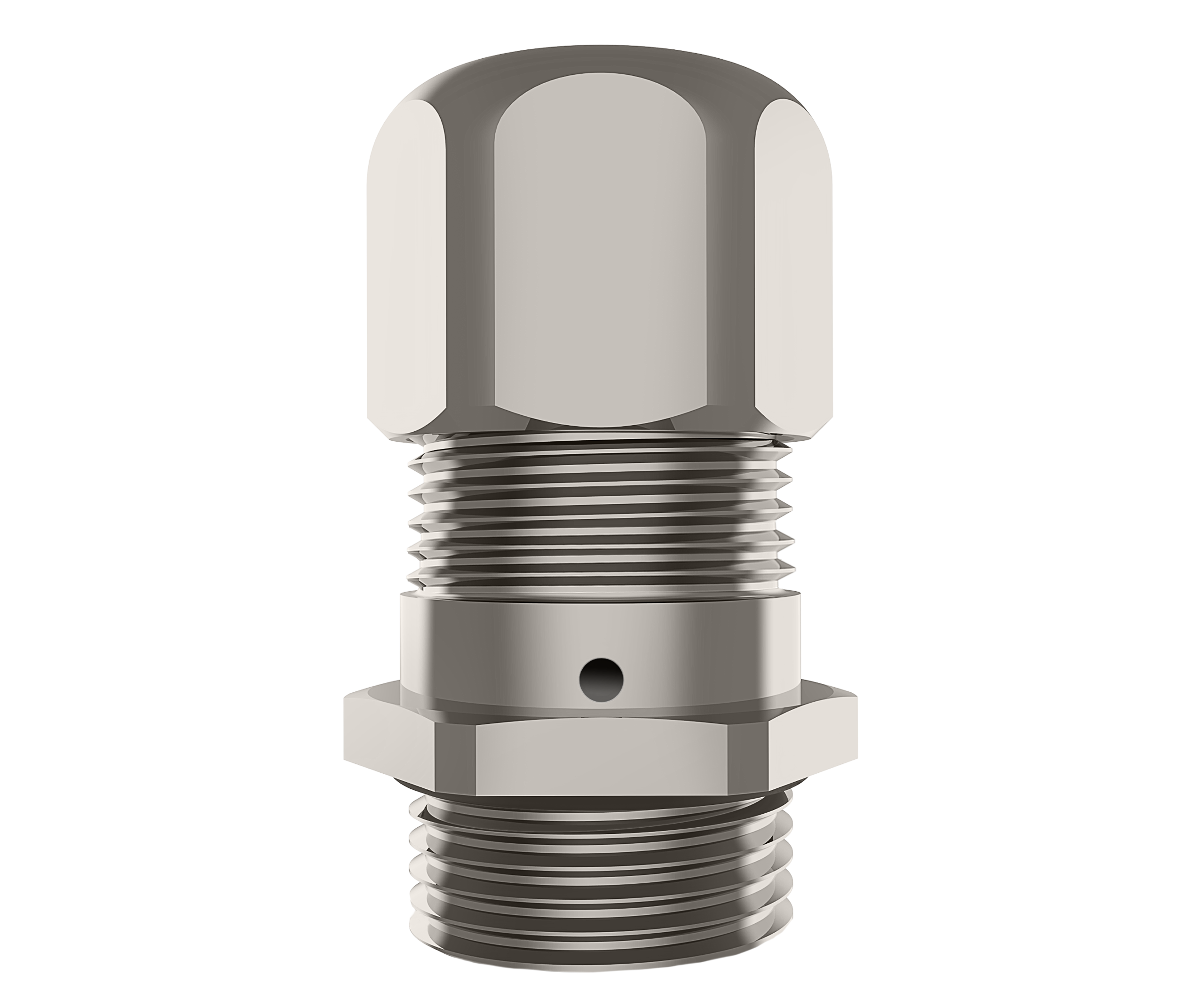

Fornax

Combines cable gland and pressure balance element

Balances pressure differences, prevents damage and condensation

Hydrophobic and oleophobic membrane

ATEX/IECEx certified along with various other approvals - see full technical details.

Available in brass, nickel plated brass or stainless steel with both Metric and NPT threadforms.

Other threadforms available on request.

Suitable for use in	Group II, Group III
Equipment Marking	EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Cable Gland Material	Brass, Brass Nickel Plated, Stainless Steel
Seal Material	Chloroprene
Operating Temperature	Chloroprene: -60°C to +80°C
Thread Type	Metric, NPT
	Other thread types available upon request.
Cable Type	Non Armoured
Accessories	Lock nuts, Gaskets (Washers), Serrated Washers, Earth tags
Remarks	Accessories must be ordered separately. O-ring available in Metric outer threads.
